Metrology fixture
Garage workshop inventory & tools - Automotive diagnostic equipment
SKU: SSMIAUD1-00003451
Product information
Brand: Unknown
Type: Unknown
Year of build: Unknown
Material: Unknown
Documentation: No
Condition: Used
Additional information
Product status:
Available

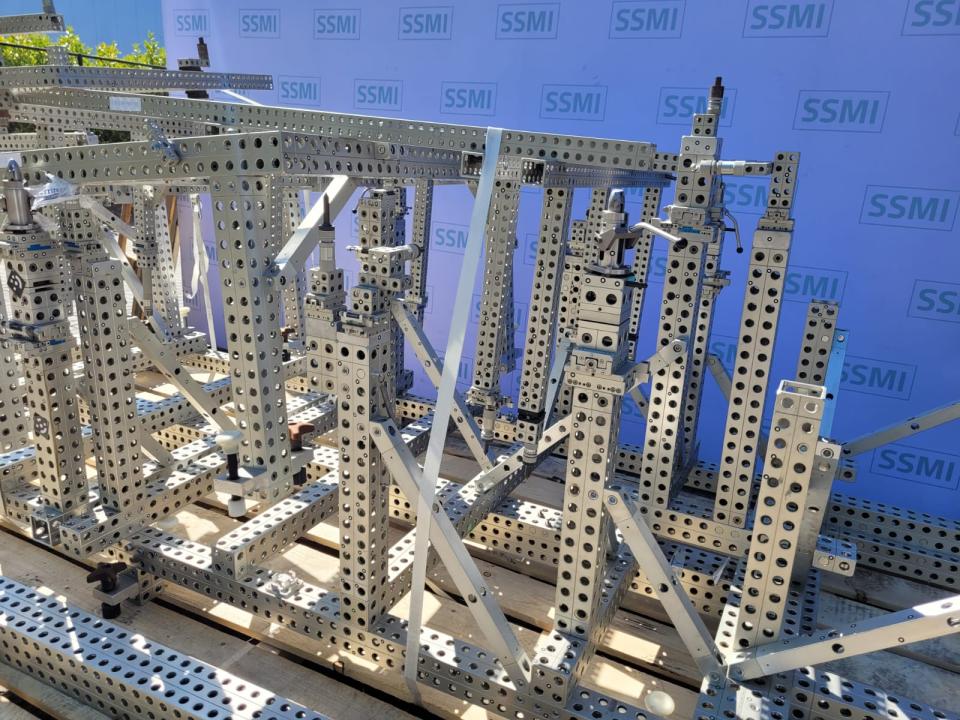

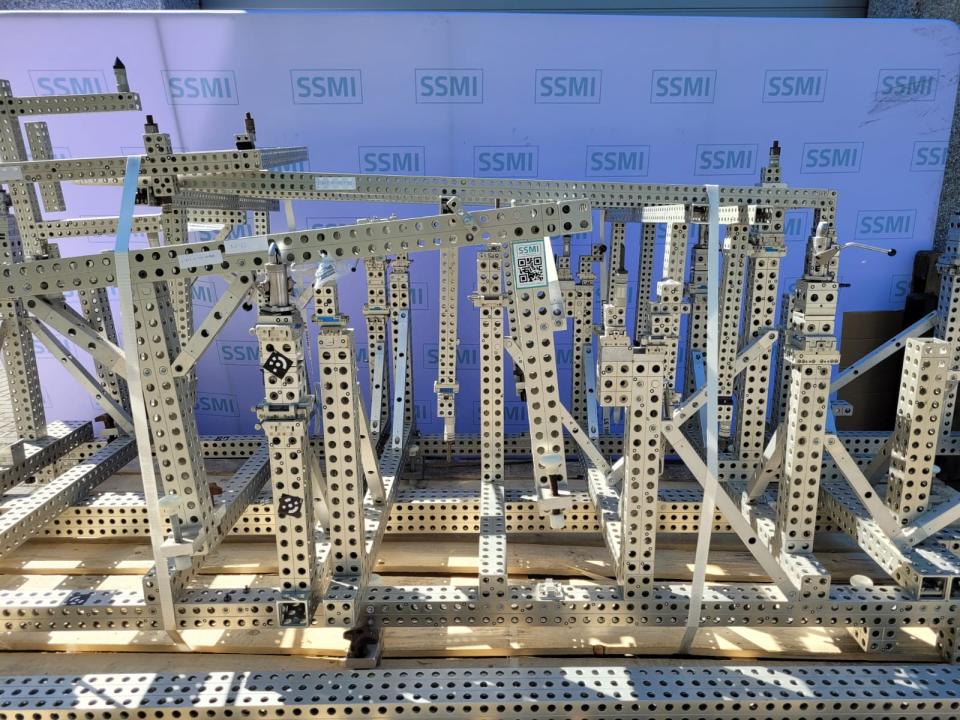

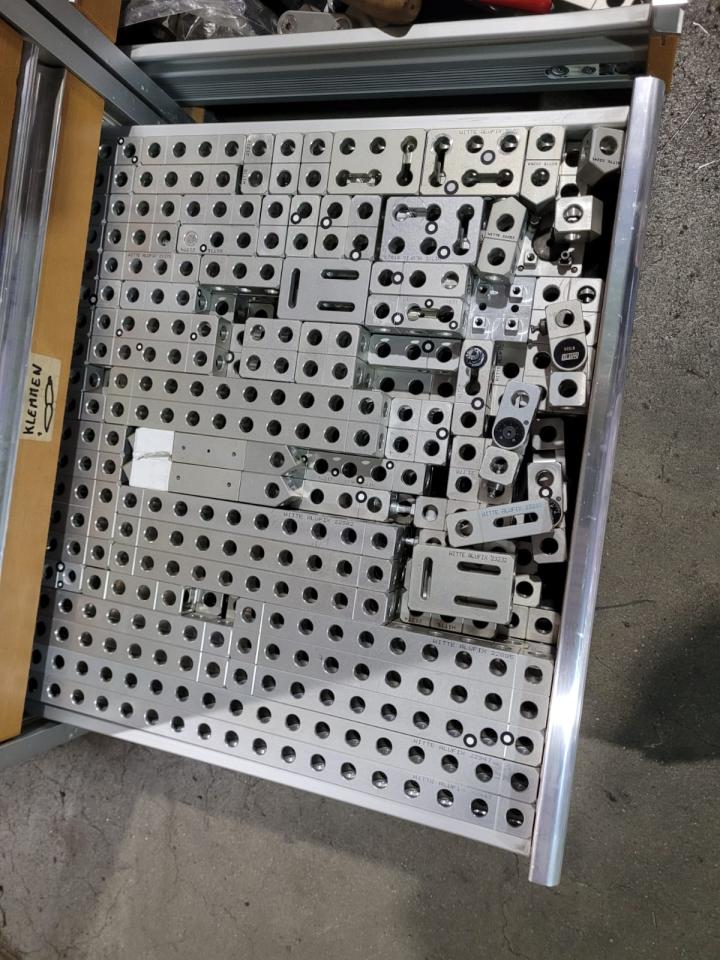

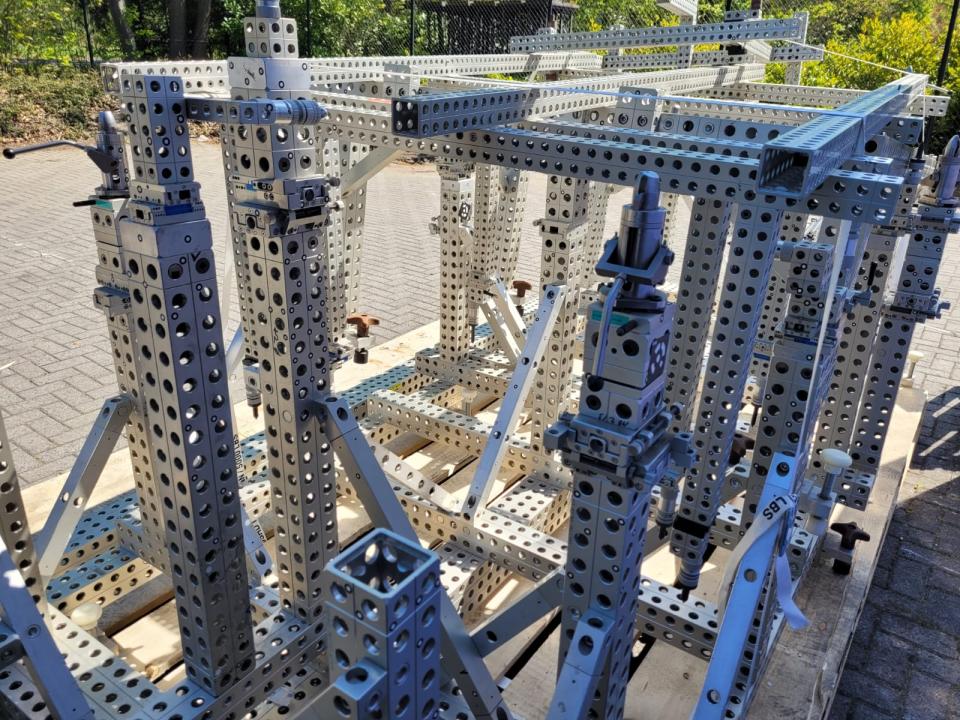

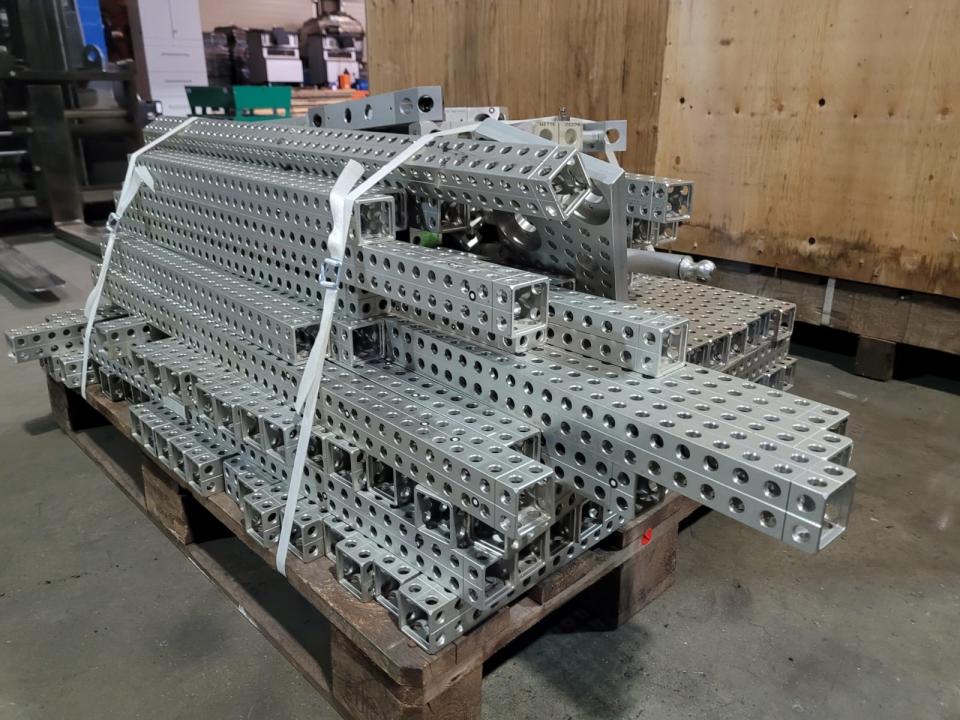

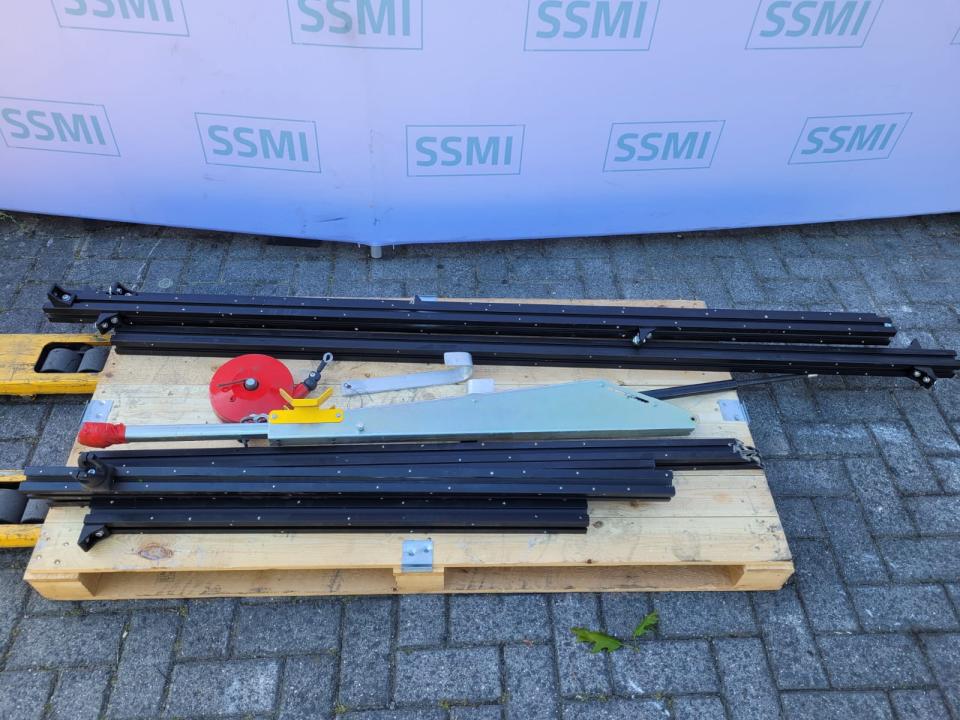

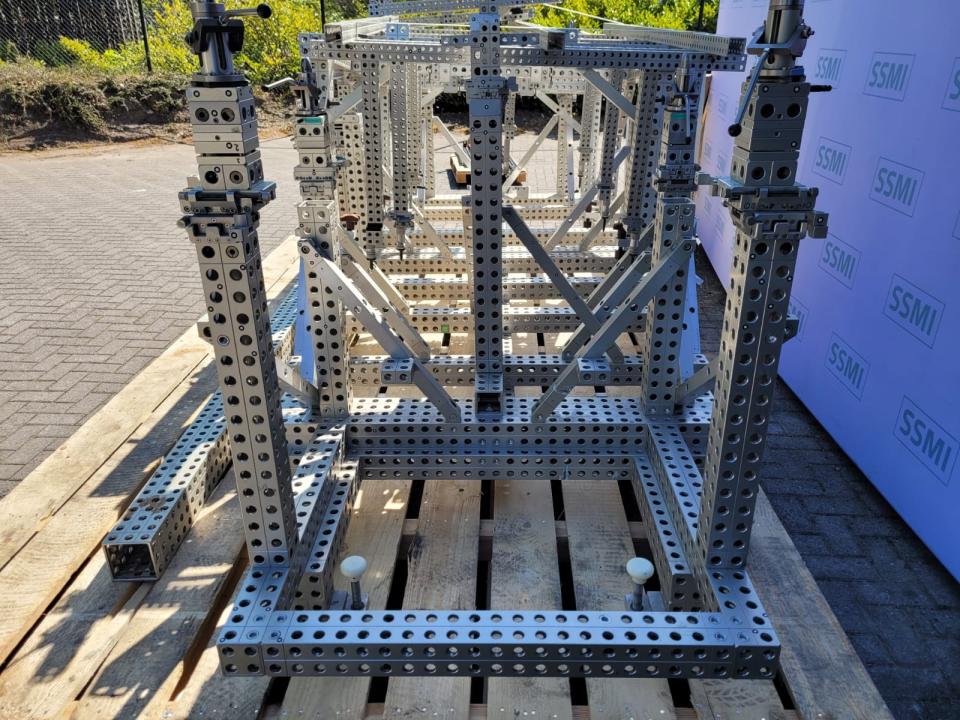

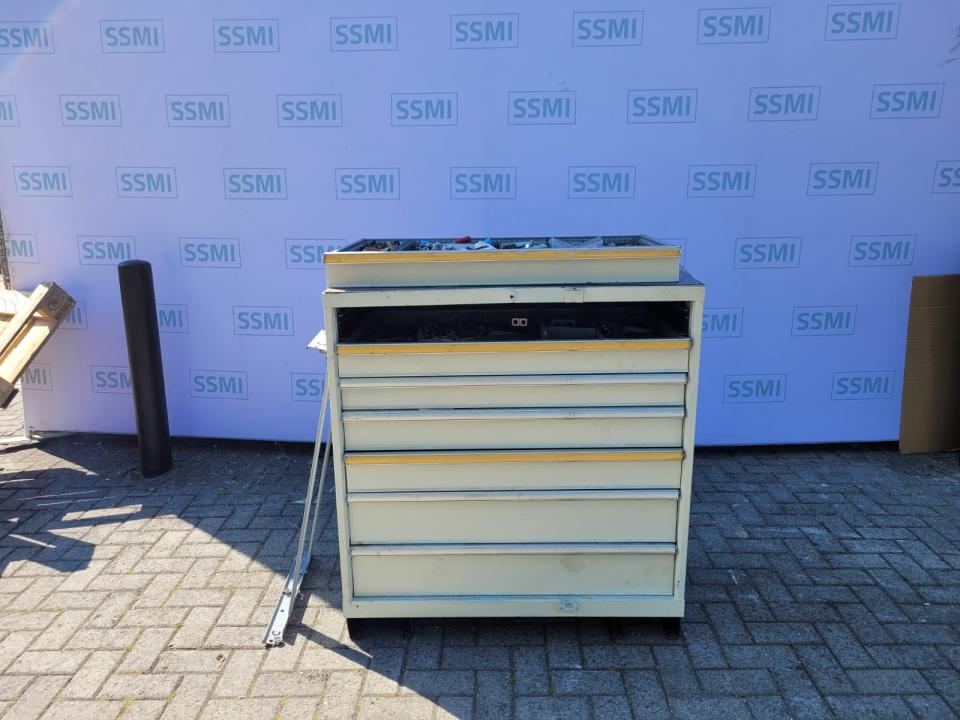

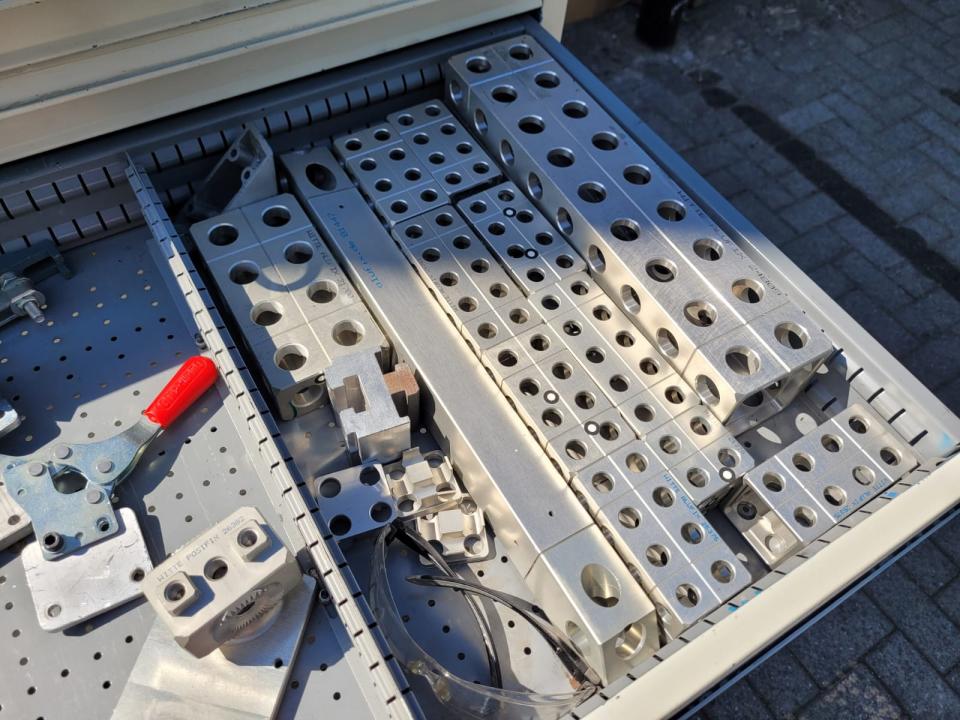

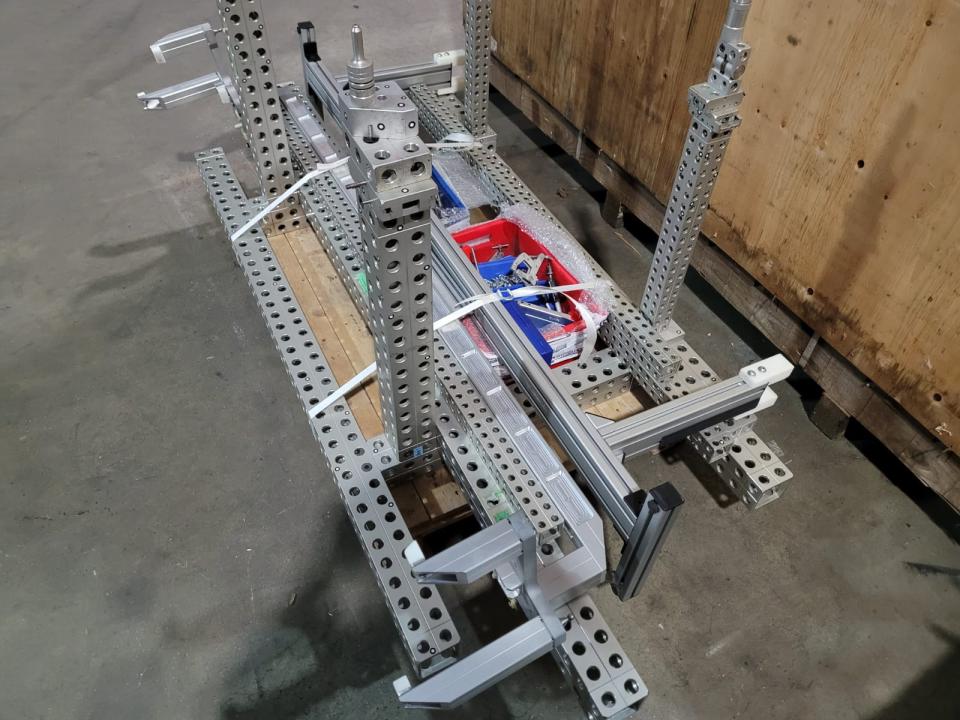

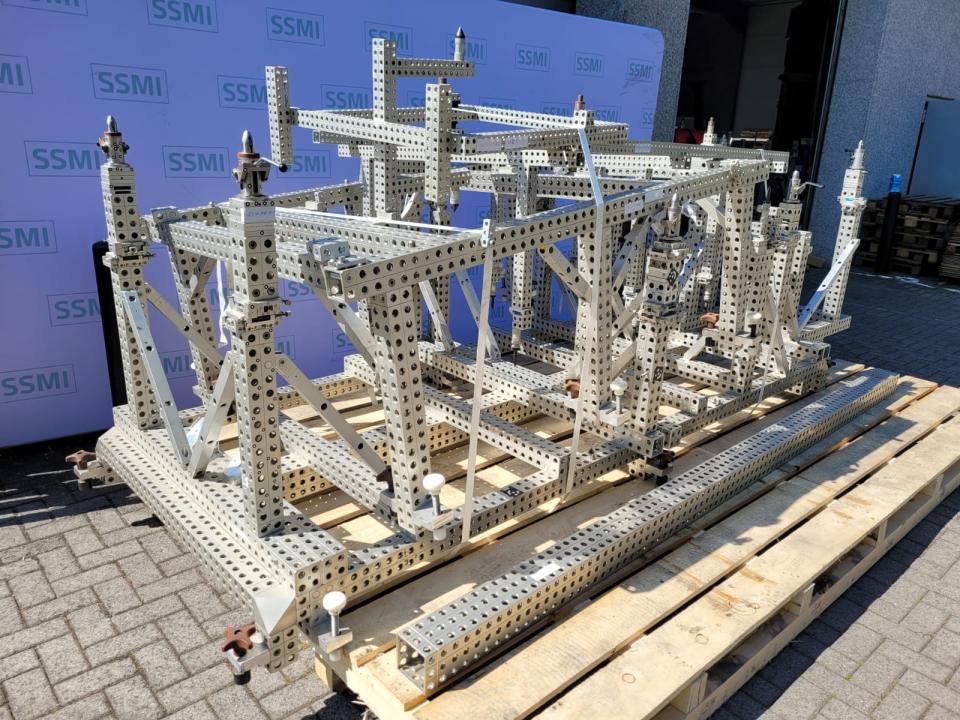

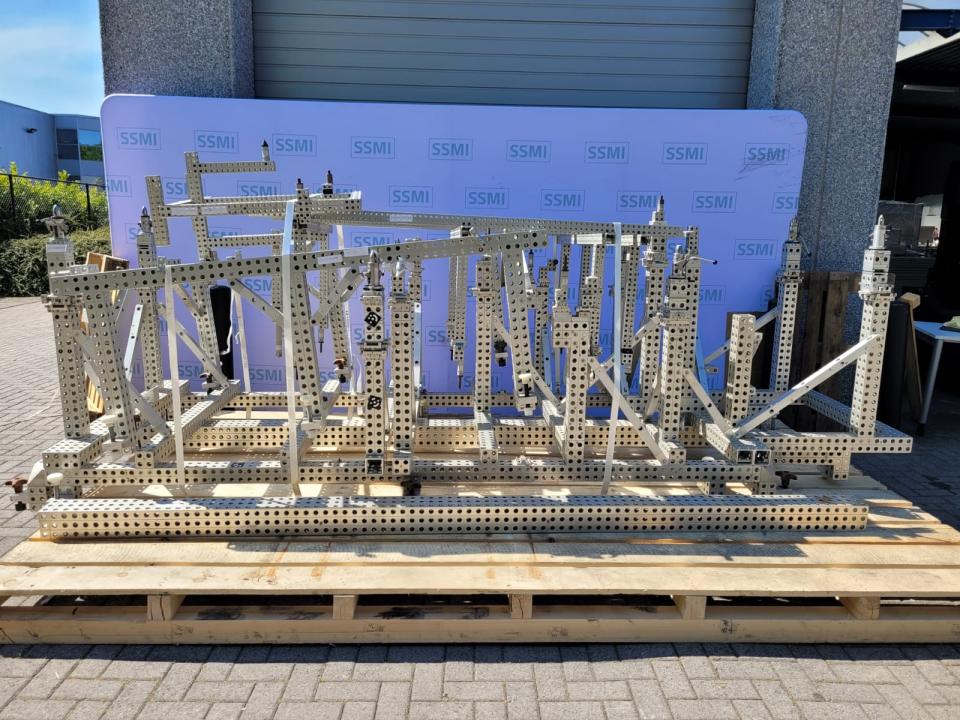

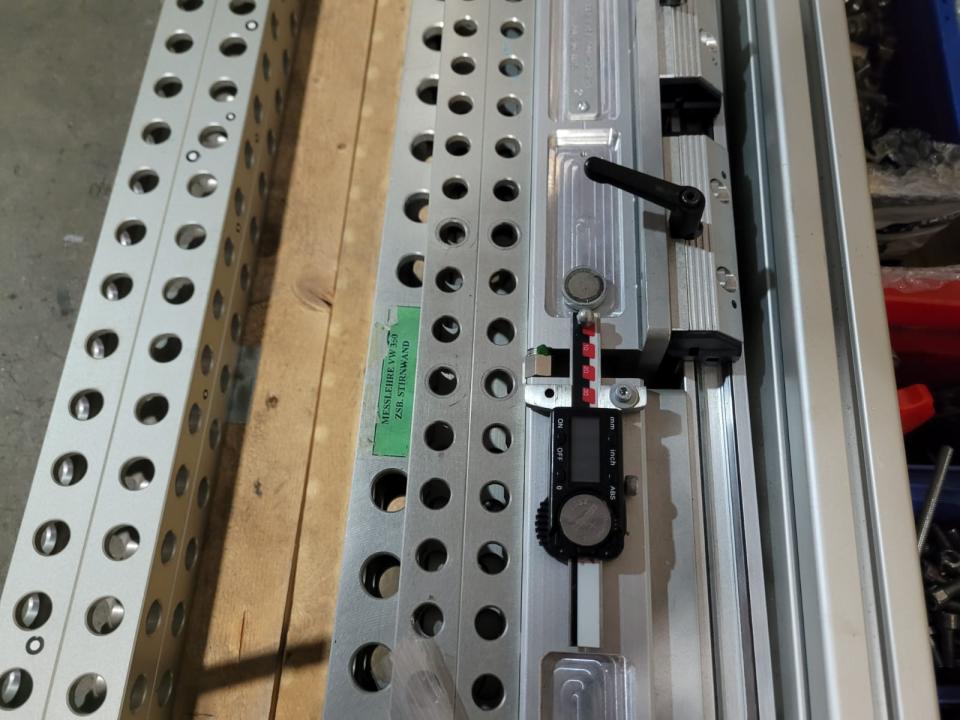

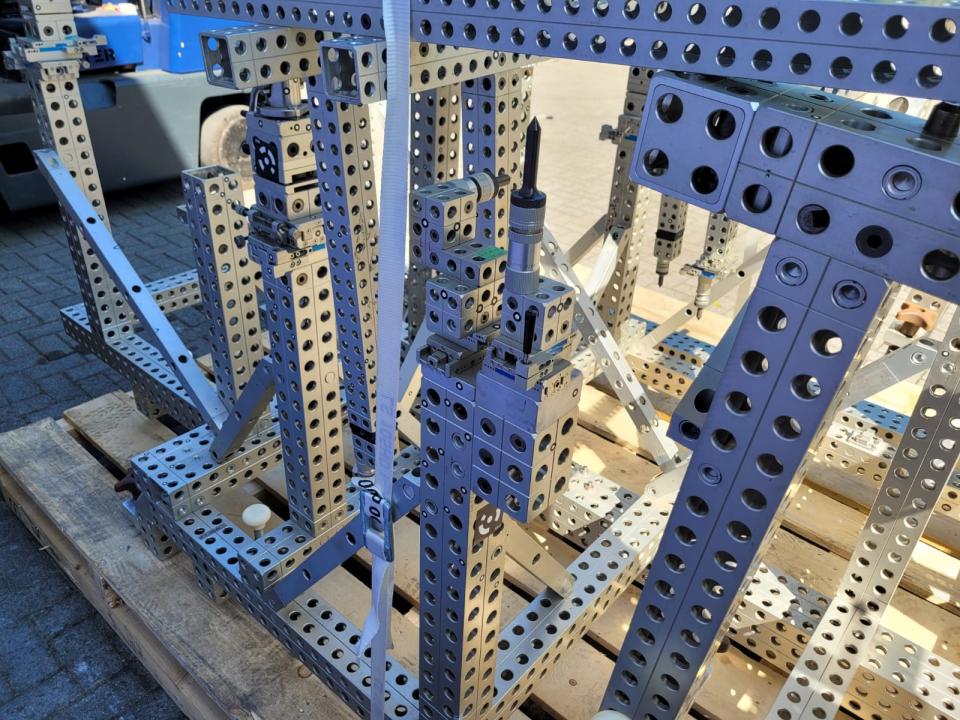

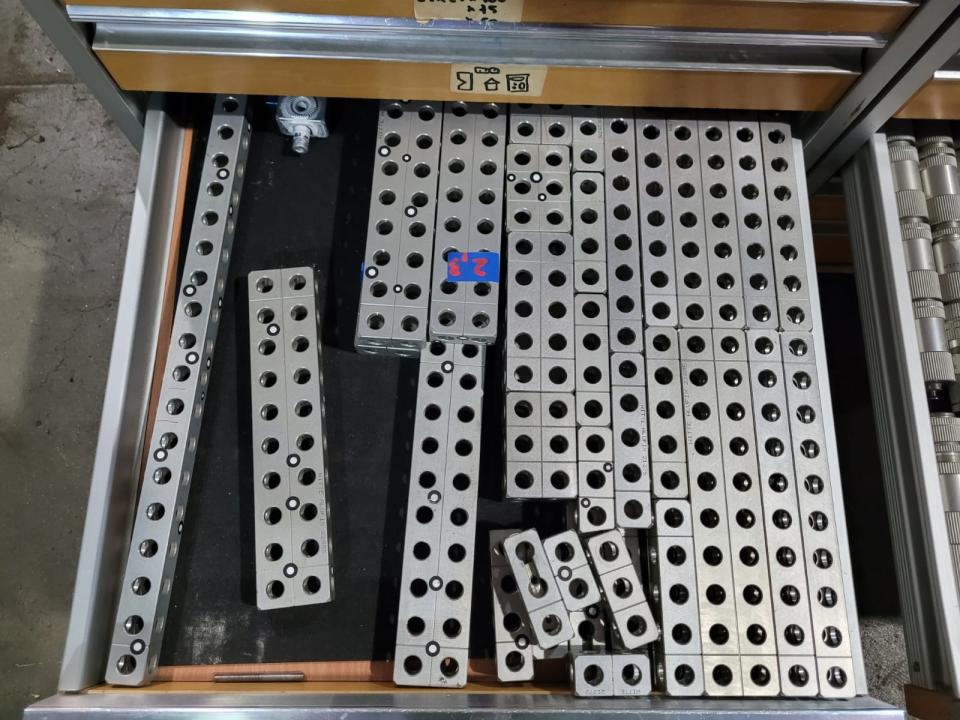

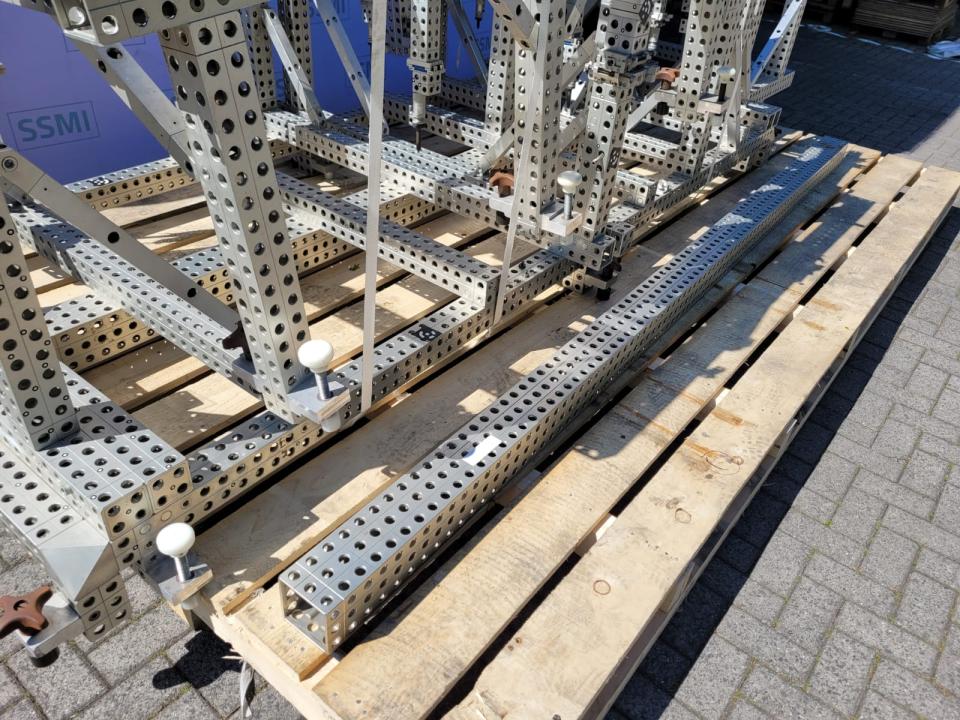

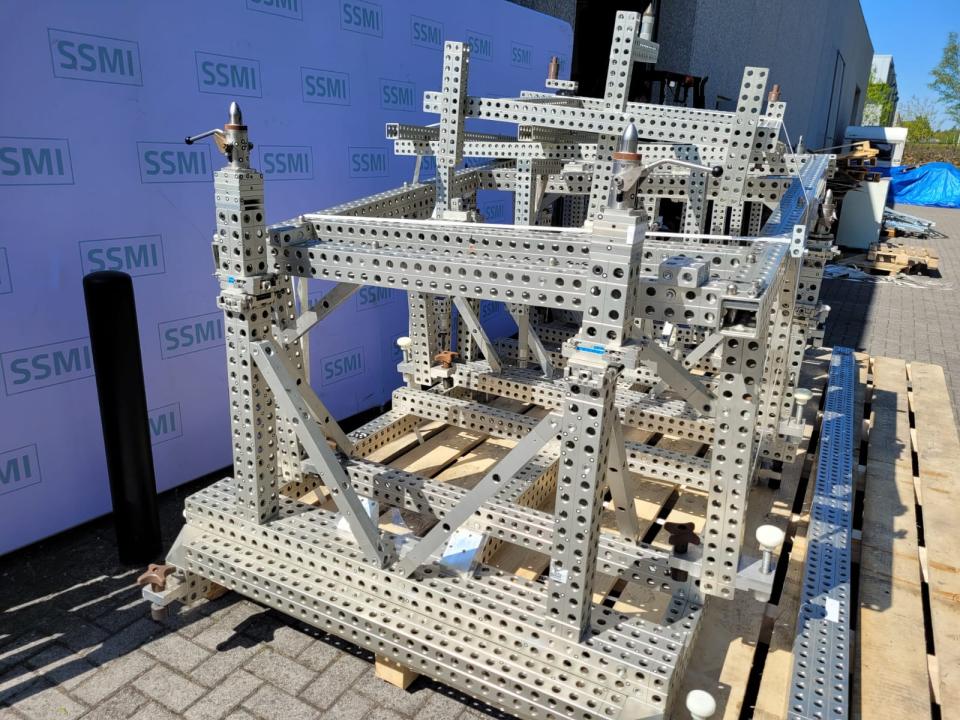

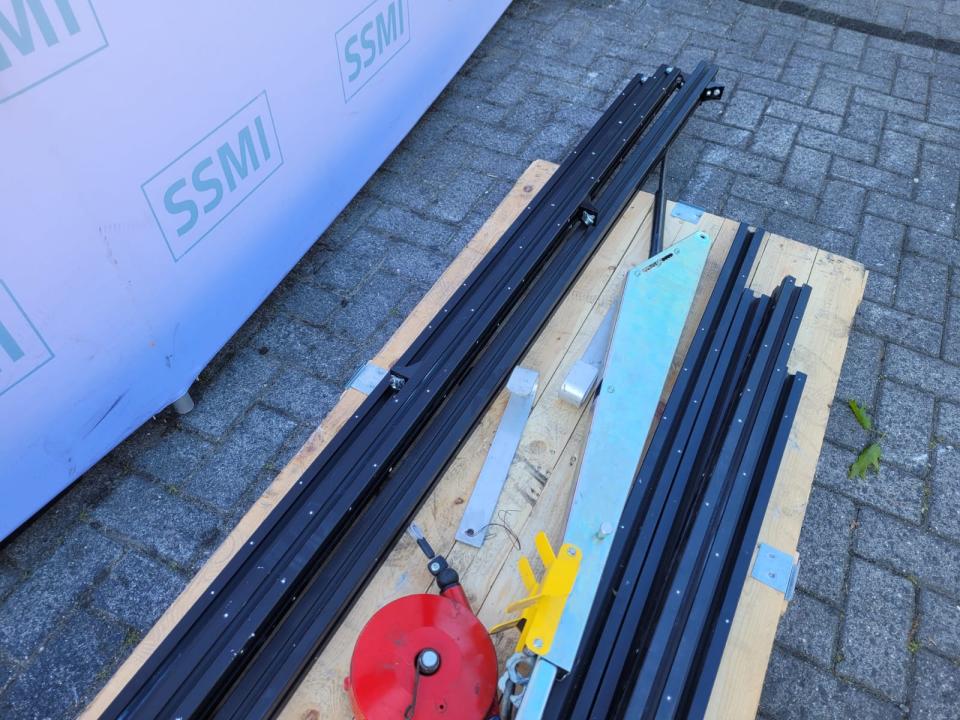

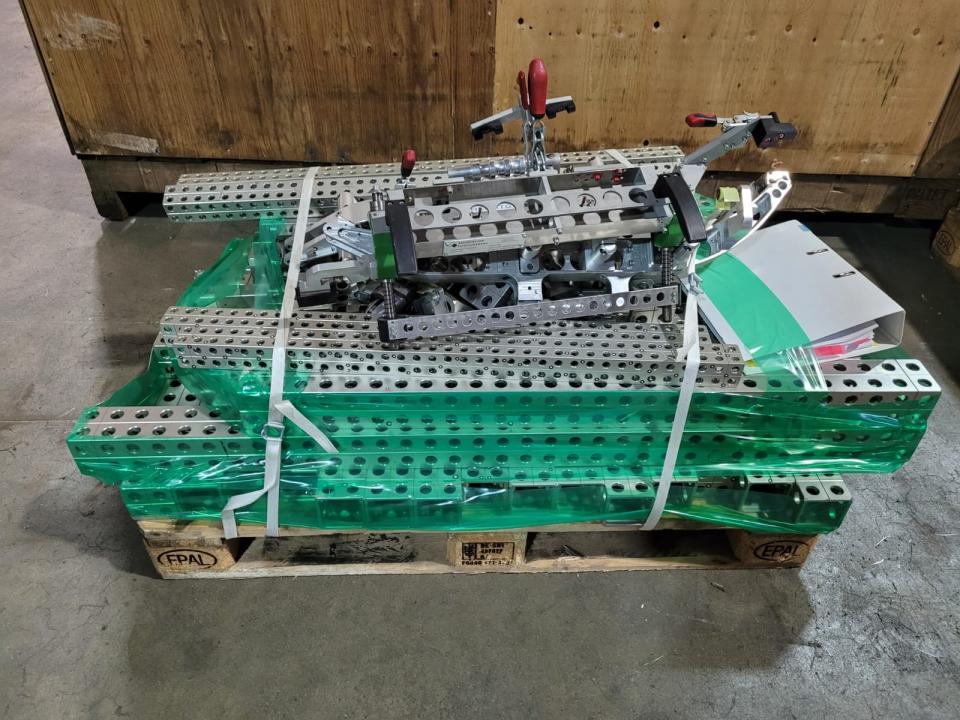

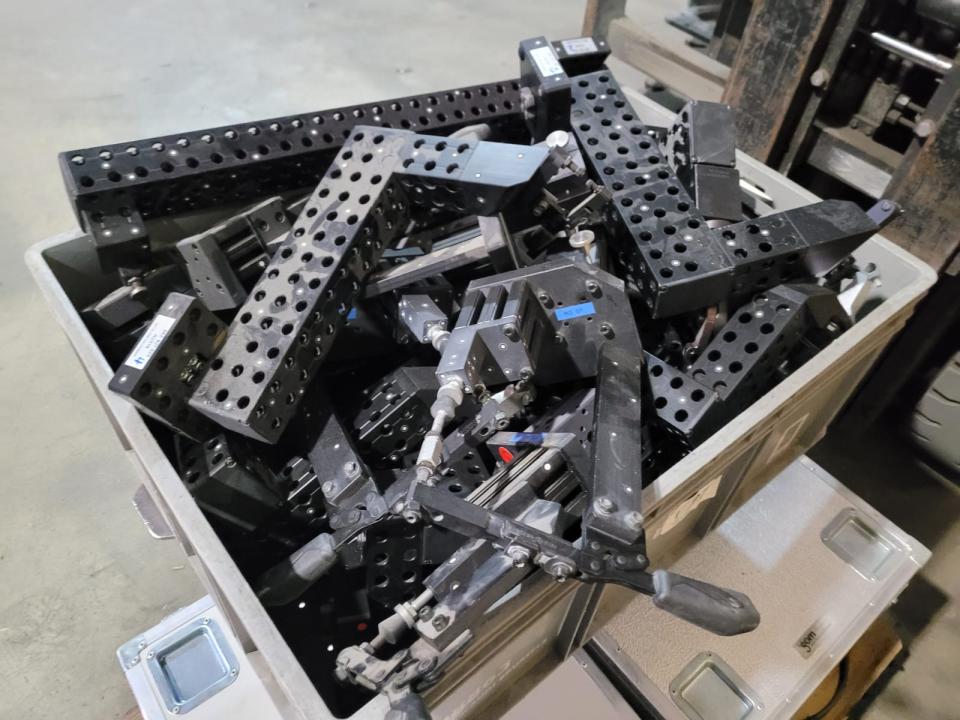

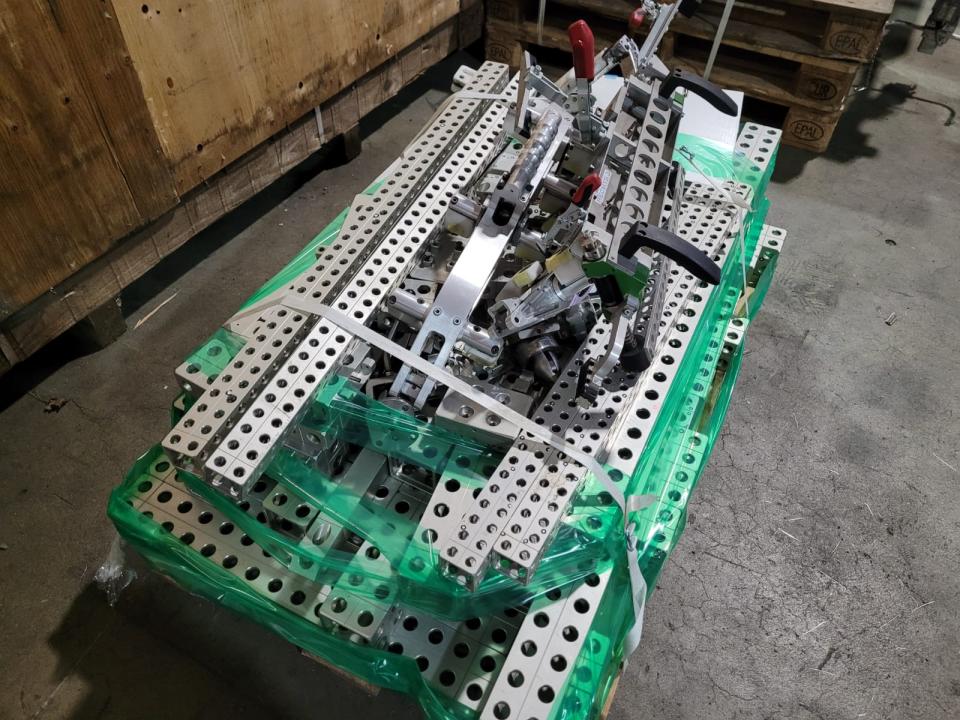

Precision measurement jig used to verify the geometry of car components.
This system come from the previous Car factory in Brussel. It was used in the measurement Department.

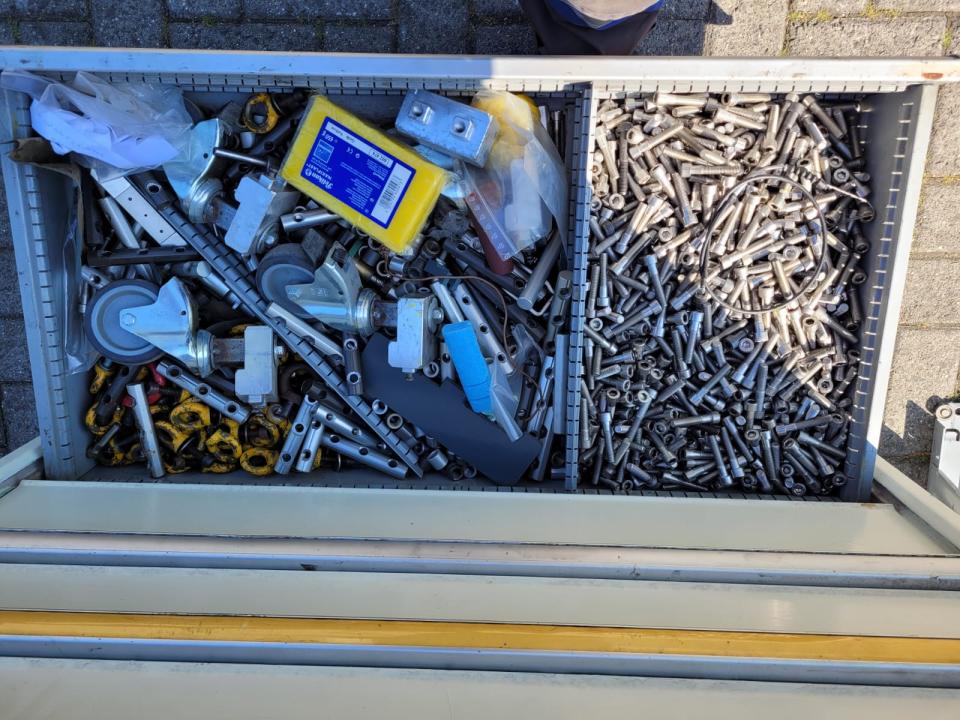

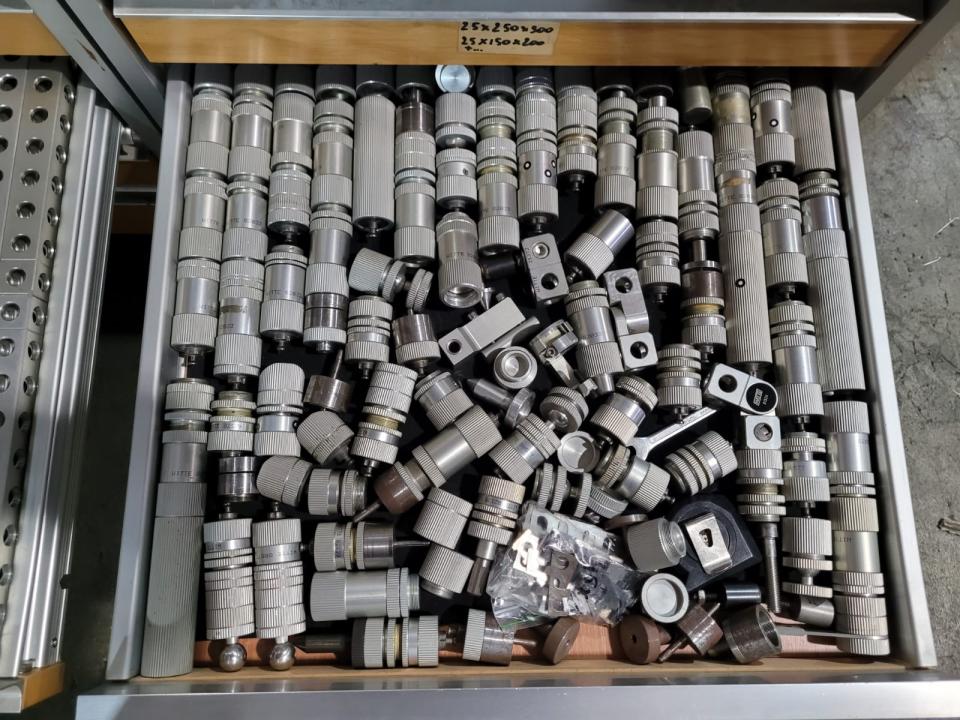

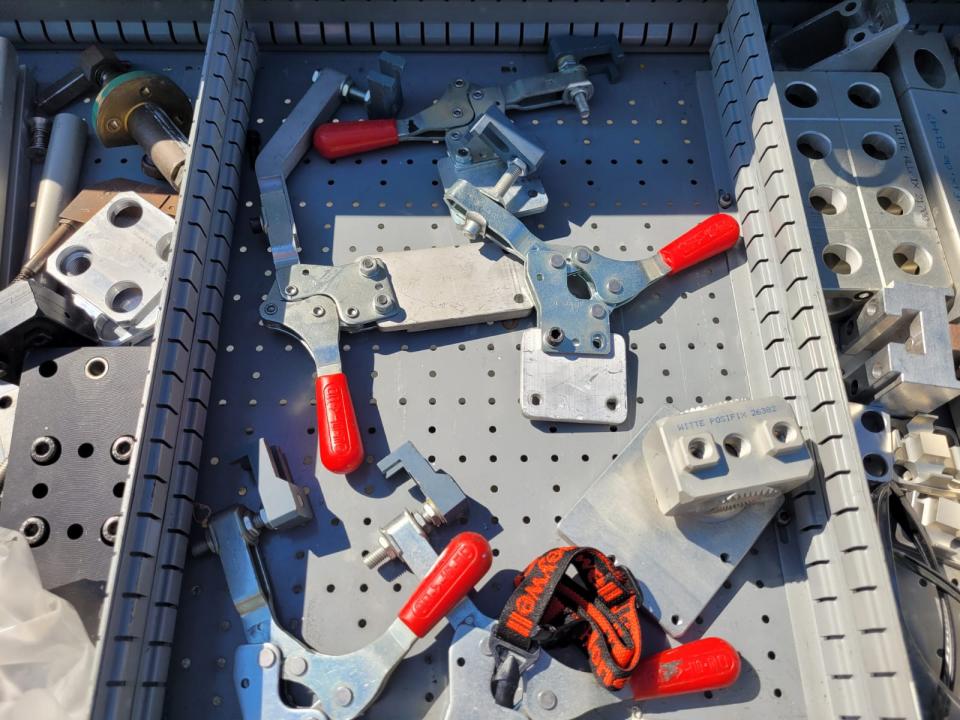

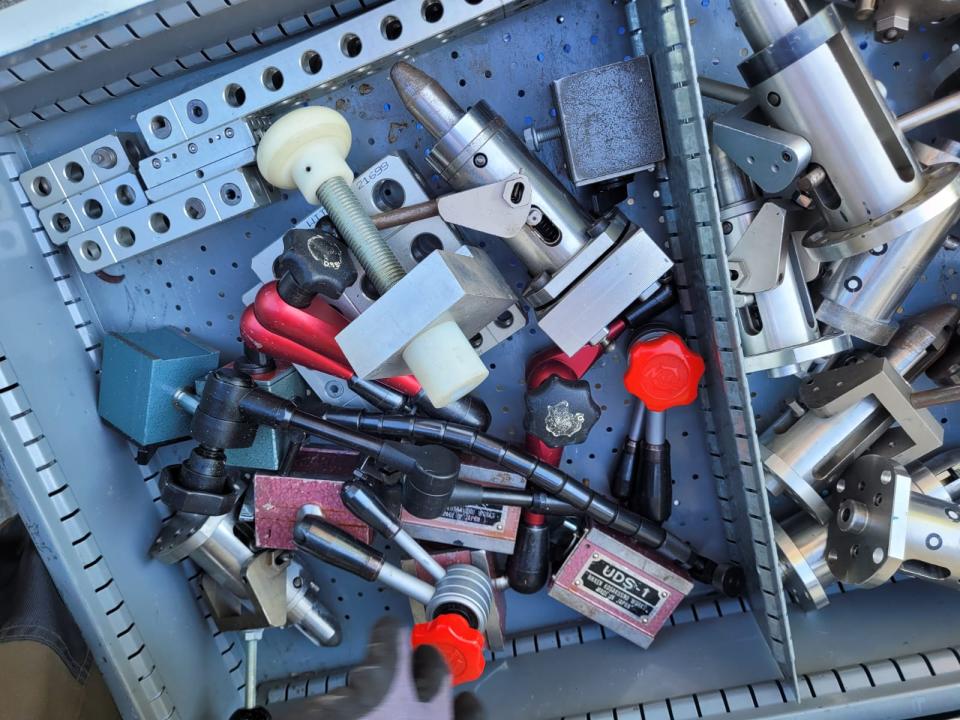

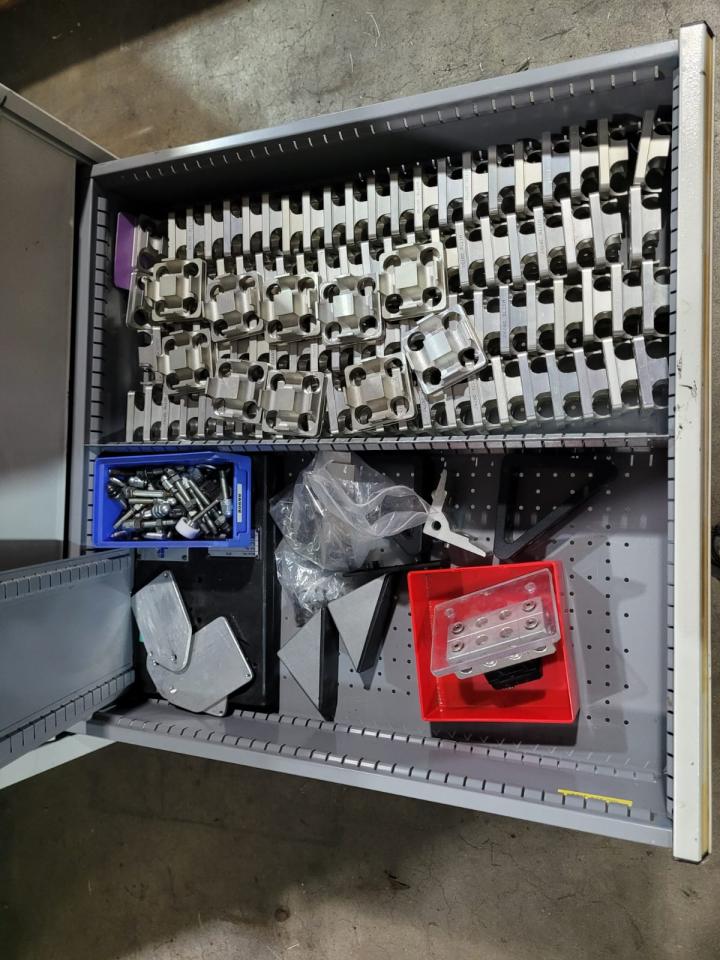

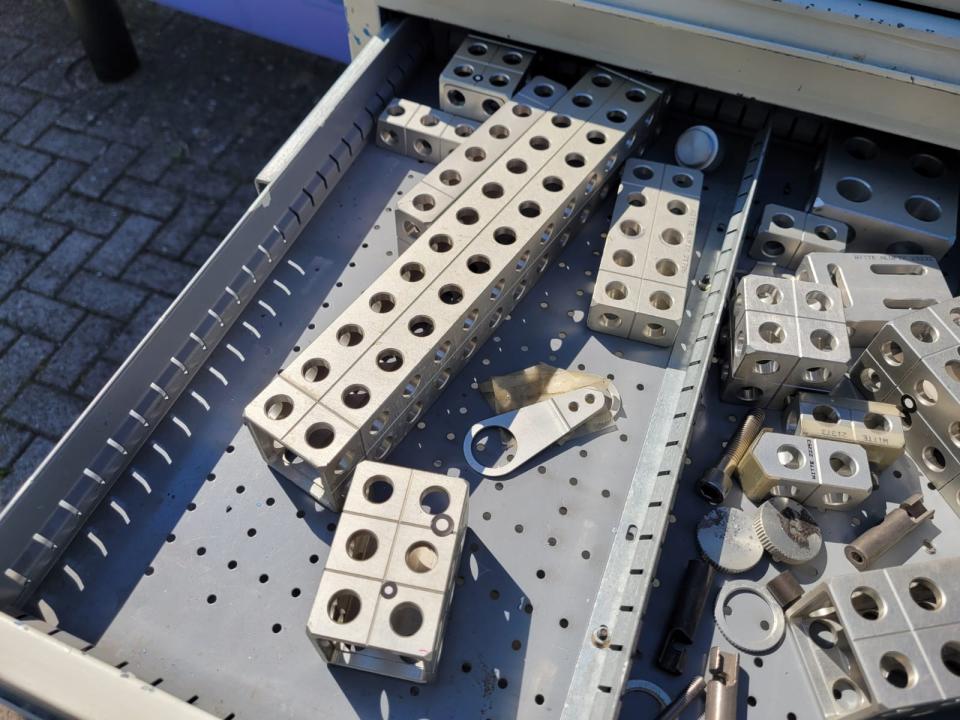

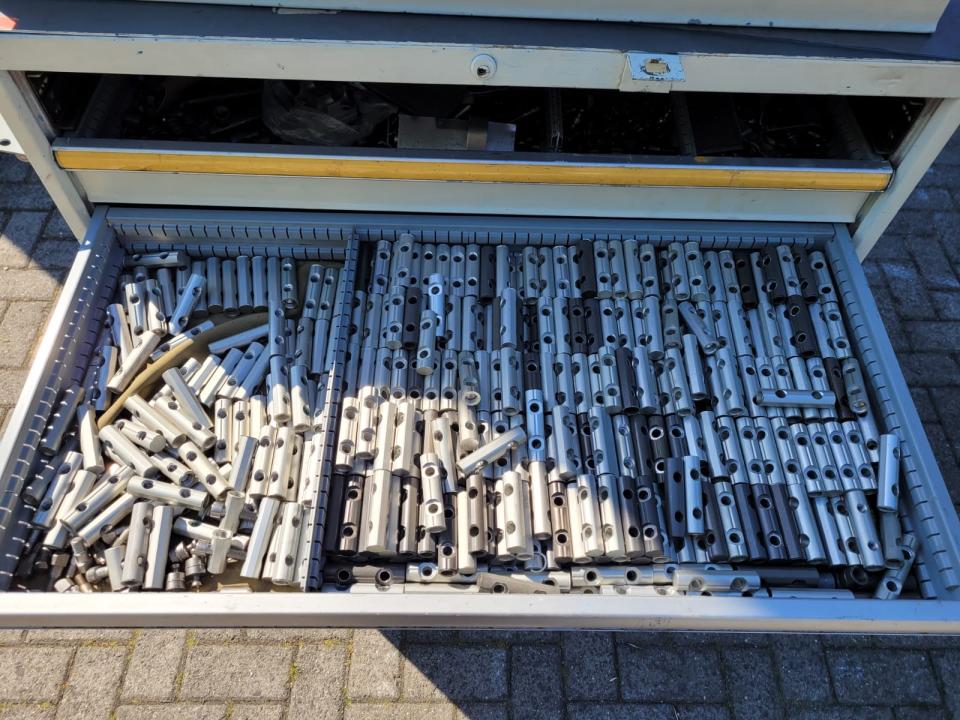

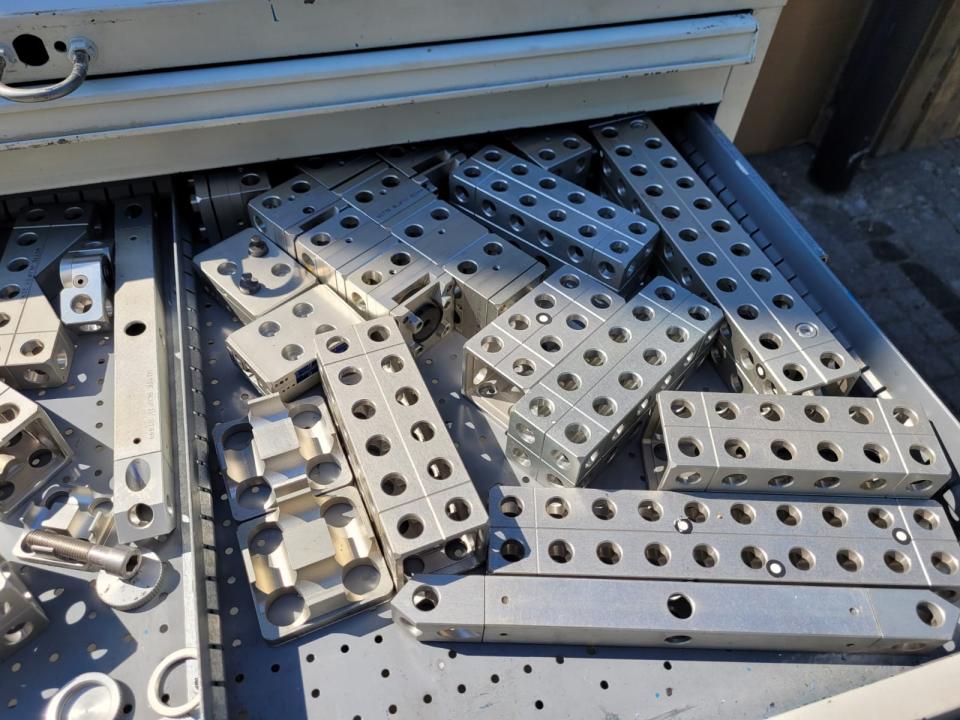

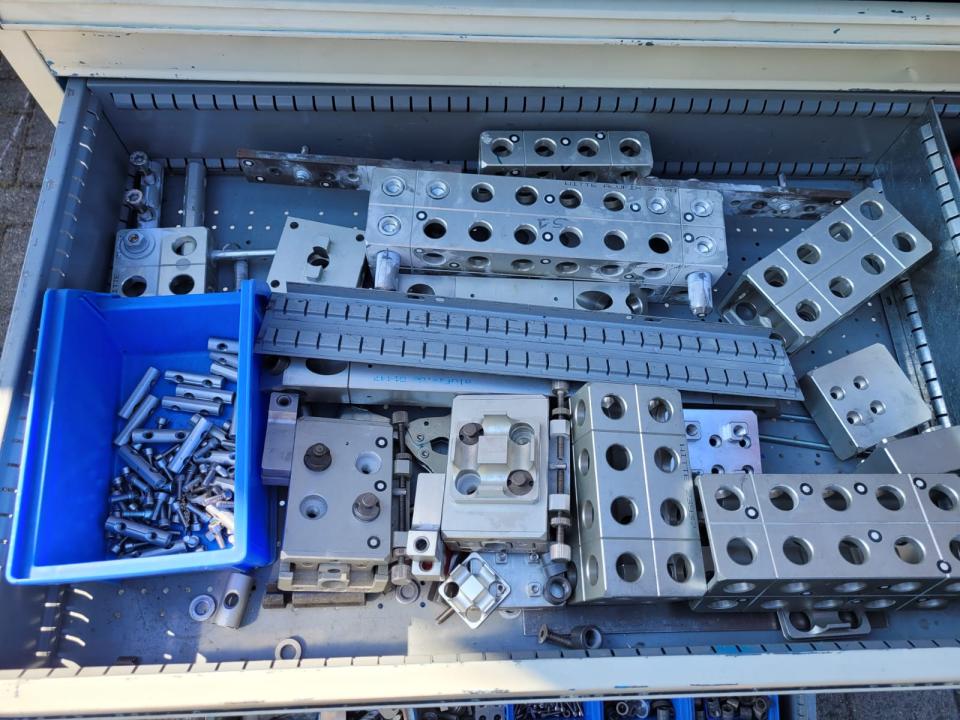

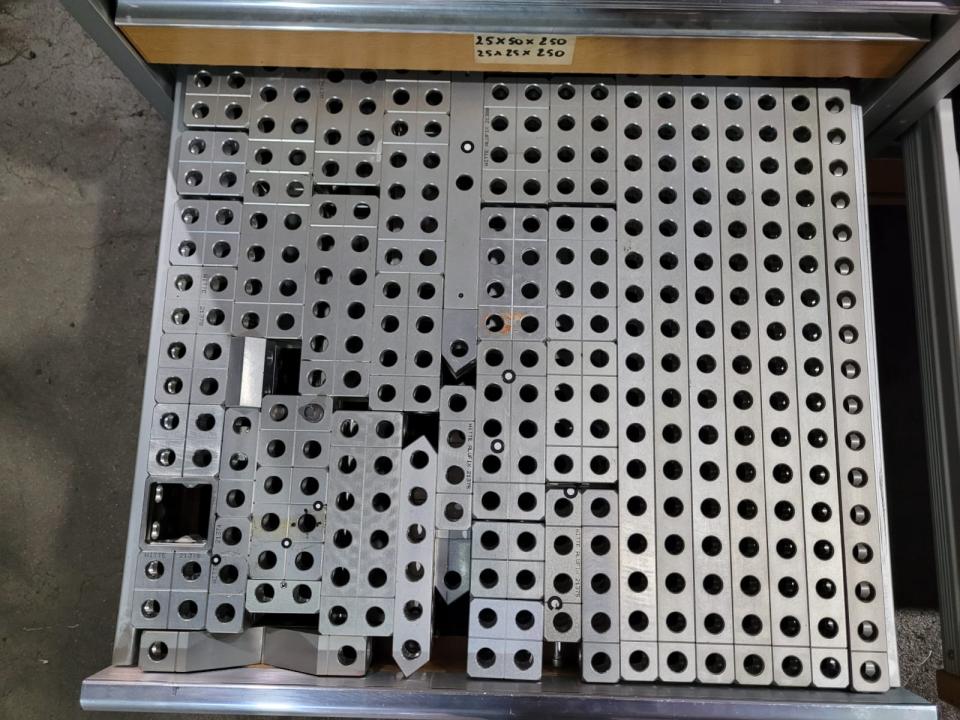

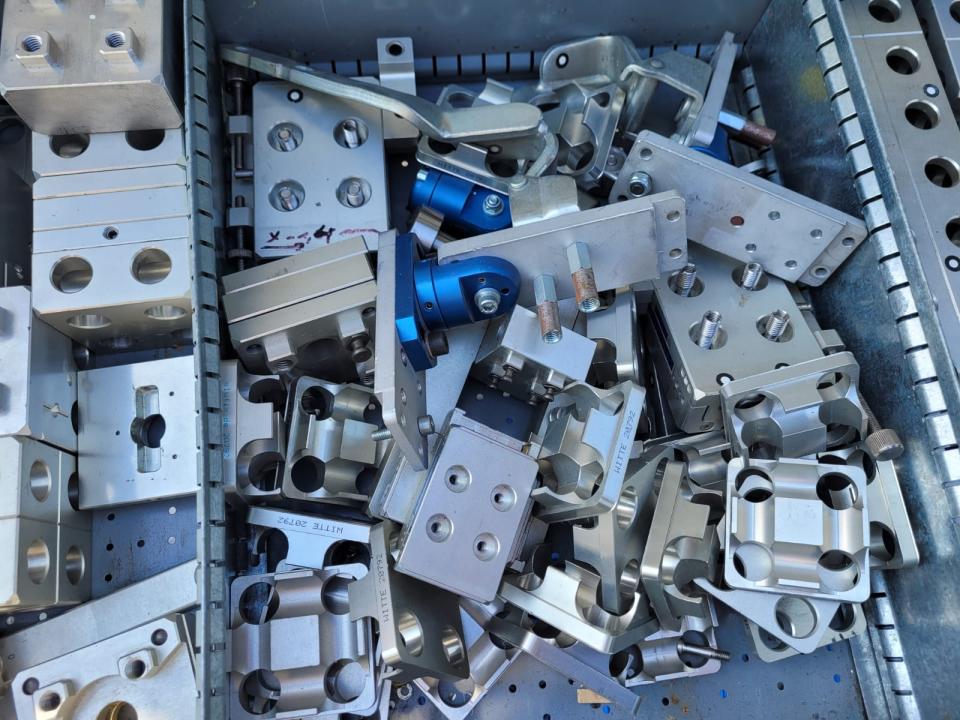

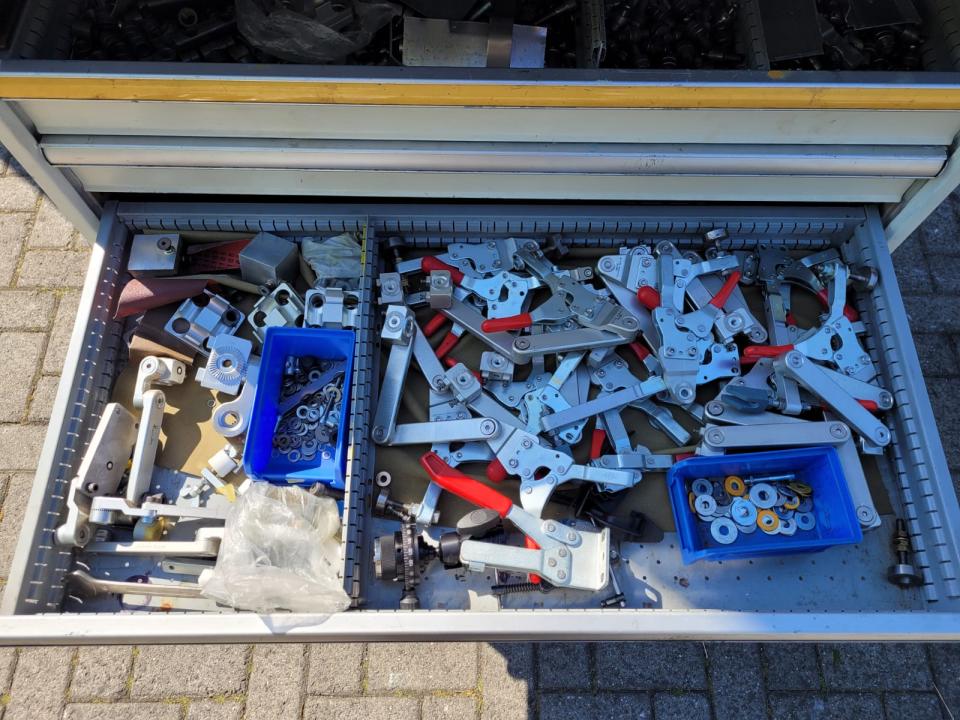

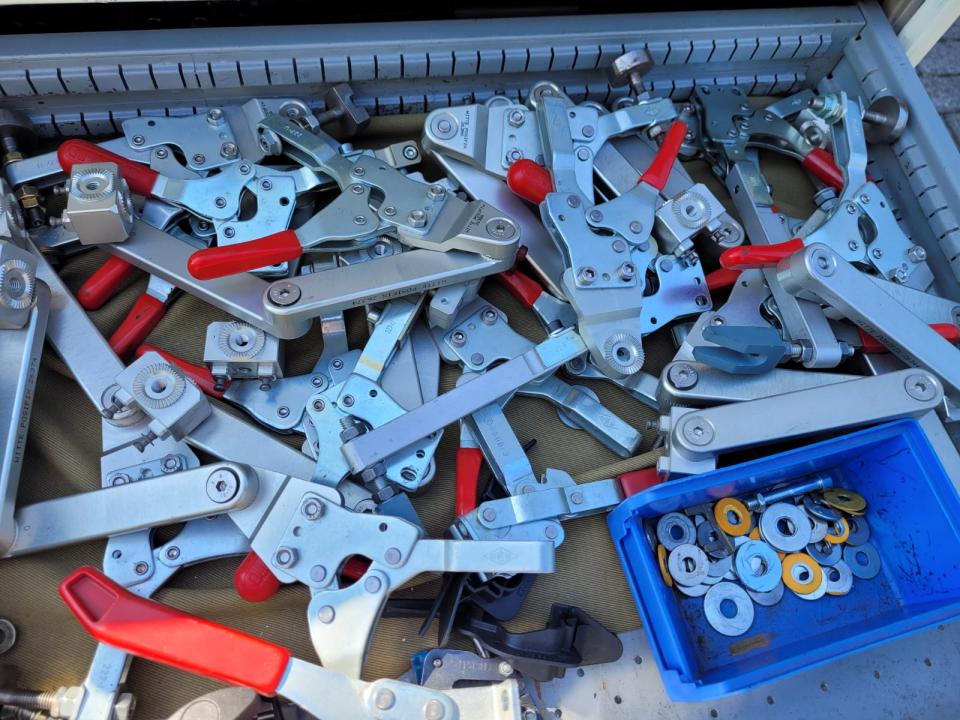

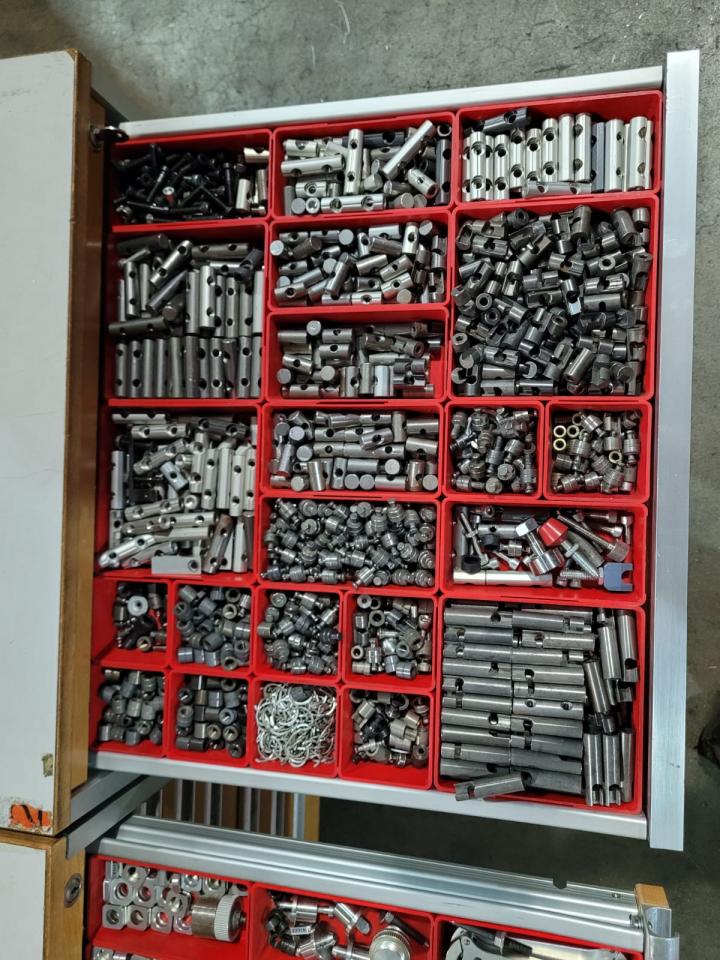

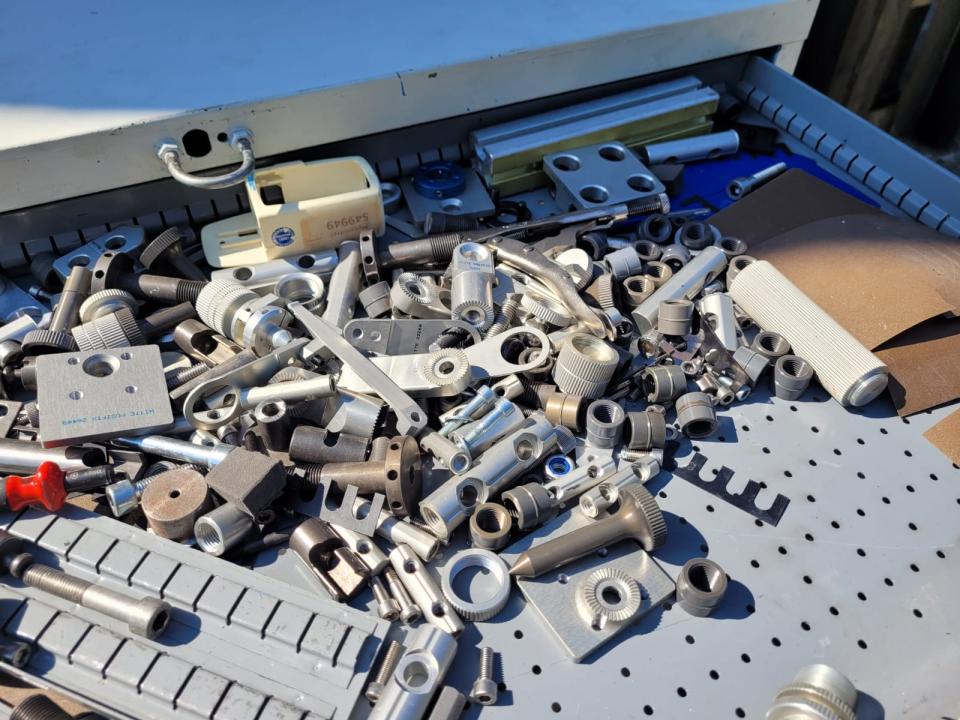

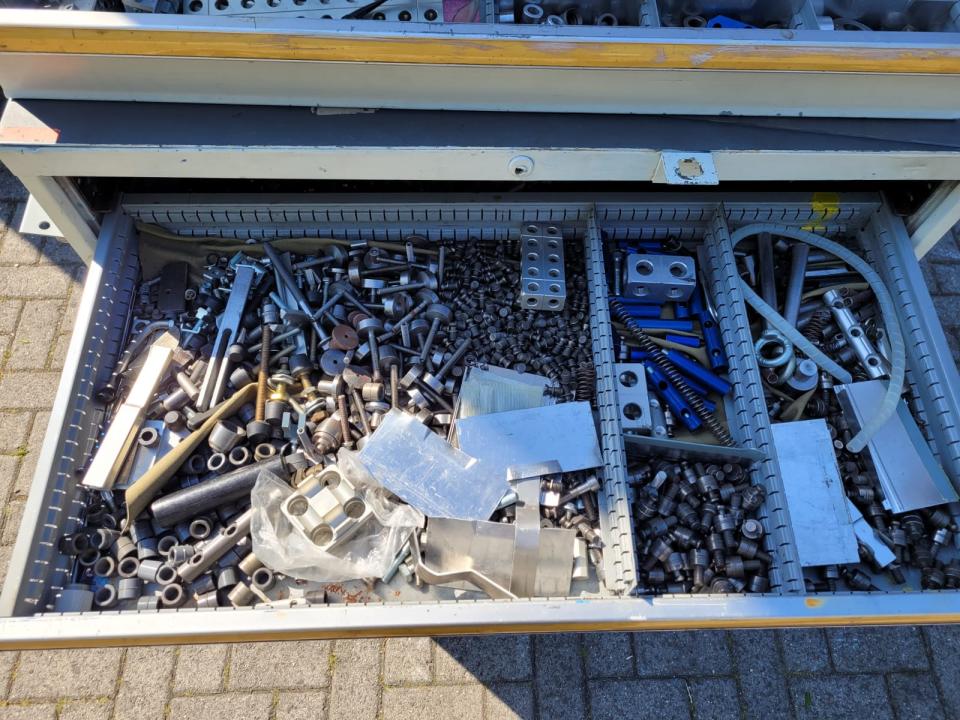

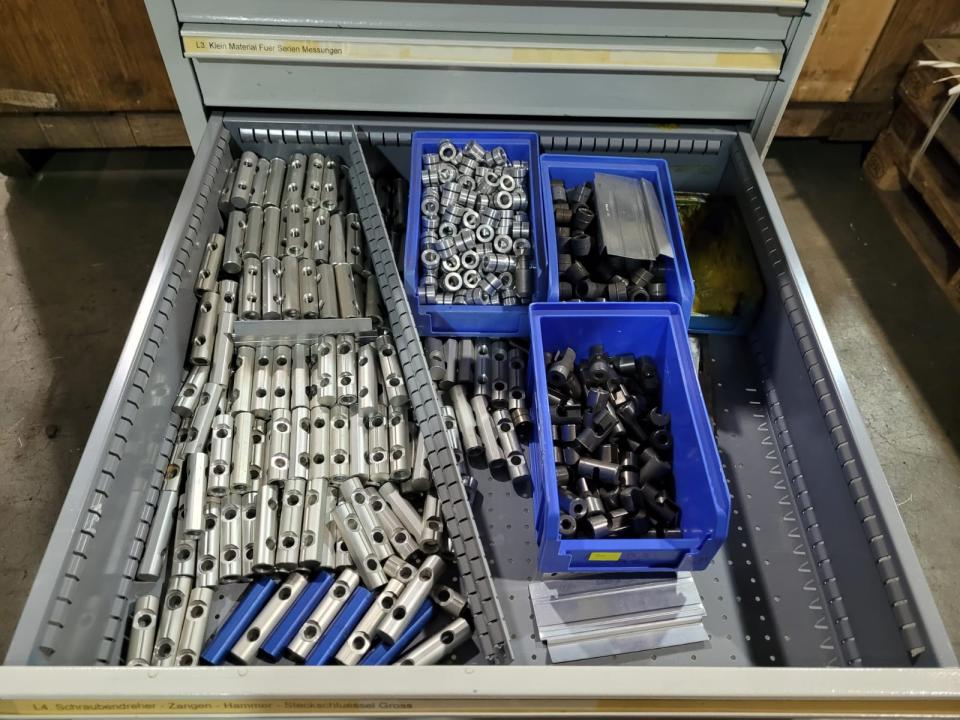

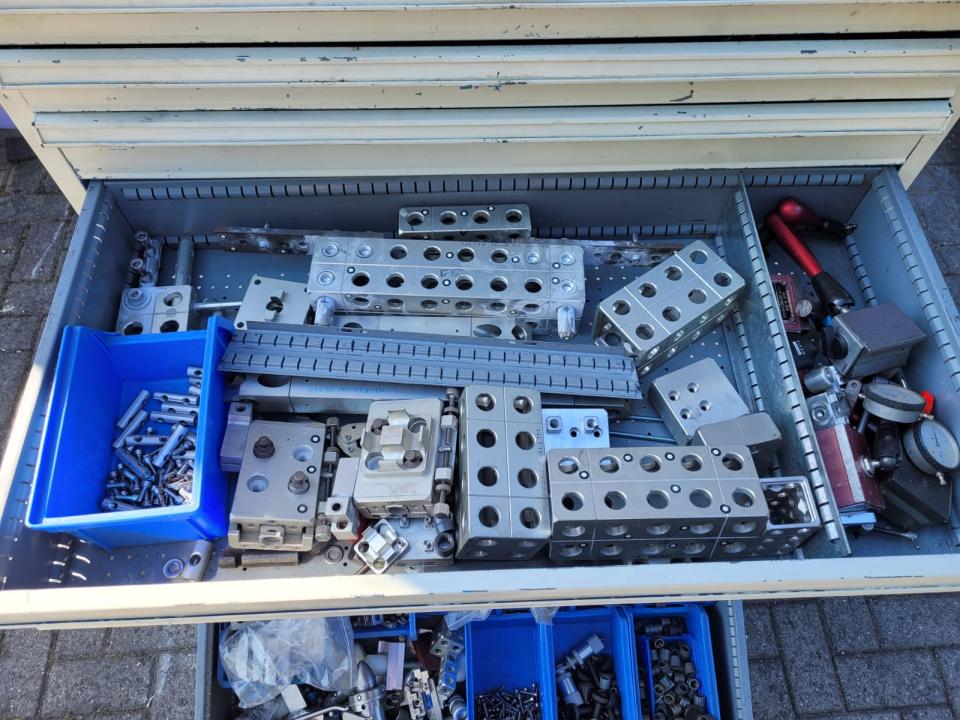

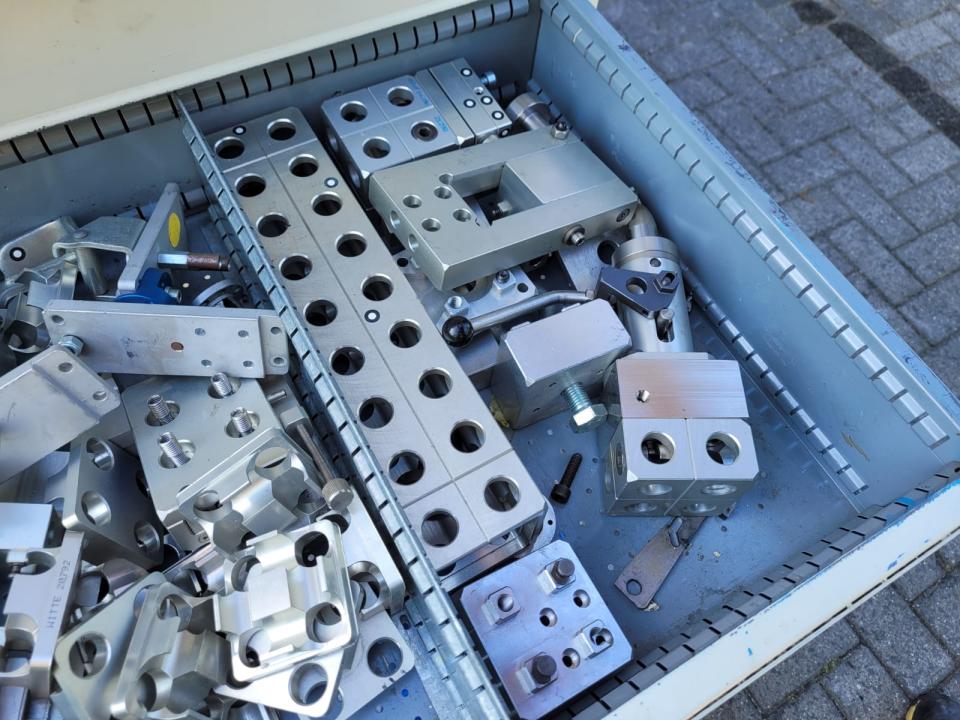

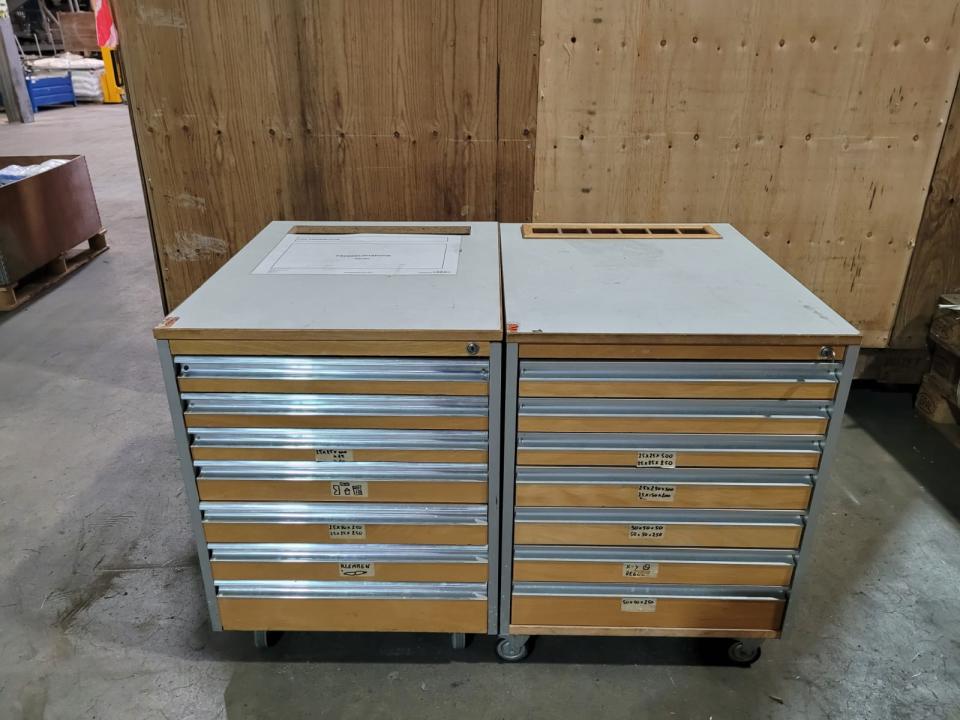

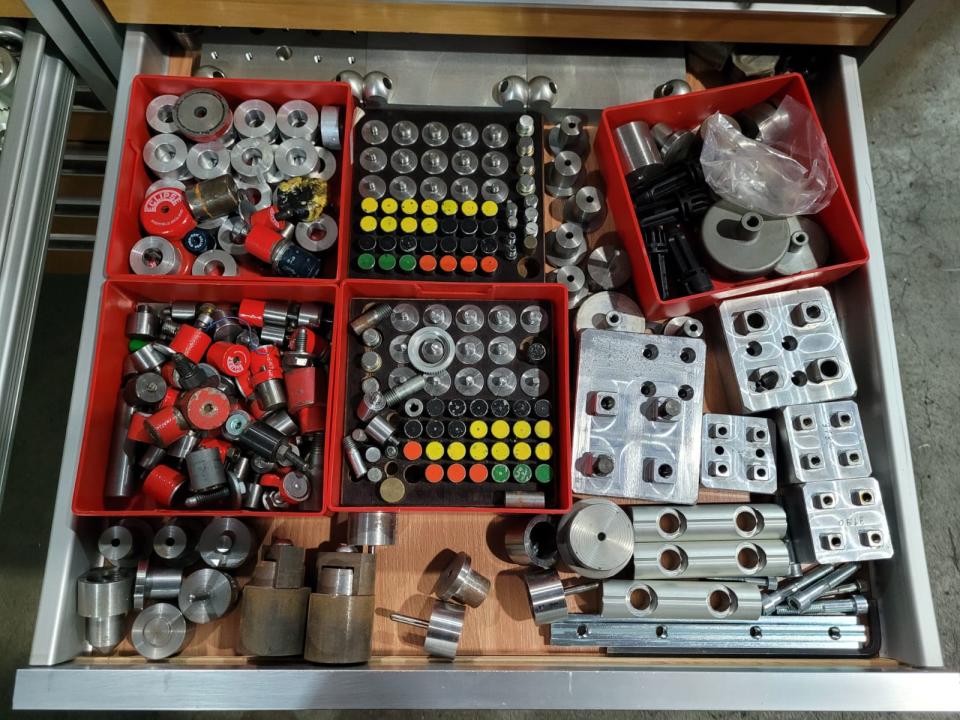

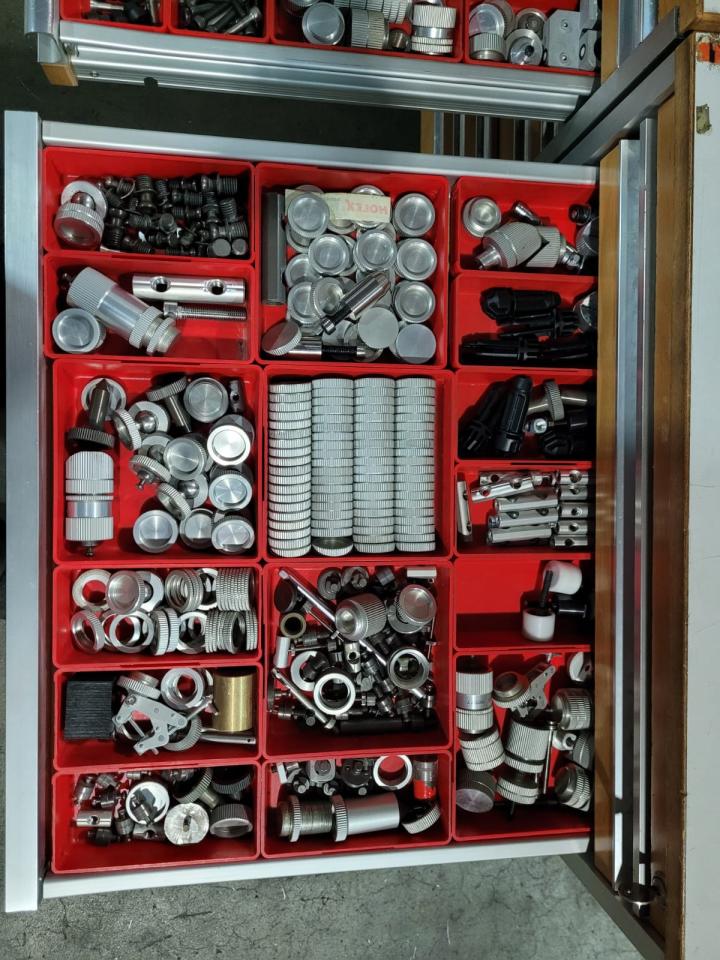

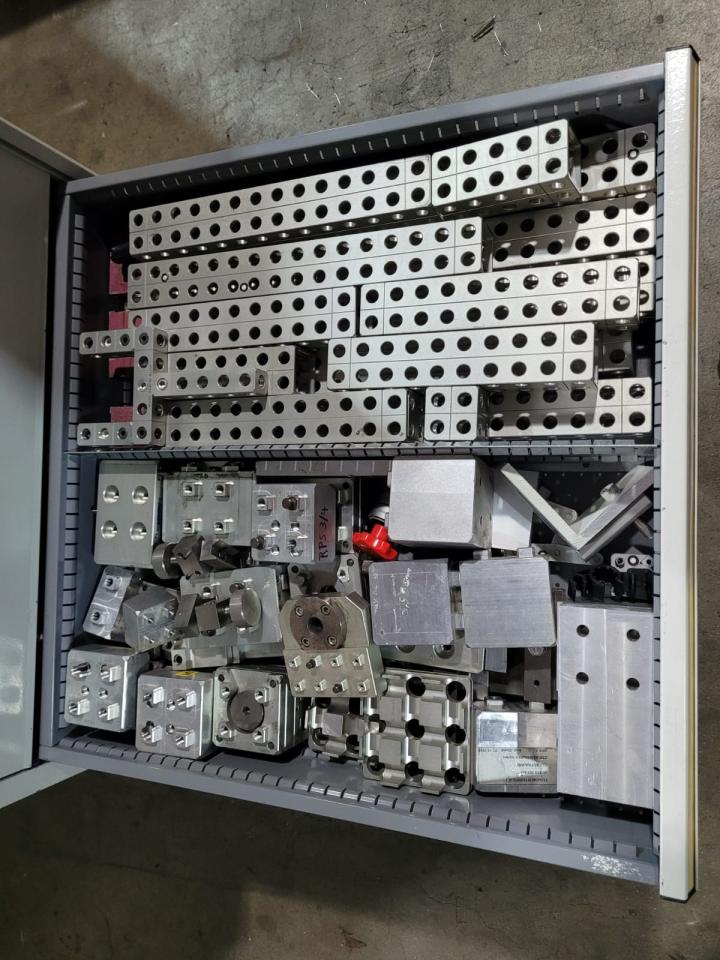

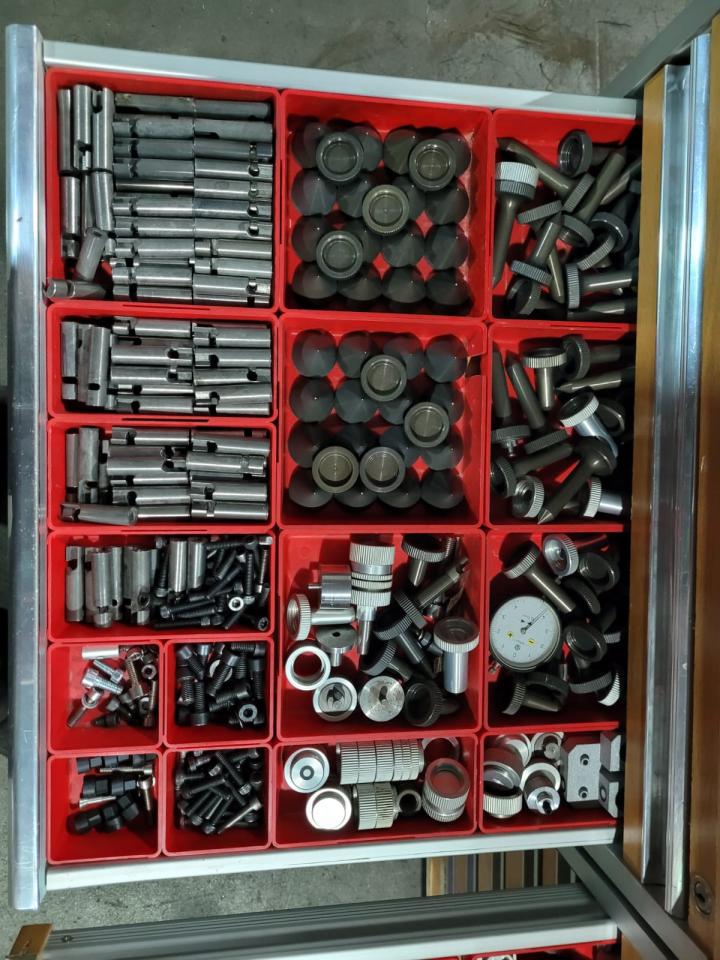

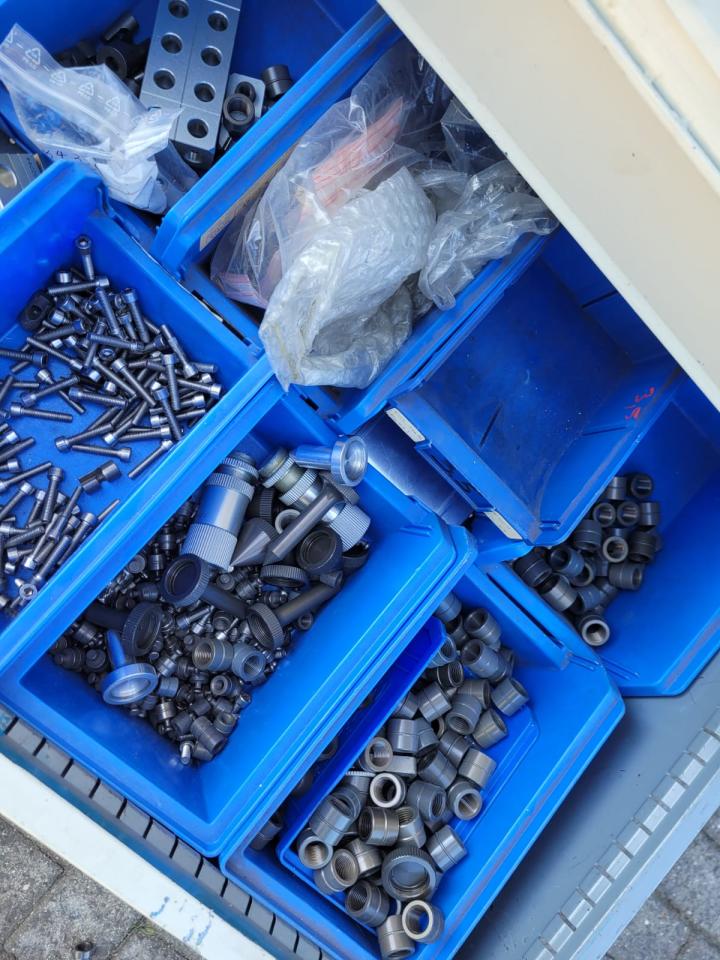

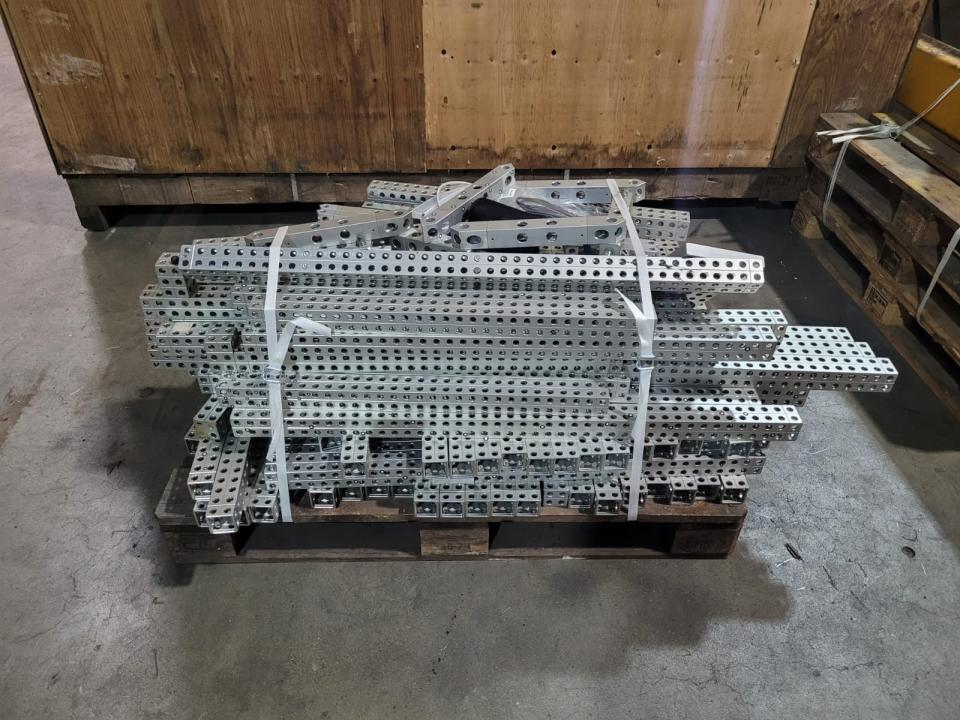

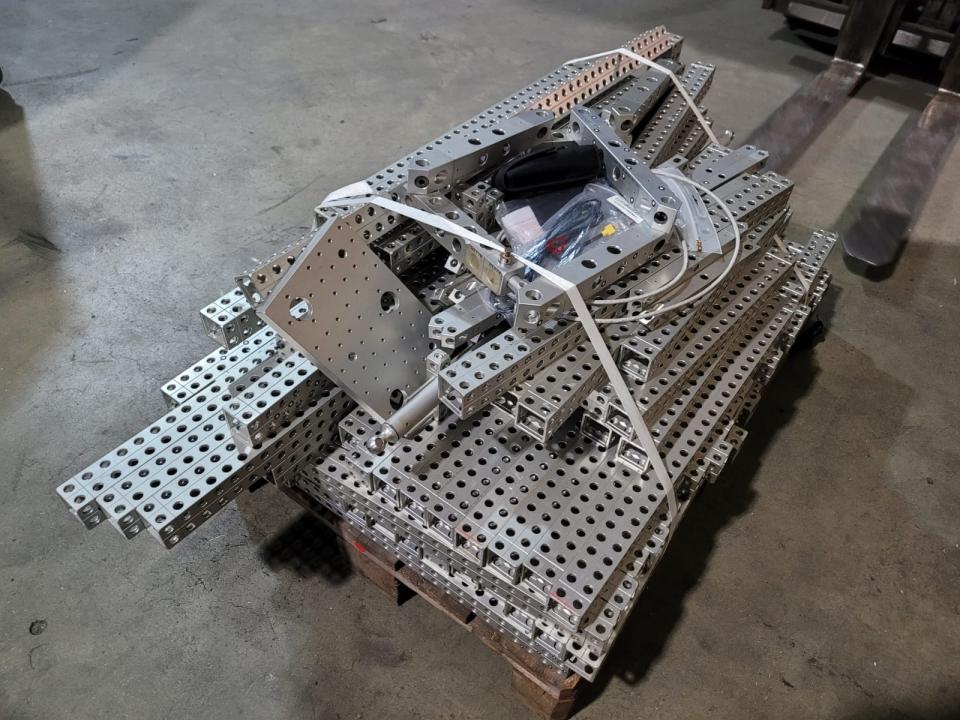

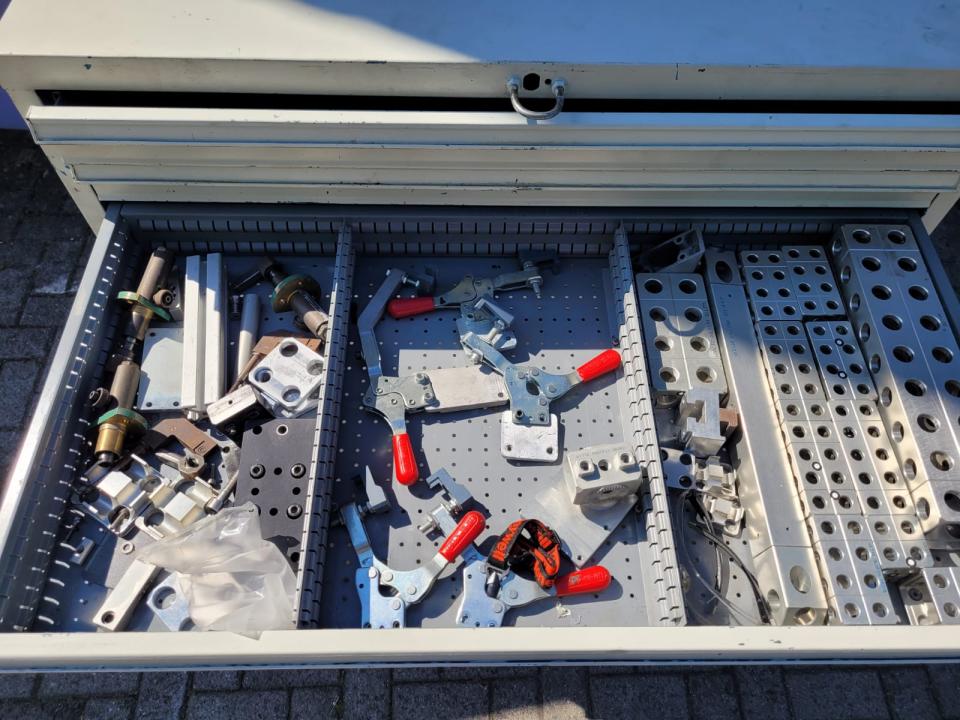

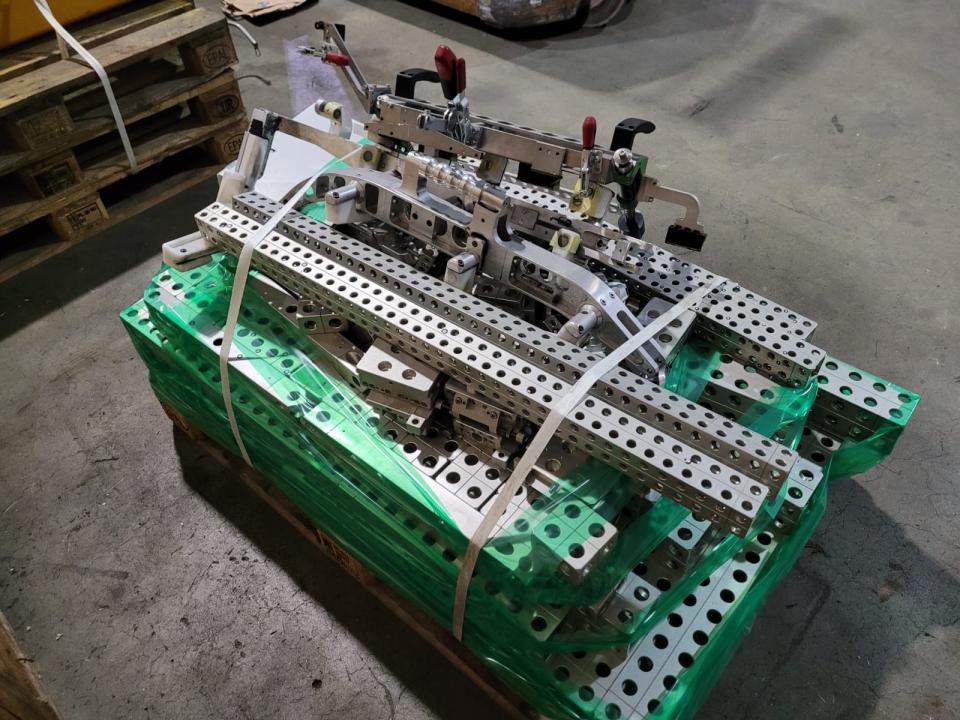

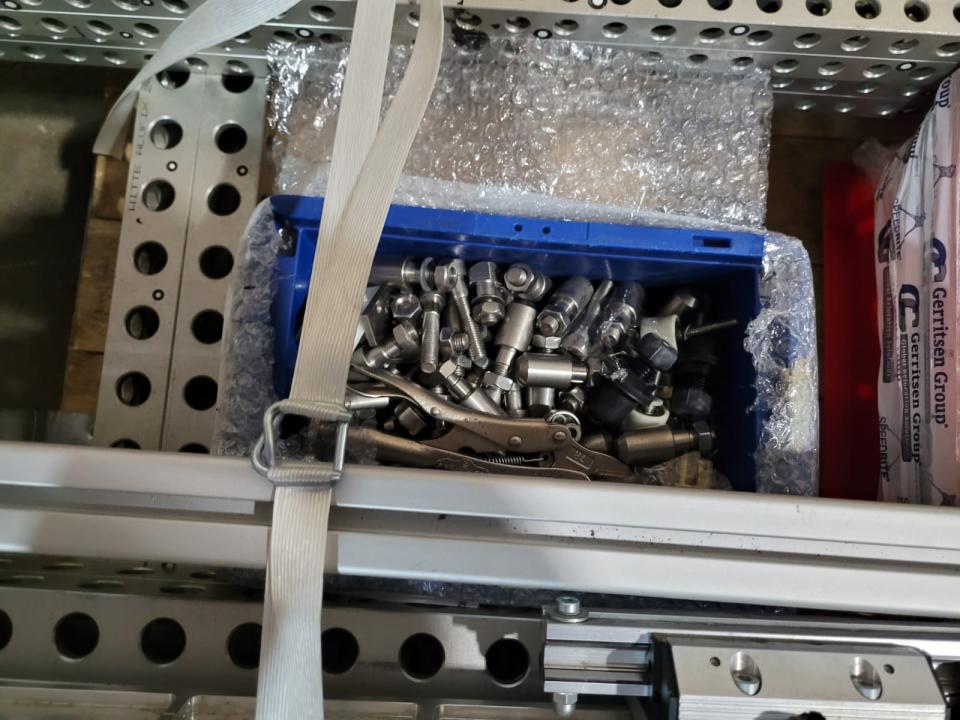

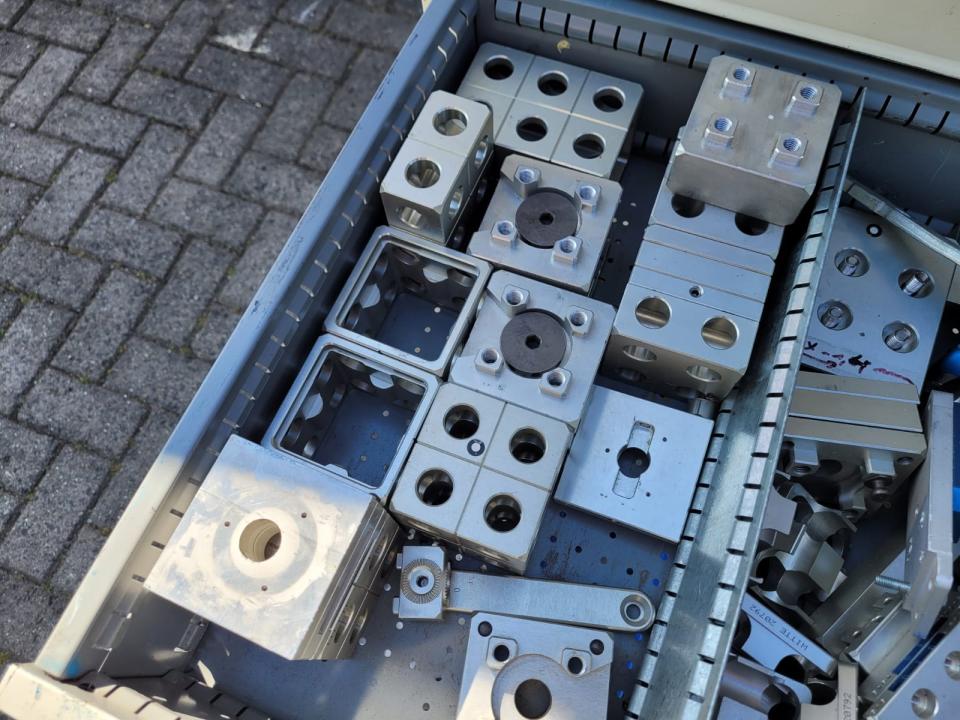

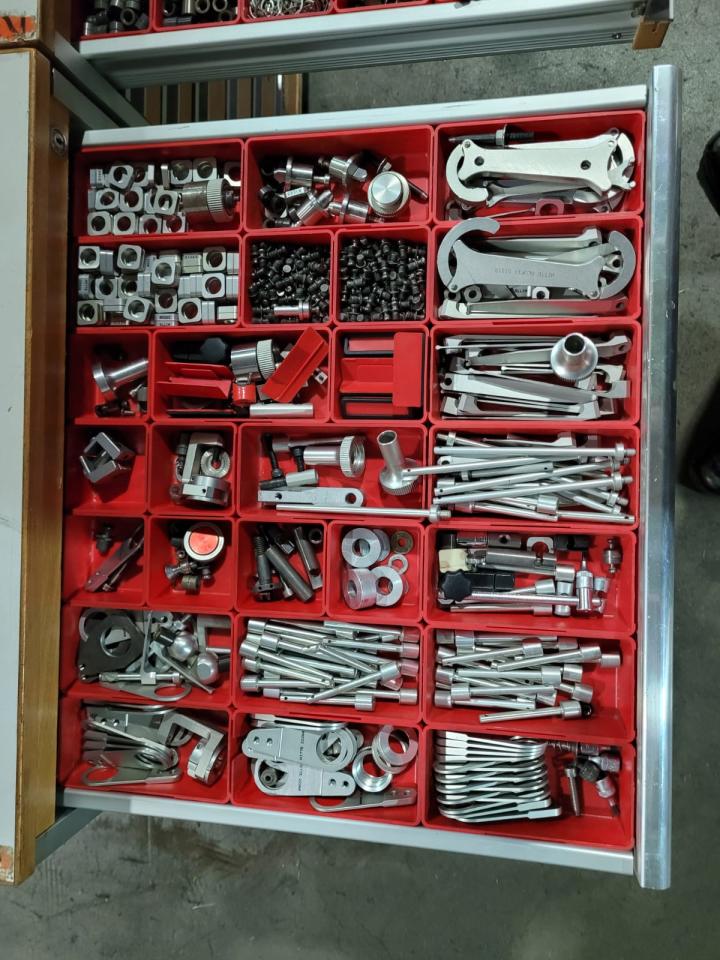

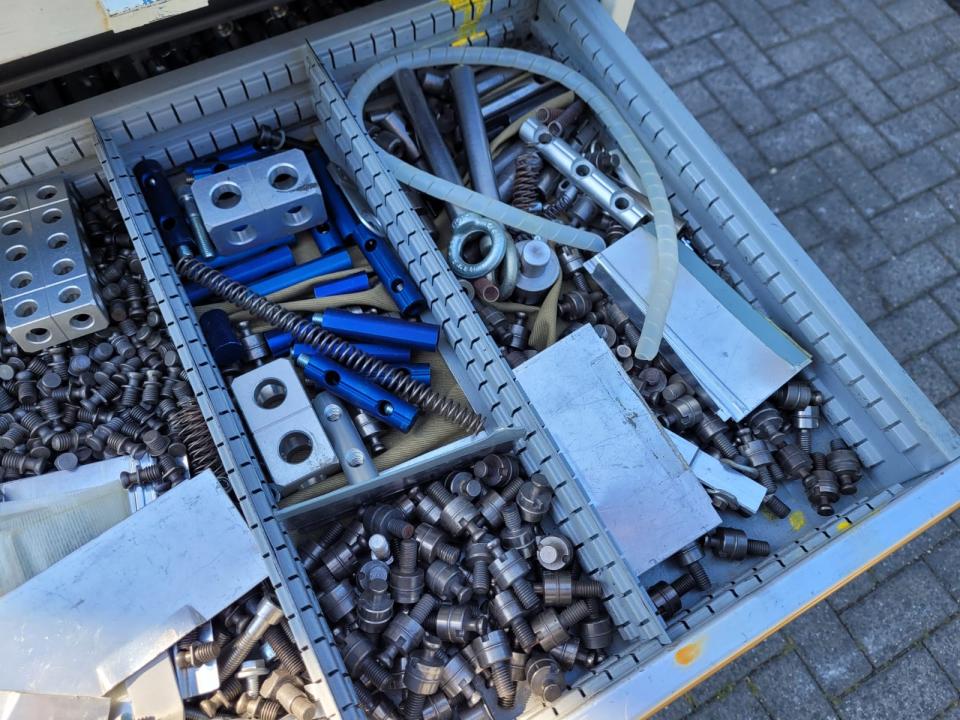

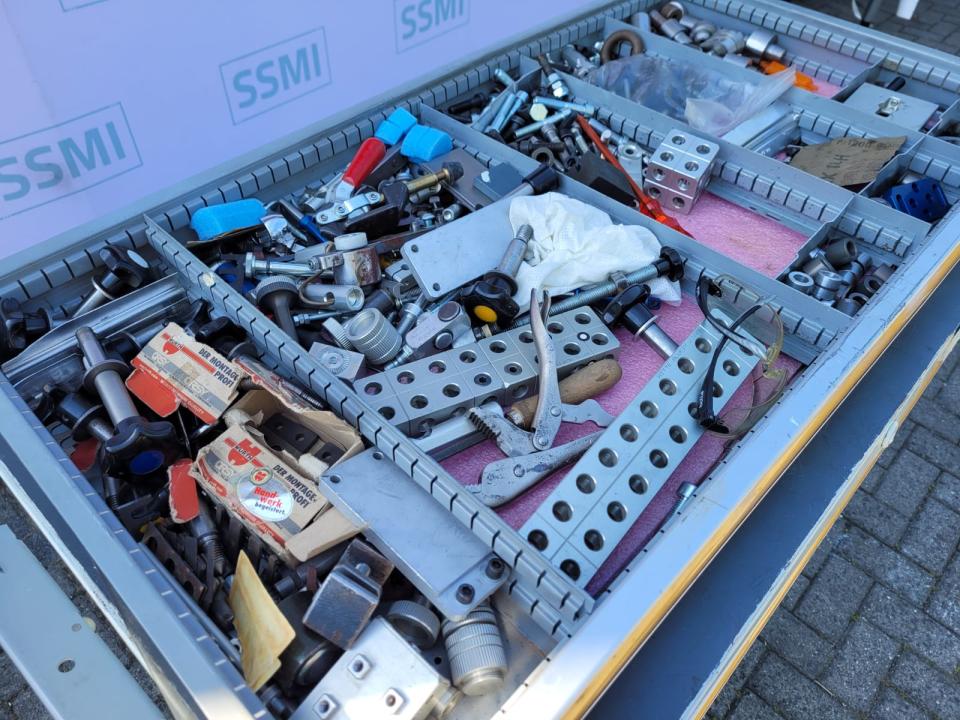

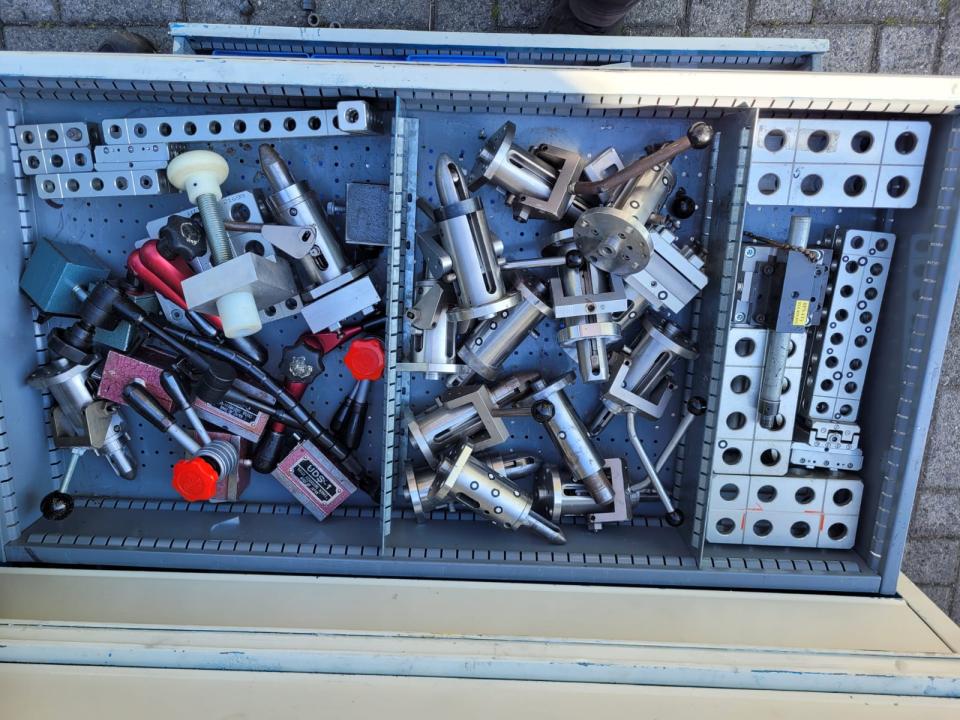

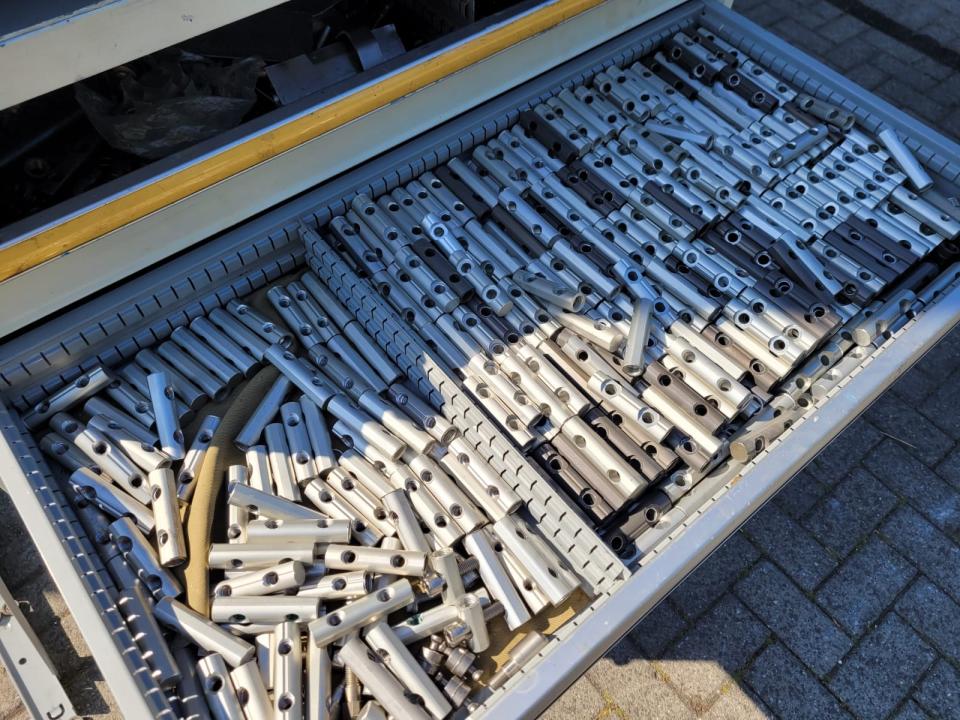

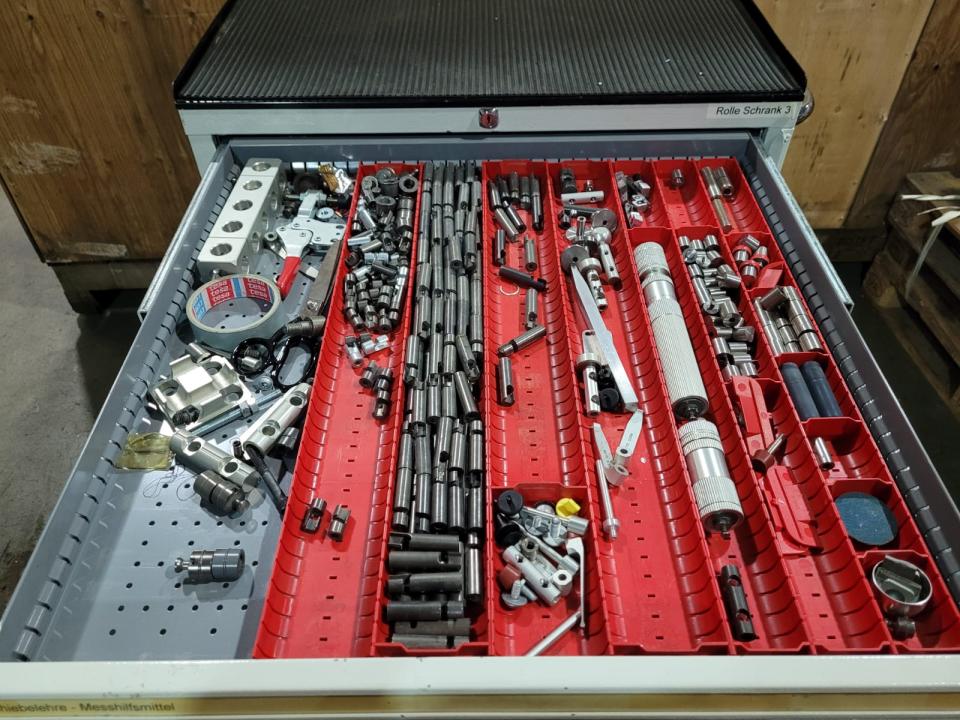

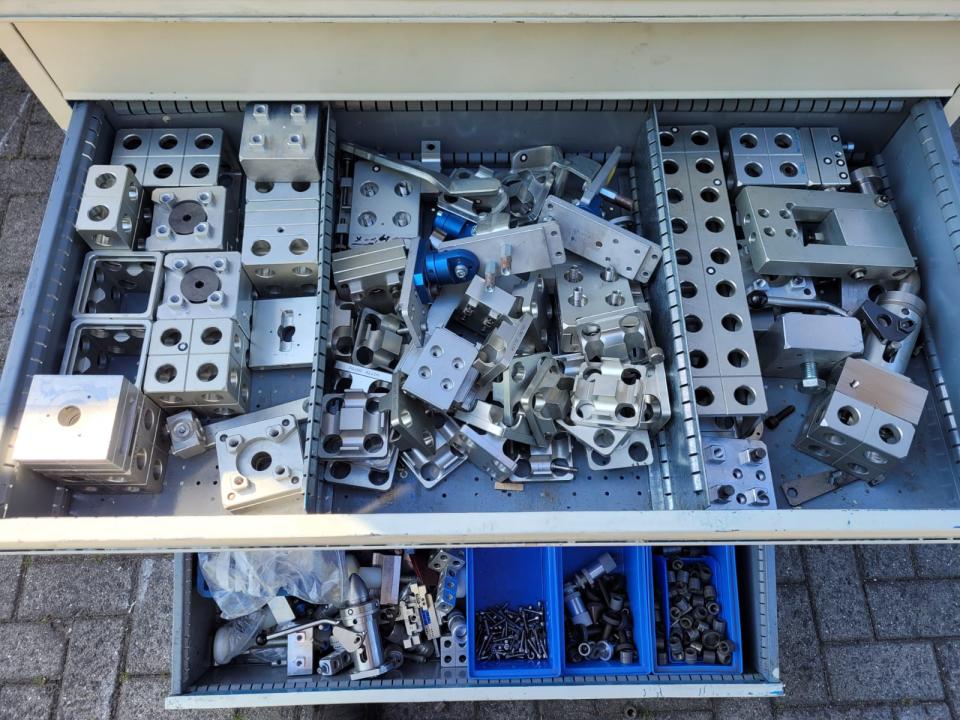

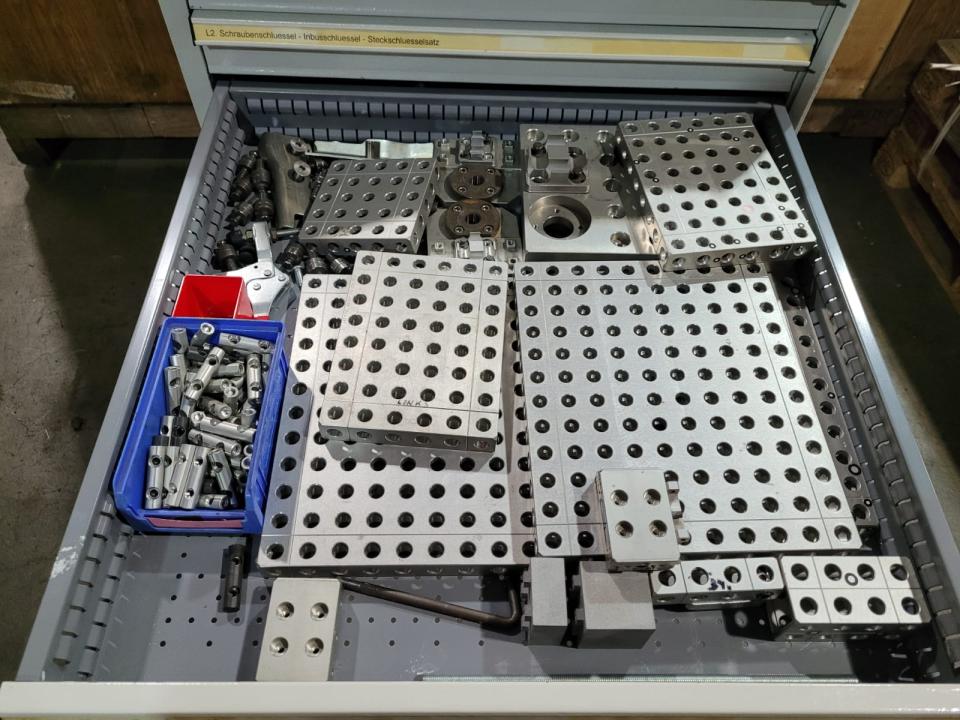

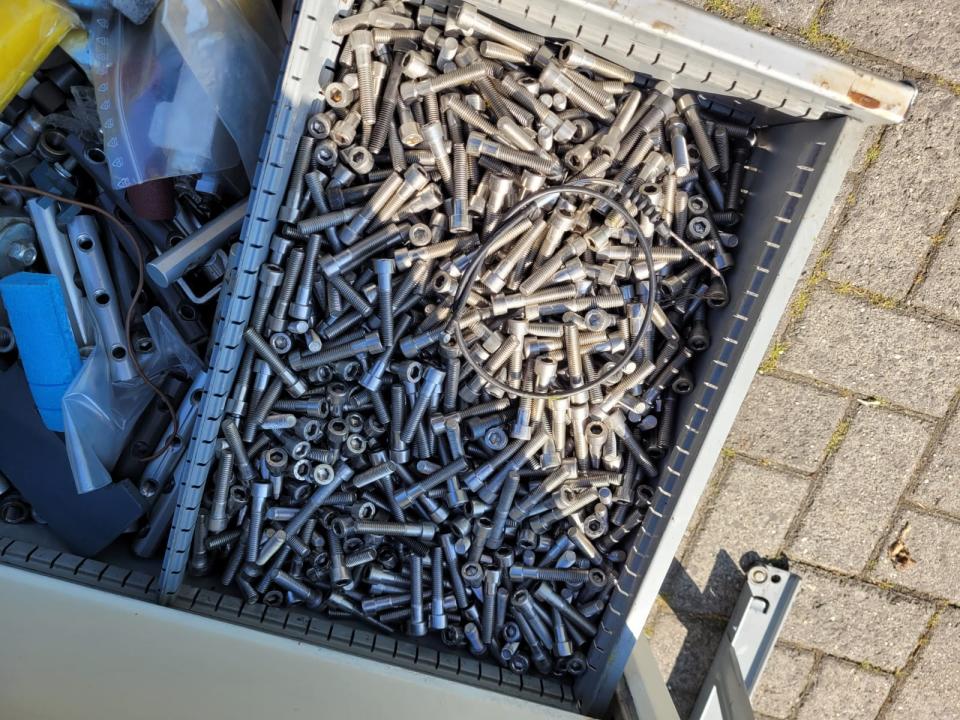

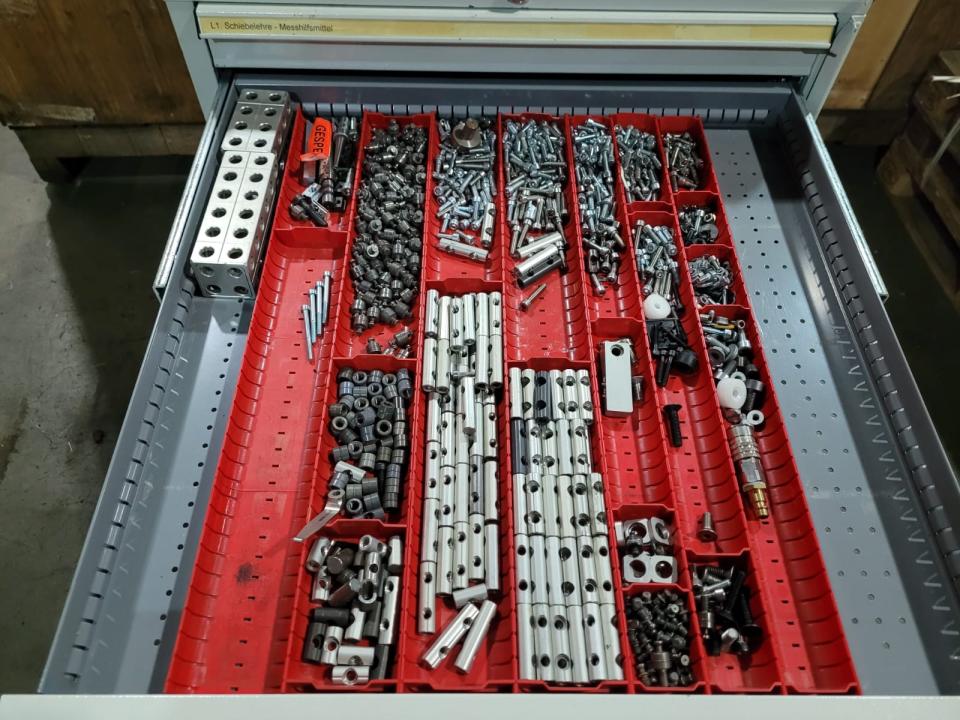

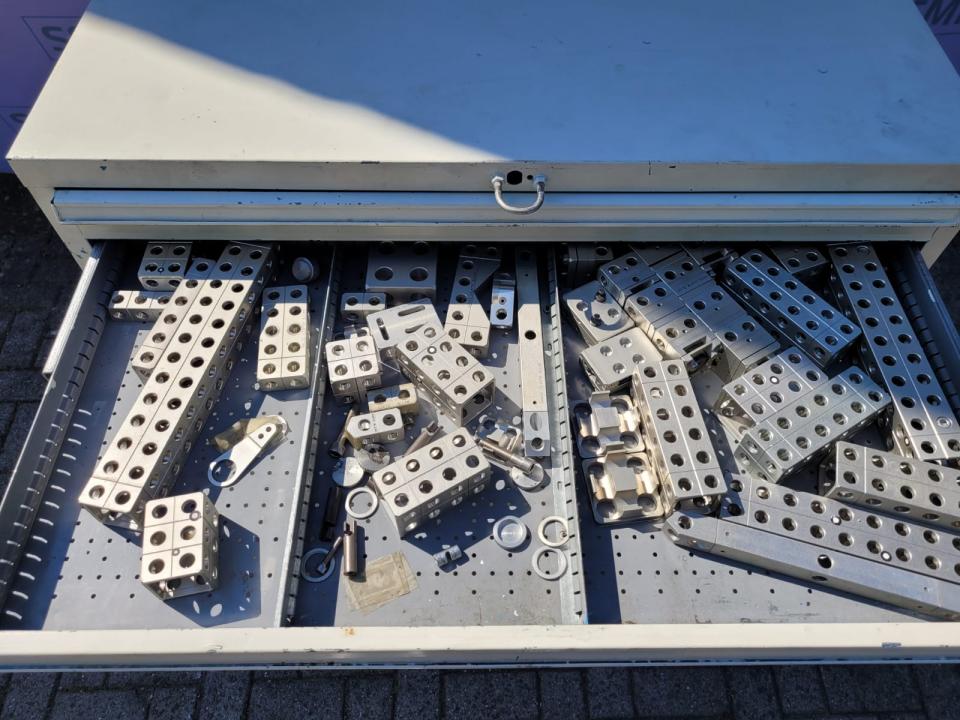

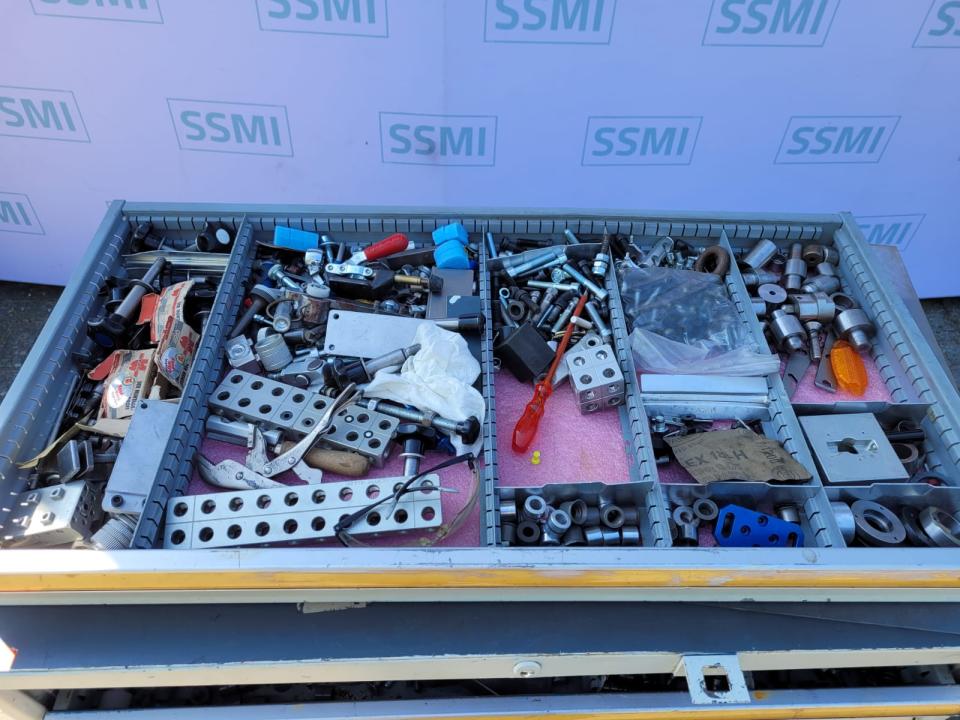

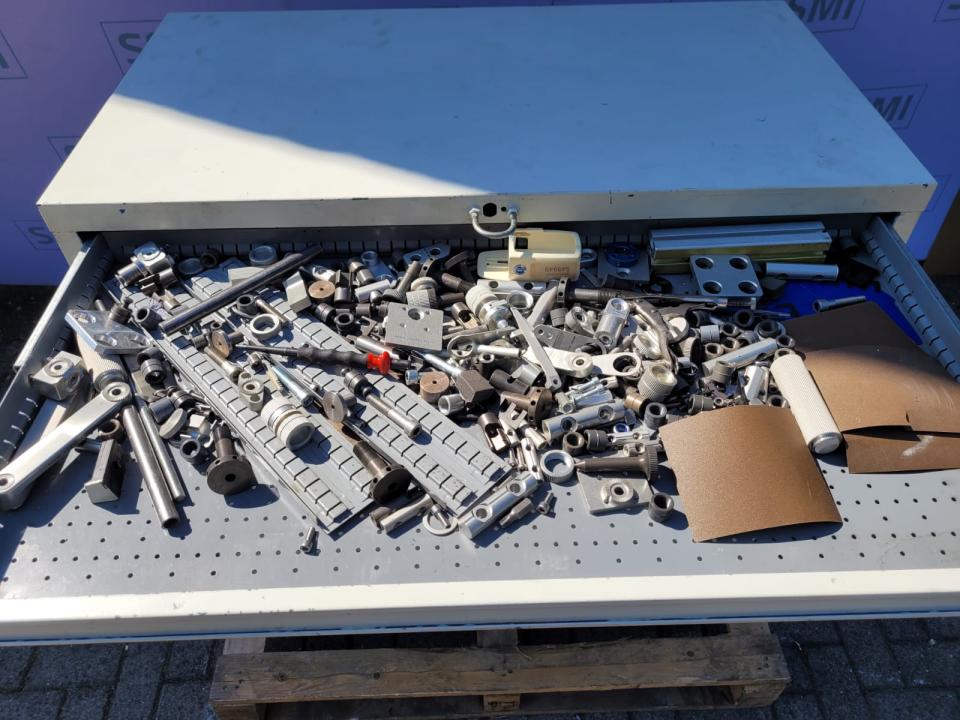

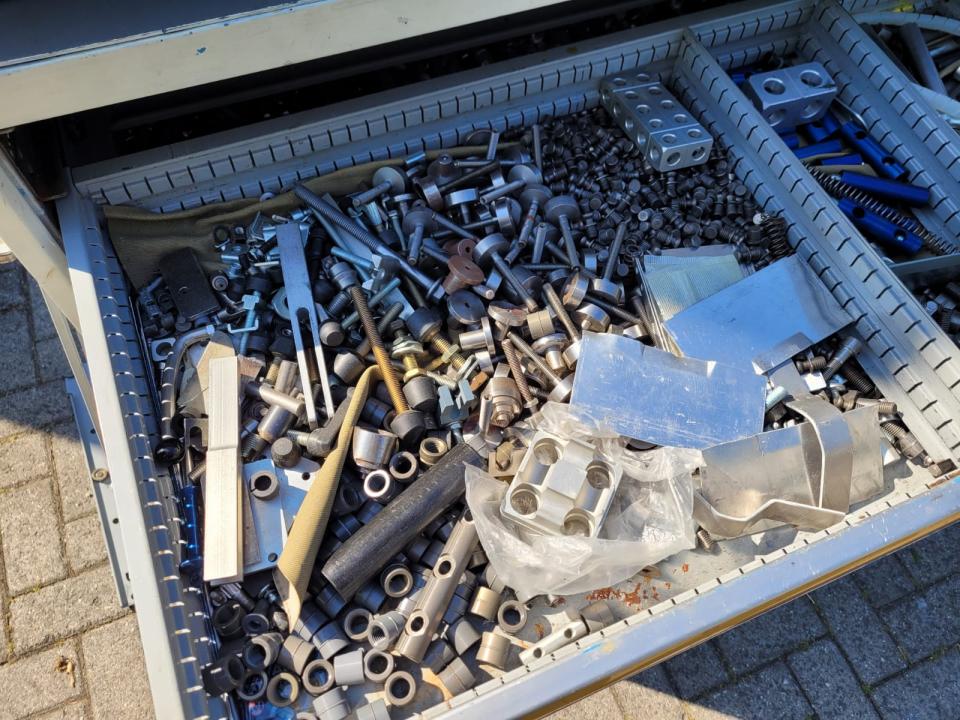

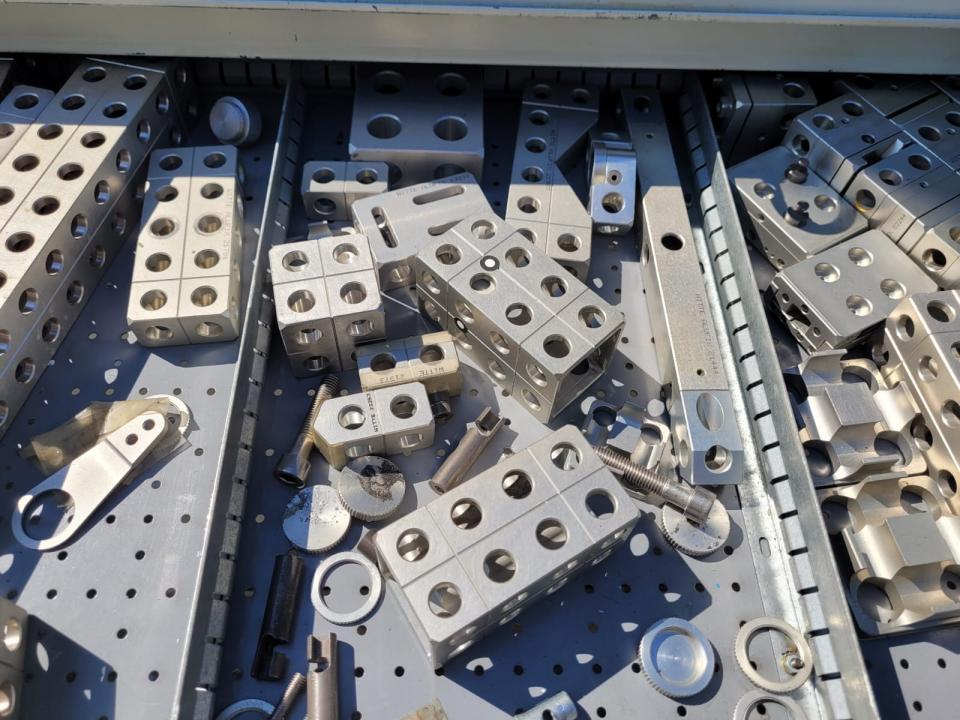

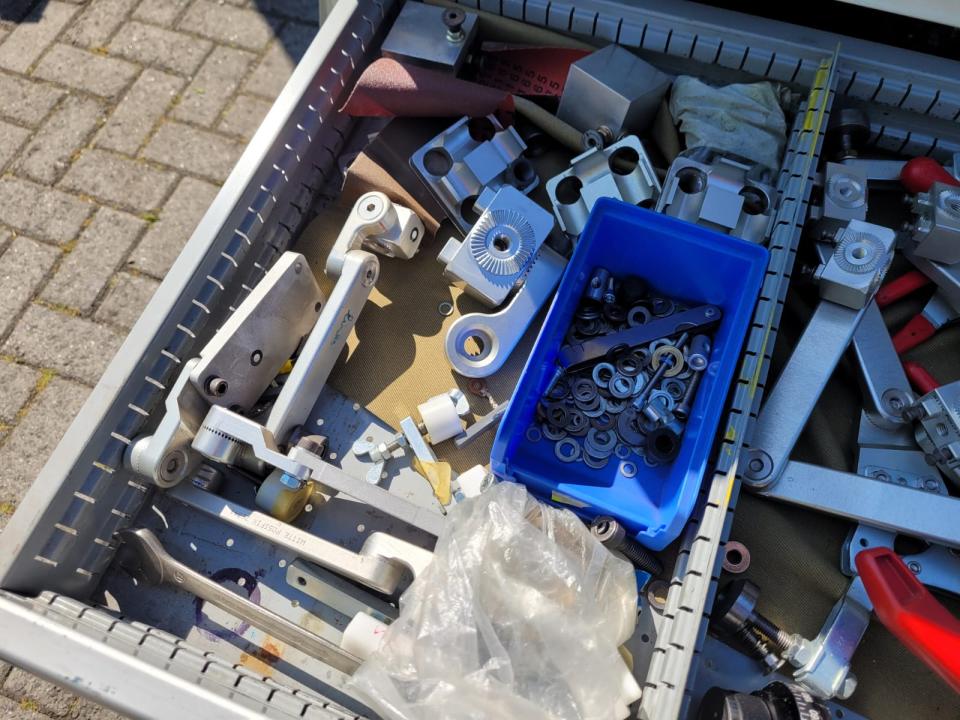

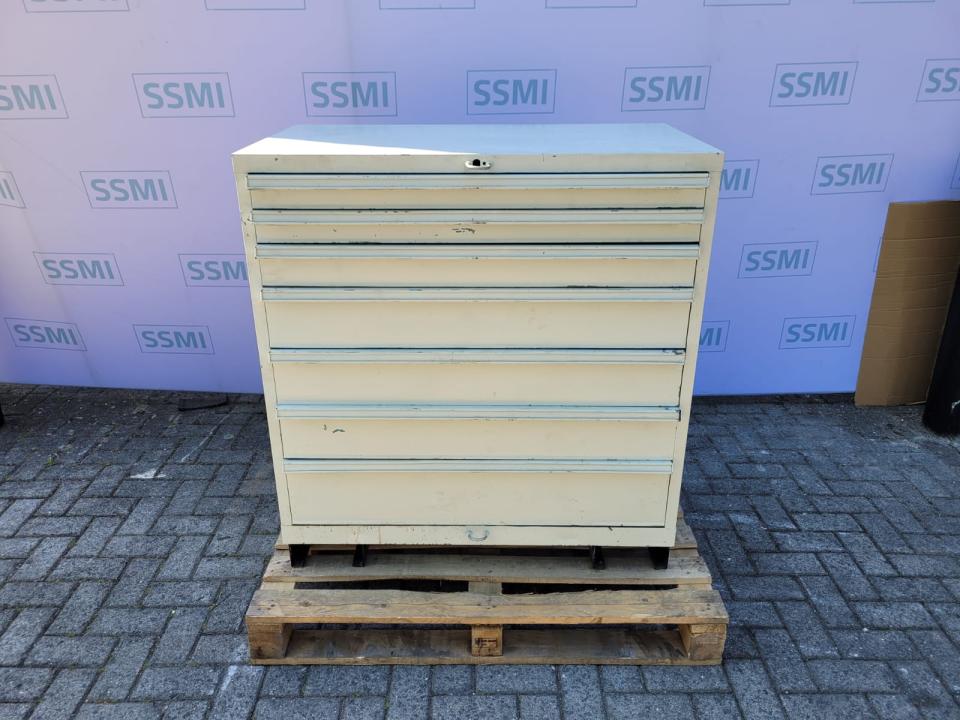

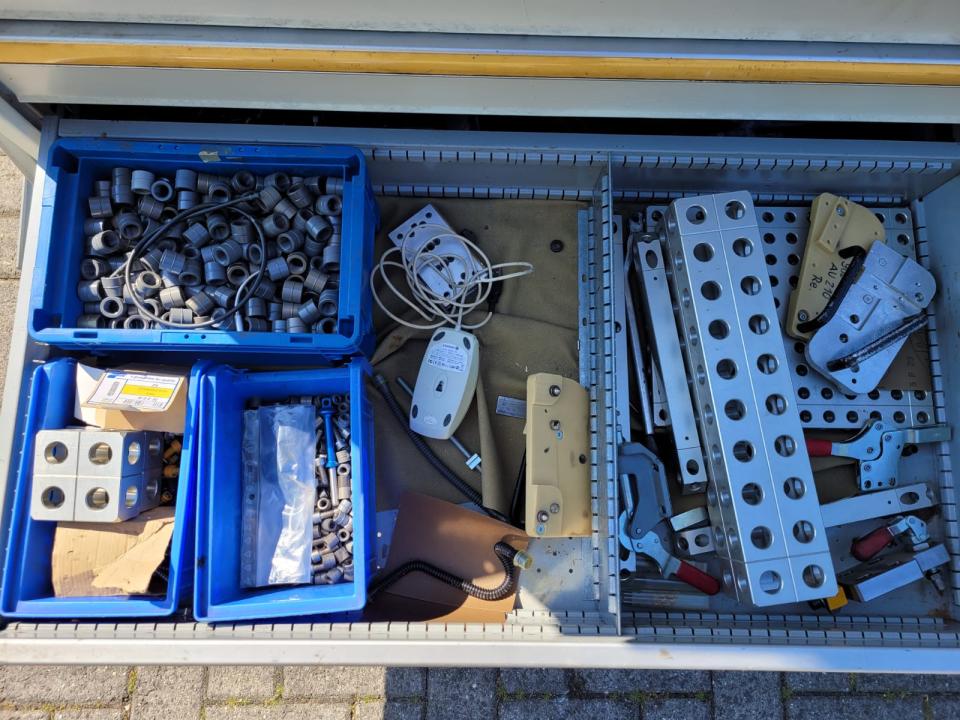

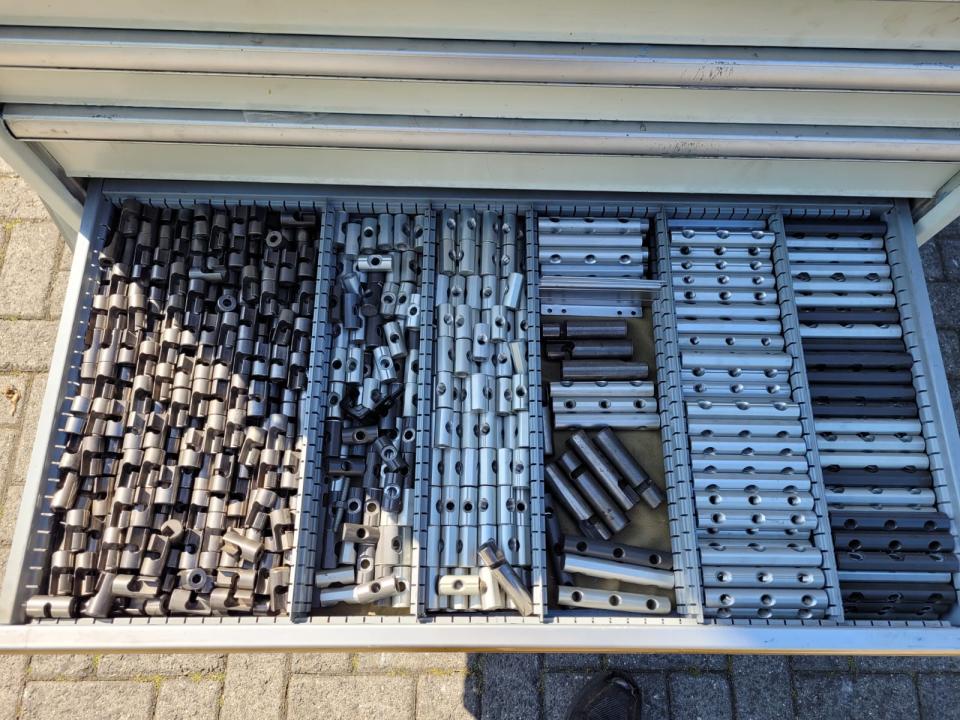

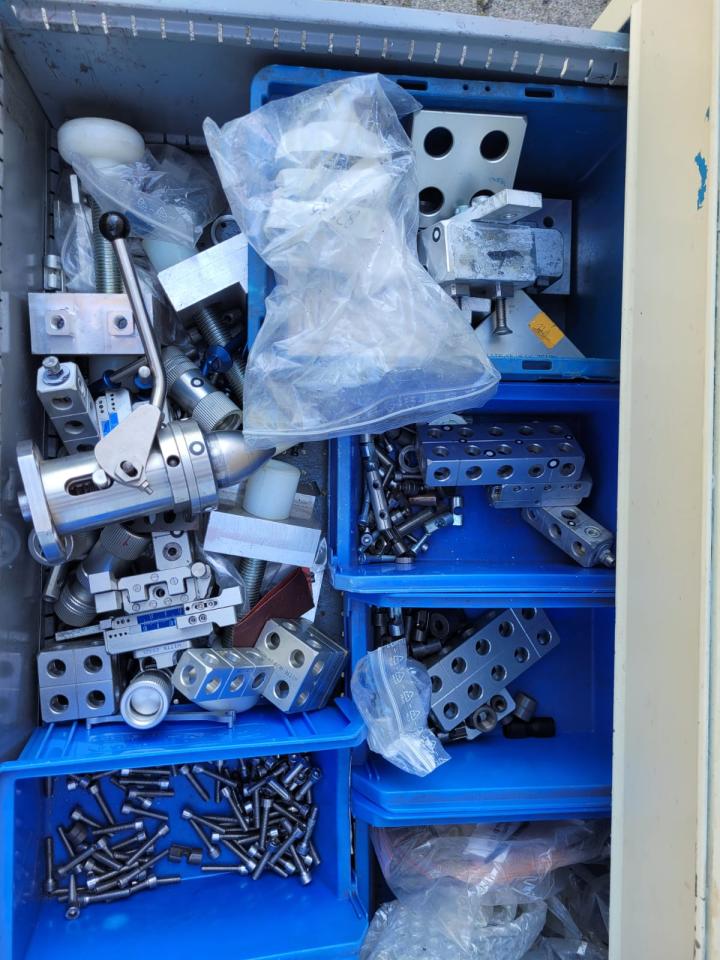

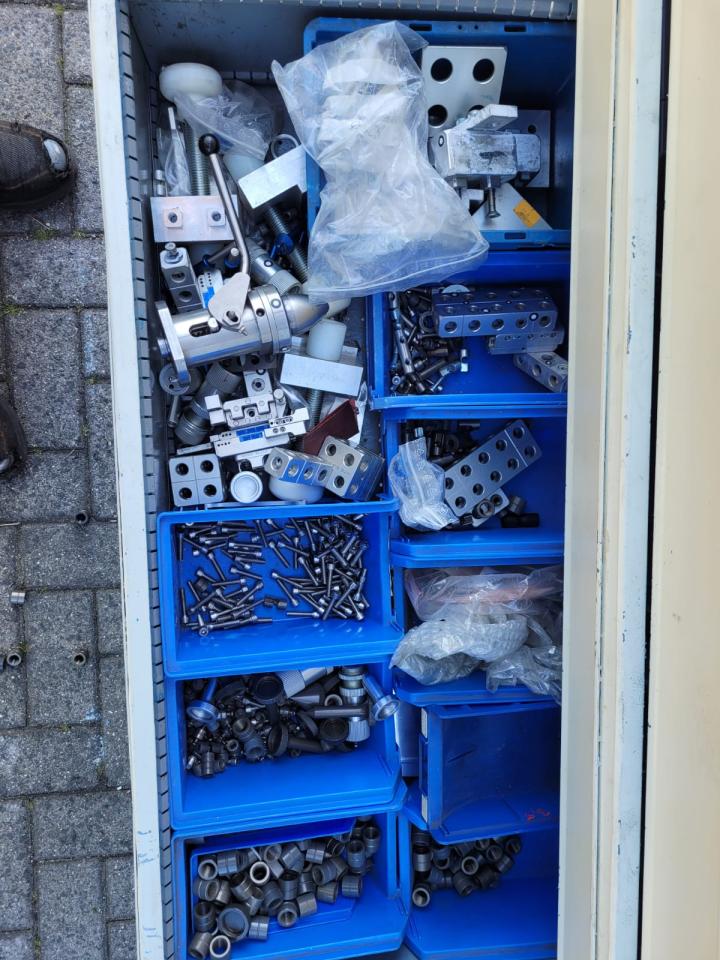

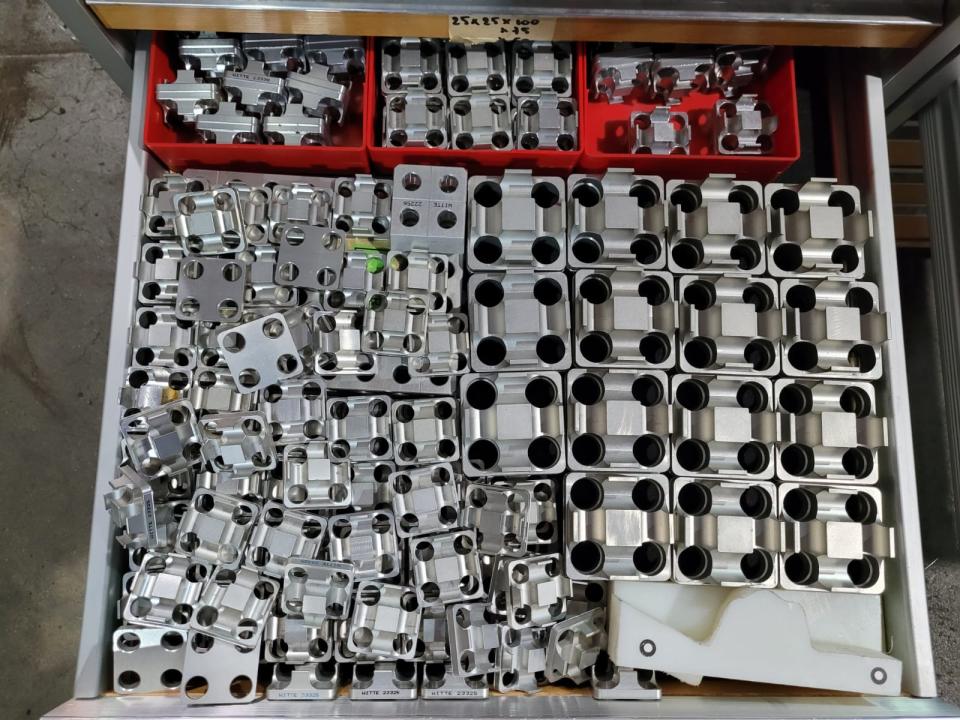

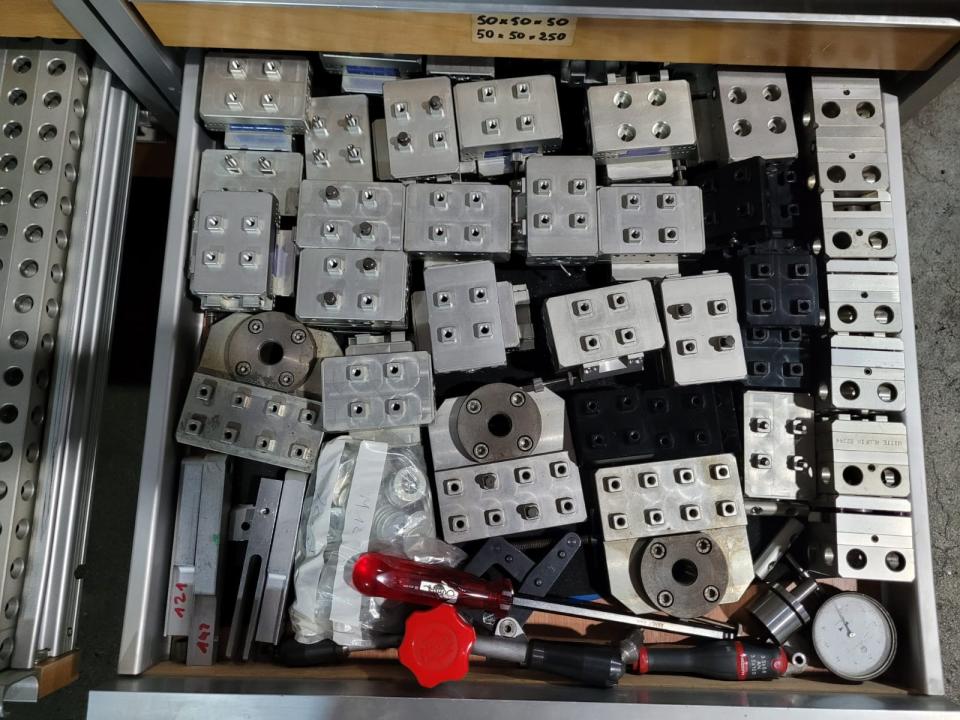

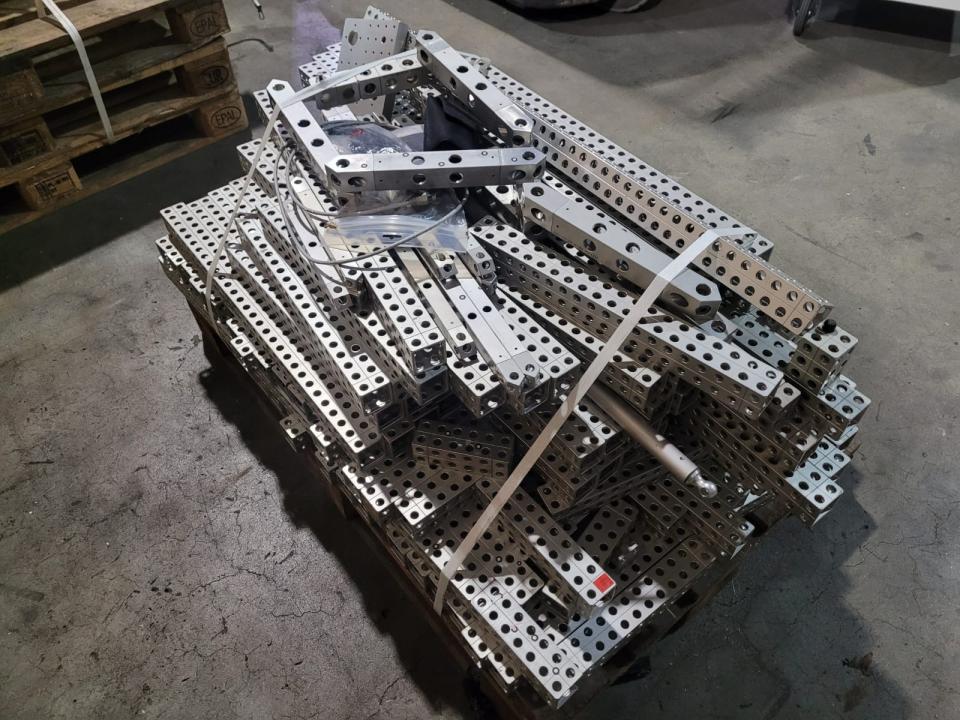

The cabinets are completly filled with parts to make any kind of frame.
What it’s used for:

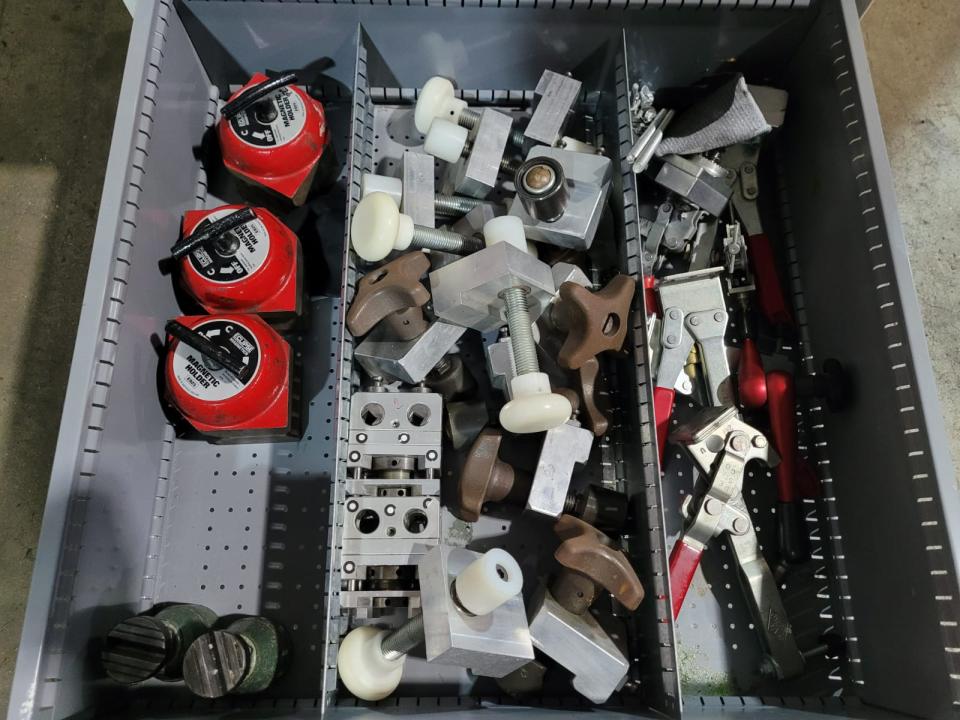

Holding car body parts or assemblies (like frames, panels, or substructures) in a fixed, repeatable position

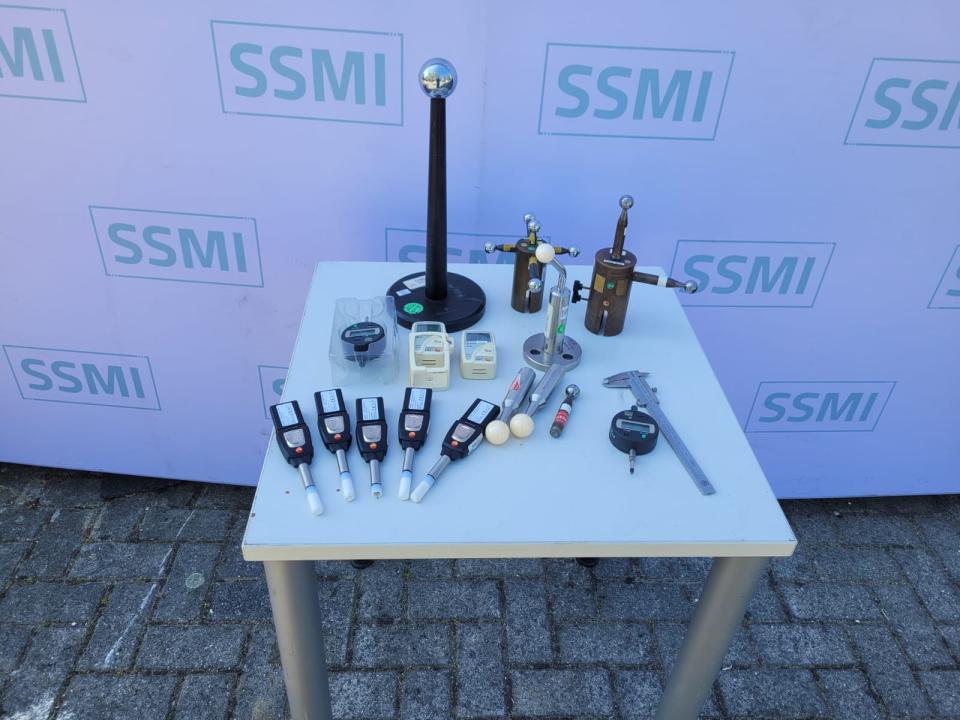

Allowing precise measurement with tools like laser trackers, probes, or CMM machines
Verifying that parts match CAD specifications within very tight tolerances
Why it looks like this:

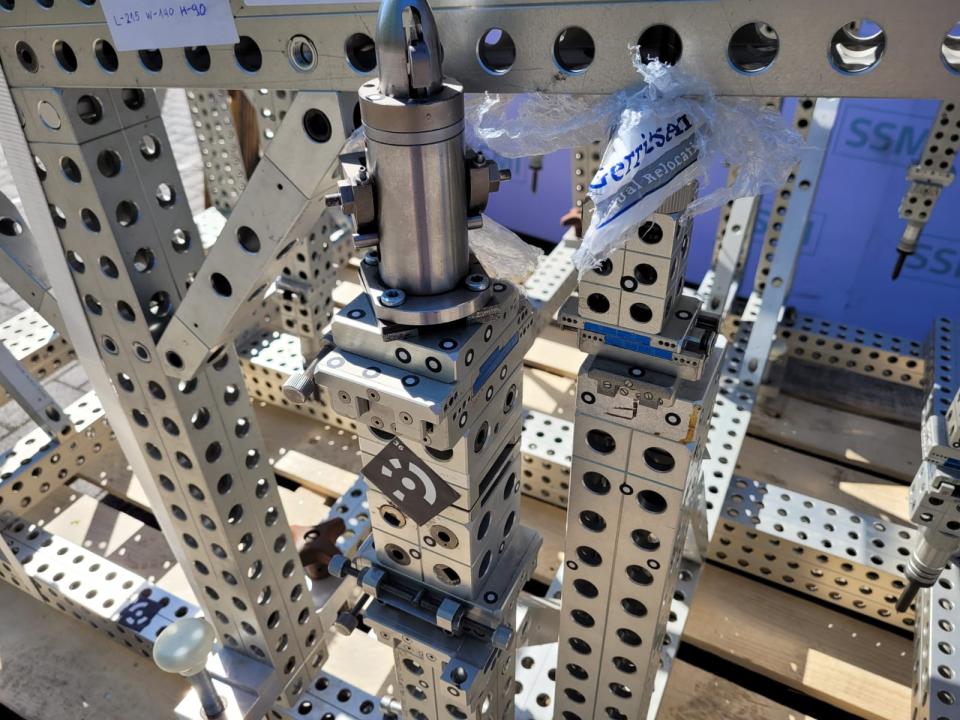

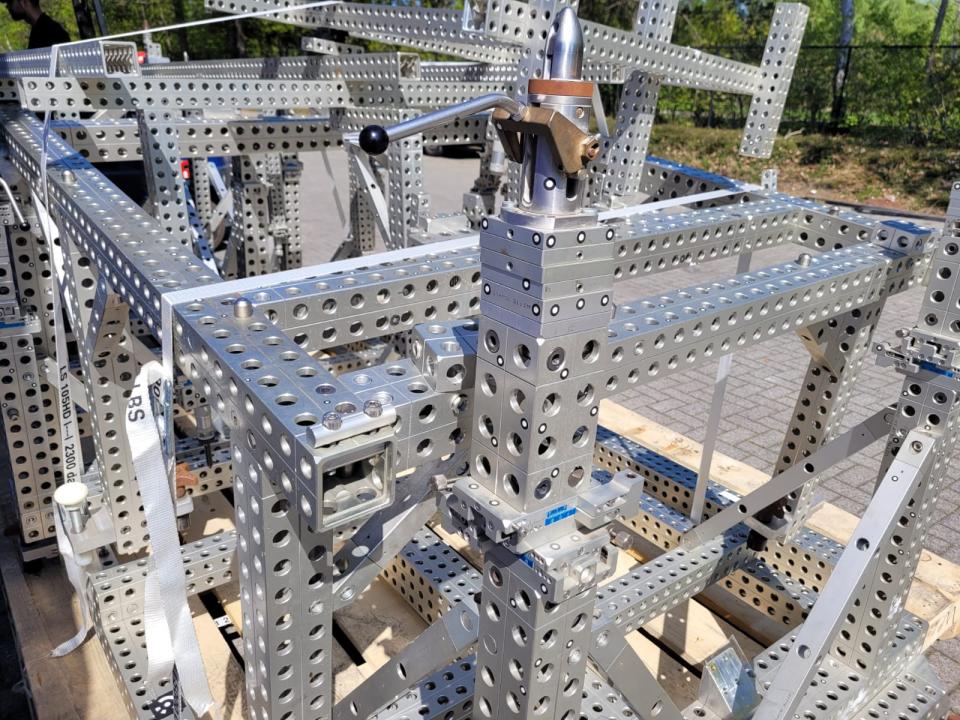

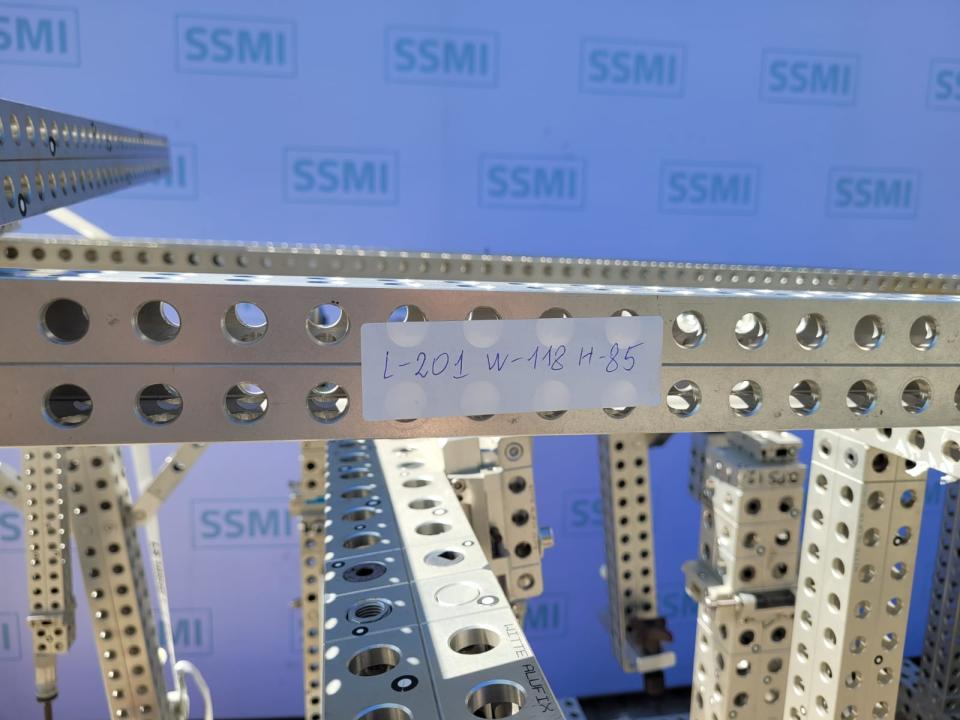

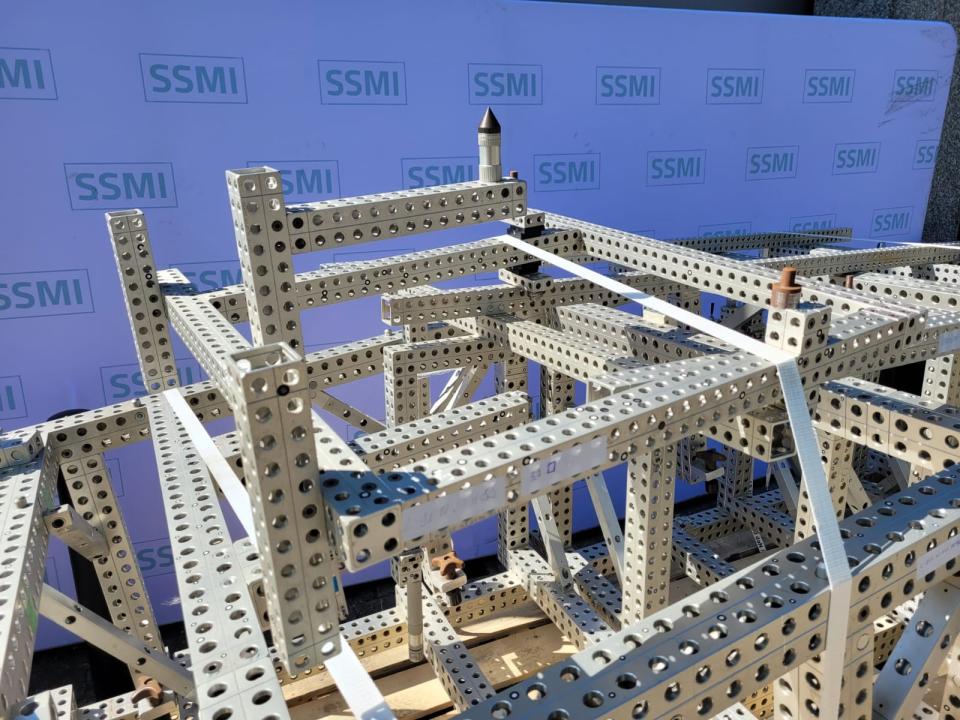

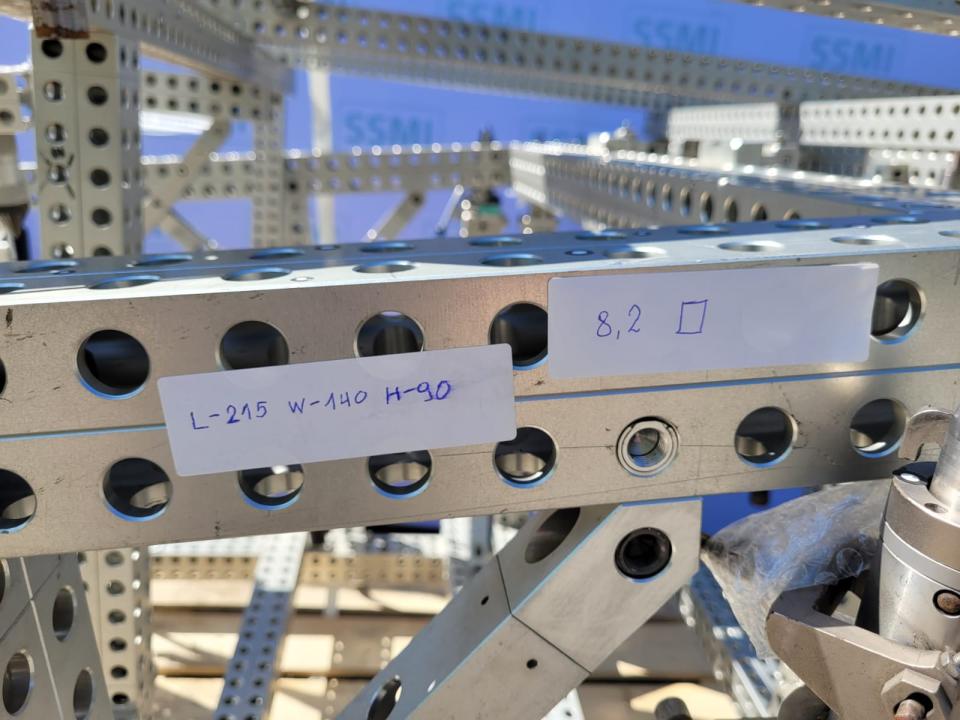

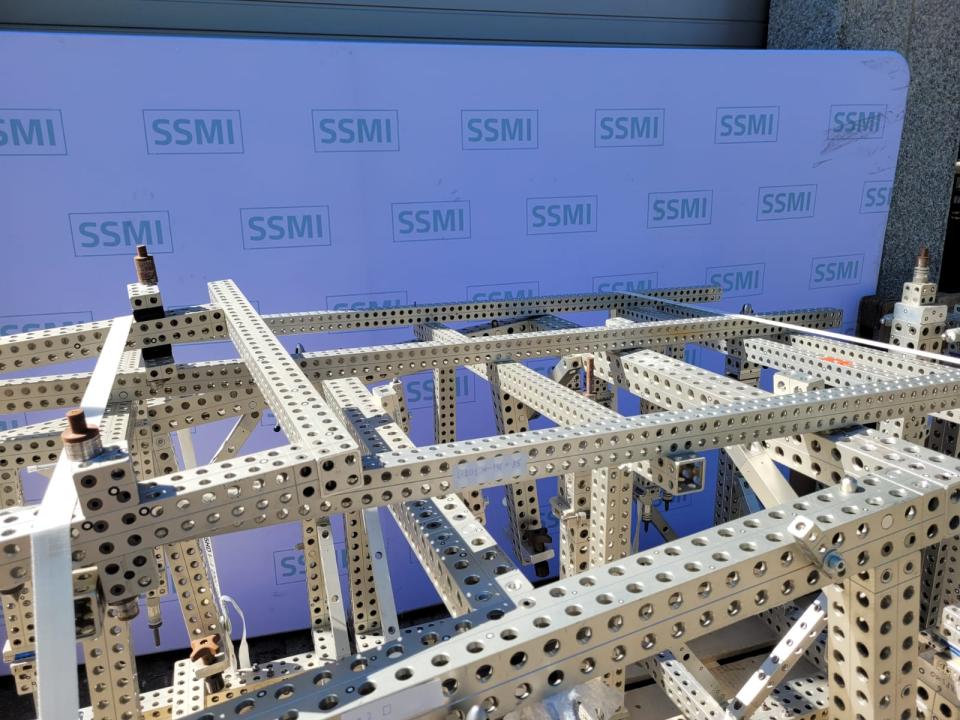

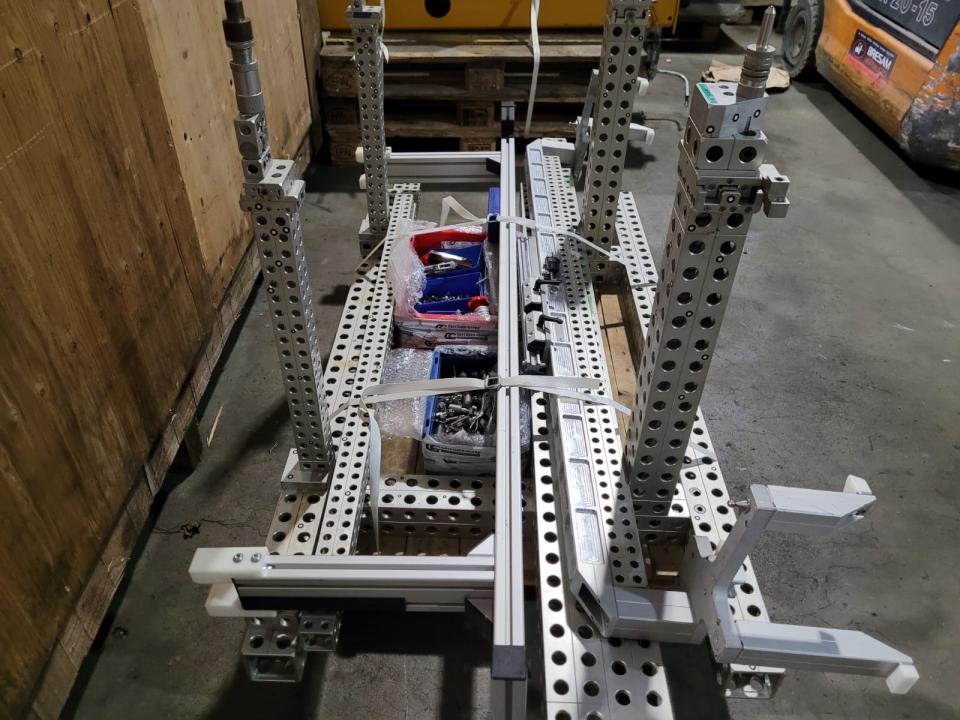

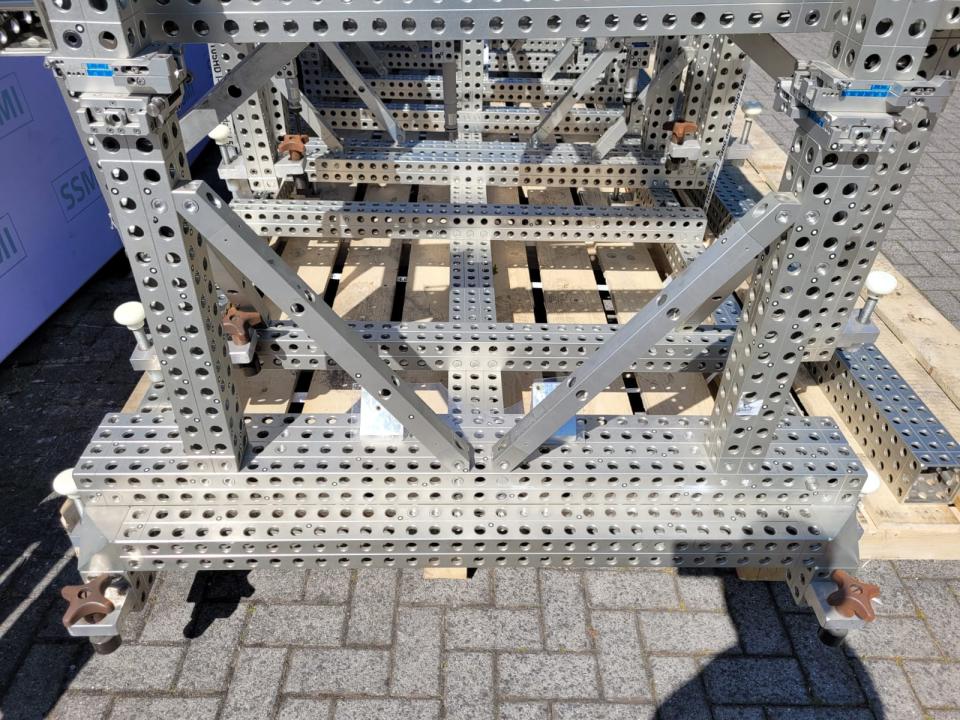

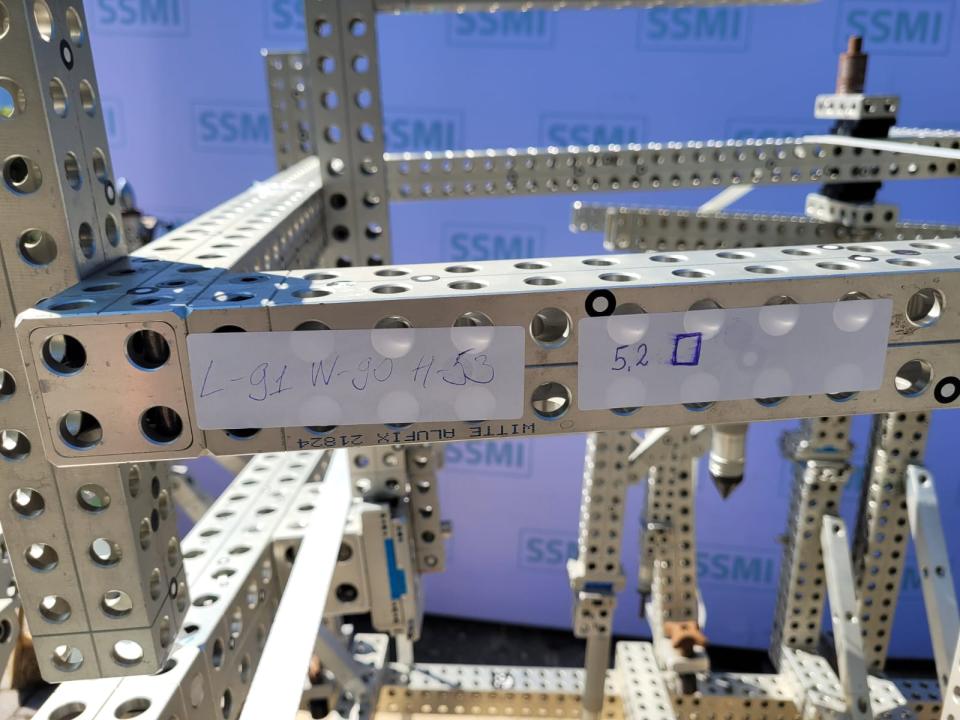

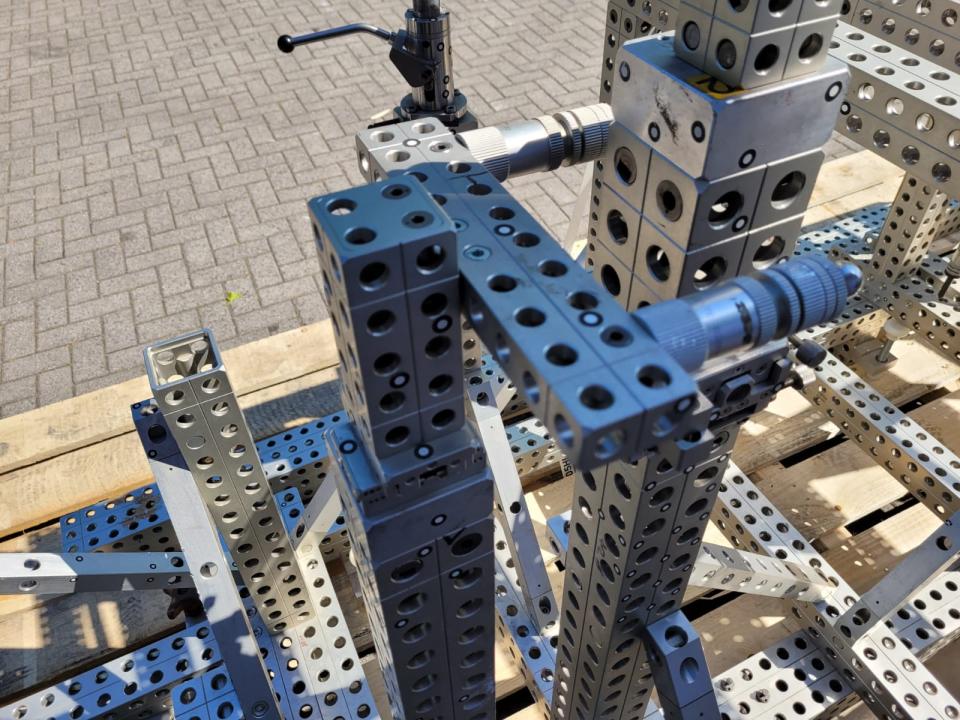

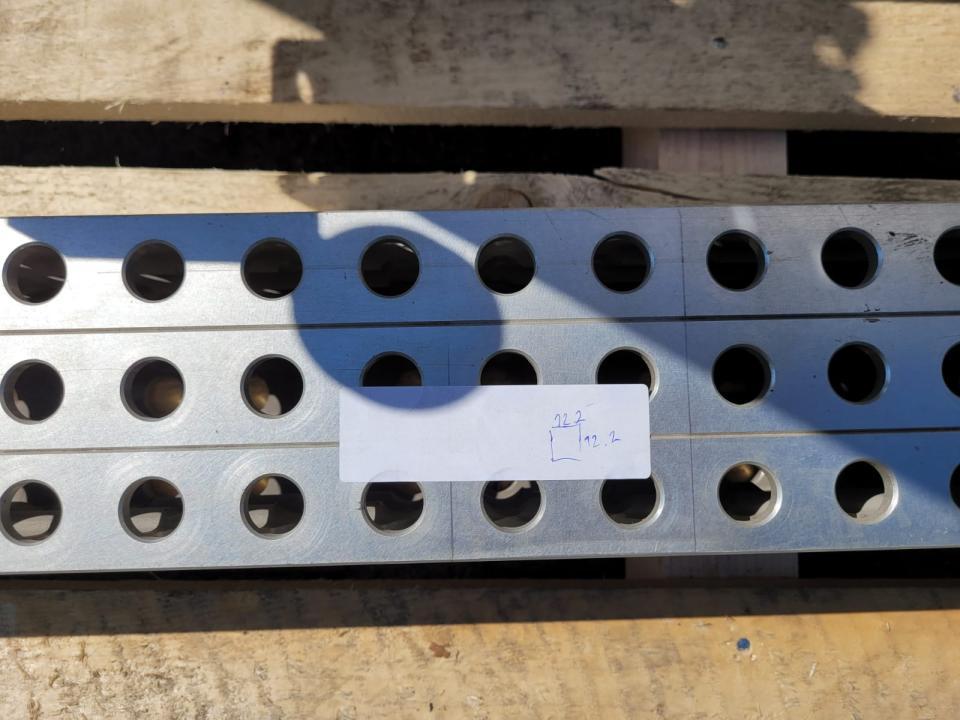

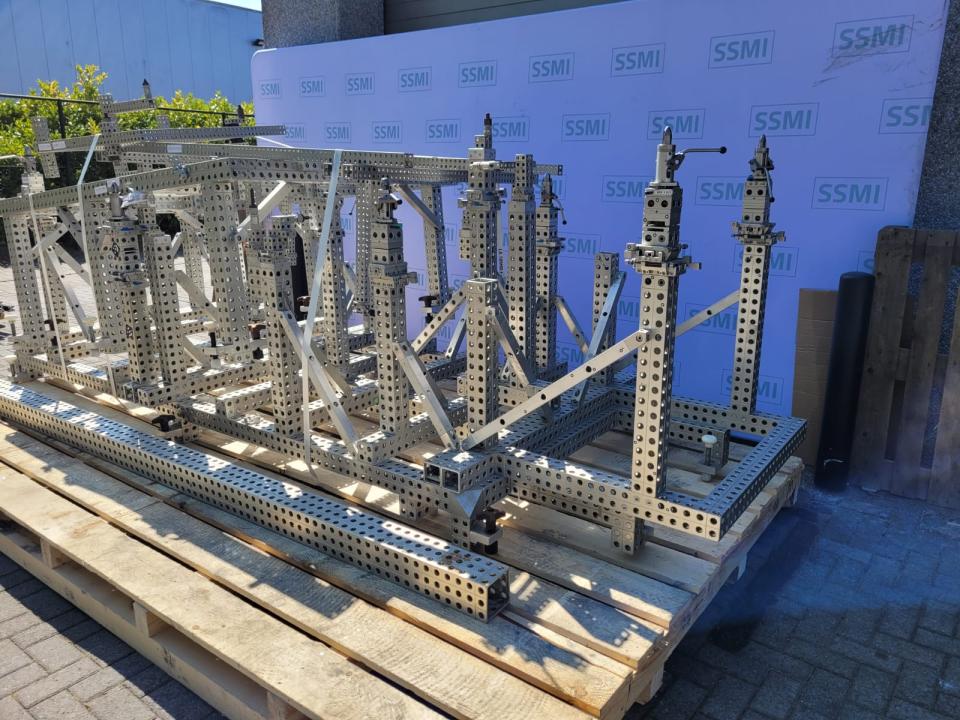

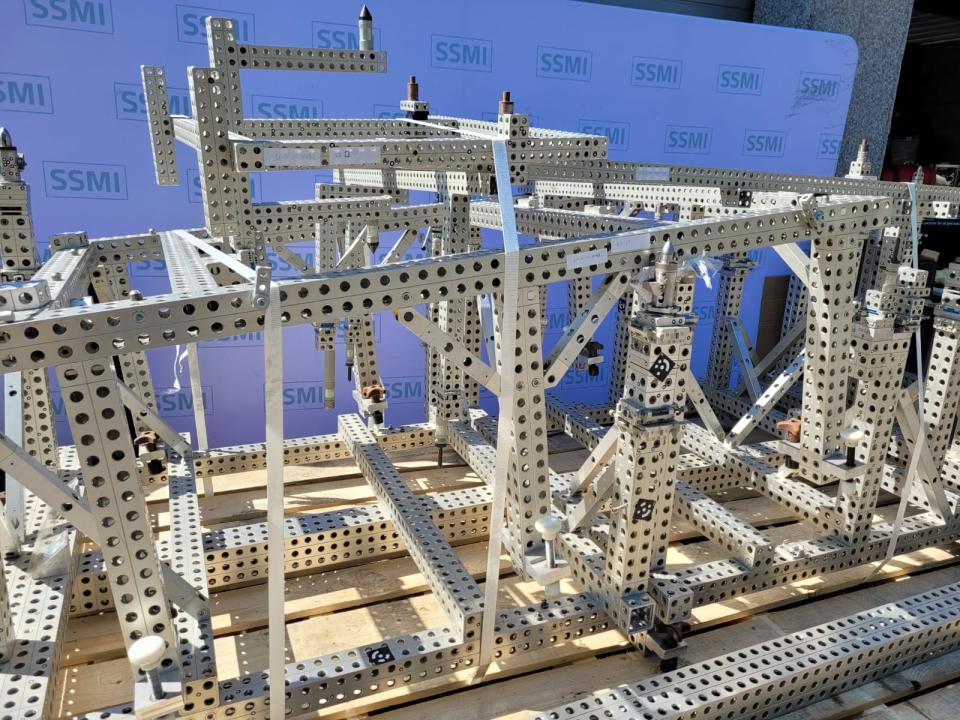

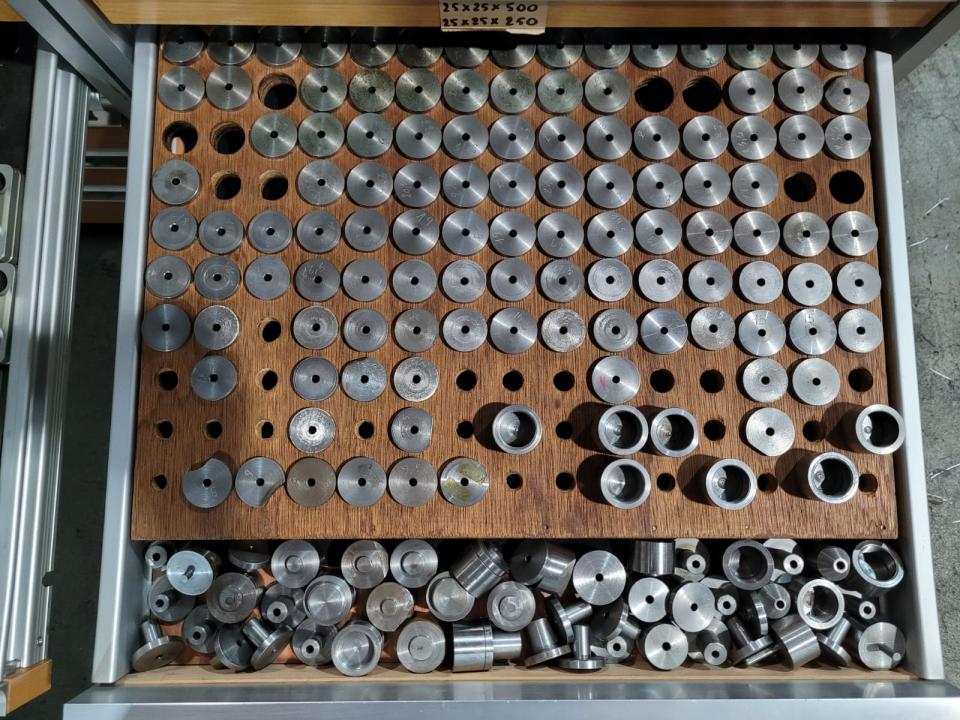

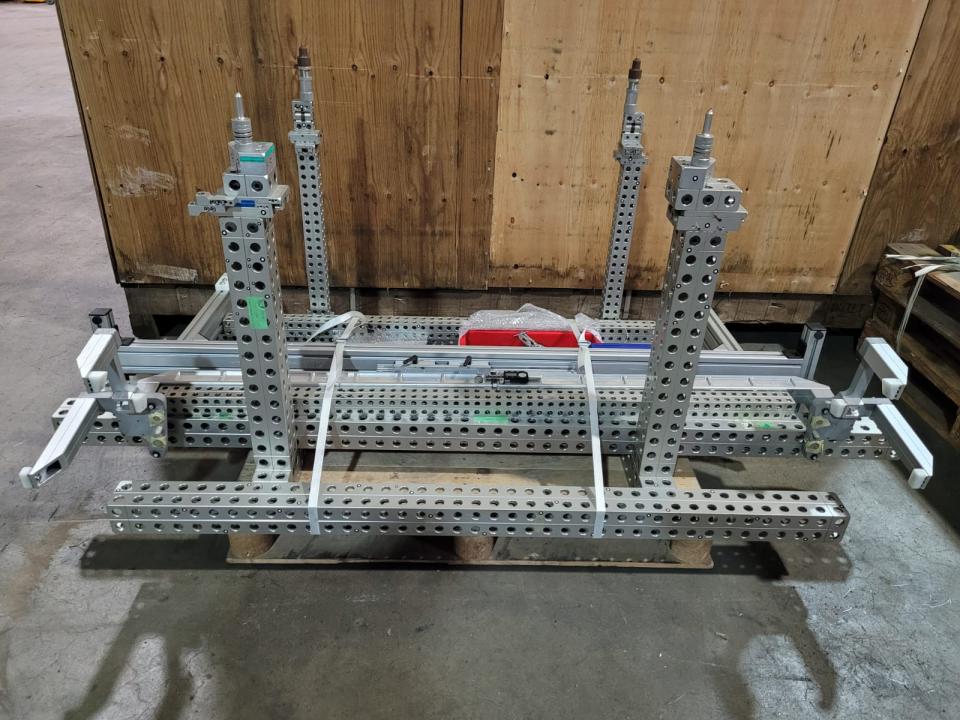

The grid of holes allows precise positioning of components and sensors

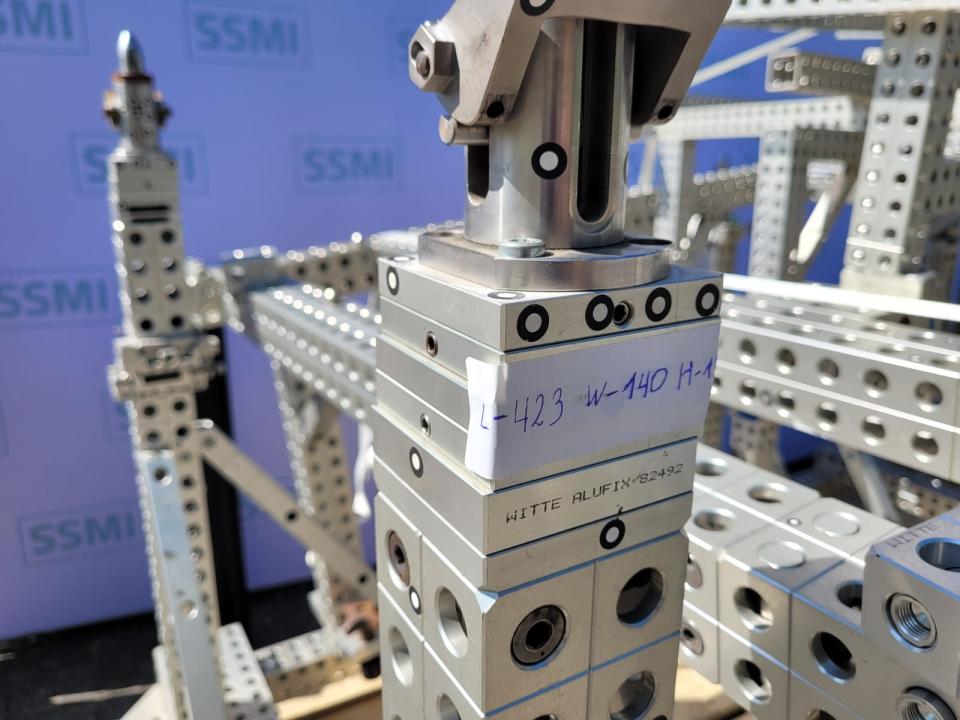

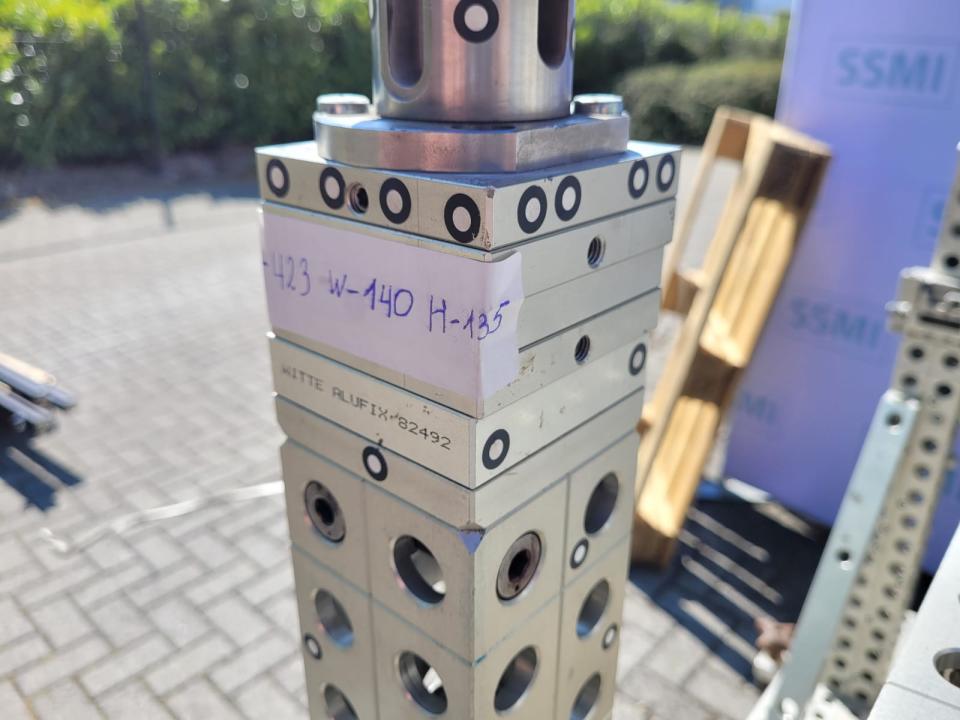

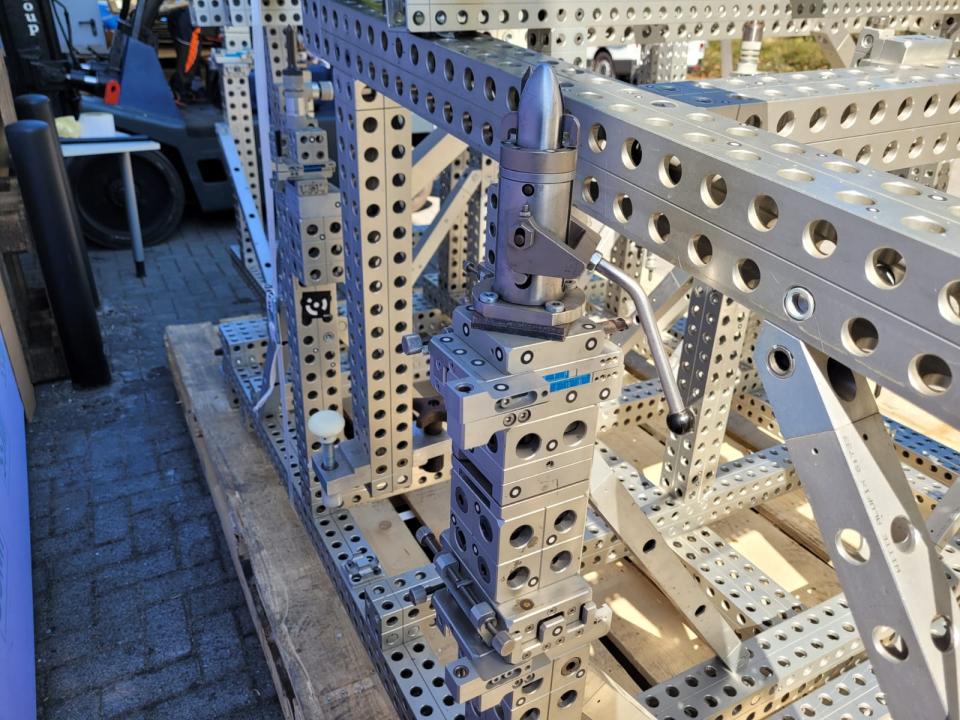

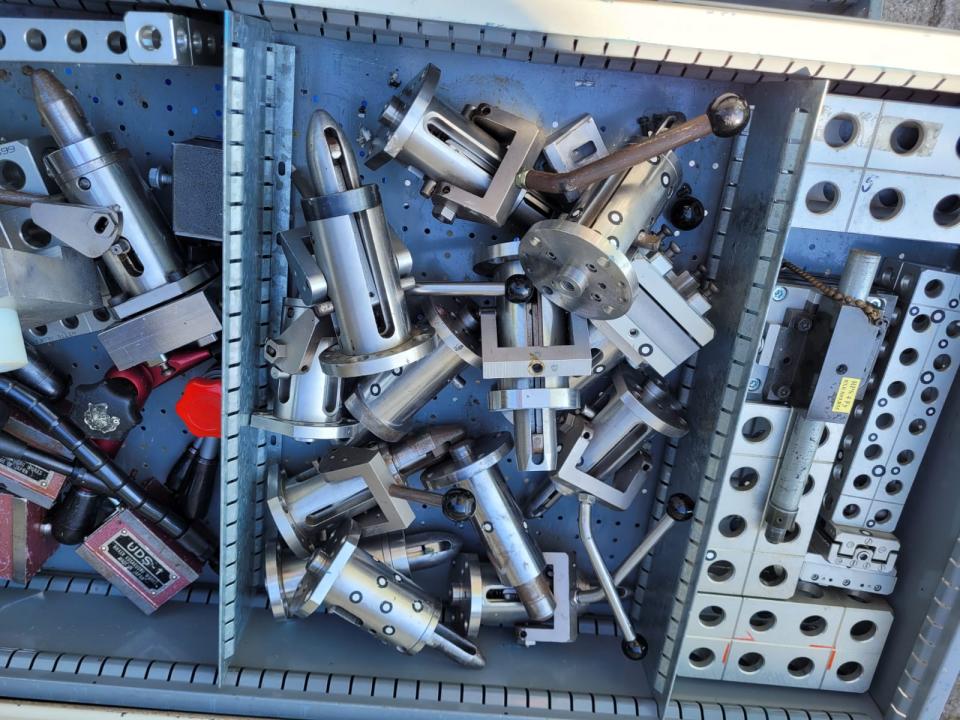

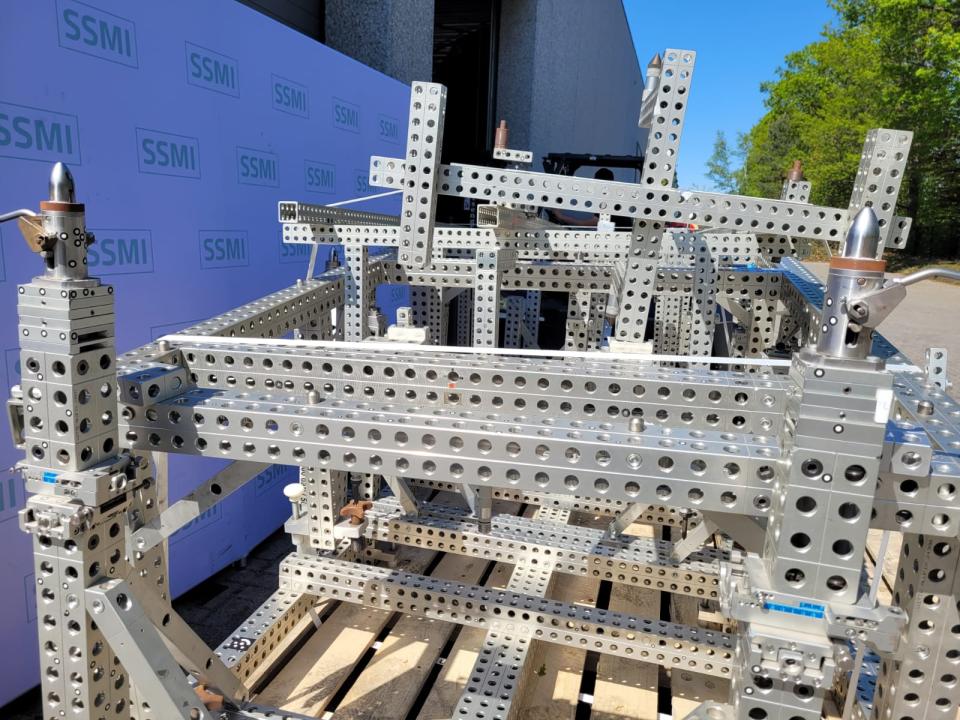

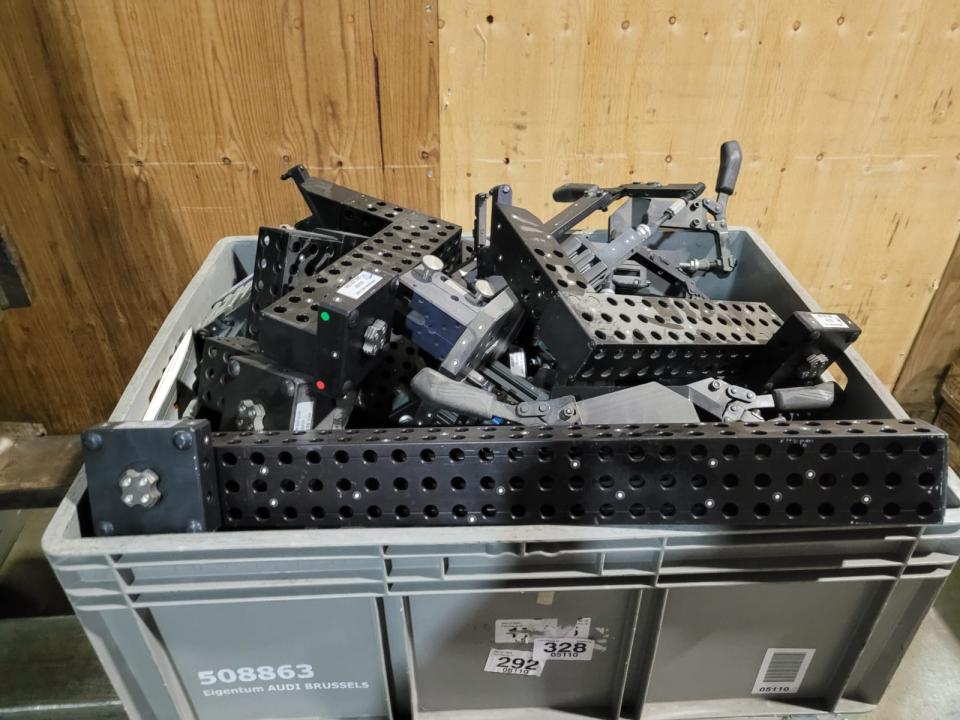

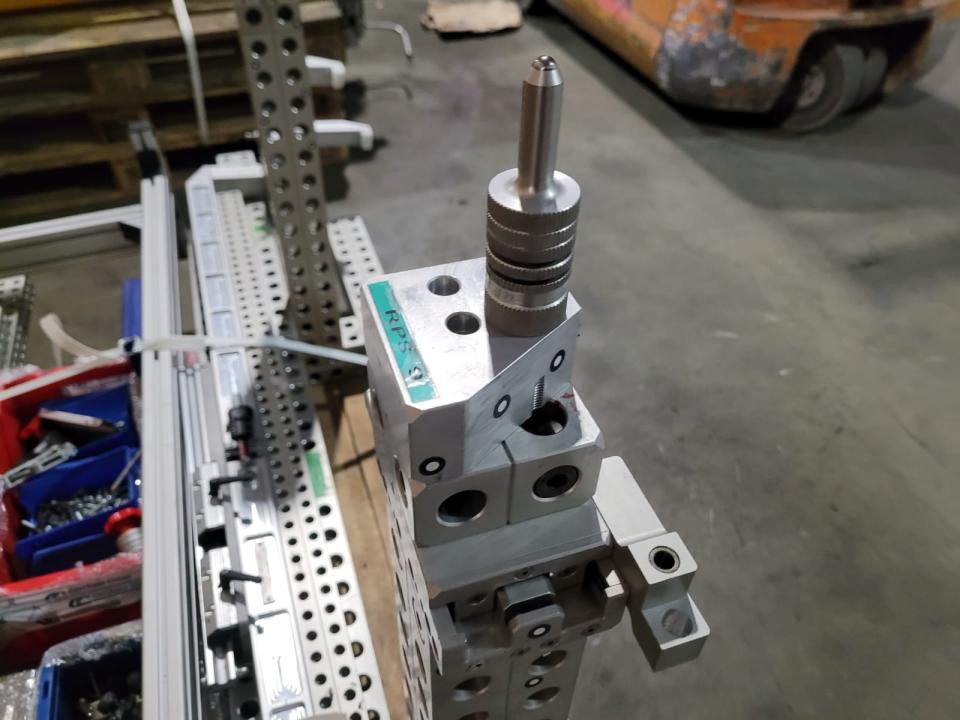

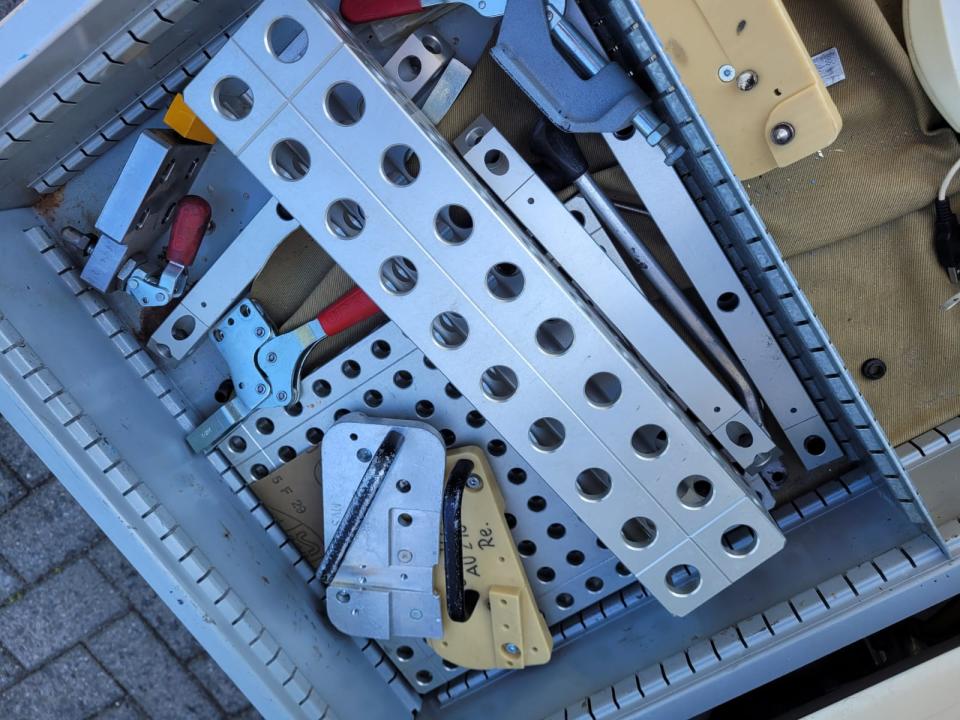

The adjustable posts and mounts define reference points (datums)
The rigid frame ensures no movement or deformation during measurement
In automotive production, these fixtures are critical for quality control—they make sure every body part fits perfectly before moving further down the line.
