2017 TMC Transformer
Energy - Transformer
SKU: SSMIAUD1-00003453
Product information
Brand: TMC
Type: DRY TYPE
Year of build: 2017
Material: Unknown
Documentation: No
Condition: Used
Additional information
Product status:
Reserved for auction

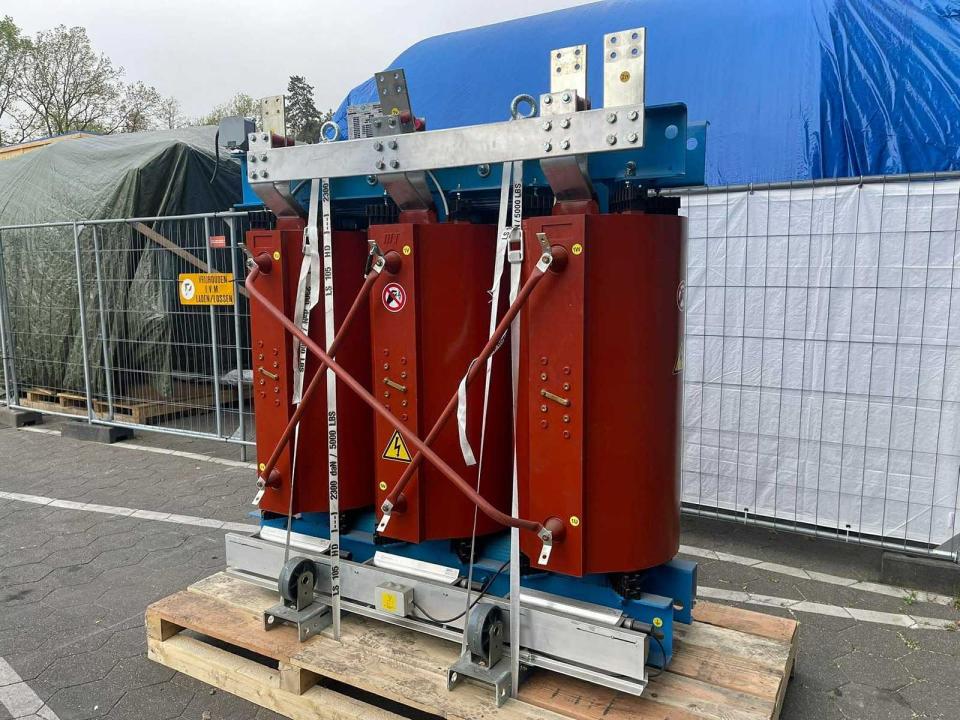

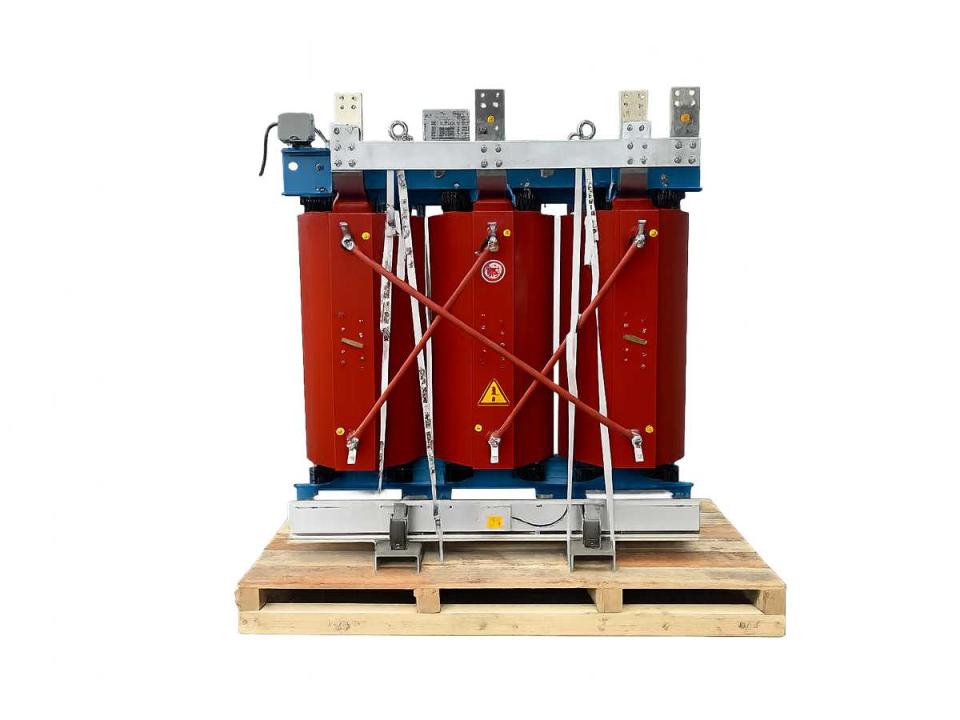

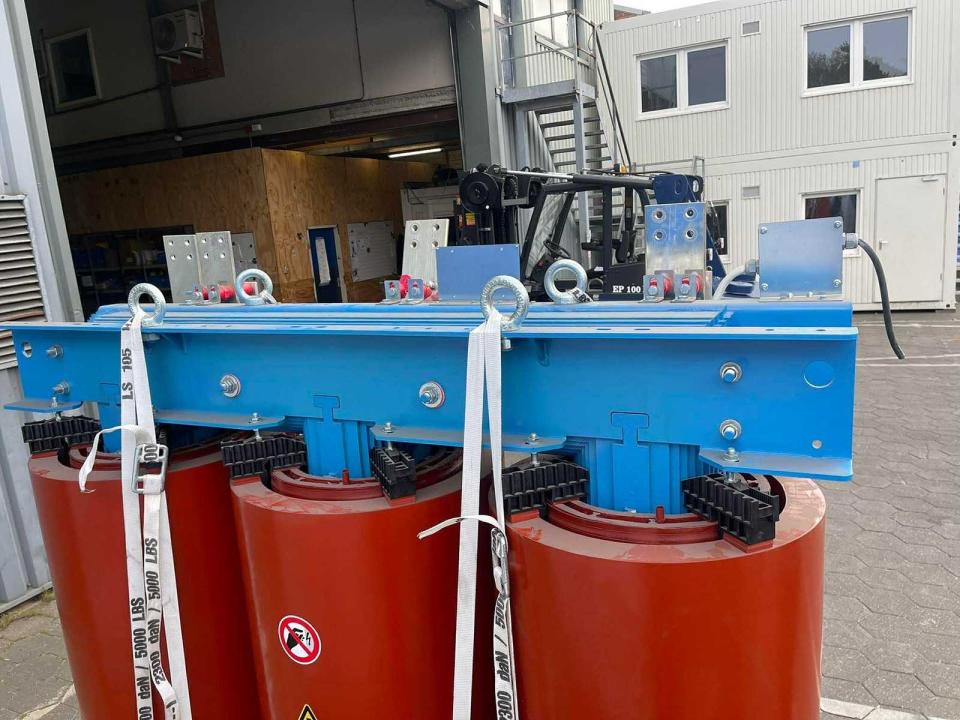

1600 kVA, 3-phase dry-type cast-resin transformer manufactured by Hammond Power Solutions/Marnate in 2017. It operates at 11 kV/400 V, 50 Hz, with Dyn5 vector group, 6.12% impedance, natural air cooling (AN), and a total weight of 4100 kg.

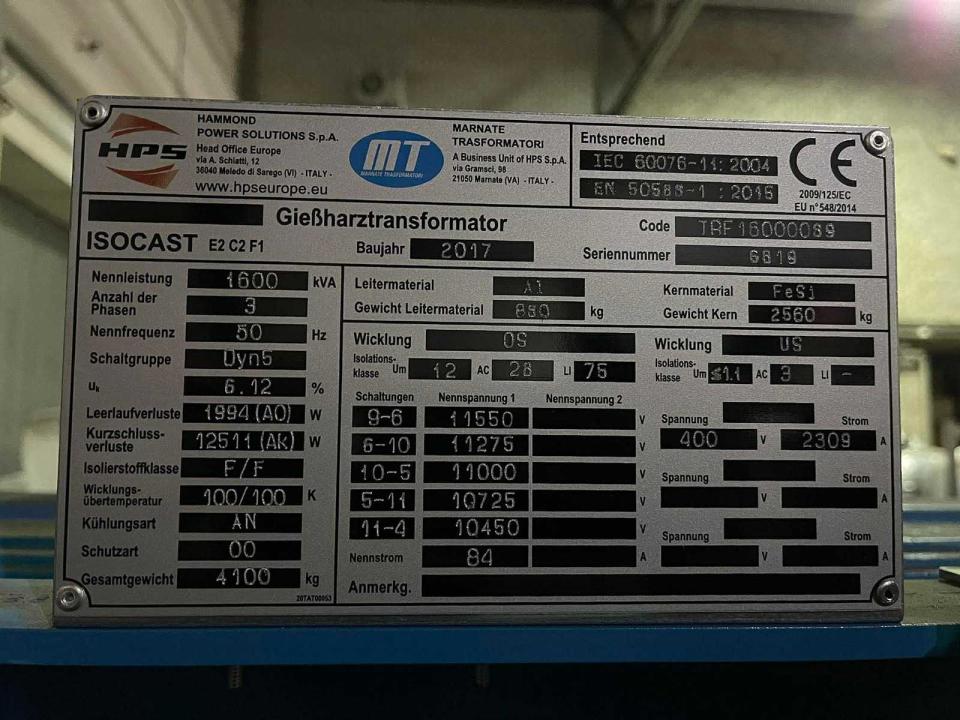

Parameter Nameplate value
Type IS OCAST / ISOCAST, cast-resin transformer
Rated power 1600 kVA
Phases 3
Frequency 50 Hz
Vector group Dyn5
Short-circuit voltage \(u_k\) 6.12%
HV rated voltage 11,000 V nominal
HV taps 11,550 / 11,275 / 11,000 / 10,725 / 10,450 V
HV rated current 84 A
LV rated voltage 400 V
LV rated current 2309 A
No-load loss 1994 W
Load/short-circuit loss 12,511 W
Cooling AN (air natural)
Insulation class F/F
Winding temperature rise 100/100 K
Conductor Aluminium (Al)
Core FeSi
Conductor weight 680 kg
Core weight 2560 kg
Total weight 4100 kg
Year 2017
Serial number 6819
Code TRF16000069
Standards IEC 60076-11:2004; EN 50588-1:2015
Transport information
Location: Not provided
Size (l*w*h mm):
1850 × 1000 × 2100 mm
Weight (kg): 4100
