Peruweld activated carbon column
-
SKU: SSMIBRI1-00002451
Product information
Brand: Peruweld
Type: vert. vessel
Year of build: Unknown
Material: Unknown
Documentation: Yes
Condition: Not disclosed
Additional information
Product status:
Sold
Technical Specifications

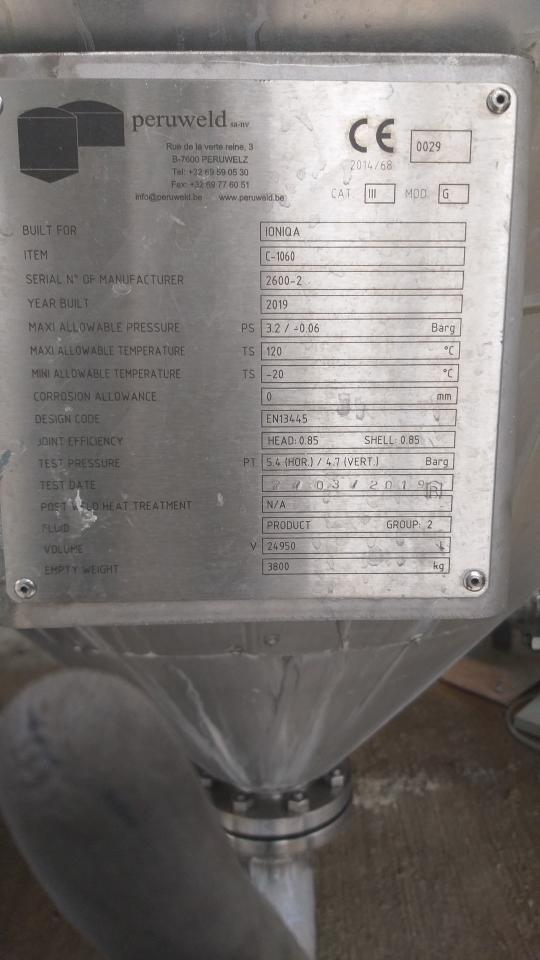

Manufacturer: Peruweld S.A.-N.V. (Belgium)
Built For: Ioniqa
Equipment Tag: C-1060
Manufacturer Serial Number: 2600-2
Year Built: 2019
Vessel Type: Vertical stainless steel process vessel
Design Code: EN 13445
PED Category: III
Module: G
CE Notified Body: 0029
Maximum Allowable Pressure (PS): 3.2 barg / -0.06 barg
Maximum Allowable Temperature: 120°C
Minimum Allowable Temperature: -20°C
Test Pressure: 5.4 barg (horizontal) / 4.7 barg (vertical)
Product Group: Group 2
Internal Volume: 24,950 litres
Empty Weight: 3,800 kg
Corrosion Allowance: 0 mm
Construction: Stainless steel welded pressure vessel
Transport information
Location: Not provided
Size (l*w*h mm):
Not provided
Weight (kg): 3600
