2019 Friamco Crystallization vessel
Process Equipment and Machines - Various process equipment and machines
SKU: SSMIBRI1-00002460
Product information
Brand: Friamco
Type: vert. vessel with jacket and agitator
Year of build: 2019
Material: Unknown
Documentation: Yes
Condition: Used
Additional information
Product status:
Sold

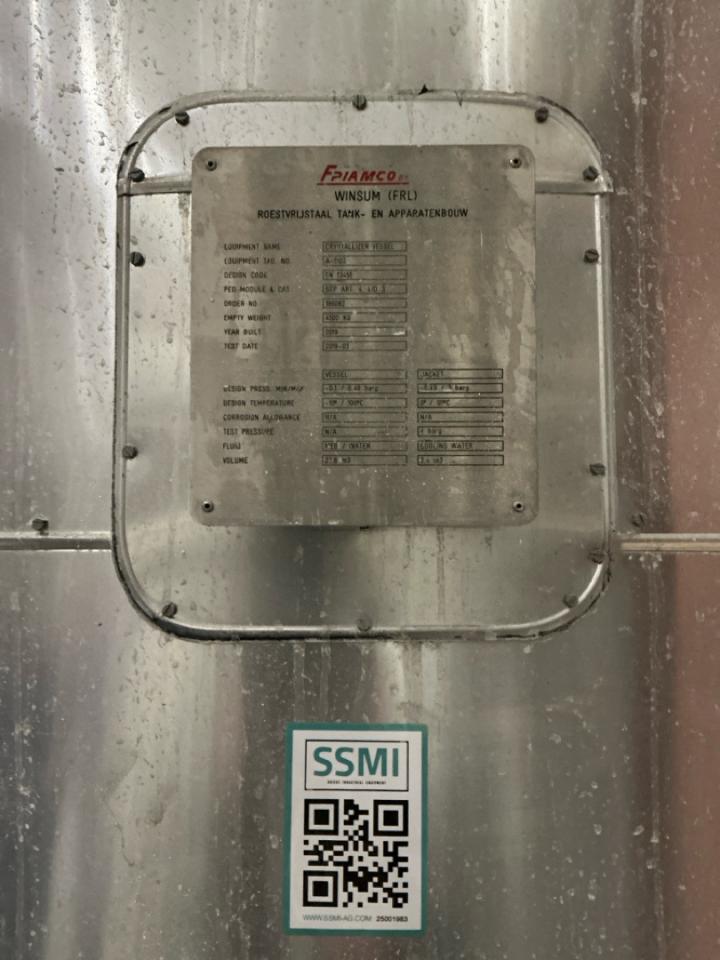

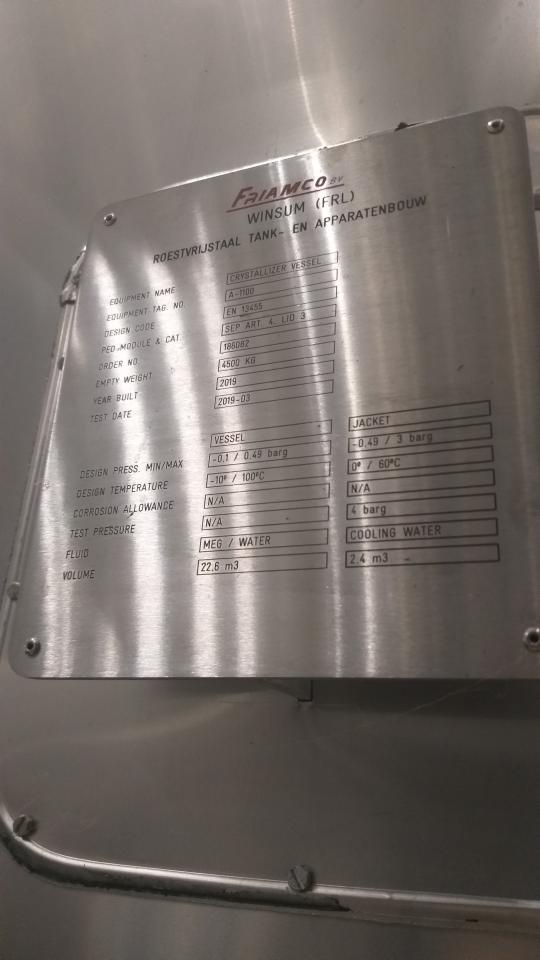

Equipment Name: Crystallizer Vessel

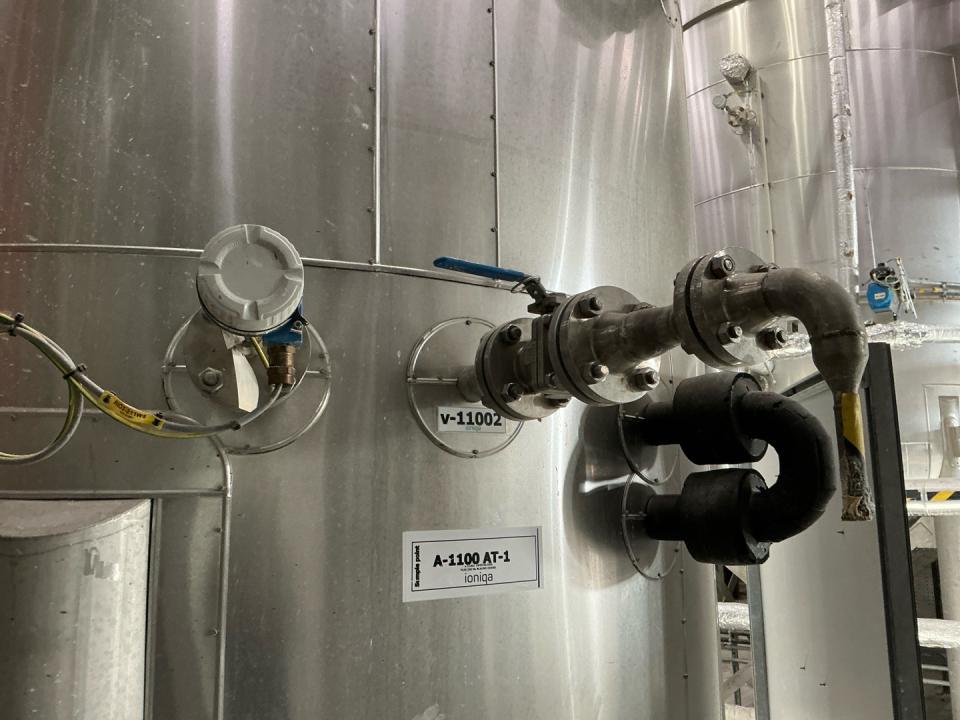

Tag Number: A-1100
Design Code: EN 13455
PED Classification: SEP Article 4, Lid 3
Order Number: 186082
Year Built: 2019
Test Date: March 2019
Mechanical Data
Construction Material: Stainless Steel
Empty Weight: 4,500 kg
Working Volume (Vessel): 22.6 m³
Jacket Volume: 2.4 m³

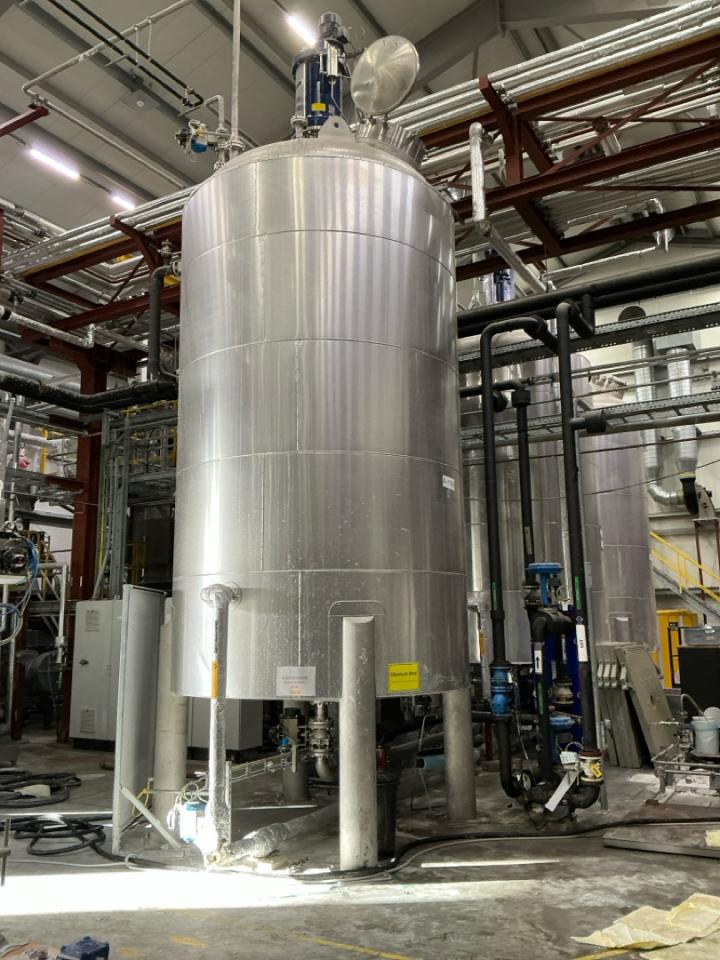

Configuration:
Vertical cylindrical vessel
Dished top and bottom
Jacketed construction
Top-mounted agitator

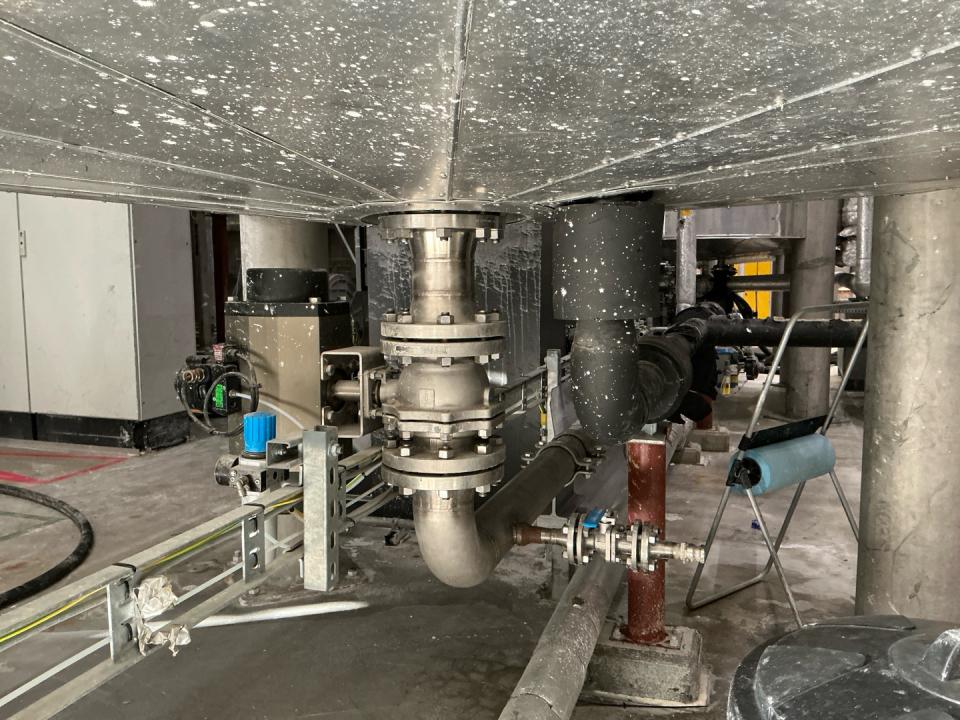

Bottom discharge assembly
Four-leg support frame
Vessel Design Conditions
Product Side
Design Pressure:
Vacuum: -0.1 barg
Pressure: +0.49 barg
Design Temperature:
-10°C to +100°C
Process Medium:
MEG / Water
(MEG = Mono Ethylene Glycol)
Jacket Side
Design Pressure:
-0.49 barg to +3 barg
Design Temperature:
0°C to 60°C
Heating/Cooling Medium:
Cooling Water
Test Pressure:
4 barg
Transport information
Location: Not provided
Size (l*w*h mm):
Not provided
Weight (kg): 3000
