2019 Kelvion Plate heat exchanger

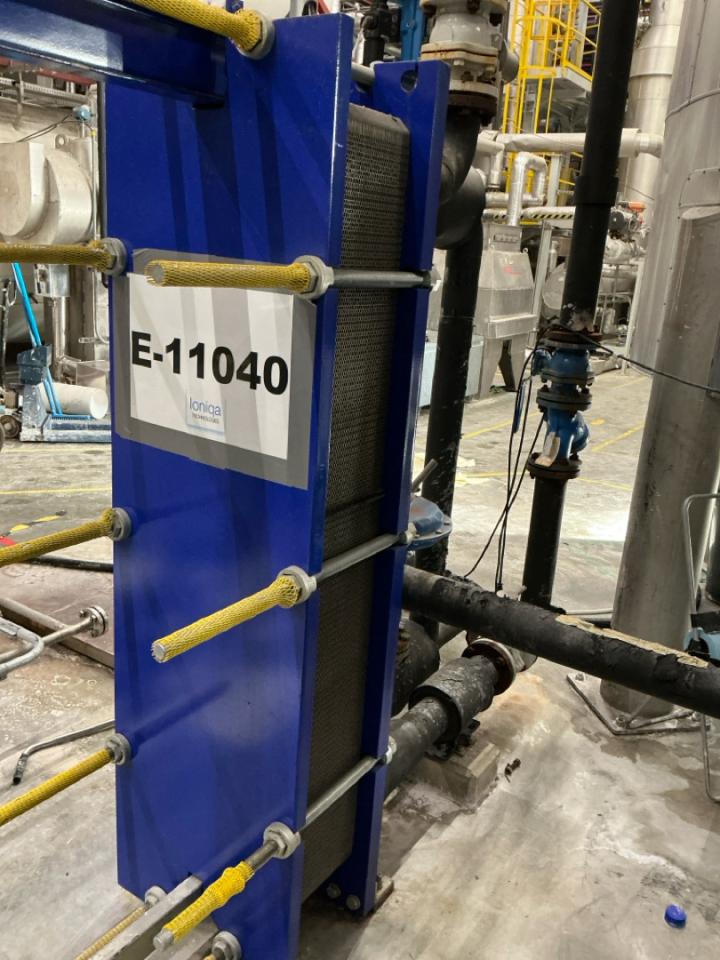

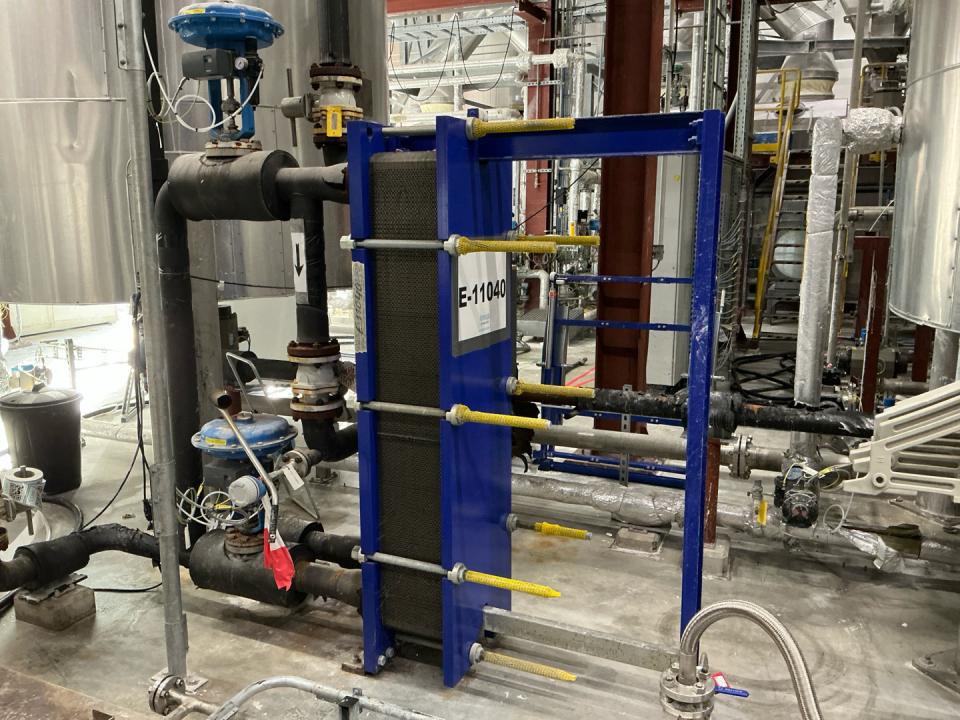

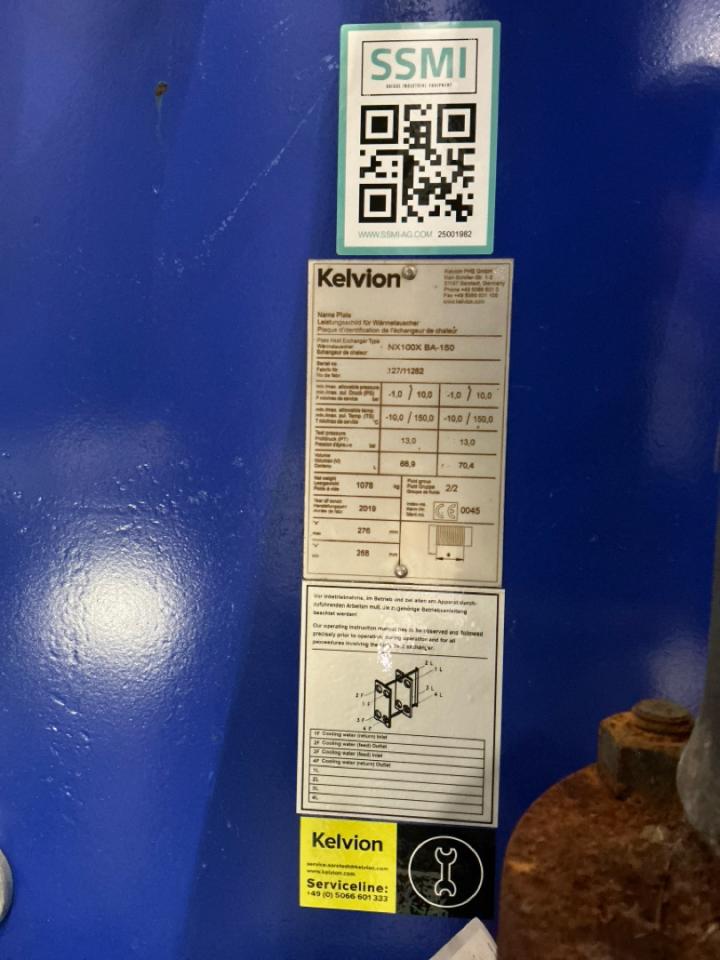

Kelvion – Gasketed Plate Heat Exchanger Large-capacity industrial gasketed plate heat exchanger manufactured by Kelvion, designed for efficient thermal transfer between two liquid circuits. This unit is substantially larger than the previously identified NT50 model and is intended for high-flow industrial heating and cooling duties. The exchanger features a heavy-duty plate-and-frame construction with a large plate pack, allowing easy maintenance, cleaning, and future expansion by adding plates. The design is commonly found in chemical processing, utilities, energy recovery, and industrial cooling systems. Technical Specifications Manufacturer: Kelvion PHE GmbH Equipment Type: Gasketed Plate Heat Exchanger Model: NX100X BA-150 Construction: Painted carbon steel frame with stainless steel heat transfer plates Manufacture Date: 2019 Capacity/Size: 1,078 plates Design: Gasketed plate-and-frame heat exchanger Connections: Industrial flanged process connections Drive/Motor: None Serial Number: 12711822 Application: Liquid-to-liquid heat transfer Installation Type: Stationary process installation Additional Features: Large-capacity plate package Expandable frame design CE certified High-temperature operation Removable plate construction for servicing Heavy-duty industrial frame Nameplate Data Model: NX100X BA-150 Serial Number: 12711822 Year of Manufacture: 2019 Maximum Allowable Pressure: Side 1: -1.0 / 10.0 bar Side 2: -1.0 / 10.0 bar Maximum Allowable Temperature: Side 1: -10°C / +150°C Side 2: -10°C / +150°C Test Pressure: 13.0 bar Internal Volume: Circuit 1: 68.9 L Circuit 2: 70.4 L Number of Plates: 1,078 plates Plate Group: 2/2
