2019 FIB Reactor feed buffer vessel

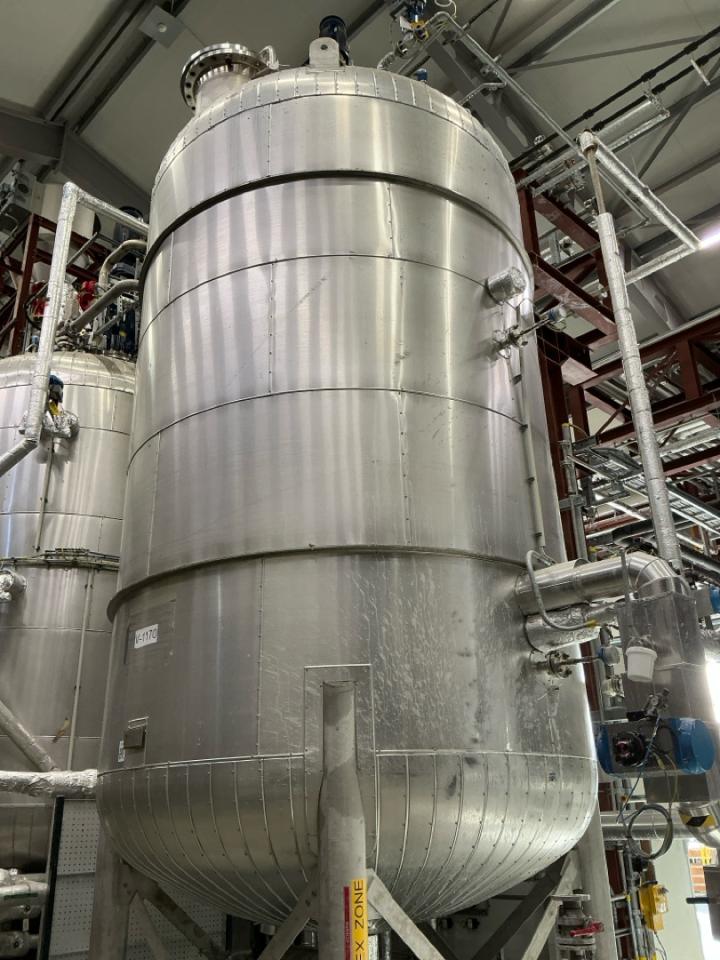

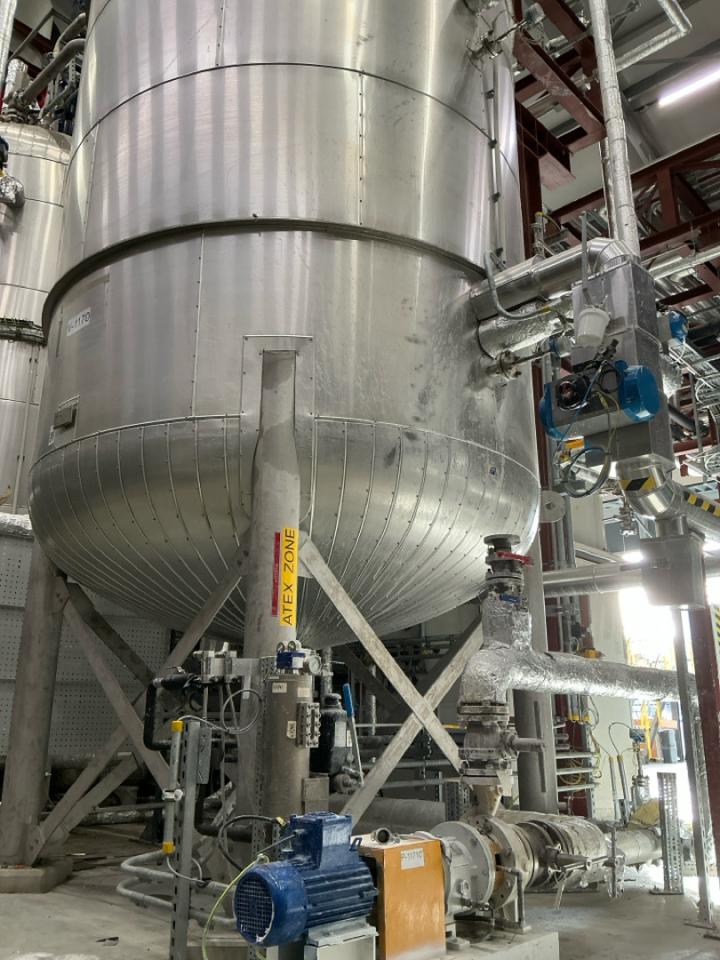

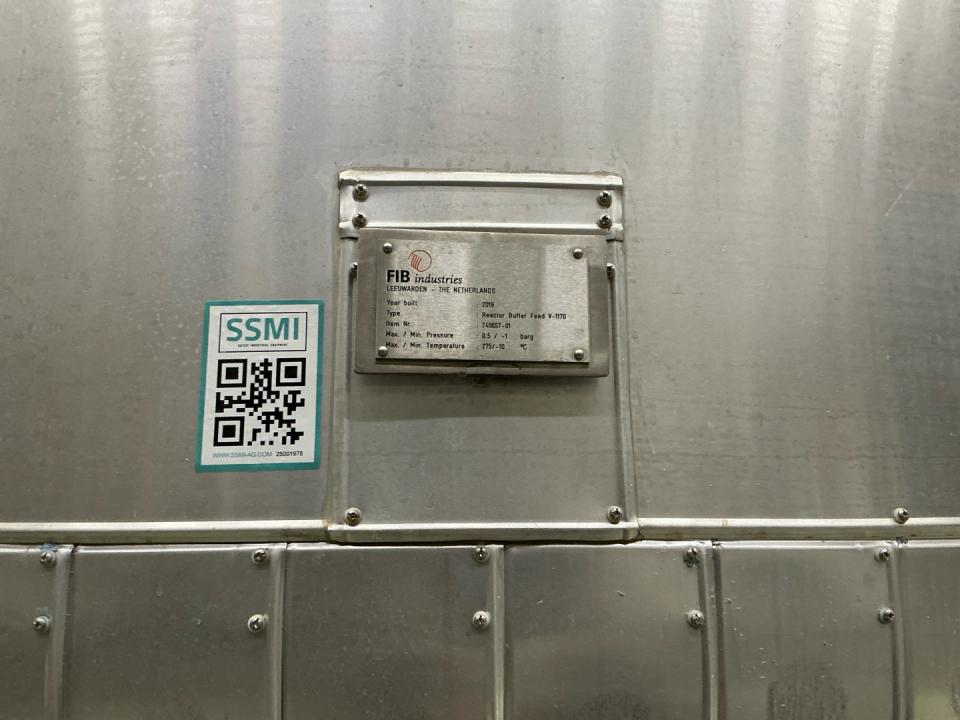

Min / max pressure: 0.5/ -1.0 Bar ; Min / max temperature: 275/-10 °C FIB Industries – Reactor Buffer Feed Vessel Large insulated stainless-steel vertical process vessel manufactured by FIB Industries, Netherlands. According to the visible nameplate, the unit is designated “Reactor Buffer Feed V-1170” and was manufactured in 2019. The vessel is designed as a buffer/feed hopper positioned upstream of a reactor or downstream process stage. Technical Specifications Manufacturer: FIB Industries (Leeuwarden, Netherlands) Equipment Type: Reactor Buffer Feed Vessel / Process Feed Hopper Construction: Stainless steel vessel with insulated stainless-steel cladding Manufacture Date: 2019 Design: Vertical cylindrical vessel with conical hopper bottom Tag Number: V-1170 Application: Reactor feed buffering, powder storage, bulk solids handling Pressure Rating: Max. pressure: +0.5 barg Min. pressure: -1.0 barg Temperature Rating: Maximum: 275°C Minimum: -10°C
