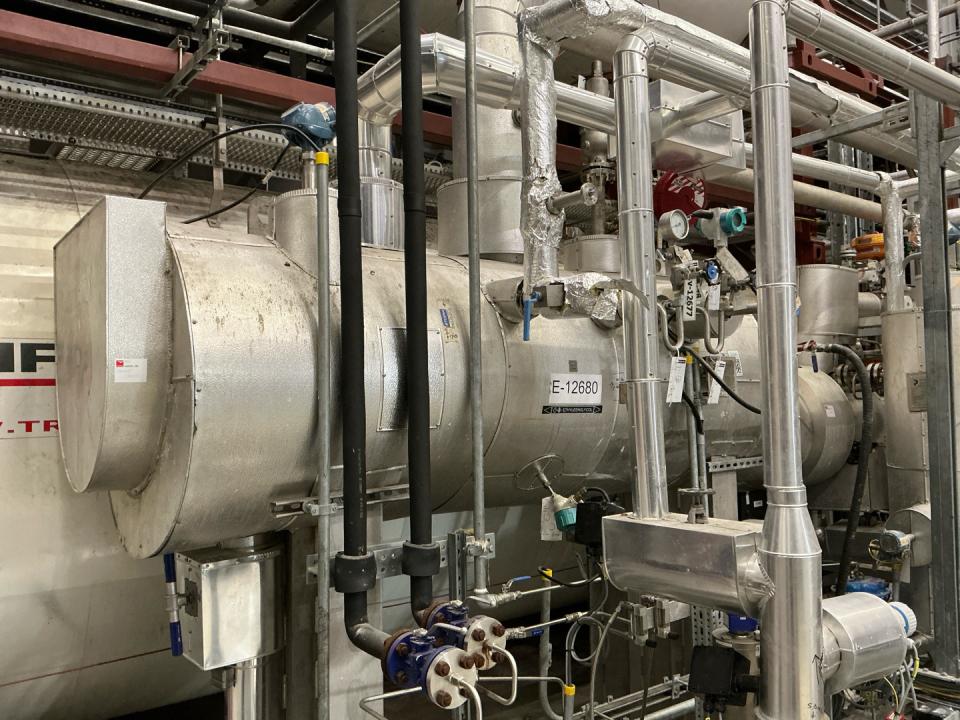

2019 Petrogas ISO-BHET flush reboiler

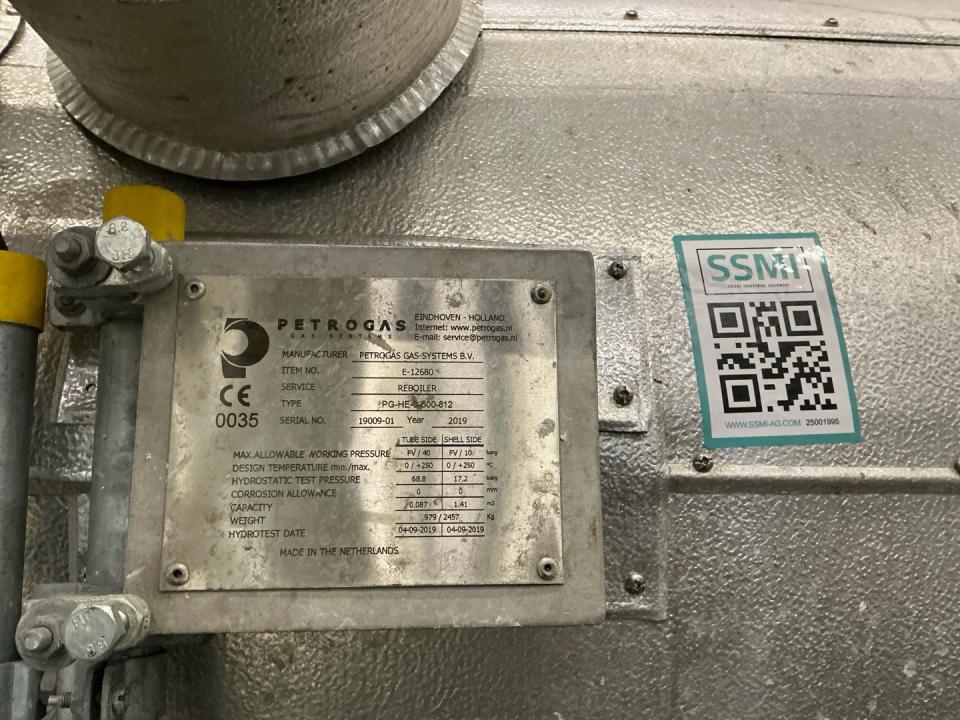

Petrogas Gas-Systems B.V. – Horizontal Shell & Tube Heat Exchanger Industrial shell-and-tube reboiler originating from a recently decommissioned advanced chemical recycling pilot facility at Brightlands Chemelot Campus, Geleen, The Netherlands. Designed for vapor generation and thermal energy transfer in distillation, separation, solvent recovery, and chemical process applications. The unit is manufactured by Petrogas Gas-Systems B.V. and features a fully insulated horizontal shell-and-tube construction with integrated instrumentation and PED-certified pressure vessel design. Technical Specifications General Manufacturer: Petrogas Gas-Systems B.V. Equipment Type: Shell & Tube Reboiler Item Number: E-12680 Service: Reboiler Type: PG-HE-600-812 Serial Number: 19009-01 Year of Construction: 2019 Country of Manufacture: The Netherlands Certification: CE 0035 / PED Pressure Equipment Tube Side Maximum Allowable Working Pressure: Full Vacuum / 40 barg Design Temperature: 0°C to +250°C Hydrostatic Test Pressure: 68.8 barg Corrosion Allowance: 0 mm Internal Volume: 0.087 m³ Weight: 979 kg Shell Side Maximum Allowable Working Pressure: Full Vacuum / 10 barg Design Temperature: 0°C to +250°C Hydrostatic Test Pressure: 17.2 barg Corrosion Allowance: 0 mm Internal Volume: 1.41 m³ Weight: 2,457 kg Construction Features Design: Horizontal shell-and-tube heat exchanger Insulation: Full thermal insulation with aluminium cladding Process Connections: Flanged process nozzles Instrumentation: Integrated pressure, temperature, and level instrumentation Mounting: Fixed saddle-mounted installation Process Tag: E-12680 Typical Applications Distillation column reboilers Solvent recovery systems Chemical recycling plants Evaporation processes Hydrocarbon processing Thermal separation systems Pilot and demonstration facilities Fine chemical production
