2019 Friamco Crystallization vessel
Process Equipment and Machines - Various process equipment and machines
SKU: SSMIBRI1-00002522
Product information
Brand: Friamco
Type: Vert. vessel with jacket and agitator
Year of build: 2019
Material: Unknown
Documentation: Yes
Condition: Used
Additional information
Product status:
Sold

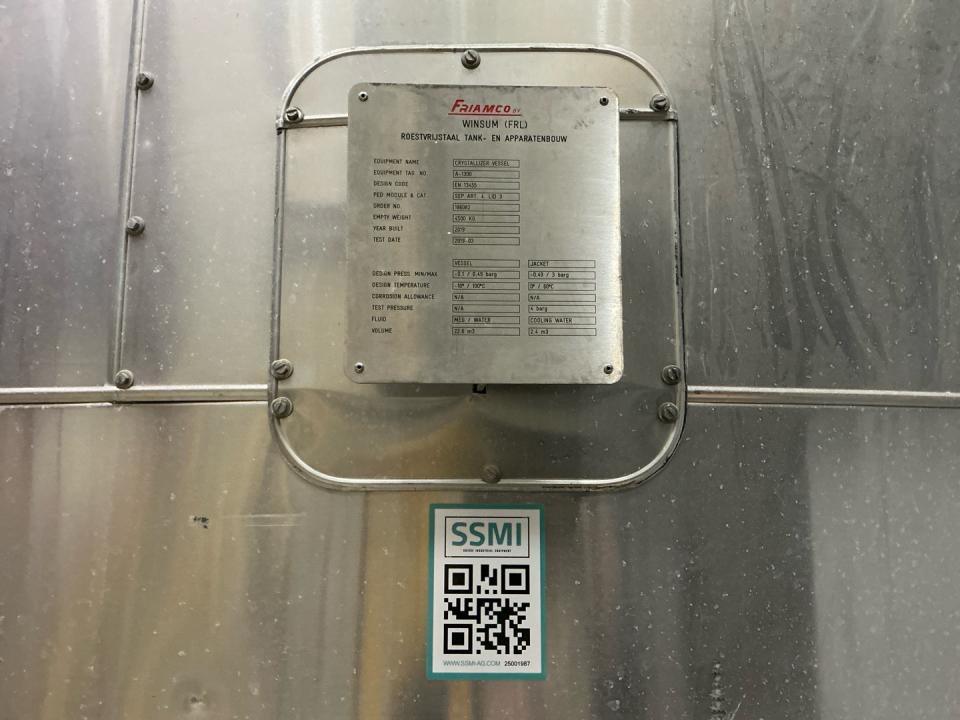

Equipment Tag: A-1300

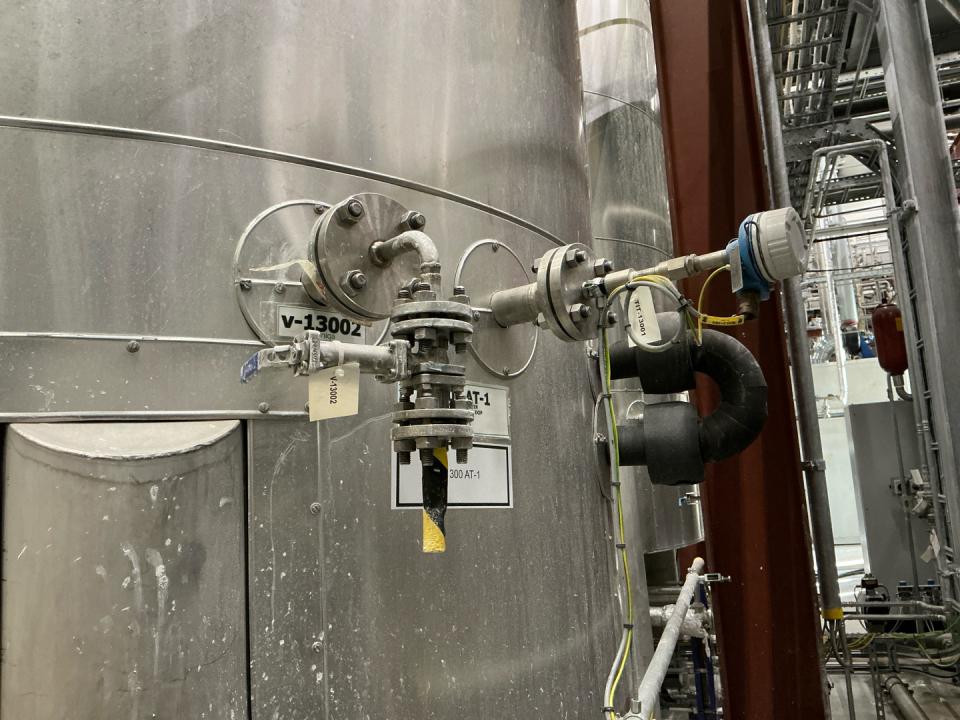

Associated Nozzle/Instrument Tags Visible:
V-13002
TT-13001
AT-1
Design Code: EN 13455
PED Classification: SEP Article 4 Lid 3
Order Number: 186082
Year Built: 2019
Test Date: March 2019
Mechanical Data

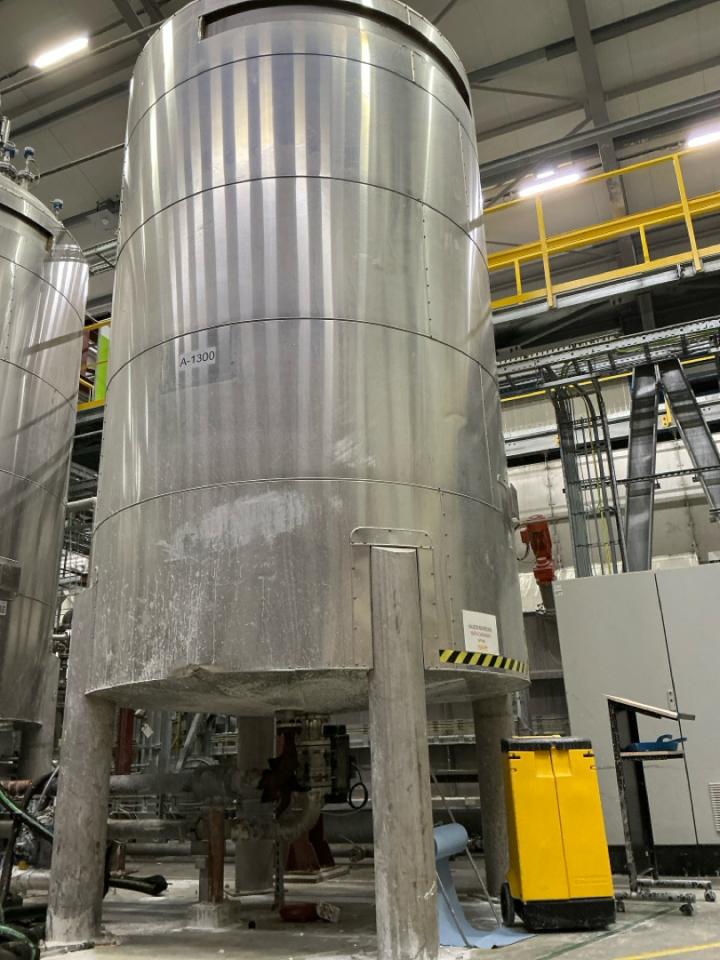

Construction:
Stainless steel vessel
Jacketed design
Vertical cylindrical configuration
Dished top and bottom
Four-leg support frame

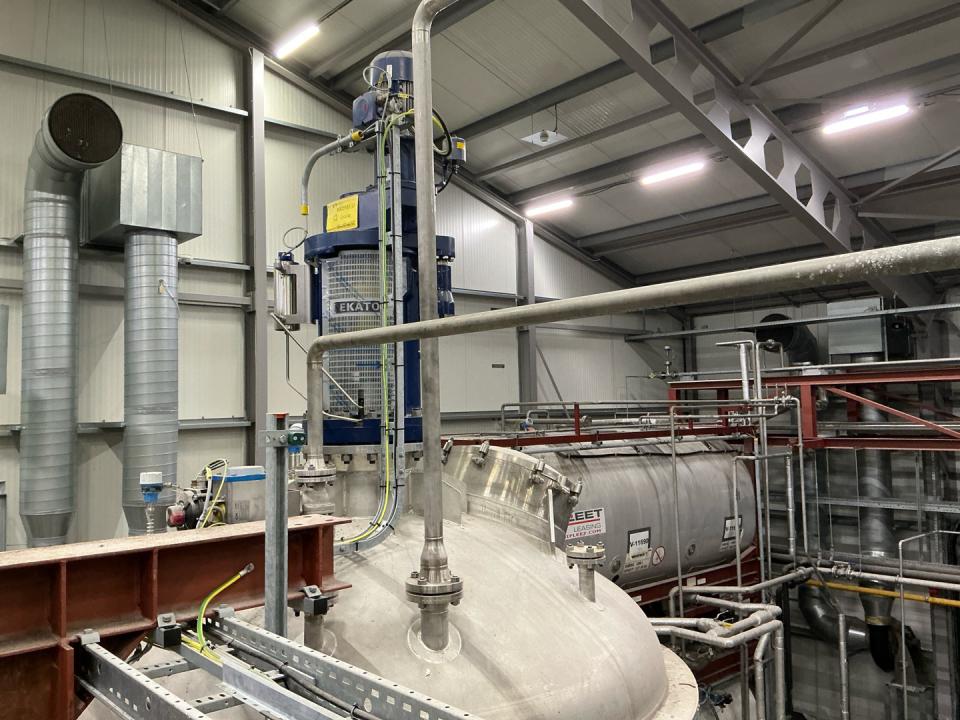

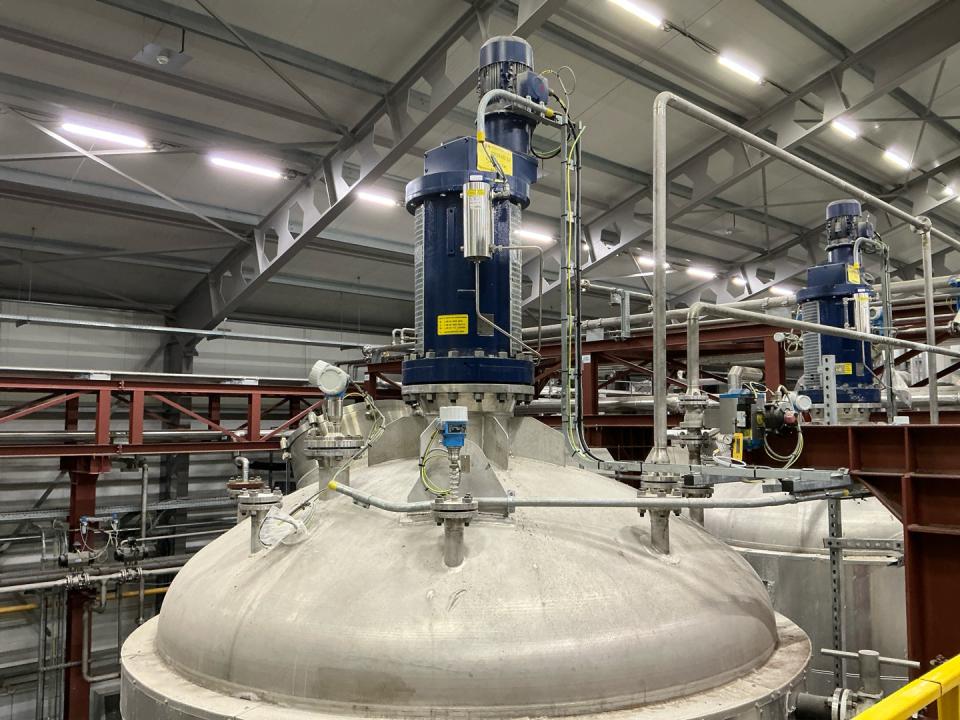

Top-mounted agitator assembly
Empty Weight: 4,500 kg
Vessel Volume: 22.6 m³
Jacket Volume: 2.4 m³
Vessel Design Conditions
Process Side
Design Pressure
Vacuum: -0.1 barg
Pressure: +0.49 barg
Design Temperature
-10°C to +100°C
Process Fluid
MEG / Water
(Mono Ethylene Glycol / Water mixture)
Jacket Side
Design Pressure
-0.49 barg to +3 barg
Design Temperature
0°C to +60°C
Heat Transfer Medium
Cooling Water
Test Pressure
Transport information
Location: Not provided
Size (l*w*h mm):
Not provided
Weight (kg): 4500
