2019 Dinnissen PET inlet hopper

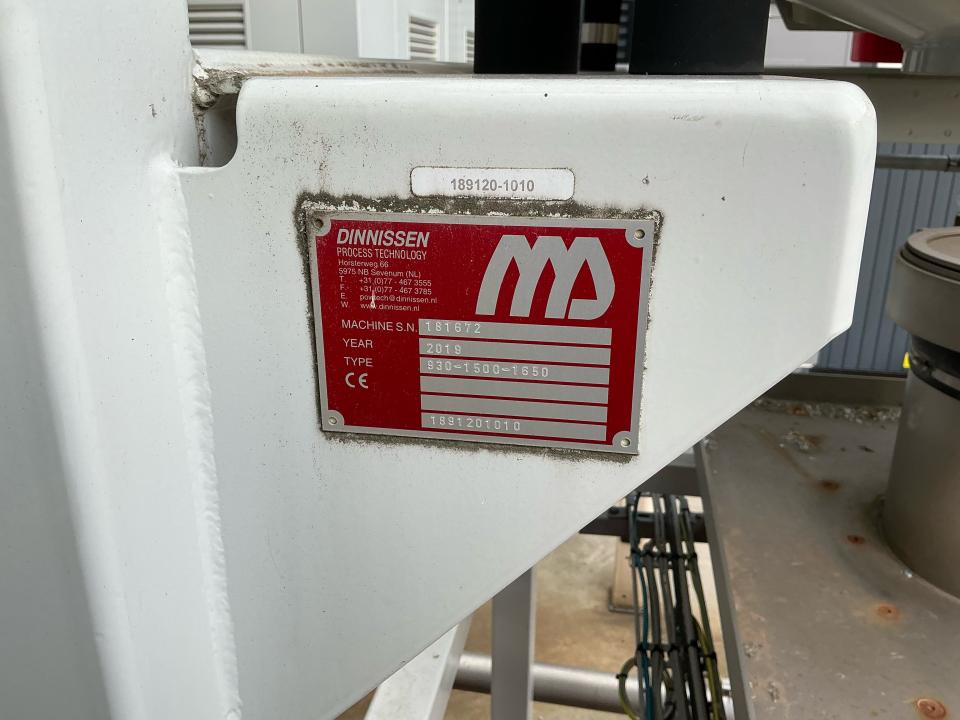

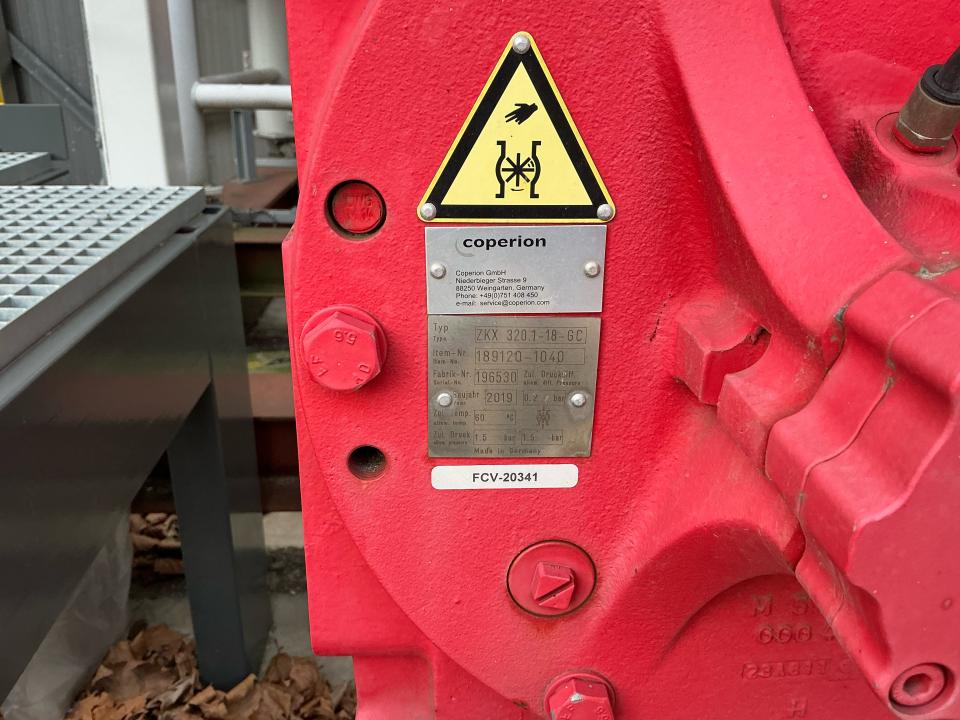

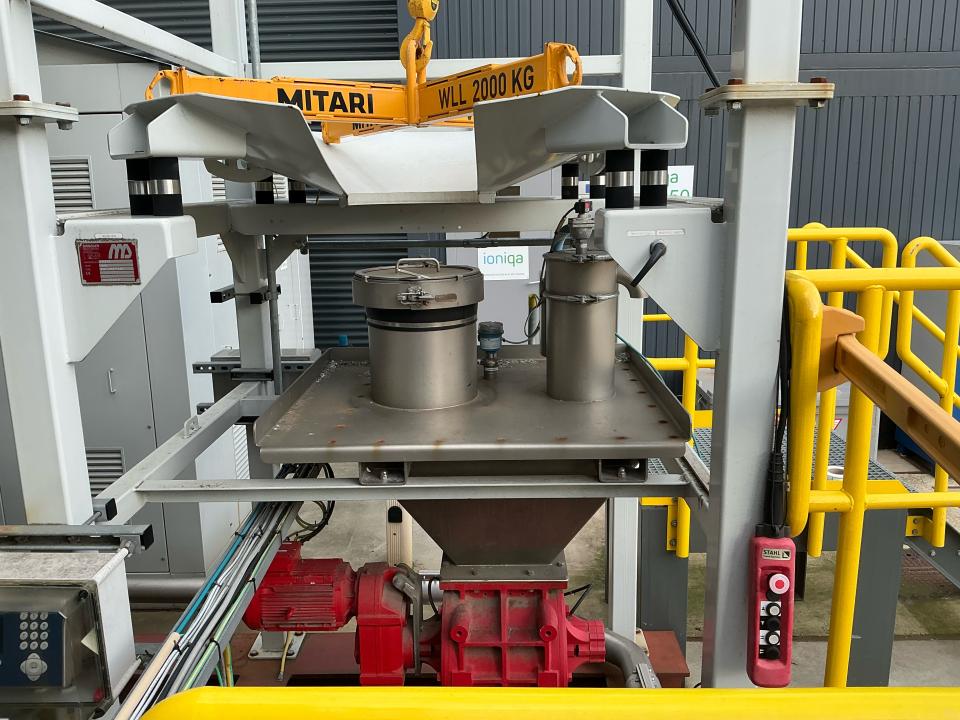

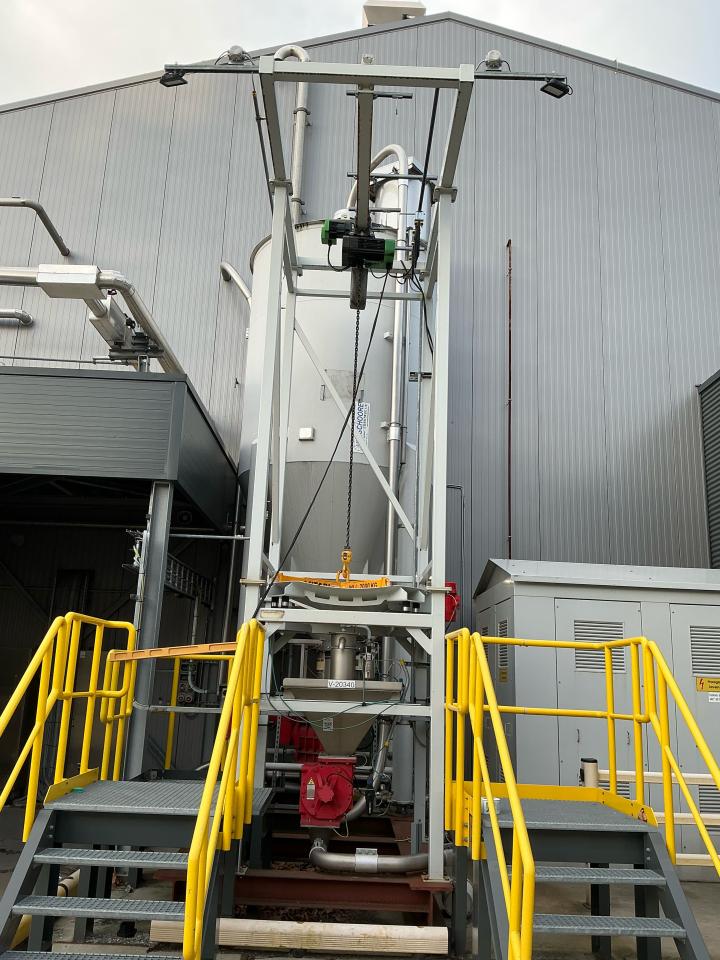

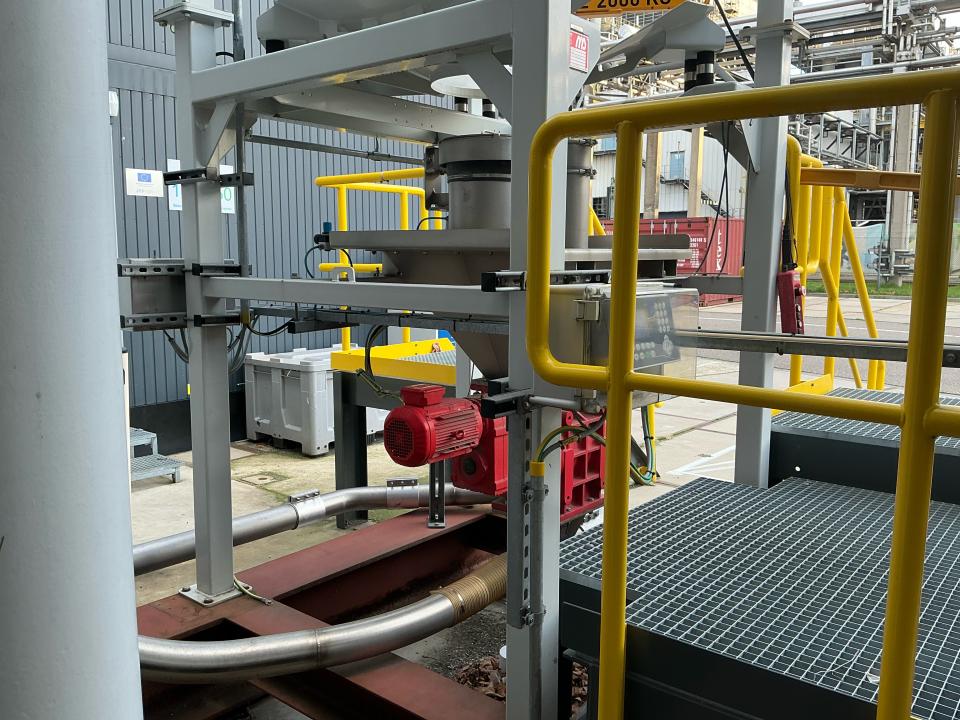

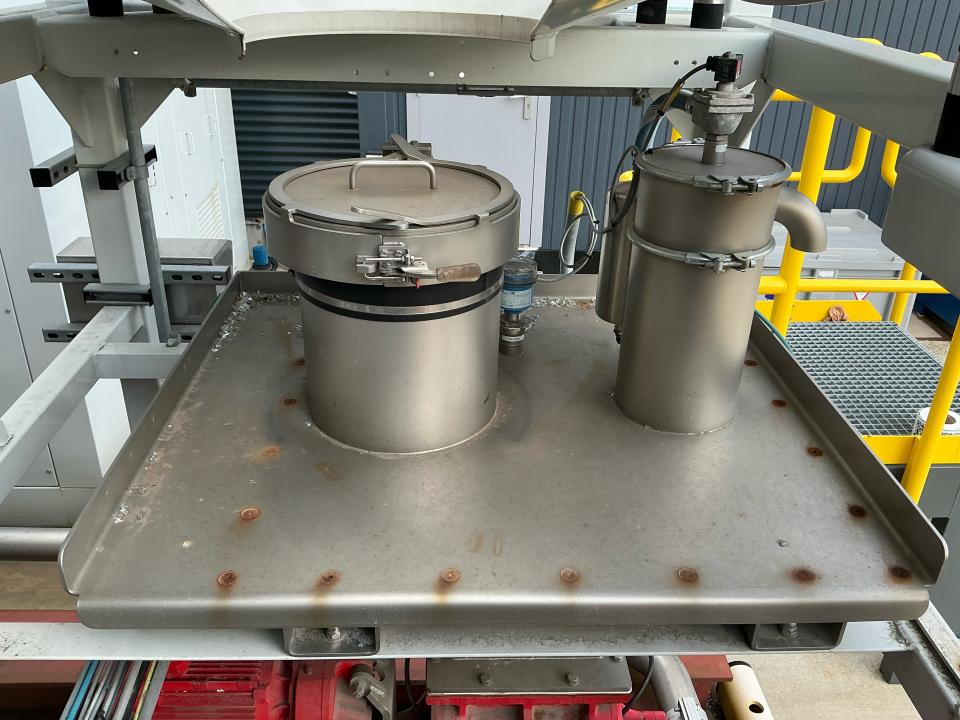

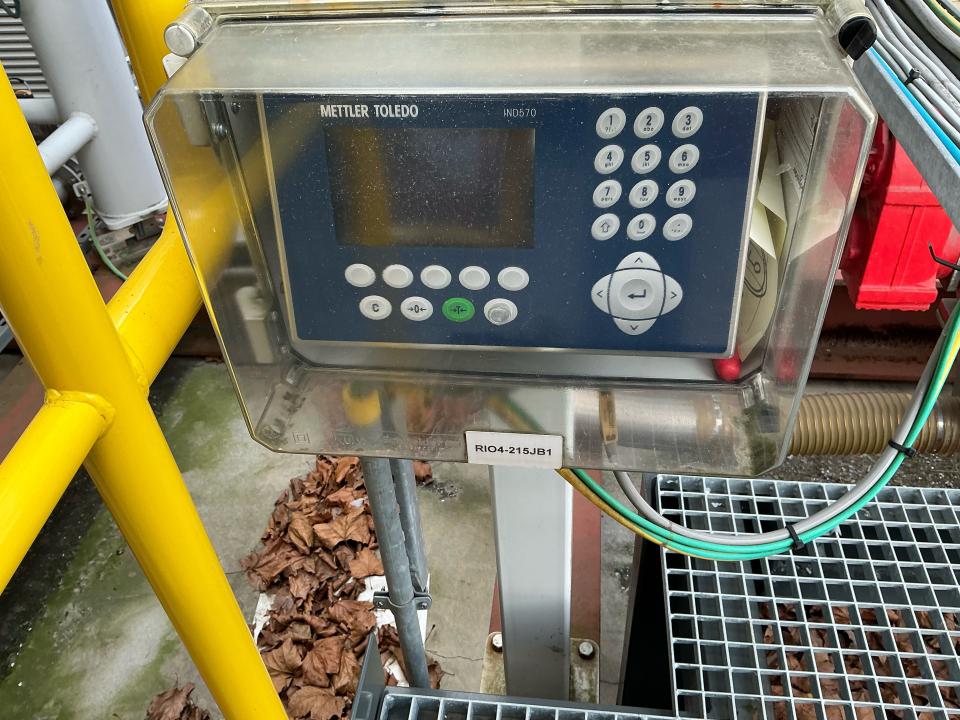

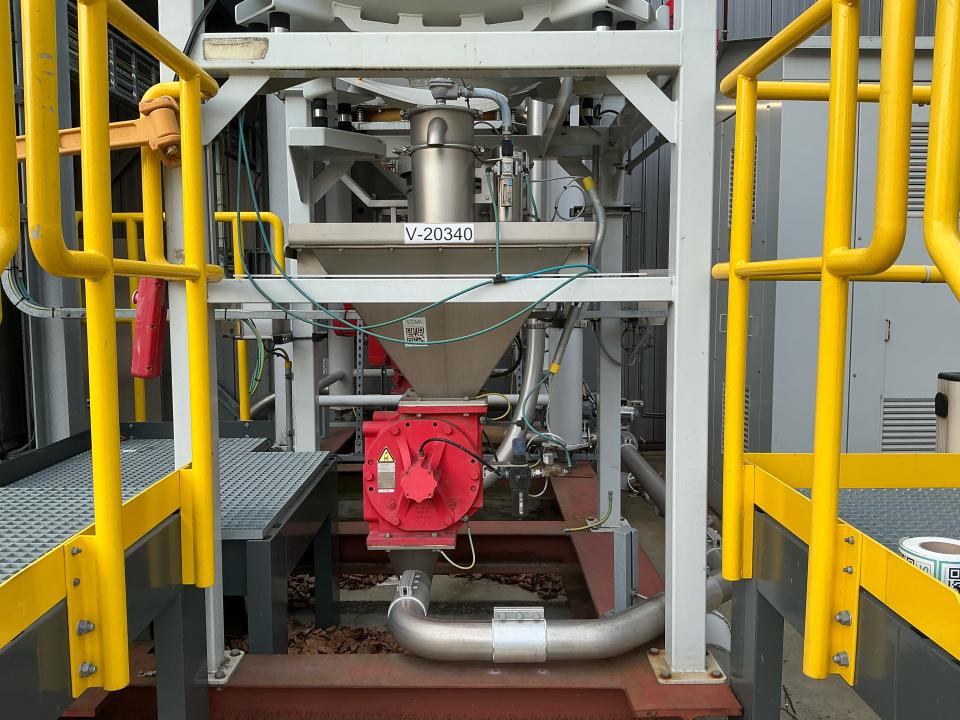

Equipment Tag V-20340 Manufacturer Dinnissen Process Technology B.V., Netherlands Year 2019 Description Complete bulk bag (FIBC) unloading and dosing station comprising a Dinnissen discharge frame with integrated receiving hopper and a heavy-duty Coperion rotary airlock feeder. The system was installed in a chemical recycling pilot plant and used for controlled feeding of powdered and granular materials into the downstream process. Product discharged from the big bag enters the stainless-steel hopper and is metered via the Coperion rotary valve into the conveying system. The unit is mounted on a structural steel support frame with operator access platforms and safety handrails. Included Components Dinnissen big bag unloading frame Stainless steel receiving hopper Product discharge cone Coperion rotary airlock feeder Pneumatic controls Instrumentation Support structure Access platforms and guardrails Product discharge piping Manufacturer Data Item Specification Manufacturer Dinnissen Process Technology Type 930-1500-1650 Serial Number 181672 Year 2019 CE Marking Yes Rotary Valve Data Item Specification Manufacturer Coperion Type ZKK 320.1-18-GC Serial Number 196530 Year 2019 Max Temperature 60°C Test Pressure 1.5 bar Plant Tag FCV-20341
