2019 Peruweld Steam flash vessel

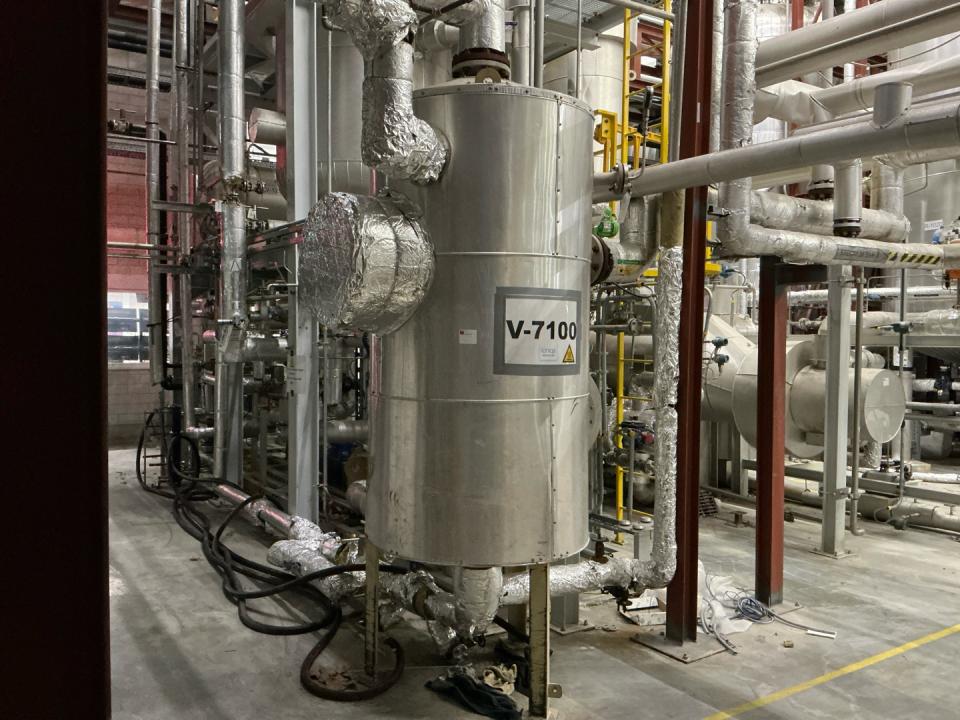

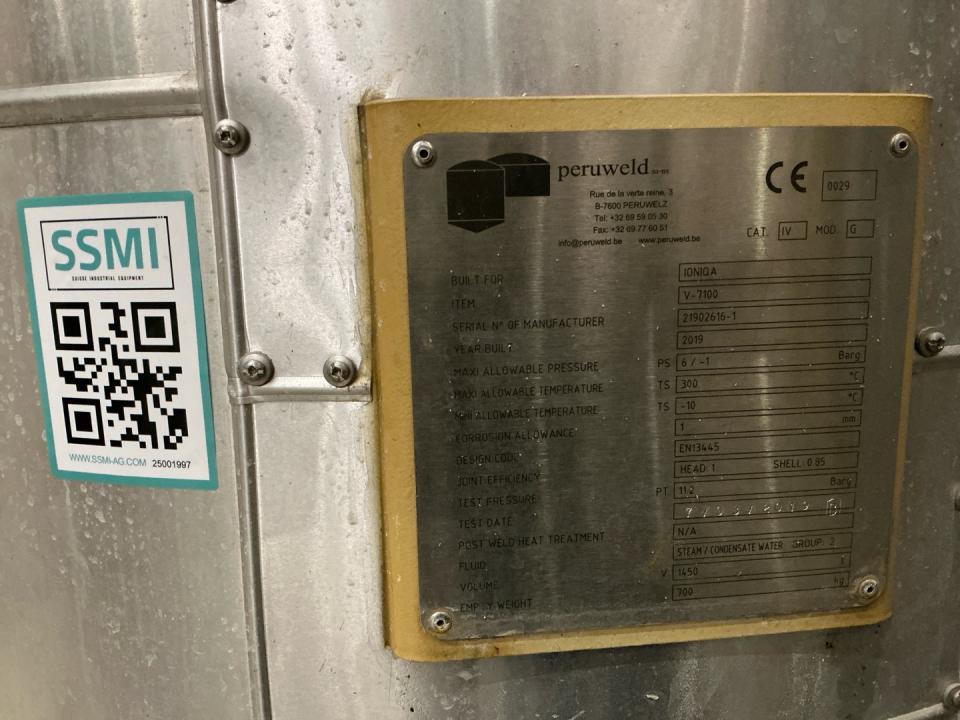

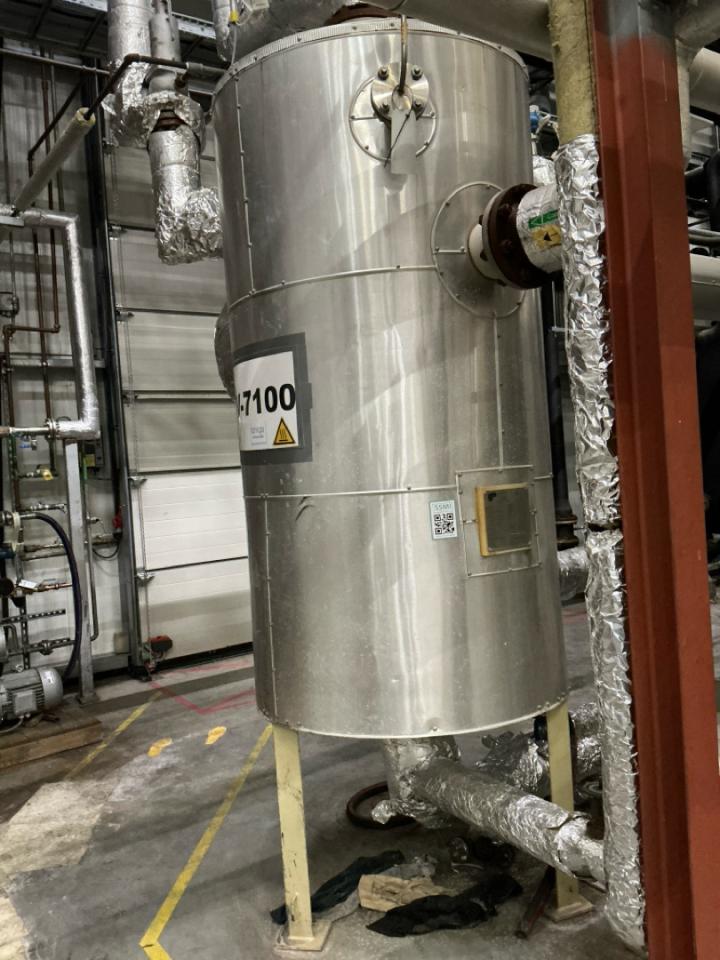

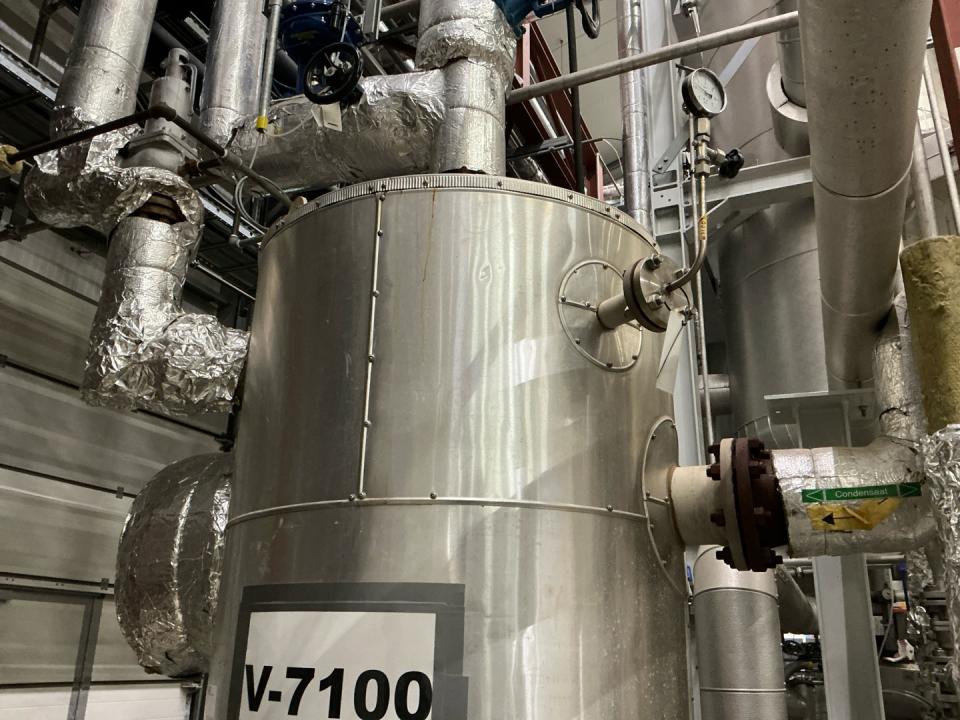

Peruweld SPRL – Steam/Condensate Flash Vessel Heavy-duty insulated vertical pressure vessel manufactured by Peruweld (Belgium) for Ioniqa. The vessel is designed for steam and condensate service and functions as a flash vessel, separator, or surge drum within a thermal process system. The vessel allows high-pressure condensate to flash into low-pressure steam while separating condensate for recovery and reuse. The unit is PED-certified pressure equipment, constructed to EN13445 pressure vessel standards and installed on a structural support frame. Its insulated shell and elevated temperature rating indicate service in high-temperature steam recovery or energy efficiency applications. Technical Specifications Manufacturer: Peruweld SPRL, Belgium Built For: Ioniqa Equipment Type: Steam / Condensate Flash Vessel Tag Number: V-7100 Construction: Insulated welded pressure vessel with stainless-steel/aluminum-clad insulation Manufacture Date: 2019 Serial Number: 21902616-1 Design Code: EN13445 Pressure Category: PED Category IV Module: G Capacity/Size: 1,450 litres (1.45 m³) Design: Vertical cylindrical pressure vessel with insulated shell Connections: Steam inlet/outlet connections Condensate inlet/outlet connections Instrument nozzles Drain and vent connections Access/manway opening Drive/Motor: None Pressure Rating: Maximum allowable pressure: 6 barg Full vacuum: -1 barg Design Temperature: Minimum: -10°C Maximum: 300°C Test Pressure: 11.2 barg Fluid Group: Steam / Condensate Water (Group 2) Corrosion Allowance: 1 mm Joint Efficiency: Head: 1.0 Shell: 0.85 Empty Weight: 700 kg
