Elro Filter press - feed pump
Pharmaceutical, Cosmetic and Chemistry Equipment - Pumps
SKU: SSMIBRI1-00002666
Heavy-duty regenerative blower designed for continuous-duty air and gas handling applications requiring oil-free airflow, moderate pressure generation, vacuum capability, and reliable operation in industrial process environments.
Technical Specifications- Serie: XP
- Type: 800
- Manufacturer: Not visible on blower housing
- Equipment Type: Side Channel Blower / Regenerative Ring Compressor
- Model Series: 800 (cast into housing)
- Construction: Cast aluminium blower casing
- Design: Single-stage regenerative blower
- Installation: Fixed process plant installation
- Connections: Flanged stainless-steel inlet and outlet piping
- Mounting: Heavy-duty steel support frame
- Drive: Electric motor with coupling drive arrangement
- Application: Air, inert gas, and process gas conveying
- Operating Principle: Oil-free side channel compression
- Process Integration: Connected to stainless-steel process piping network
- Manufacturer: STEGO-Metallblende GmbH
- Model: E233141
- Protection Class: IP66
- Frequency: 50/60 Hz
- Voltage: 200–303 V Δ (50 Hz)
- Voltage: 220–332 V Δ (60 Hz)
- Voltage: 346–525 V Y (50 Hz)
- Voltage: 380–575 V Y (60 Hz)
- Power Consumption: 43–96 W (50 Hz)
- Power Consumption: 56–94 W (60 Hz)
- Speed: 1375–1450 rpm (50 Hz)
- Speed: 1520–1720 rpm (60 Hz)
This industrial regenerative blower is installed within an advanced chemical recycling pilot facility and is designed for demanding continuous-duty process applications.
The blower uses side channel compression to generate oil-free airflow, making it suitable for applications where clean air or gas handling is required. The unit can operate in both pressure and vacuum duties depending on the process configuration.

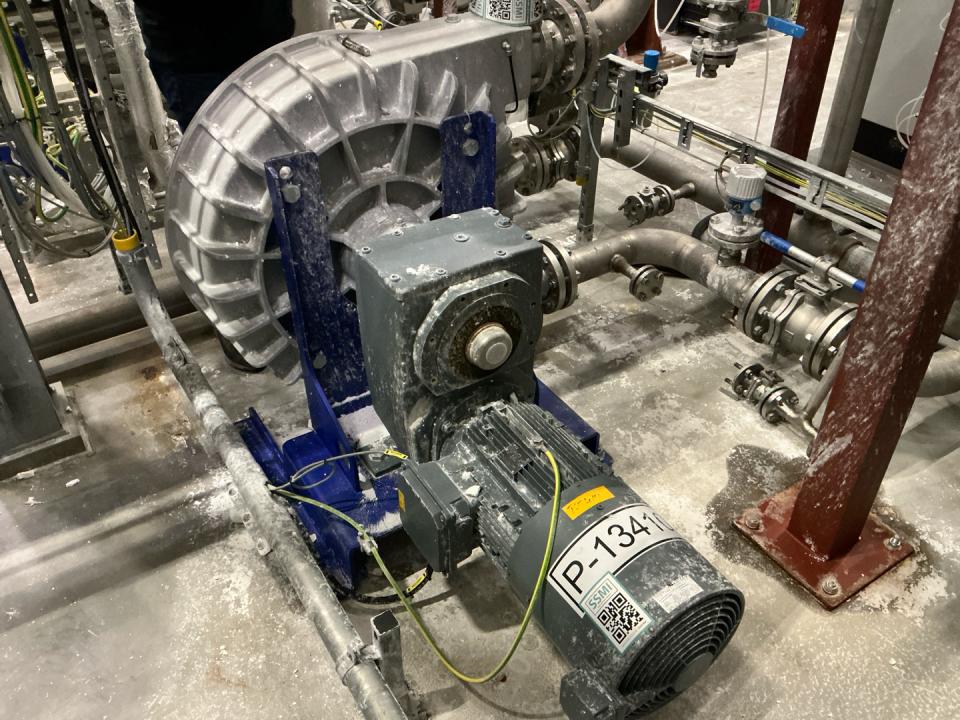

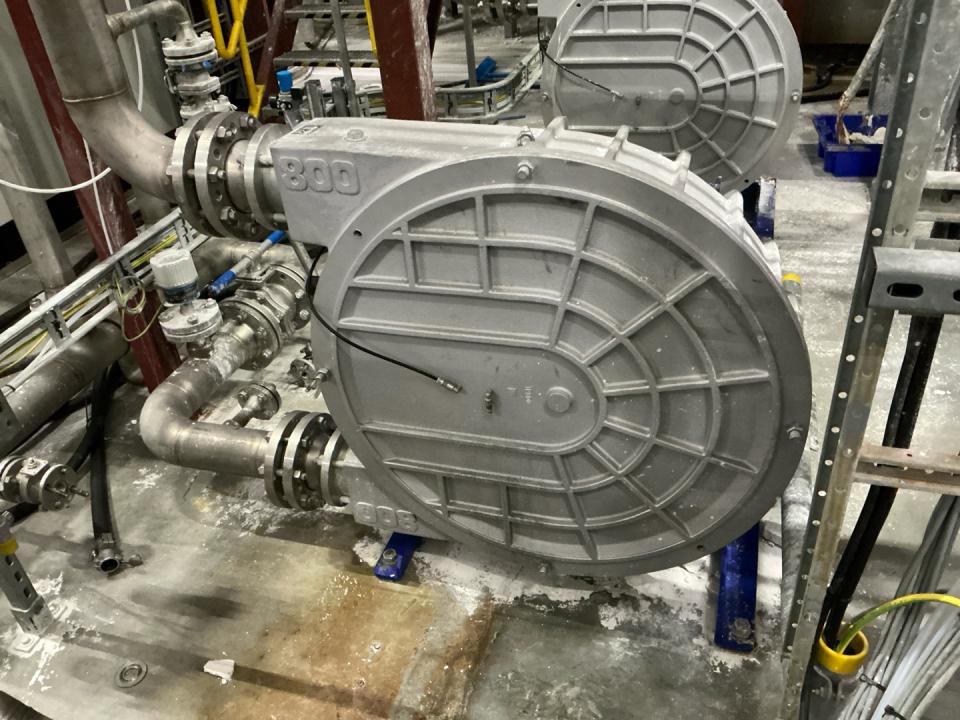

The cast aluminium housing is marked "800", identifying the unit as a large-frame industrial blower series intended for relatively high-flow process applications. The blower is mounted on a heavy-duty steel support frame and connected directly to stainless-steel process piping.

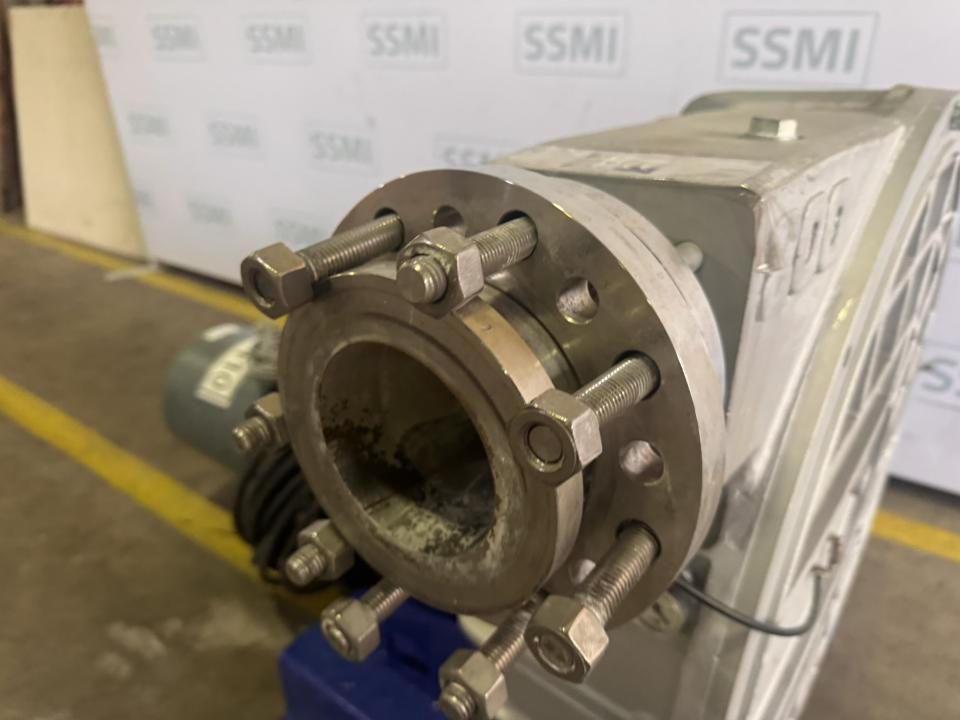

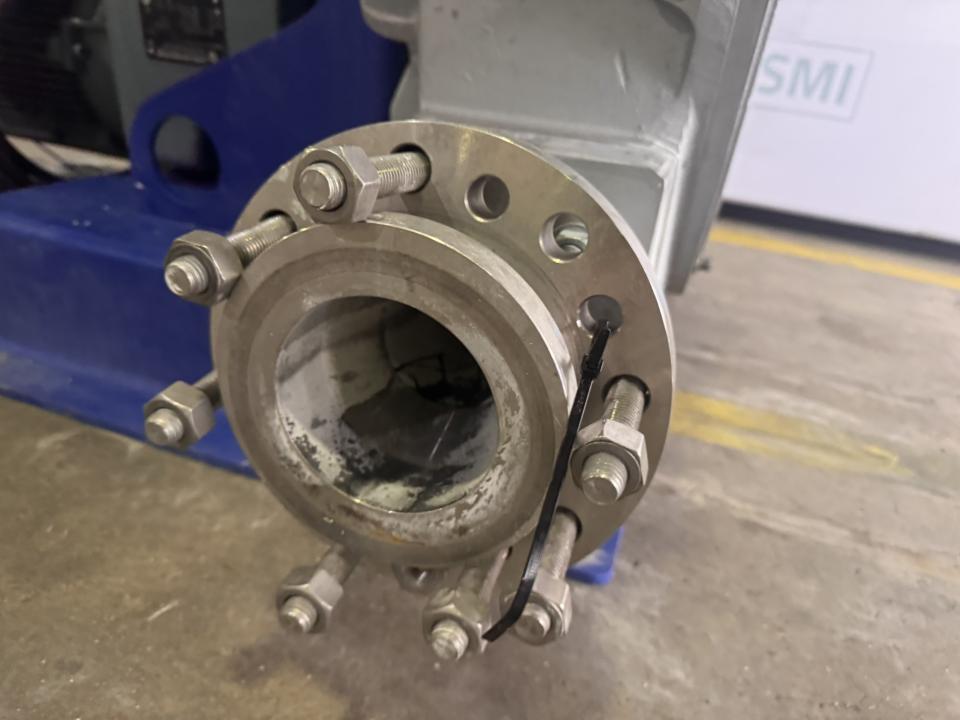

Flanged inlet and outlet connections allow the unit to be integrated into fixed industrial installations. The electric motor and coupling drive arrangement provide continuous mechanical drive to the blower while maintaining a compact process equipment layout.
A visible cooling fan motor is fitted to the assembly. The nameplate identifies the manufacturer as STEGO-Metallblende GmbH, model E233141, with an IP66 protection rating and compatibility with both 50 Hz and 60 Hz electrical systems.
Typical Applications- Pneumatic conveying systems
- Chemical recycling plants
- Process gas circulation
- Vacuum generation
- Aeration systems
- Plastic pellet transport
- Industrial filtration systems
- Waste treatment facilities
- Pilot and demonstration process plants
- Regenerative side channel blower
- Electric motor and coupling drive arrangement
- Cooling fan motor
- Heavy-duty steel support frame
- Flanged process connections
