Max pressure: 19 Bar Storage tank for softened water (steam unit)

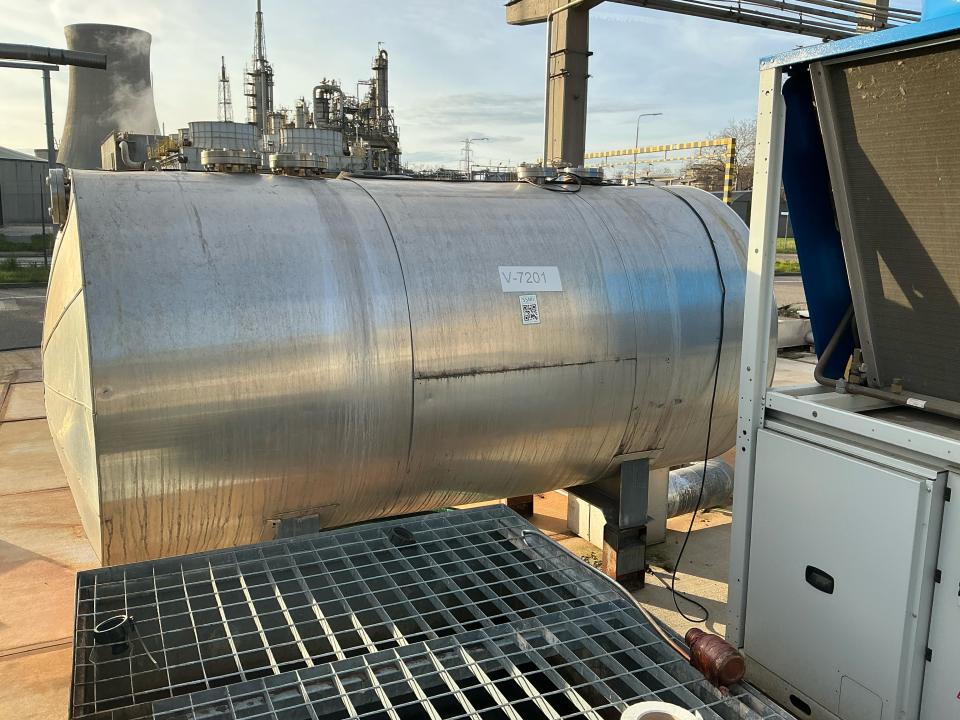

Unknown Manufacturer – Horizontal Insulated Process Storage / Buffer Vessel Heavy-duty horizontal cylindrical process vessel mounted on saddle supports and installed outdoors. Based on the visible construction, insulated cladding, large top manway, instrumentation, and stated maximum pressure of 19 bar, the unit appears to be a pressure-rated storage, buffer, surge, or utility vessel used within the process plant for liquid, condensate, thermal fluid, process water, or intermediate product service. The vessel is fitted with a hinged top manway, multiple process nozzles, instrumentation ports, and insulated pipe connections. The vessel remains installed adjacent to process cooling and utility equipment. Technical Specifications Manufacturer: Unknown (nameplate not visible) Equipment Type: Horizontal Insulated Pressure Vessel / Buffer Tank Construction: Insulated carbon steel pressure vessel with aluminum-clad insulation Manufacture Date: Unknown Capacity/Size: Estimated 3–8 m³ Design: Horizontal cylindrical vessel with dished ends Connections: Multiple flanged process connections Top manway access Instrumentation ports Drain and vent connections Drive/Motor: None Serial Number: Not visible Tag Number: V-7201 Application: Process liquid storage, condensate service, surge capacity, buffer storage, or utility fluid handling Installation Type: Outdoor horizontal saddle-mounted installation Maximum Pressure: 19 bar (client supplied)
