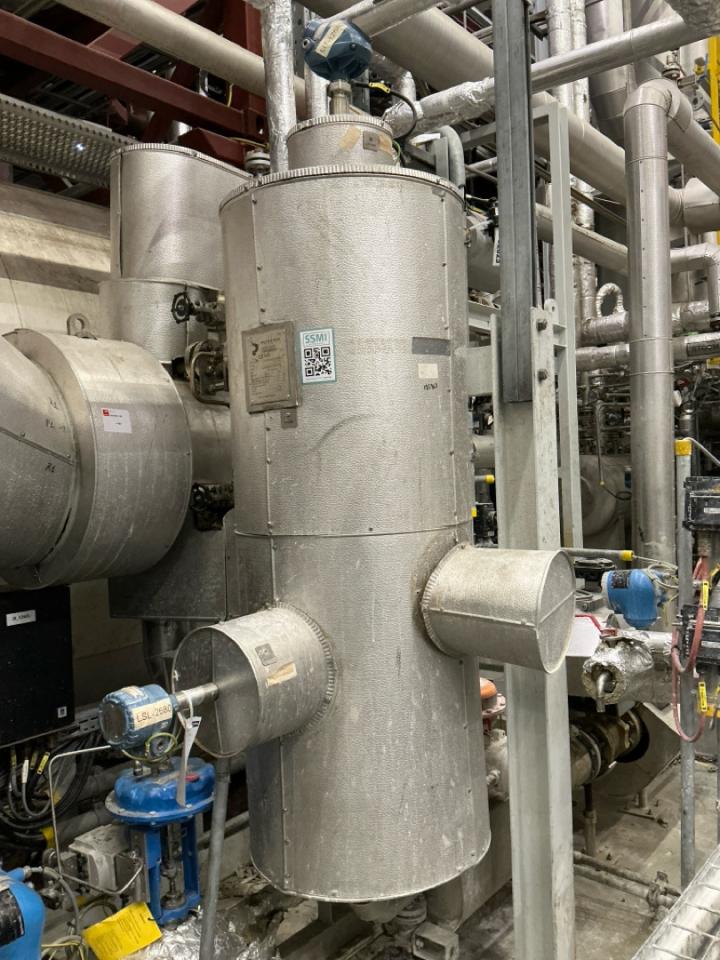

Steam condensate buffer vessel

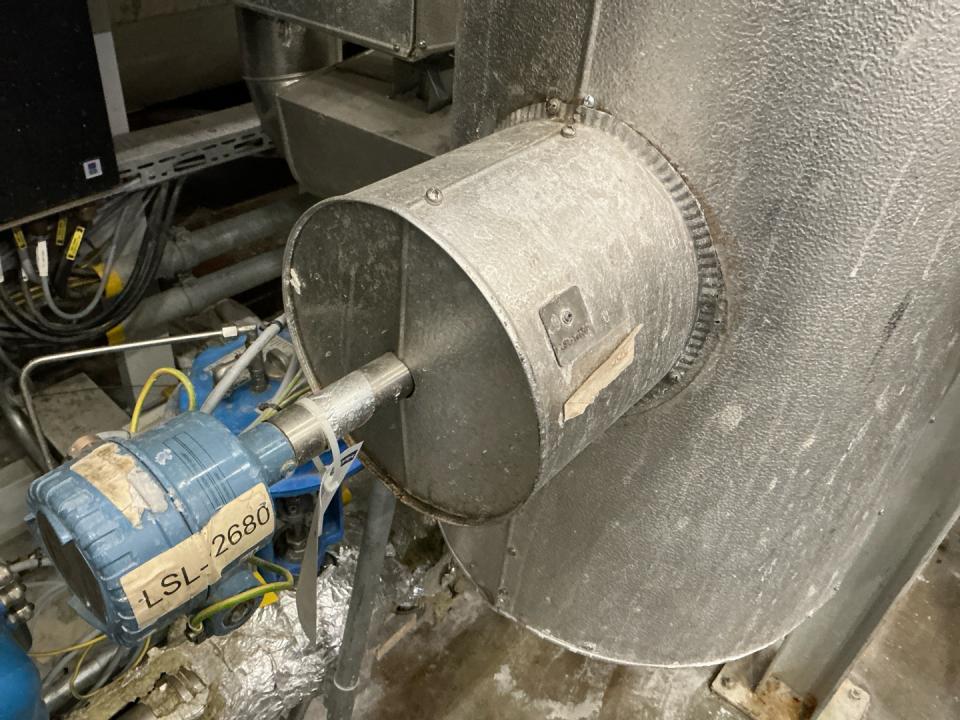

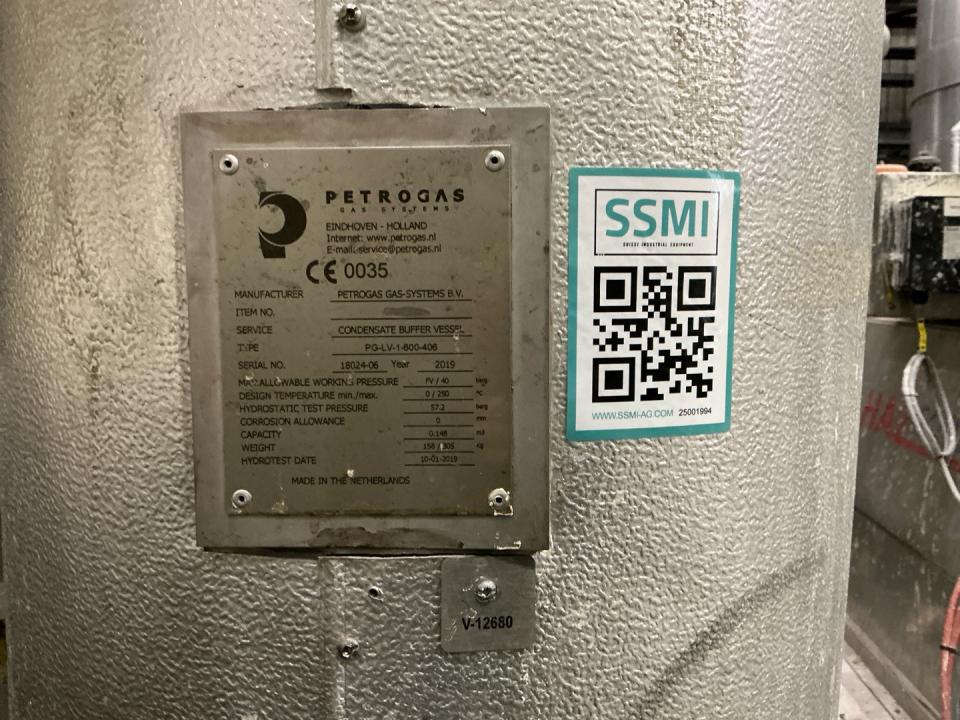

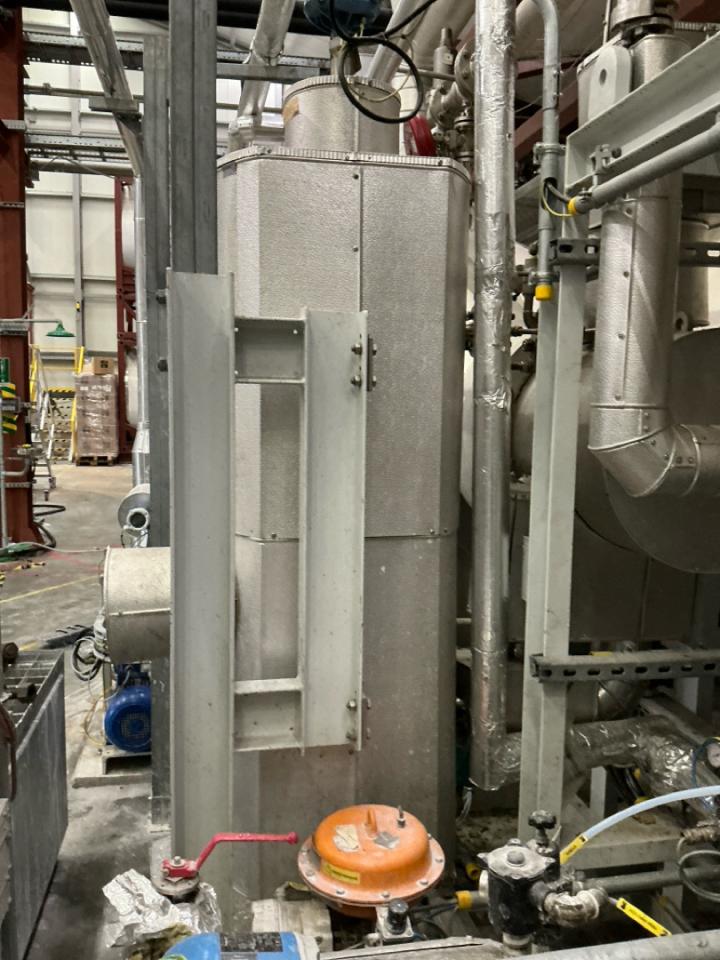

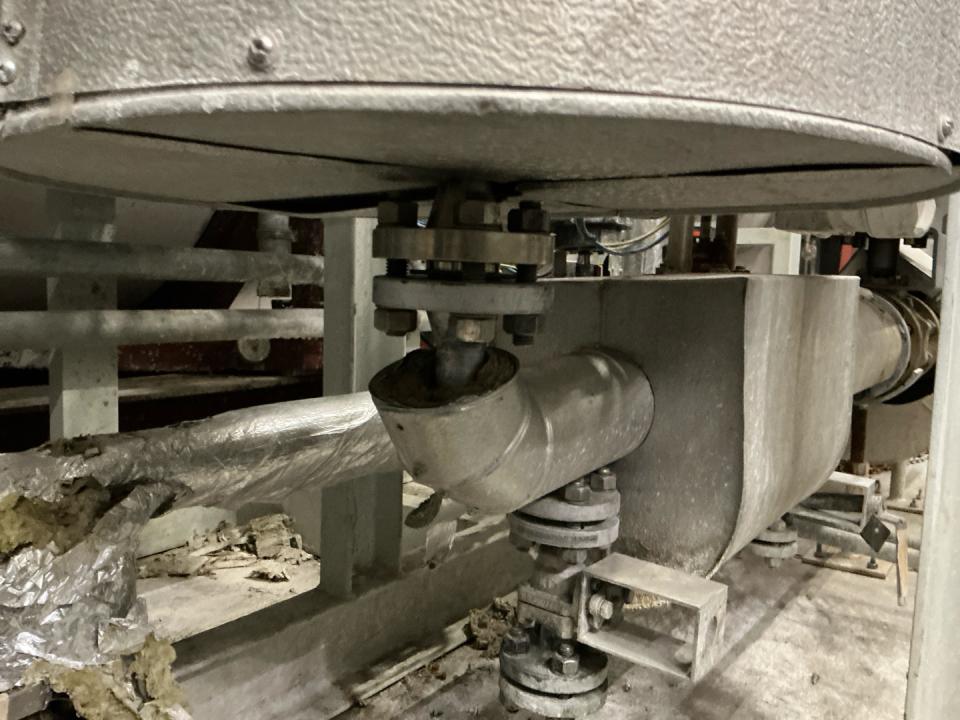

Petrogas Gas Systems B.V. – Condensate Buffer Vessel Insulated vertical pressure vessel manufactured by Petrogas Gas Systems B.V. (Eindhoven, Netherlands) for condensate collection and temporary storage within a gas-processing or thermal utility system. The vessel is designed as a condensate buffer tank, allowing separation, accumulation, and controlled discharge of condensate from steam, gas, or thermal process installations. The unit features a vertical cylindrical pressure vessel with thermal insulation, process nozzles, instrumentation, and level control equipment. The vessel remains installed within a larger process plant and appears integrated with associated piping and control systems. Technical Specifications Manufacturer: Petrogas Gas Systems B.V. (Netherlands) Equipment Type: Condensate Buffer Vessel Construction: Carbon steel pressure vessel with insulated aluminum-clad exterior Manufacture Date: 2019 Capacity/Size: 0.148 m³ (148 liters) Design: Vertical cylindrical pressure vessel Connections: Condensate inlet/outlet connections Instrumentation nozzles Level measurement connections Process utility connections Drive/Motor: None Serial Number: 18024-06 Type: PG-LV-1-600-406 Tag Number: V-12680 Application: Condensate collection, buffering, and discharge within gas or thermal process systems Installation Type: Fixed industrial installation Pressure Rating: Maximum allowable working pressure: FV / 40 barg Hydrostatic test pressure: 57.2 barg Temperature Rating: Design temperature: 0°C to 250°C Weight: 158 kg (empty)
