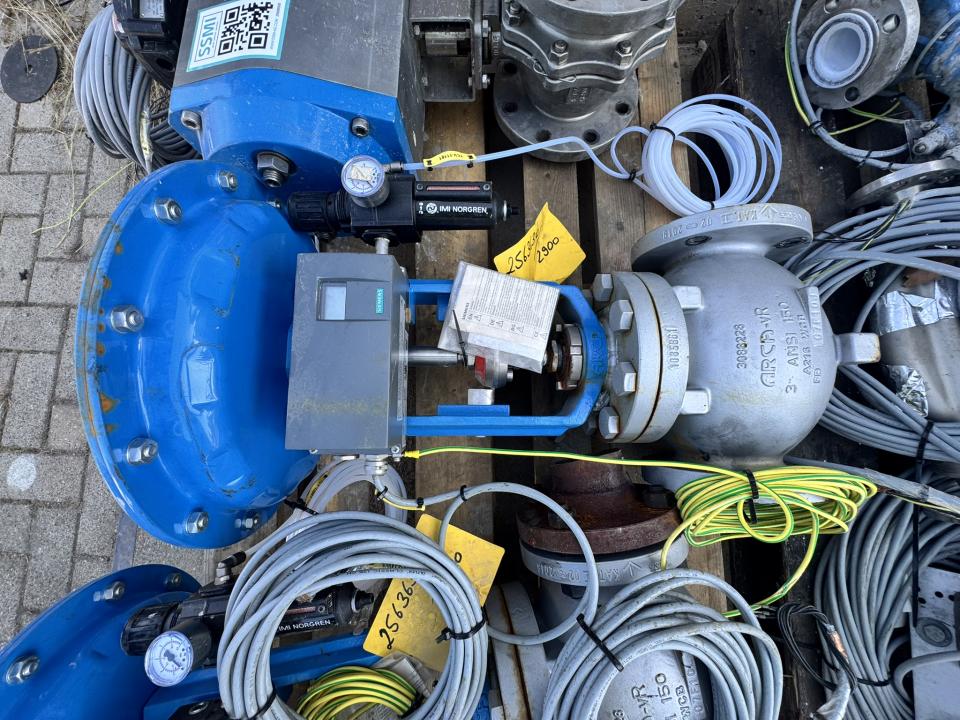

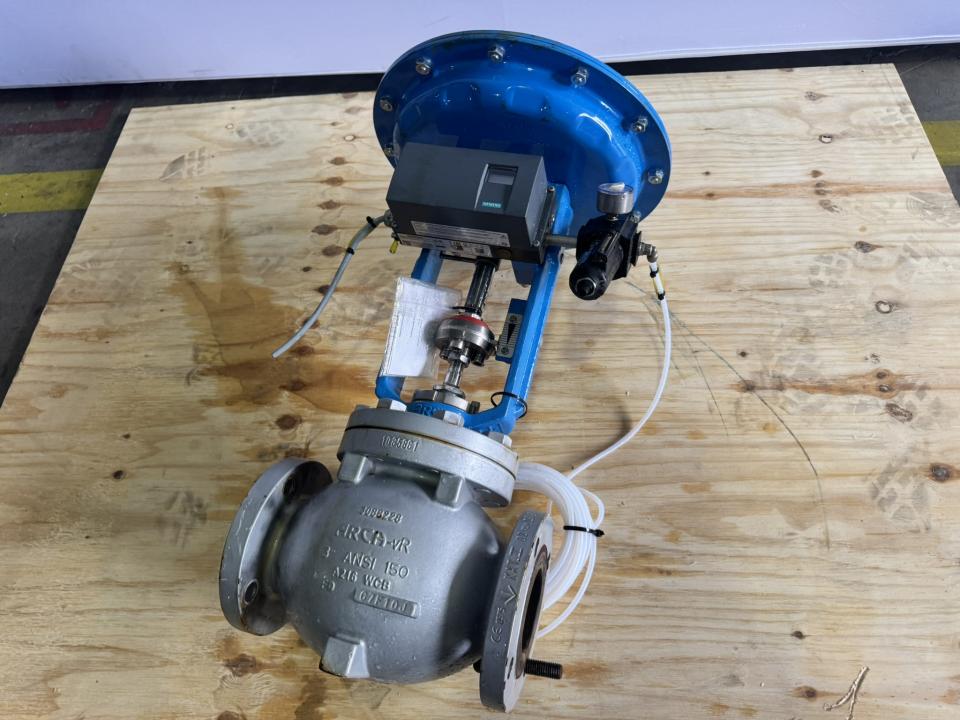

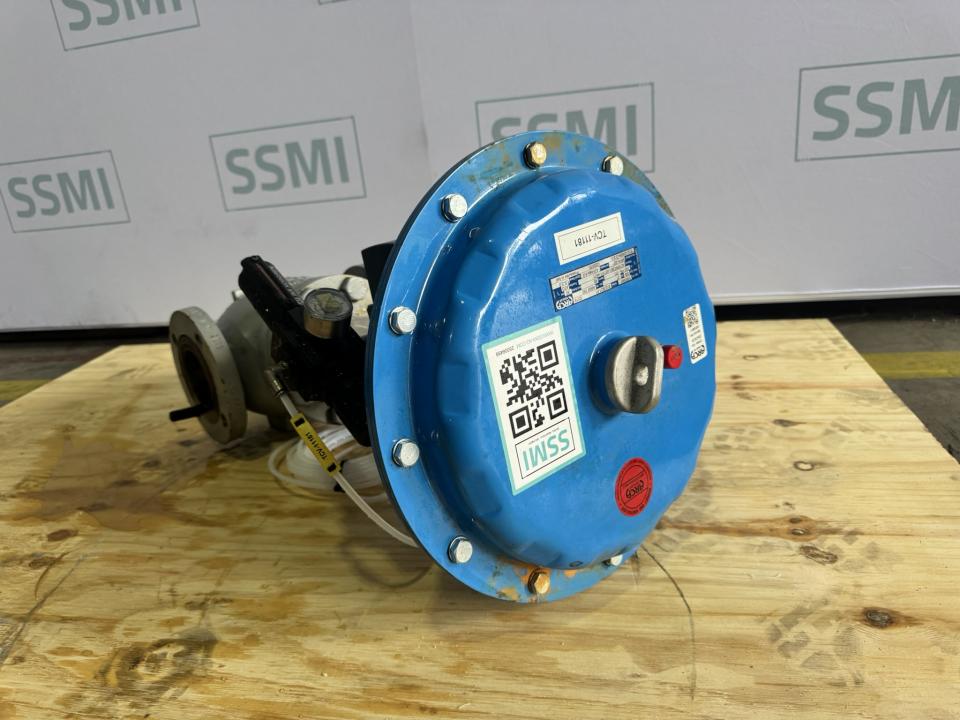

2019 ARCA Control valve with pneumatic diaphragm actuator and smart positioner

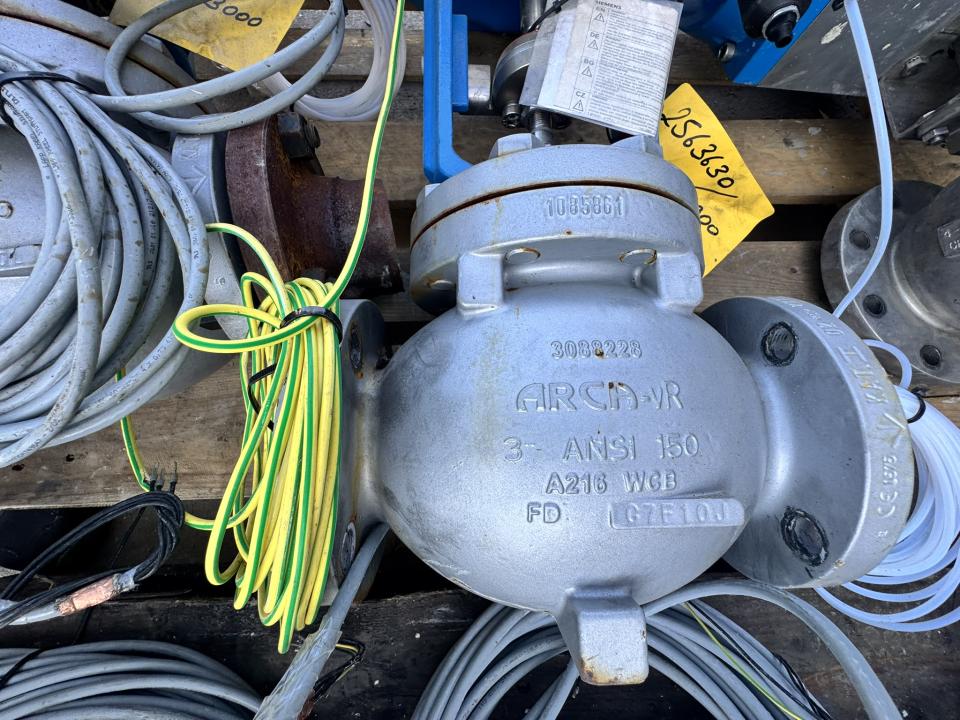

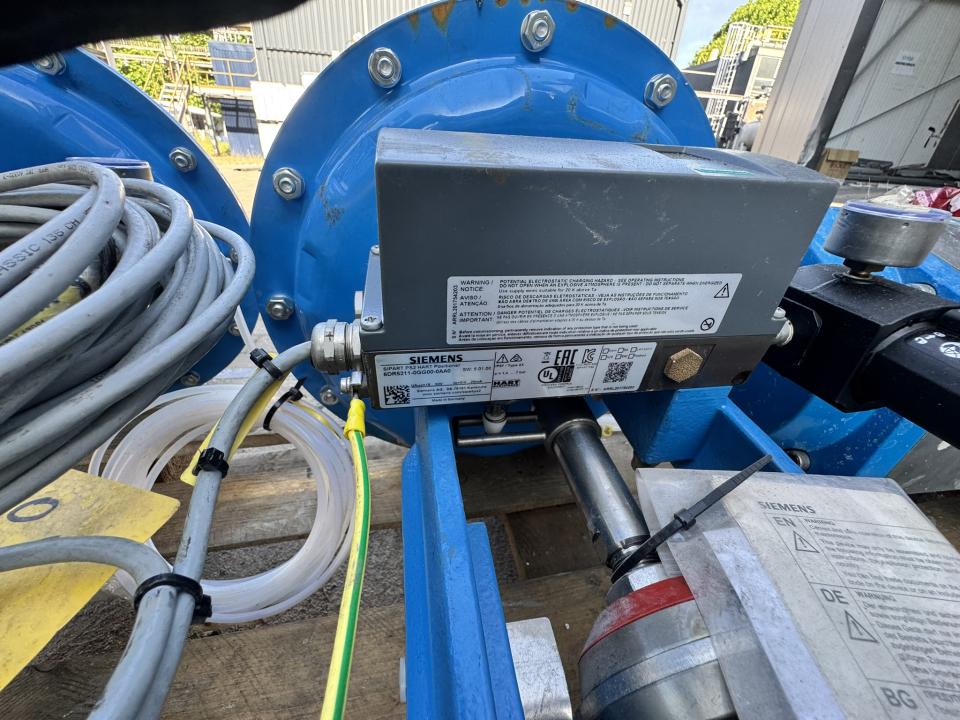

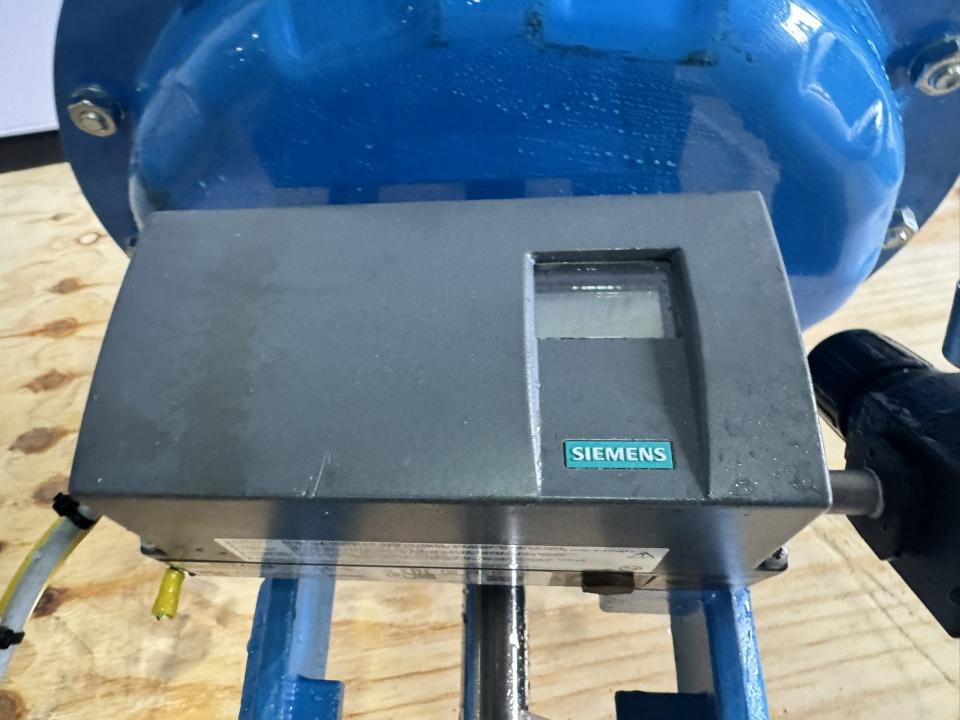

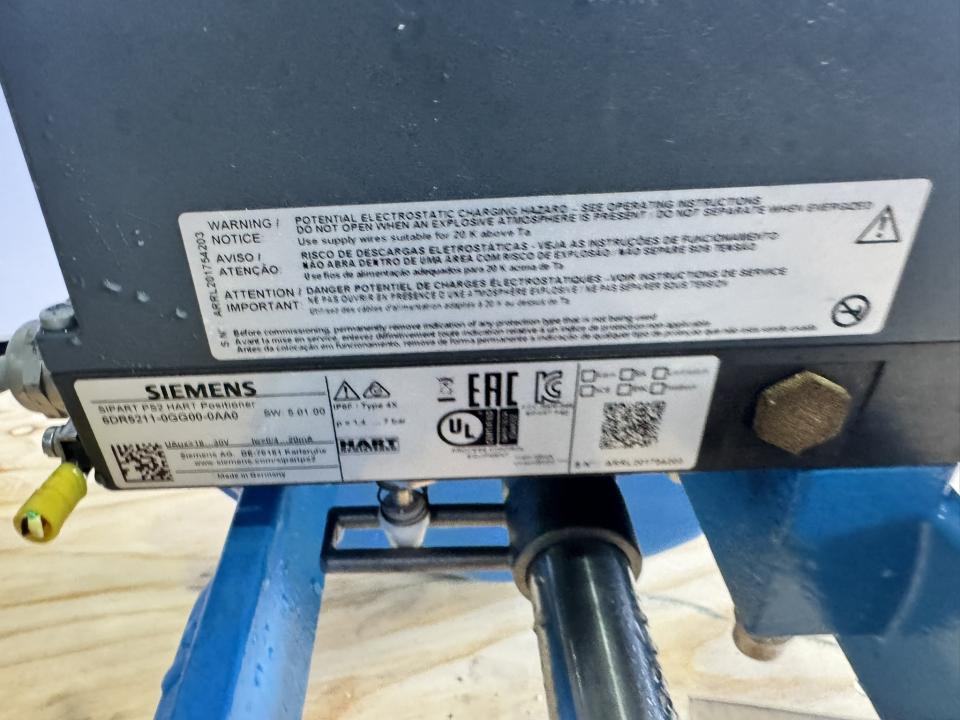

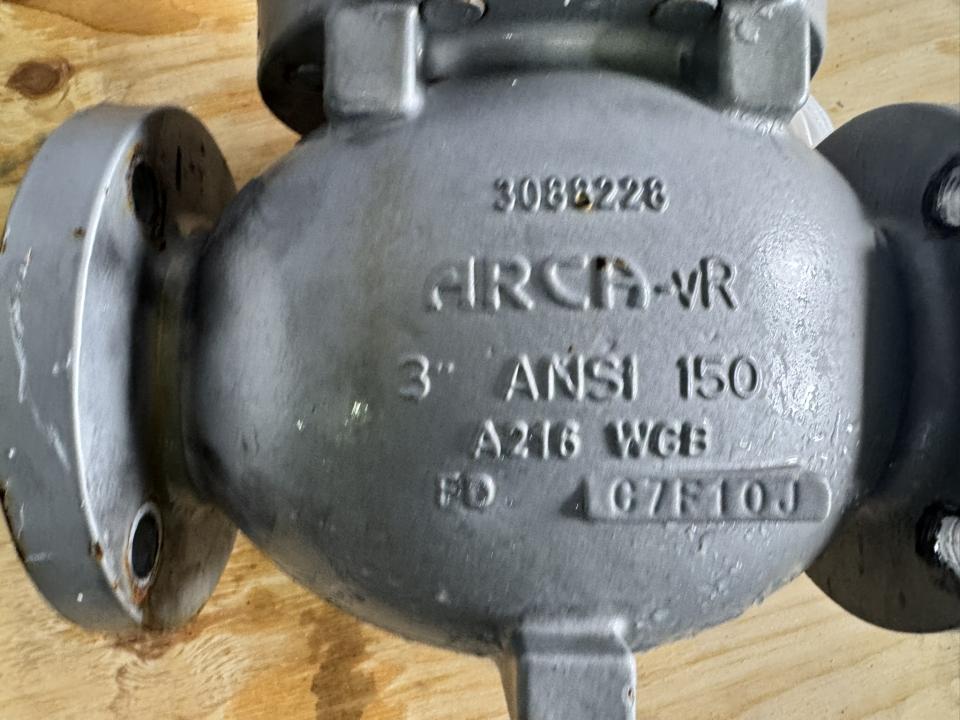

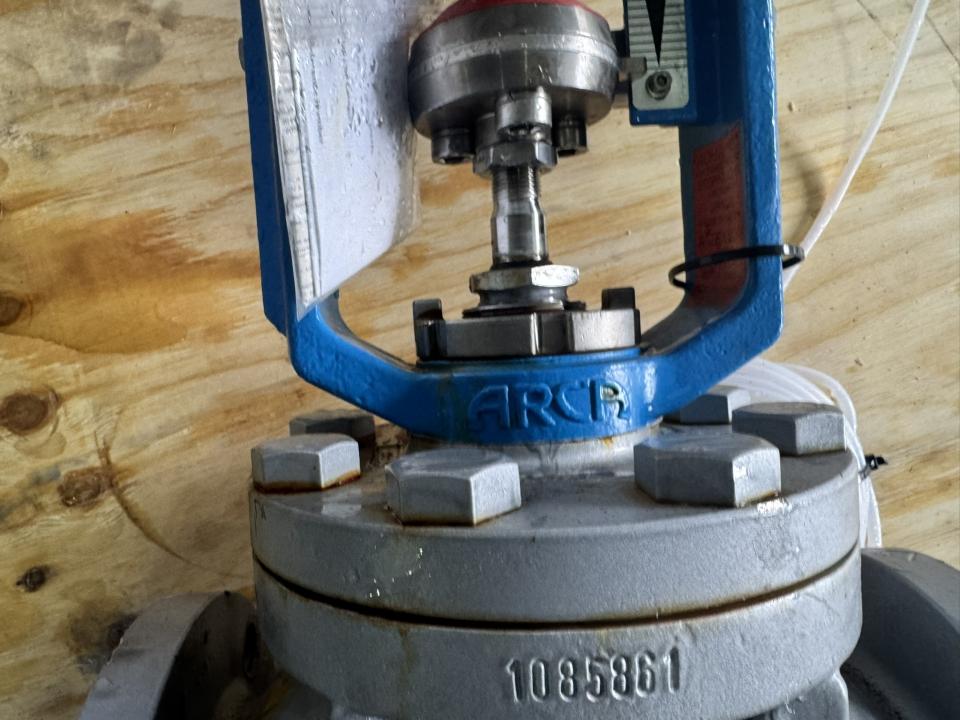

Manufacturer ARCA (cast into valve body) Valve Type Globe control valve Valve Size 3" Pressure Class ANSI 150 Body Material ASTM A216 WCB (carbon steel) Valve Body Markings Manufacturer: ARCA Size/Class: 3" ANSI 150 Material: A216 WCB Body number: 3088228 Casting/part number: 1085861 Additional marking: LC7E10J Actuator Type Pneumatic diaphragm actuator Actuator Manufacturer ARCA Actuator Nameplate Series: 812-8C1-P1 Serial number: 1088687 Year: 2019 Size: DN 3" Seat diameter: 80 mm Travel: 30 mm Air supply: 4.0 – 6.0 bar Fail action: Air-Fill 30° Function: ATO (Air To Open) Signal range: 1.5 – 3.0 bar Pressure in bar: CE 0575 Positioner Manufacturer Siemens Type Smart valve positioner Model SIPART PS2 Order Number 6DR5211-0EG00-0AA0 Communication HART Input Signal 4–20 mA Protection IP66 / Type 4X Supply 20–30 VDC Made In Germany
