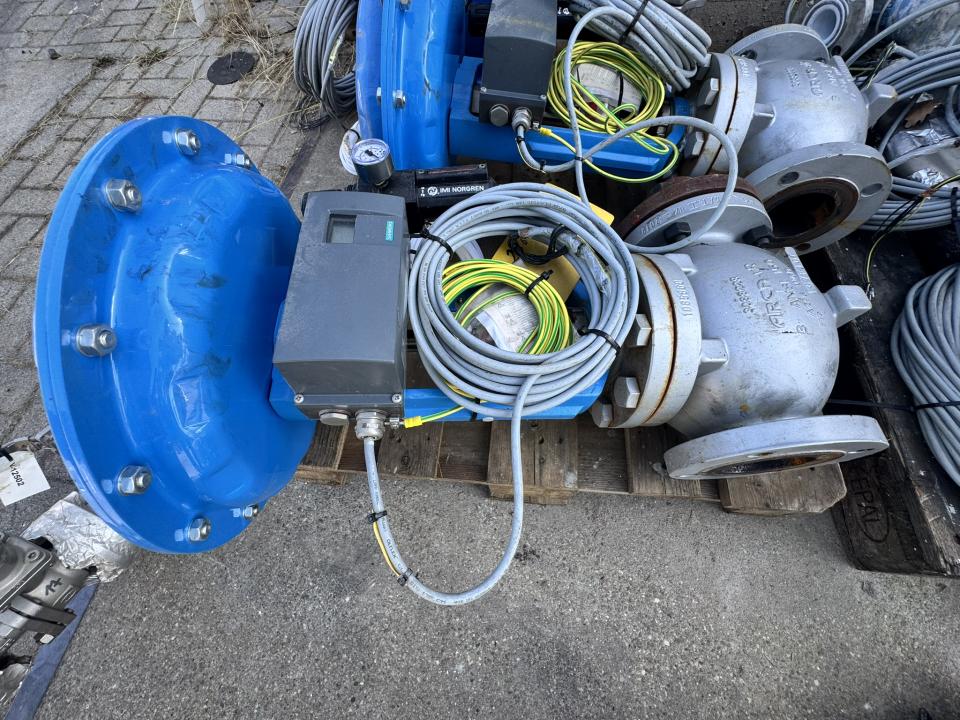

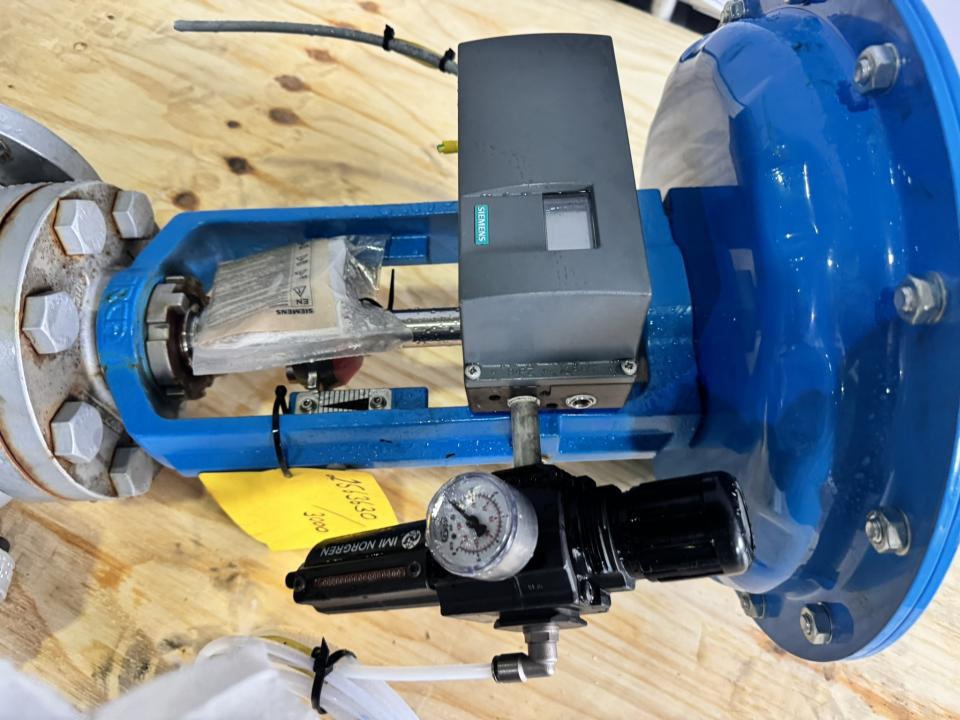

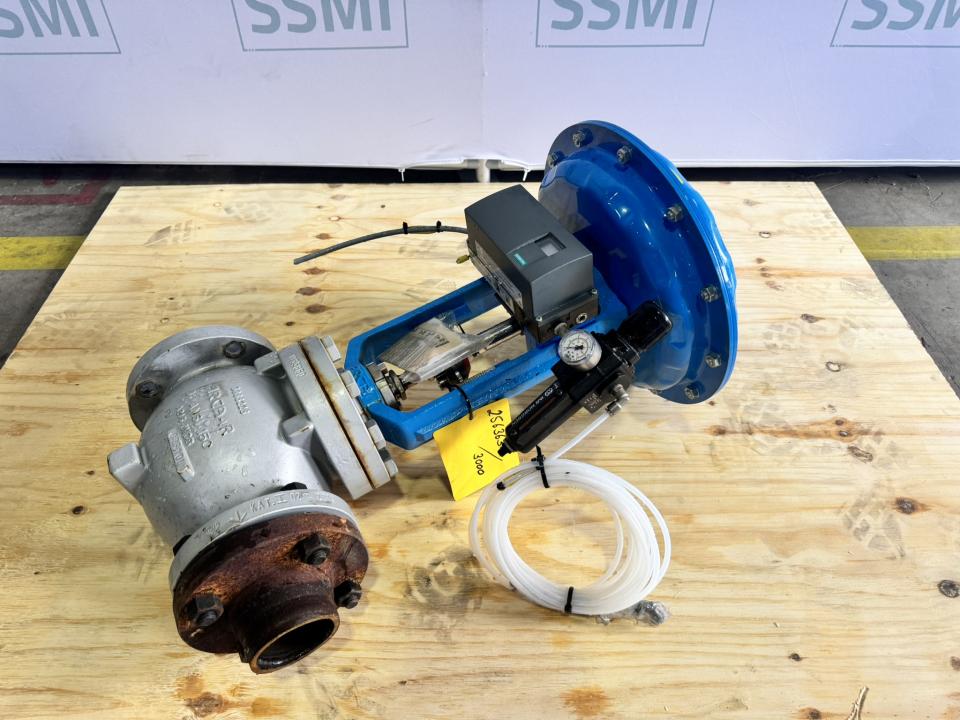

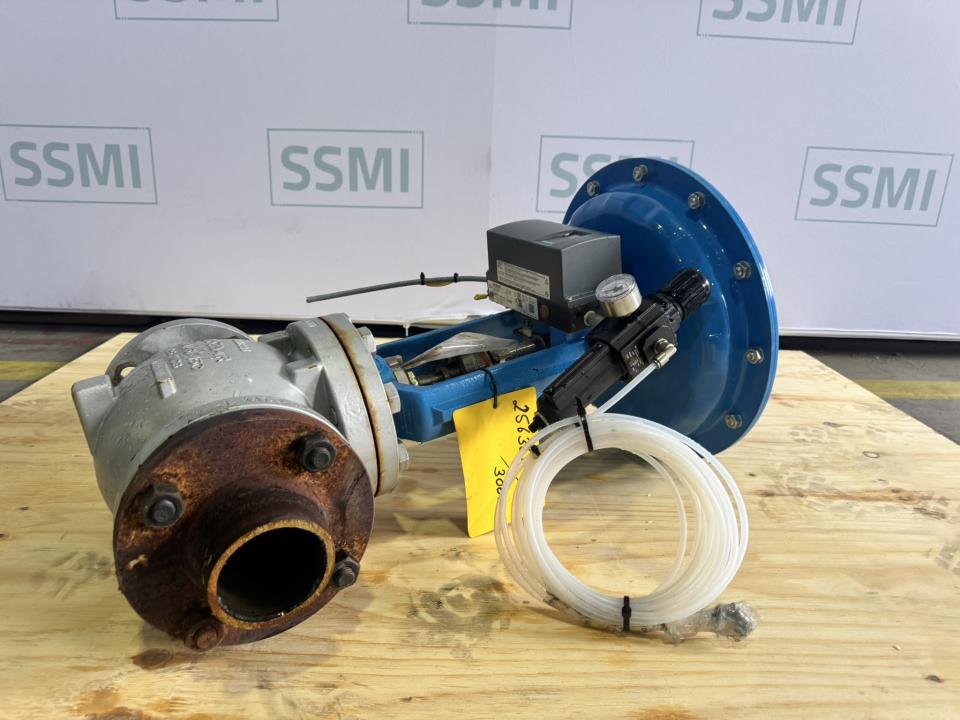

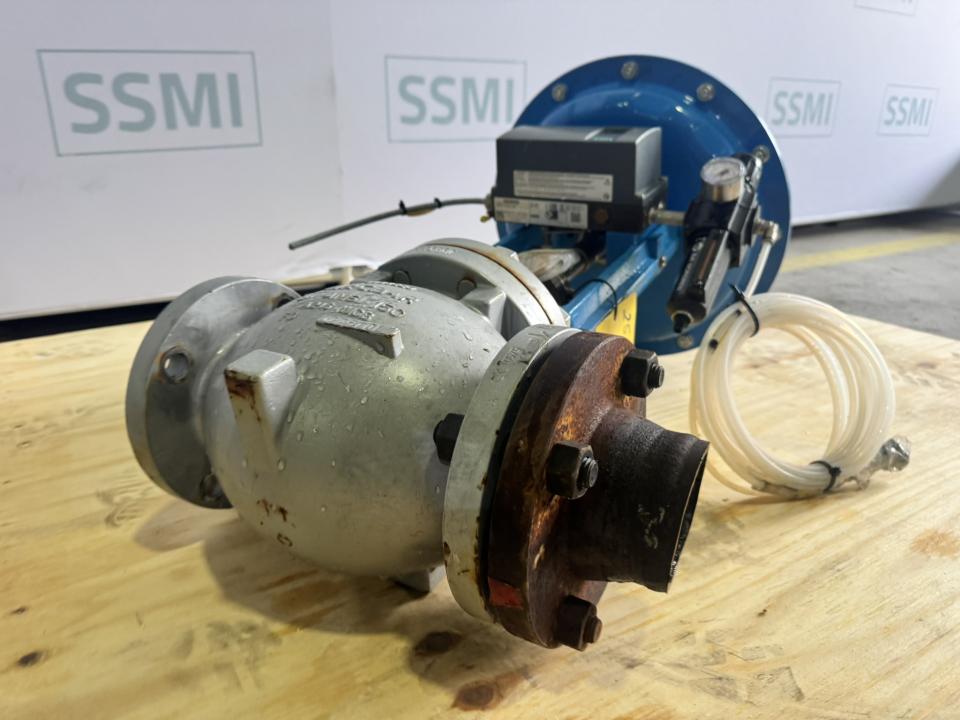

2019 ARCA Globe control valve with pneumatic diaphragm actuator
Water installation material - Installation valves
SKU: SSMIBRI1-00003963
Product information
Brand: ARCA
Type: Globe control valve
Year of build: 2019
Material: Carbon steel
Documentation: Yes
Condition: Used
Additional information
Product status:
Available

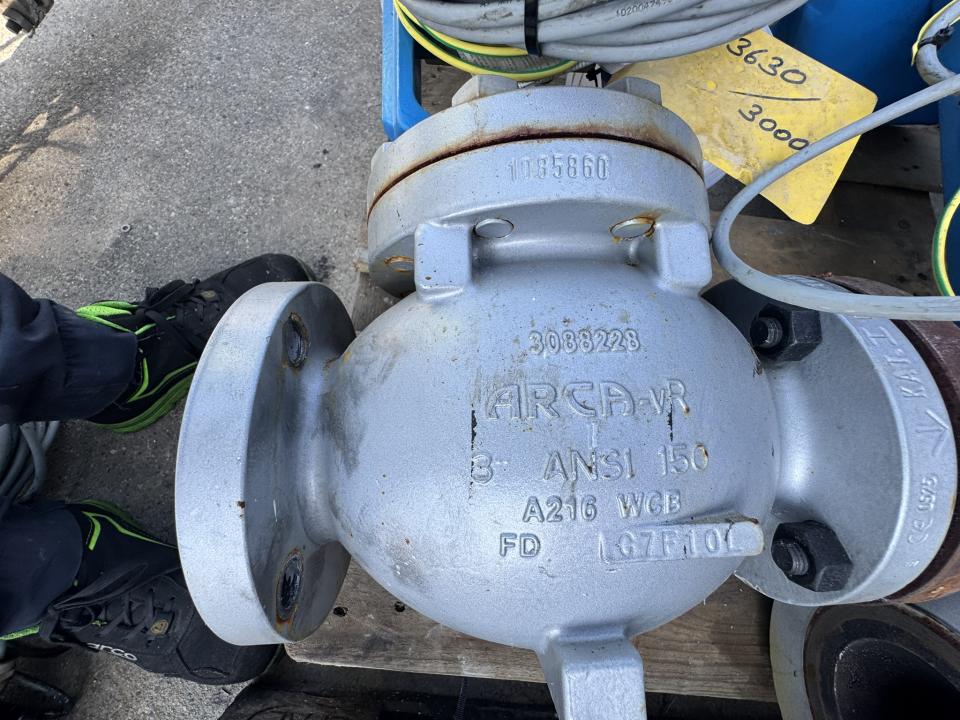

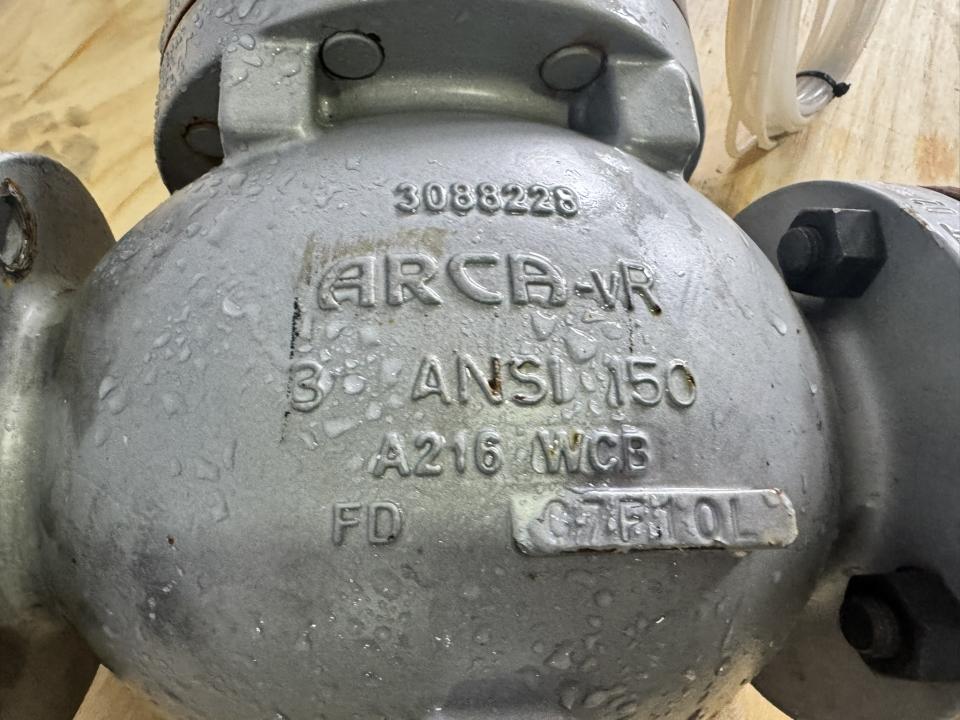

Valve
Manufacturer: ARCA
Valve type: Globe control valve
Valve size: 3"
Pressure class: ANSI 150
Body material: ASTM A216 WCB (carbon steel)
Body serial/casting no.: 3088228
Casting number: 1085860
Additional marking: LC7F10K

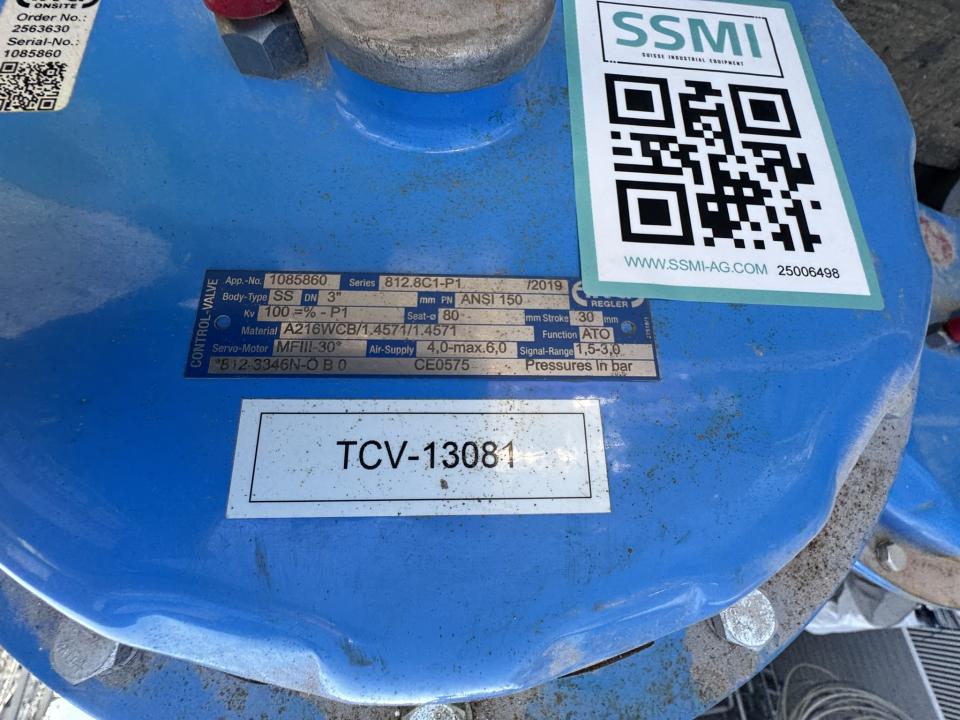

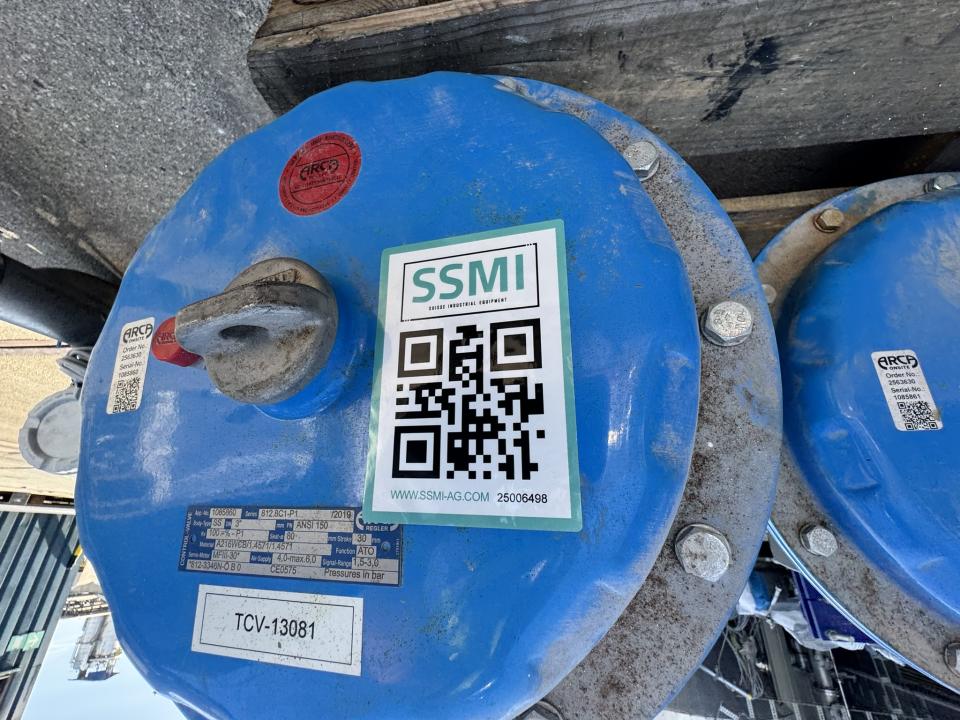

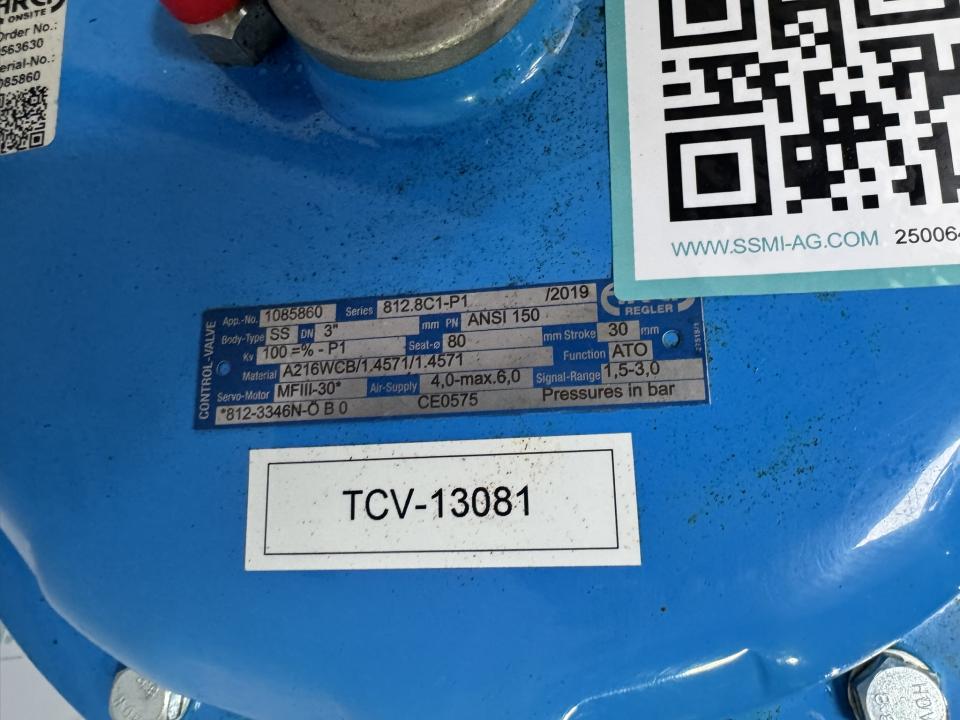

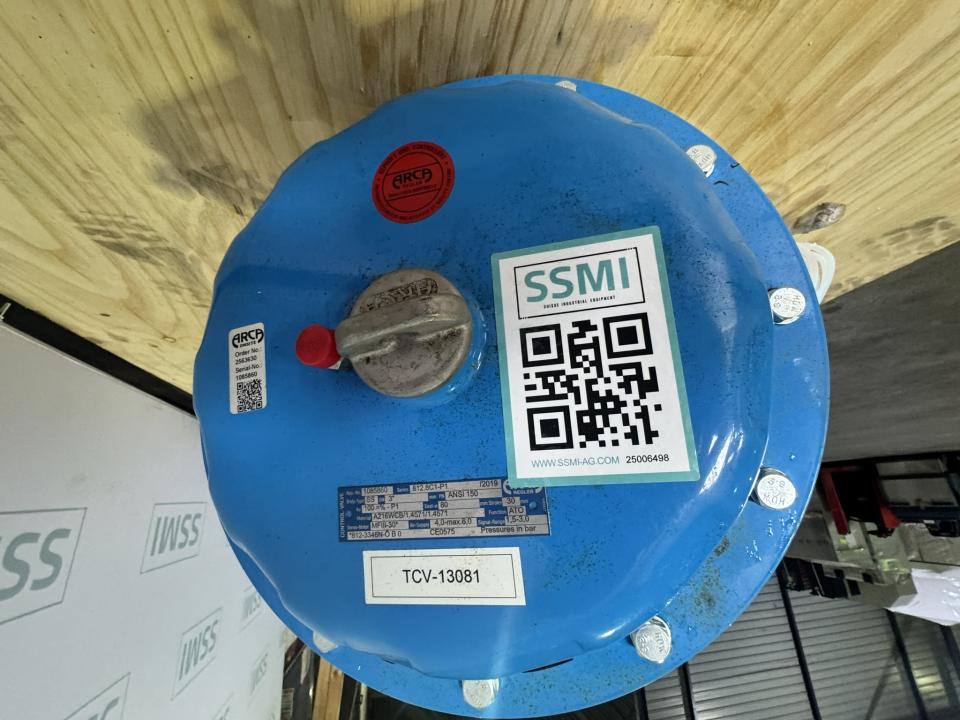

Actuator
Manufacturer: ARCA Regler
Series: 812.8C1-P1
Year: 2019
Function: ATO (Air To Open)
Air supply: 4.0 – 6.0 bar
Signal range: 1.5 – 3.0 bar
Stroke: 30 mm
Seat diameter: 80 mm
Kv: 100 (%-P1)
Servo motor: MFill-30°
CE marking: CE0575

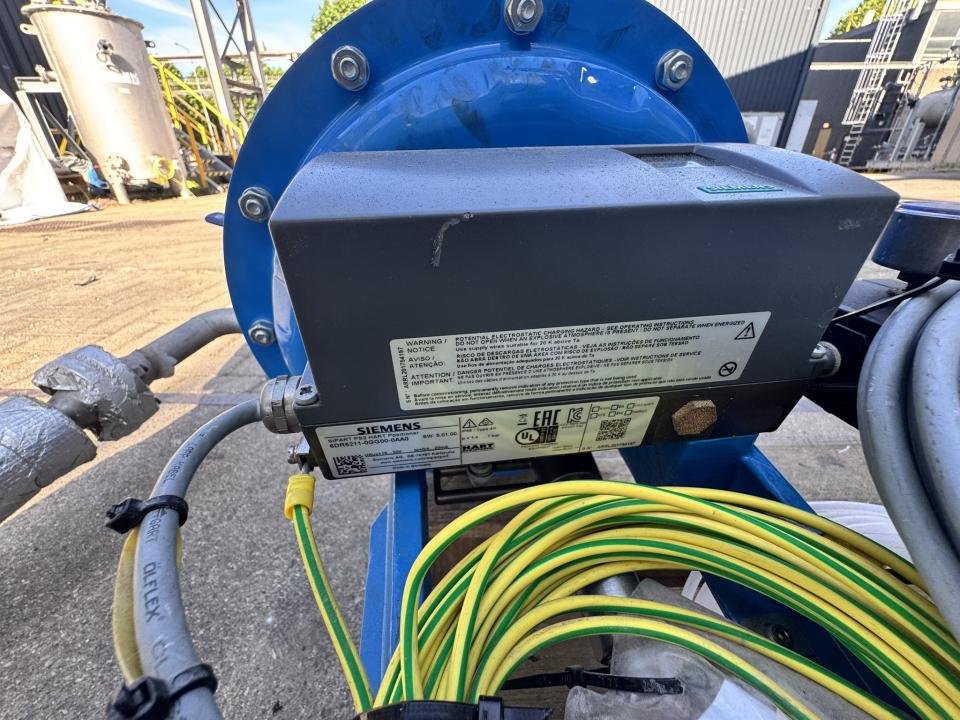

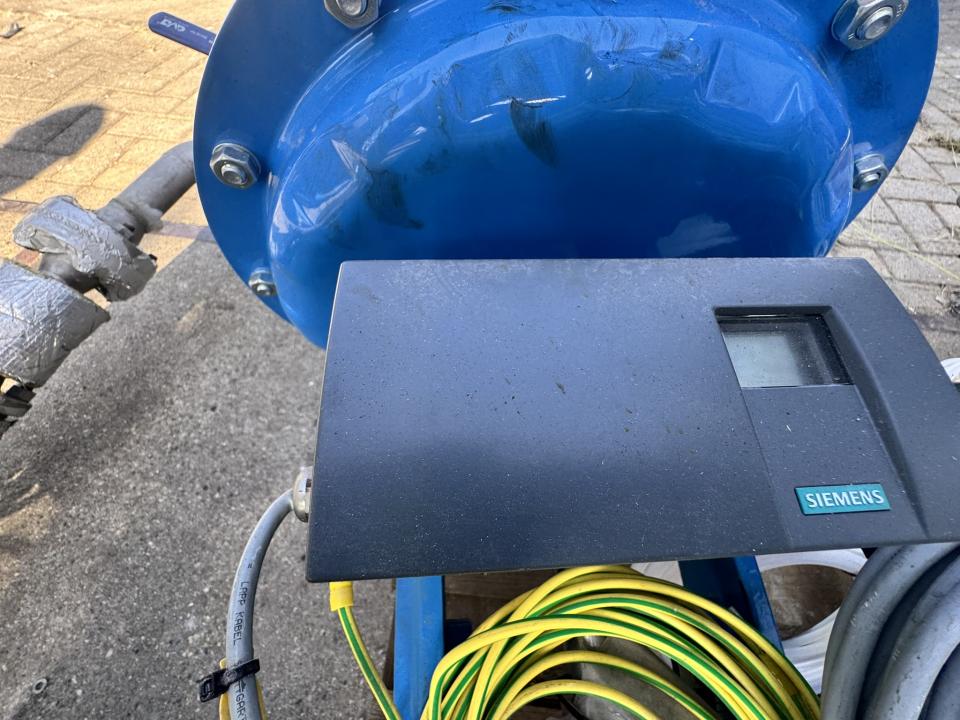

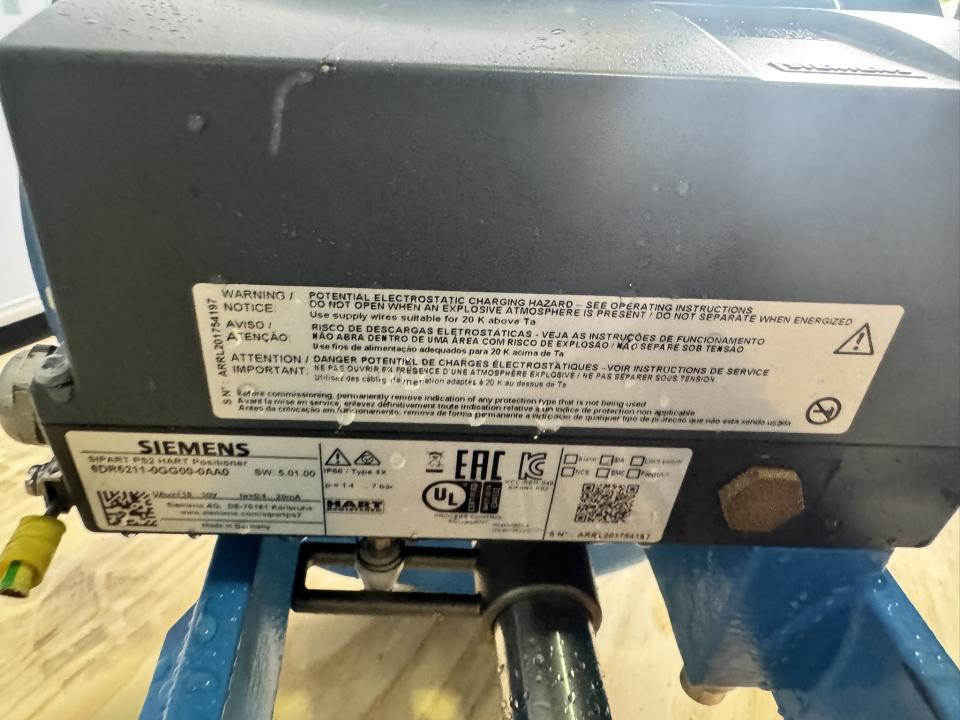

Positioner
Manufacturer: Siemens
Type: SIPART PS2
Model: 6DR5211-0HG00-0AA0
Communication: HART
Input signal: 4–20 mA
Protection: IP66 / Type 4X
Made in: Germany
Transport information
Location: Not provided
Size (l*w*h mm):
Not provided
Weight (kg): Not provided
