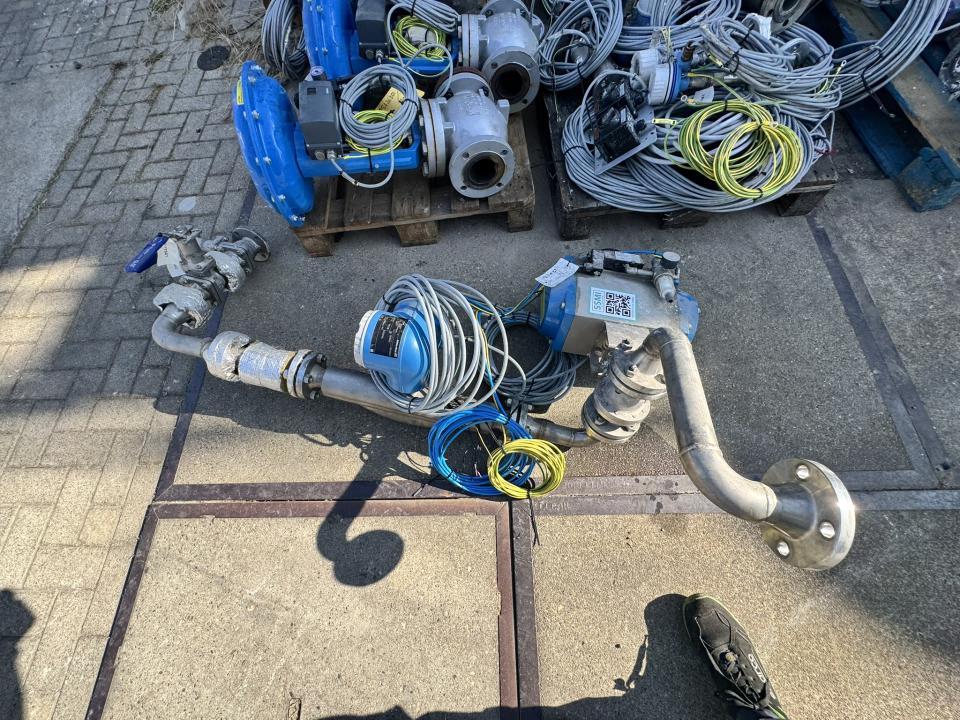

2019 EVAC Pneumatic actuated ball valve assembly with flowmeter
Water installation material - Installation valves
SKU: SSMIBRI1-00003964
Product information
Brand: EVAC
Type: Stainless steel ball valve with pneumatic actuator
Year of build: 2019
Material: Unknown
Documentation: No
Condition: Used
Additional information
Product status:
Available

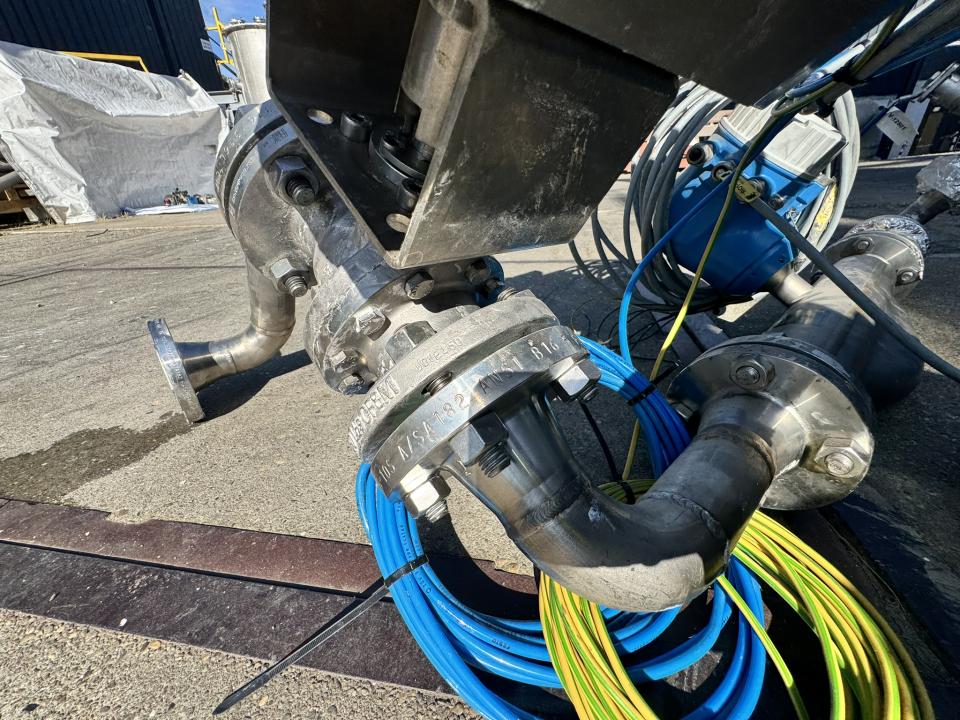

Valve
Valve type: Ball valve
Body material: Stainless steel
Pressure class: ANSI 150
Flange standard: ASME B16.5
Visible marking: ASTM A182
Connection size: Appears approximately 2"
Pneumatic Actuator Package
Manufacturer
EVAC – European Valve Automation Centre
Solenoid Valve
Model: EV81-501MB1
Part number: E1901094
Function: 3/2 valve
Operating pressure: 2–8 bar (30–120 PSI)
Automation Package Plate
Manufacturer: EVAC
Order no.: 190787
Date: 28-08-2019
Maximum pressure: 8 bar
Safety springs: 5
Solenoid: EV81 3/2 + 5/2 G1/4" 24VDC
Switch box: BE48-2xSPDT-2xM20 aluminium body Ex d

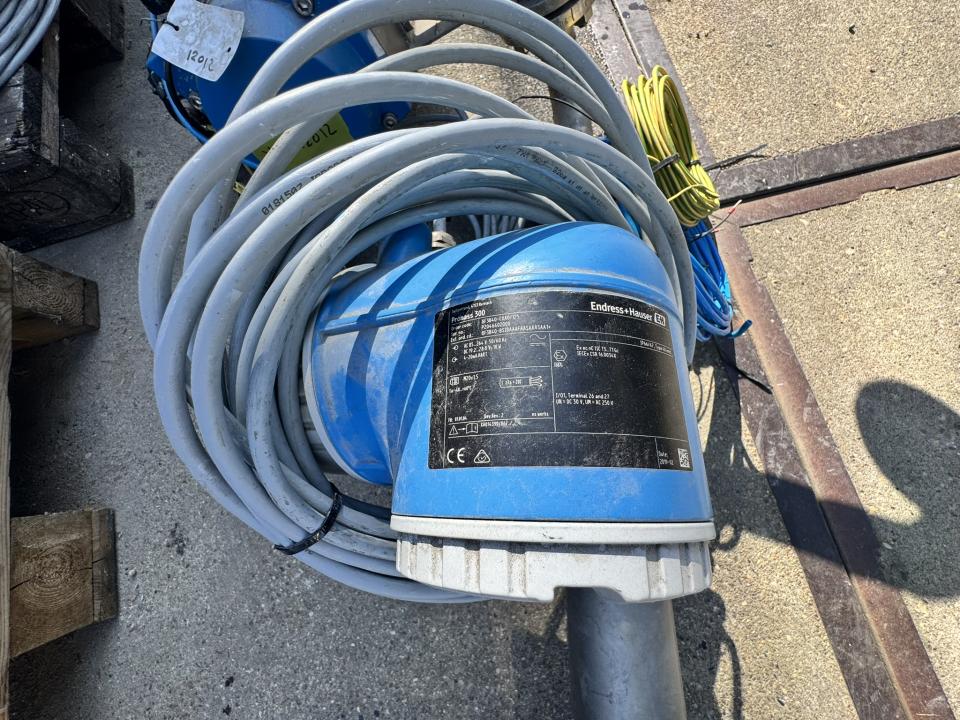

Flowmeter
Manufacturer
Endress+Hauser
Type
Promass 300
Measuring Principle
Coriolis mass flowmeter

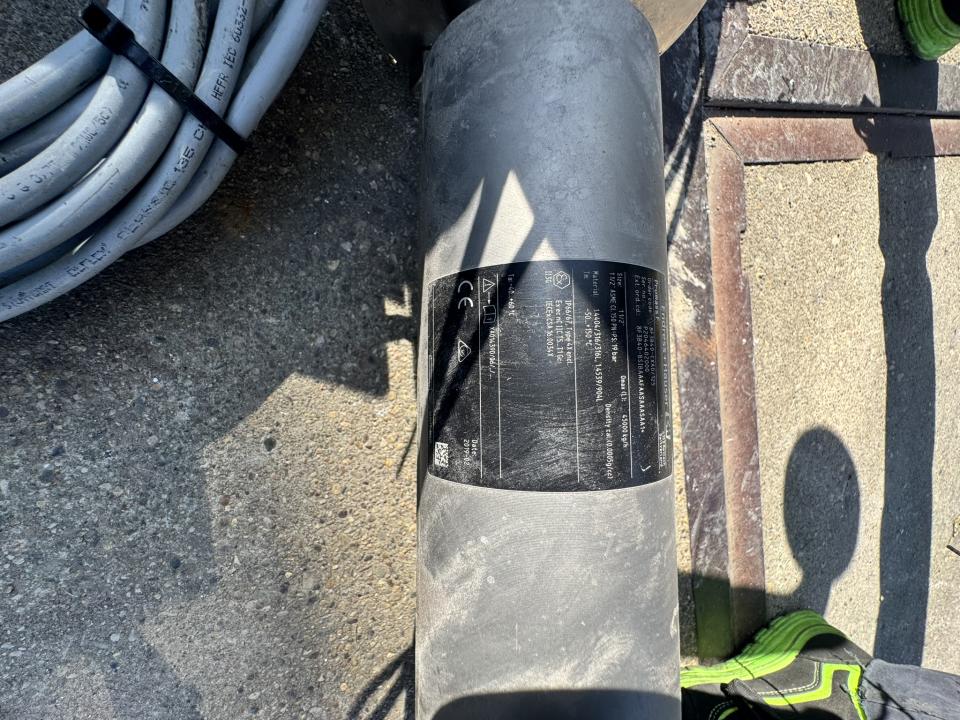

Nameplate Data (visible)
Product: Proline Promass 300
Date: 2019-02
Protection: IP66/67
Explosion protection: Ex marked
Supply: 20–30 VDC (visible on plate)
Communication: HART
Transport information
Location: Not provided
Size (l*w*h mm):
Not provided
Weight (kg): Not provided
