2019 ARCA Globe control valve assembly
Water installation material - Installation valves
SKU: SSMIBRI1-00003966
Product information
Brand: ARCA

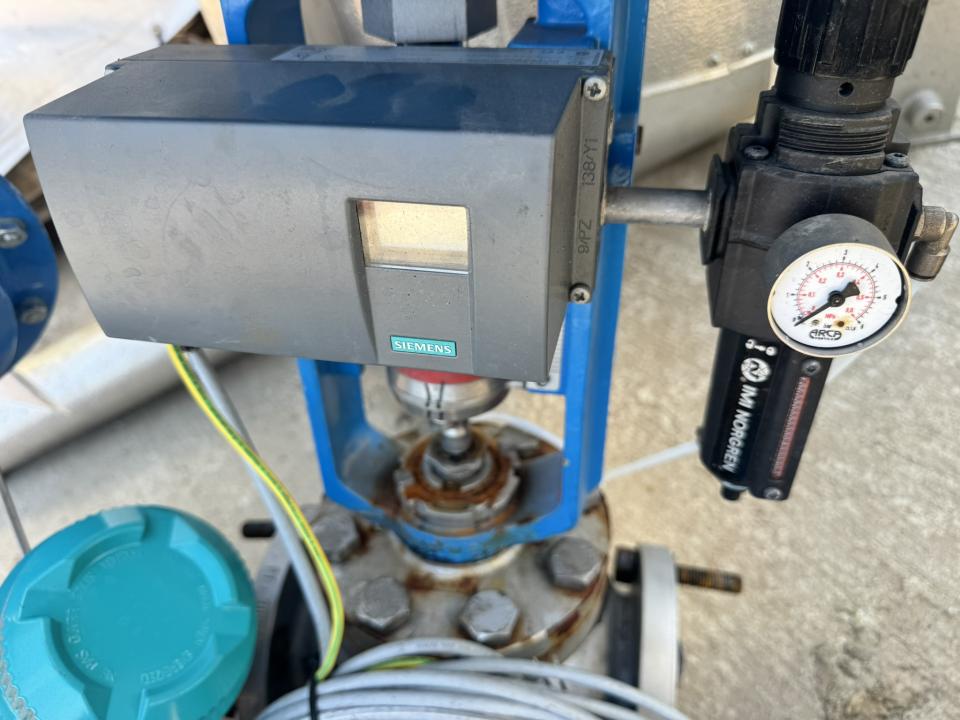

Type: Globe control valve with pneumatic diaphragm actuator and Siemens SIPART PS2 positioner
Year of build: 2019
Material: Unknown
Documentation: No
Condition: Not disclosed
Additional information
Product status:
Available

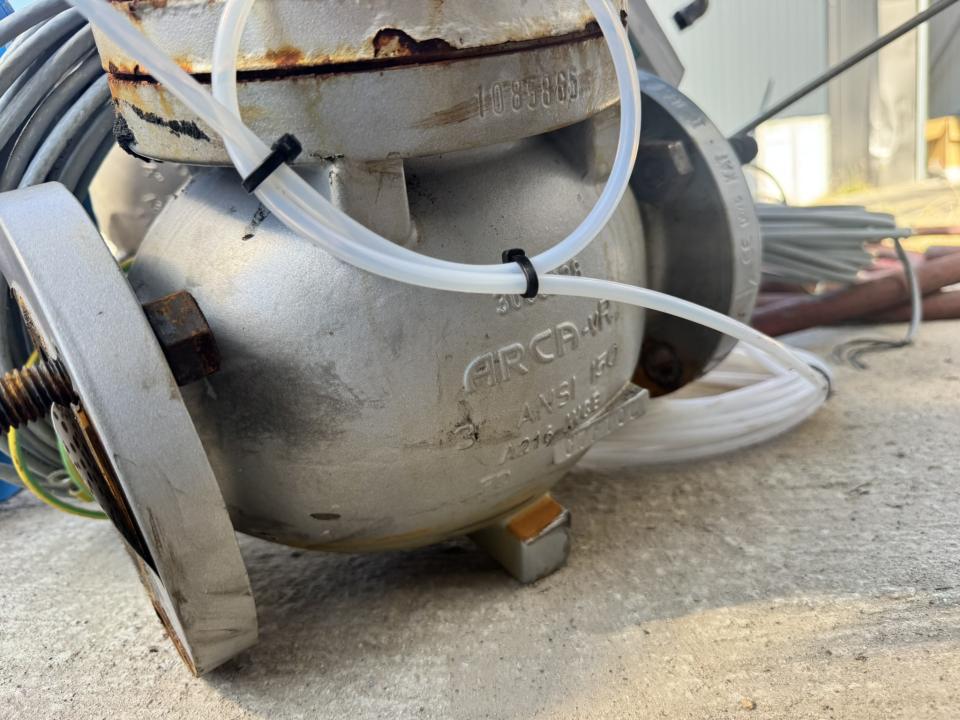

Valve
Manufacturer: ARCA
Valve type: Globe control valve
Valve size: 3"
Pressure class: ANSI 150
Body material: ASTM A216 WCB
Body serial/casting number: 3088228
Casting/App. No.: 1085865
Additional marking: C7F16N

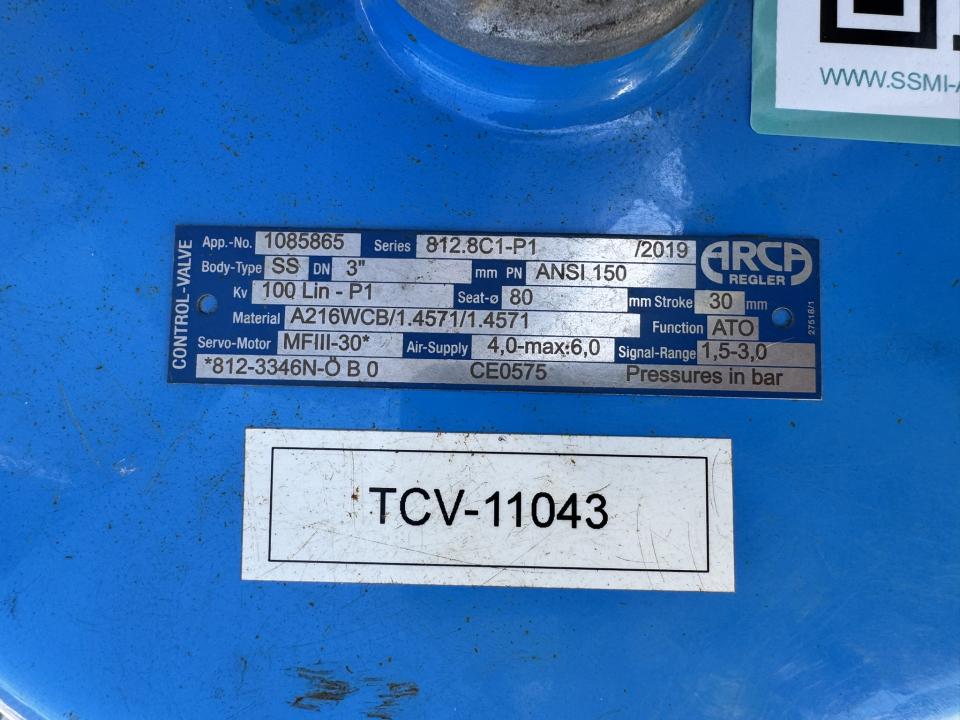

Actuator
Manufacturer: ARCA Regler
Series: 812.8C1-P1
Year: 2019
Function: ATO (Air To Open)
Stroke: 30 mm
Seat diameter: 80 mm
Kv: 100 Lin-P1
Material: A216WCB / 1.4571 / 1.4571
Air supply: 4.0 – 6.0 bar
Signal range: 1.5 – 3.0 bar
Servo motor: MFIII-30°
CE marking: CE0575

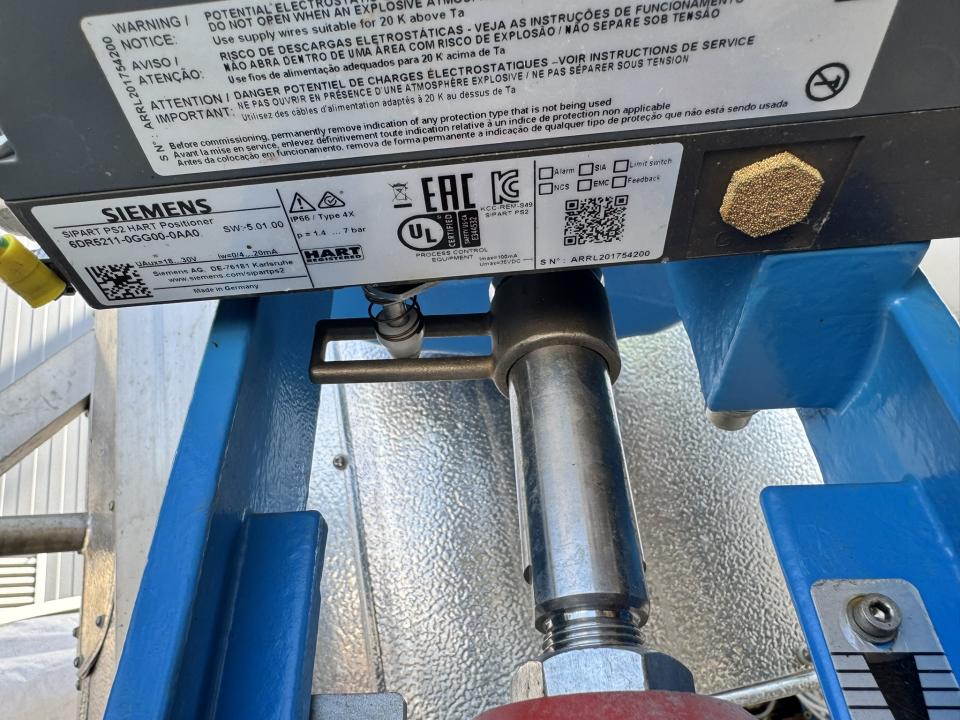

Positioner
Manufacturer: Siemens
Type: SIPART PS2 HART Positioner
Model: 6DR5211-0GG00-0AA0
Software version: 5.01.00
Supply voltage: 18–30 VDC
Input signal: 4–20 mA
Protection: IP66 / Type 4X
Operating pressure: 1.4 – 7 bar
Serial number: ARRL201754200
Made in: Germany
Transport information
Location: Not provided
Size (l*w*h mm):
Not provided
Weight (kg): Not provided
