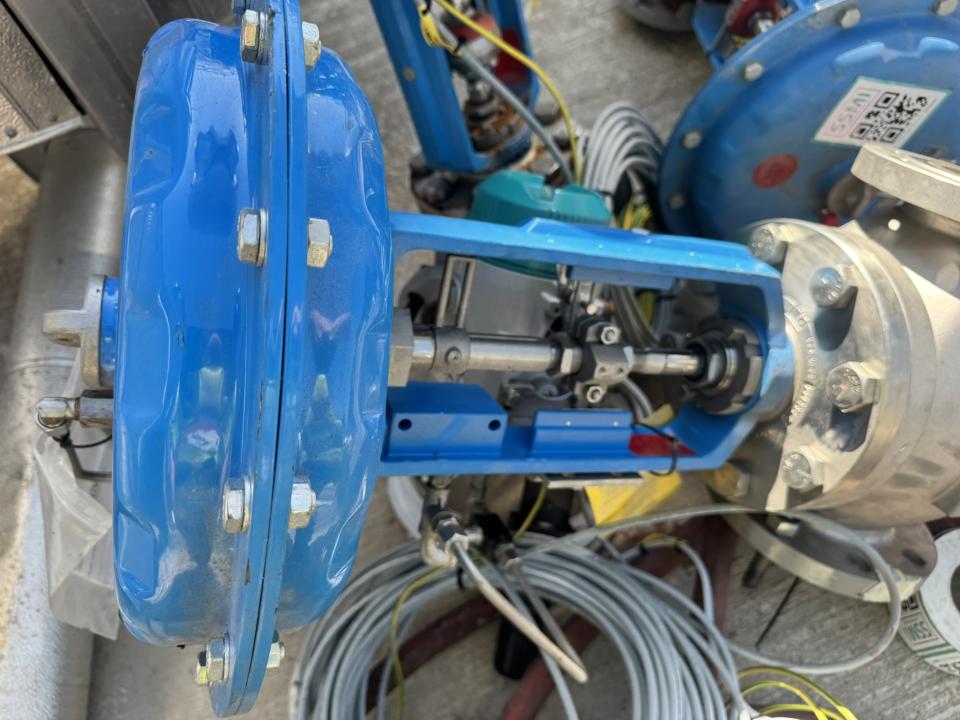

2022 ARCA ARCA control valve assembly
Water installation material - Installation valves
SKU: SSMIBRI1-00003967
Product information
Brand: ARCA
Type: Unknown
Year of build: 2022
Material: Unknown
Documentation: No
Condition: Not disclosed
Additional information
Product status:
Available
Manufacturer: ARCA-Regler GmbH
Construction Year: 2022
Order Number: 2578086
Serial Number: 1097229

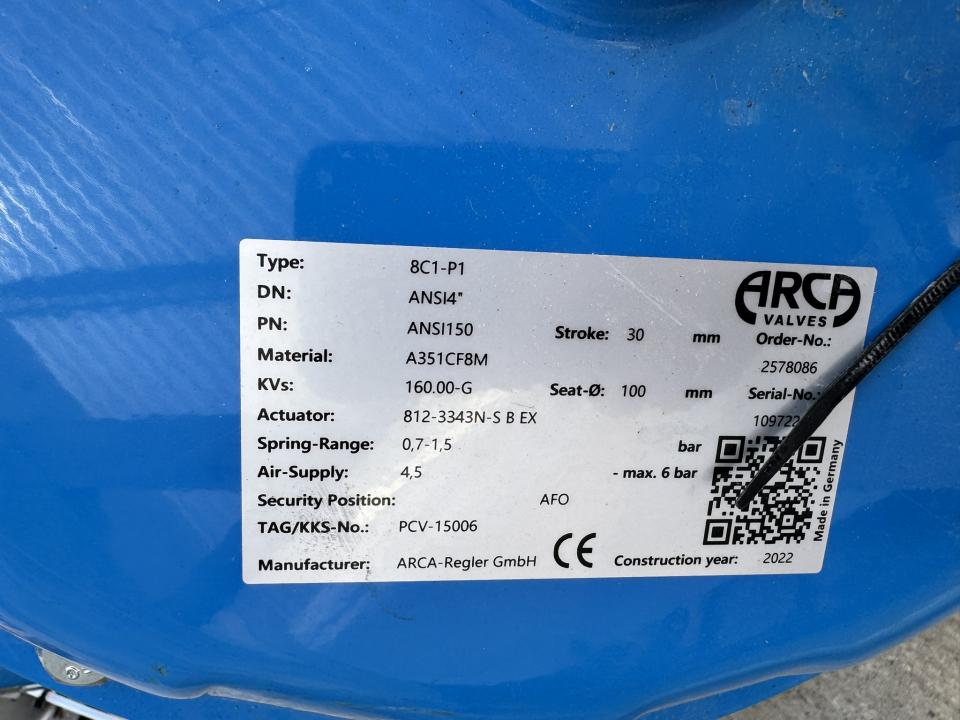

Valve:
- Type: 8C1-P1
- Size: 4"
- Rating: ANSI 150
- Material: A351 CF8M (SS316 cast)
- Kvs: 160
- Seat Diameter: 100 mm
- Stroke: 30 mm
- Security Position: AFO (Air Fail Open)

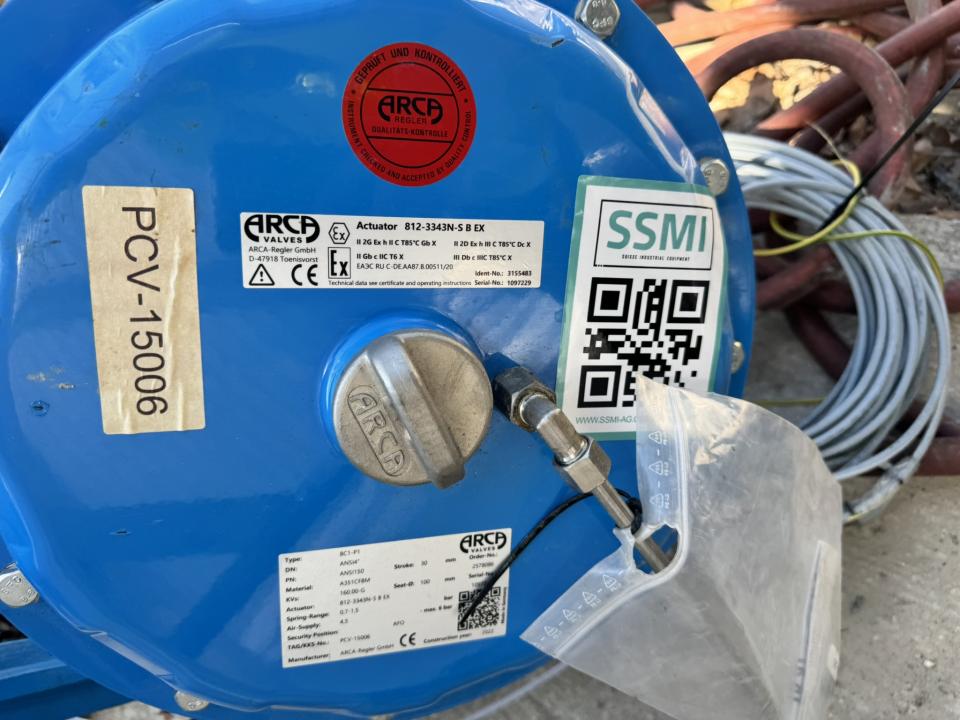

Actuator:
- Type: 812-3343N-S B EX
- Ex certified
- Air Supply: 4.5 bar
- Spring Range: 0.7–1.5 bar

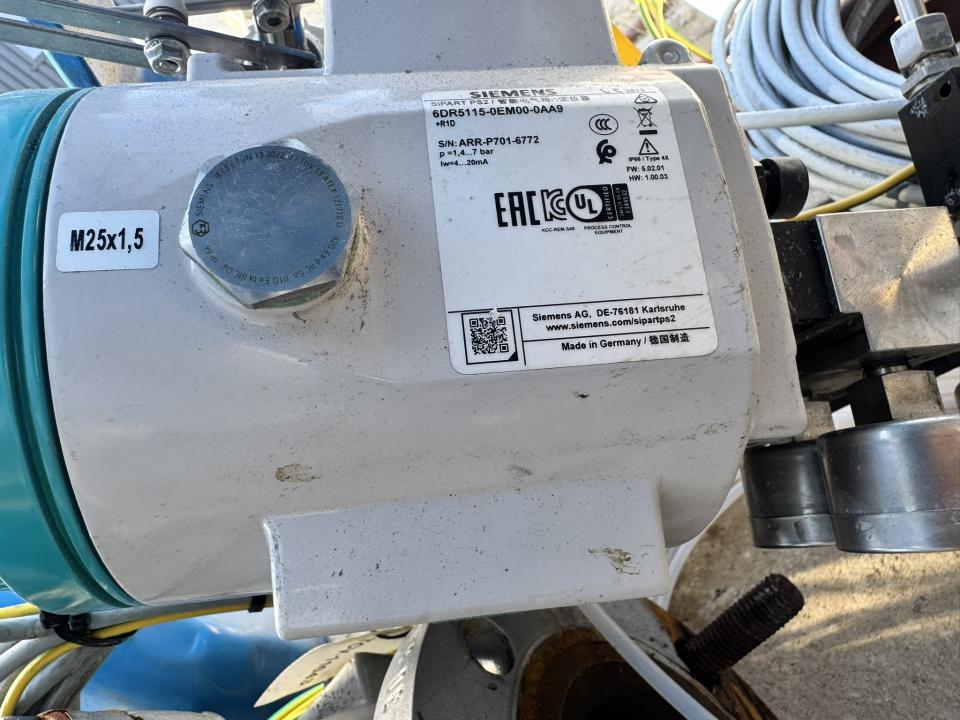

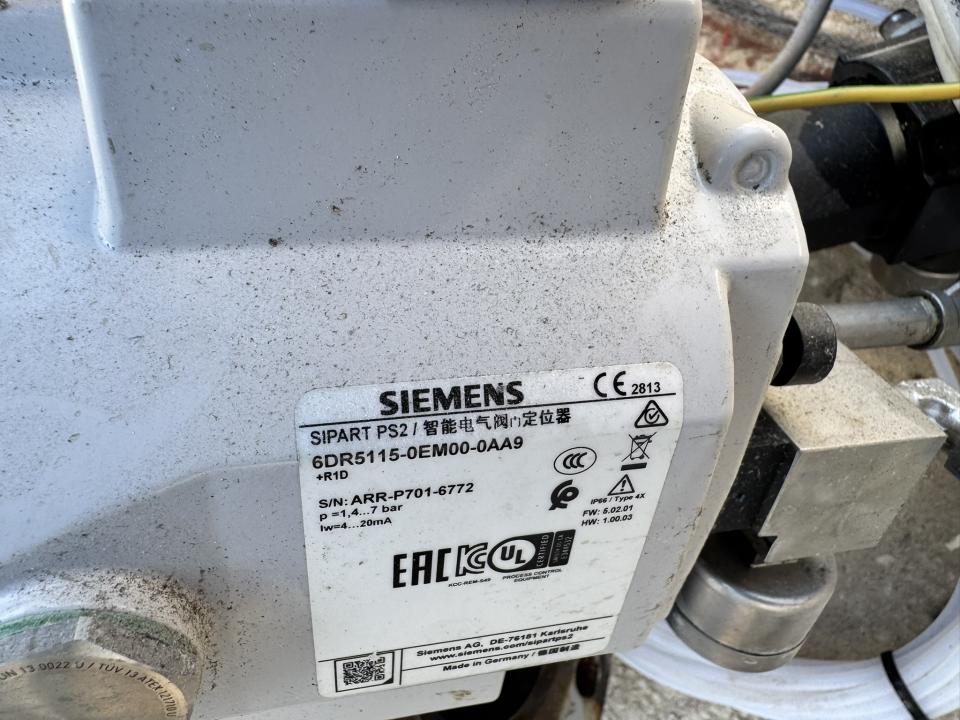

Positioner:
- Siemens SIPART PS2
- Model: 6DR5115-0EM00-0AA9
- Serial: ARR-P701-6772
- Input: 4–20 mA
- IP66 / Type 4X
- Firmware: 5.02.01
Tag: PCV-15006
Transport information
Location: Not provided
Size (l*w*h mm):
Not provided
Weight (kg): Not provided
