2019 EVAC Valve

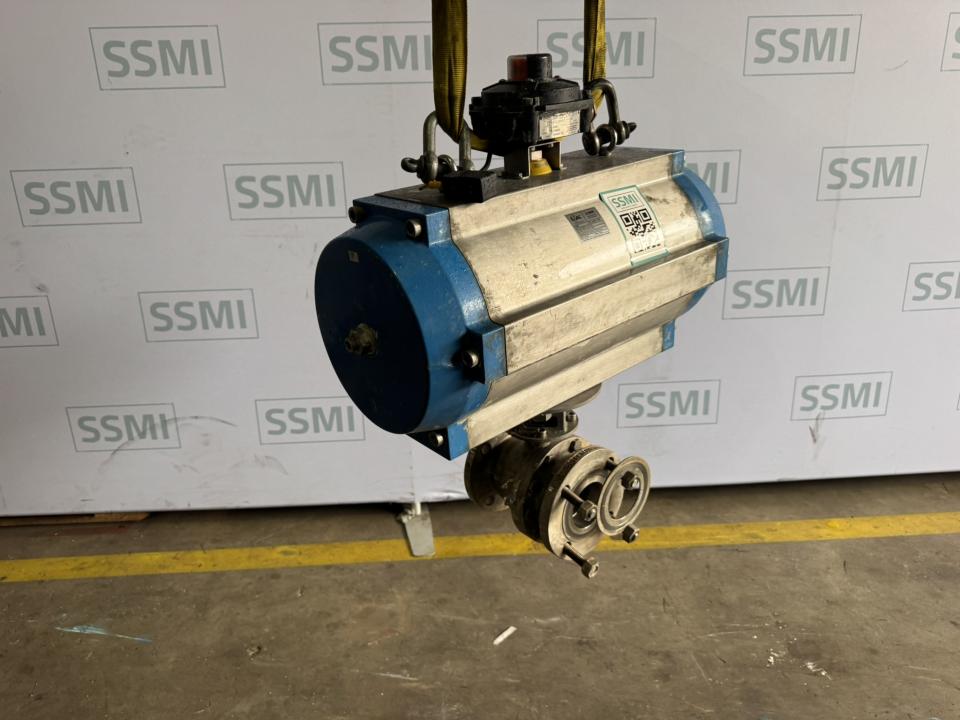

EVAC 3-inch pneumatically actuated butterfly valve assembly complete with pneumatic quarter-turn actuator, 24 VDC solenoid valve and position/limit switch box. The assembly is designed for automated shut-off or flow-control applications in industrial piping systems and has a maximum stated pneumatic pressure of 8 bar.

• Manufacturer: EVAC
• Product type: Pneumatically actuated butterfly valve assembly
• Reference: 014580
• Order number: 190035
• Valve designation: BVP-3"FB-150#RF-F2-MT70-AFC
• Nominal valve size: 3 inch
• Pressure class marking: 150#
• Flange marking: RF / Raised Face
• Actuation: Pneumatic quarter-turn actuator
• Safety springs: 5
• Maximum pneumatic pressure: 8 bar
• Solenoid model: SOL-EV81
• Solenoid configuration: 3/2 + 5/2
• Pneumatic connection: G1/4"
• Solenoid voltage: 24 VDC
• Switch box model: SWB-BE48
• Switch configuration: 2 x SPDT
• Cable entries: 2 x M20
• Switch box body: Aluminium
• Explosion protection marking: EExd-IIC
• Date: 12-03-2019
• Certification marking: CE

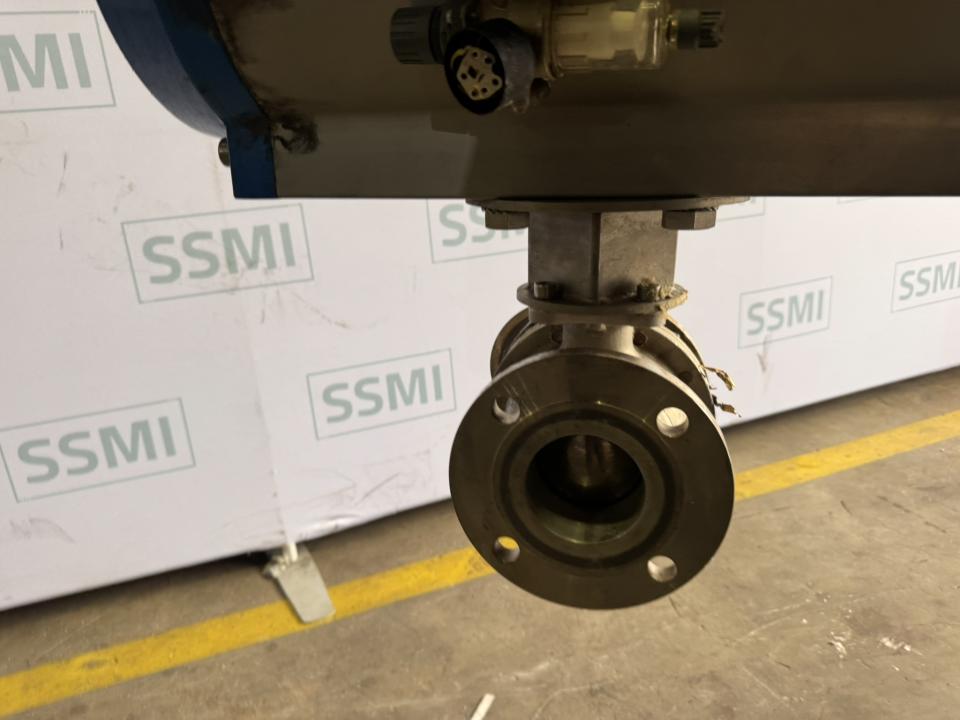

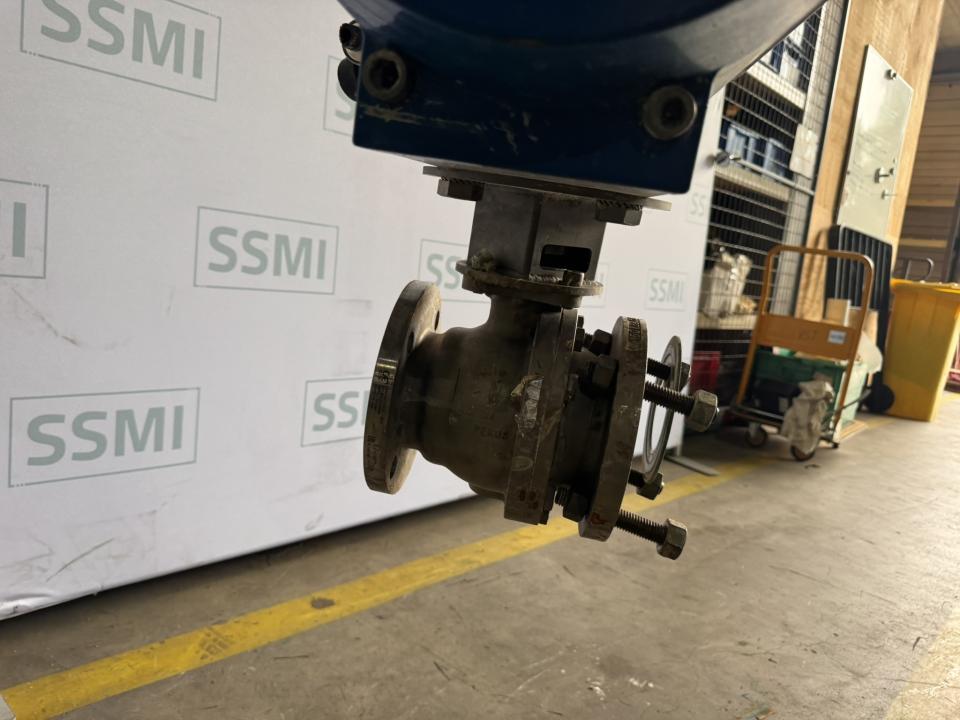

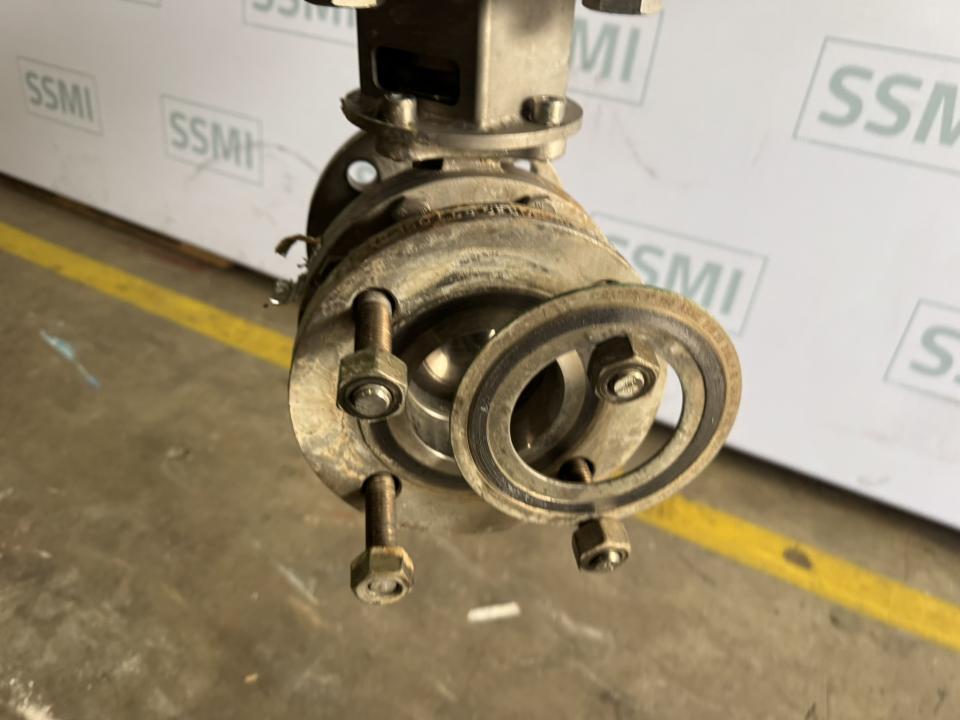

This EVAC valve assembly consists of a 3-inch butterfly valve fitted with a pneumatic quarter-turn actuator and the associated electrical and pneumatic control components. The complete assembly is suitable for automated opening and closing of a process line and is intended for use in industrial piping installations.

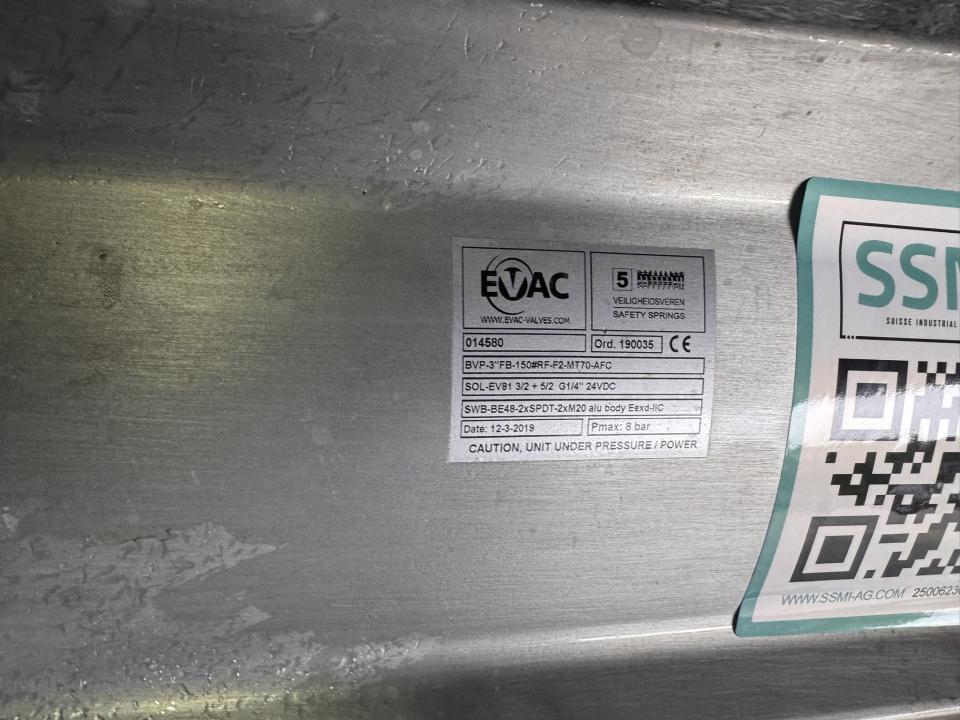

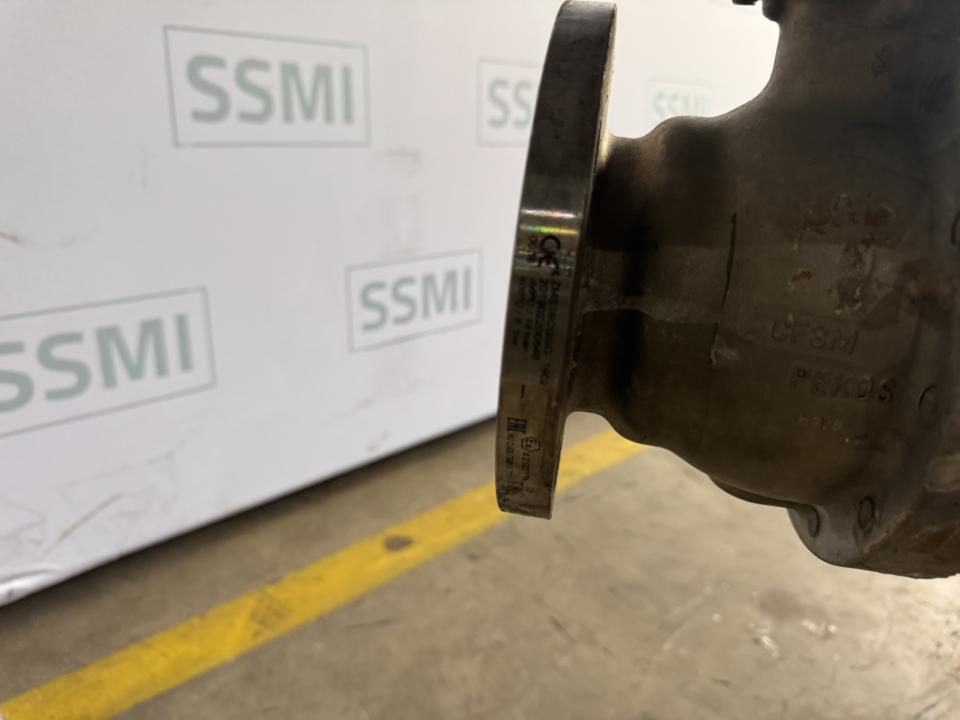

The valve identification shown on the manufacturer plate is BVP-3"FB-150#RF-F2-MT70-AFC. The designation indicates a 3-inch valve with a 150# pressure-class marking and RF, or Raised Face, flange specification. The remaining codes are manufacturer-specific configuration references and have been retained as shown on the EVAC nameplate.

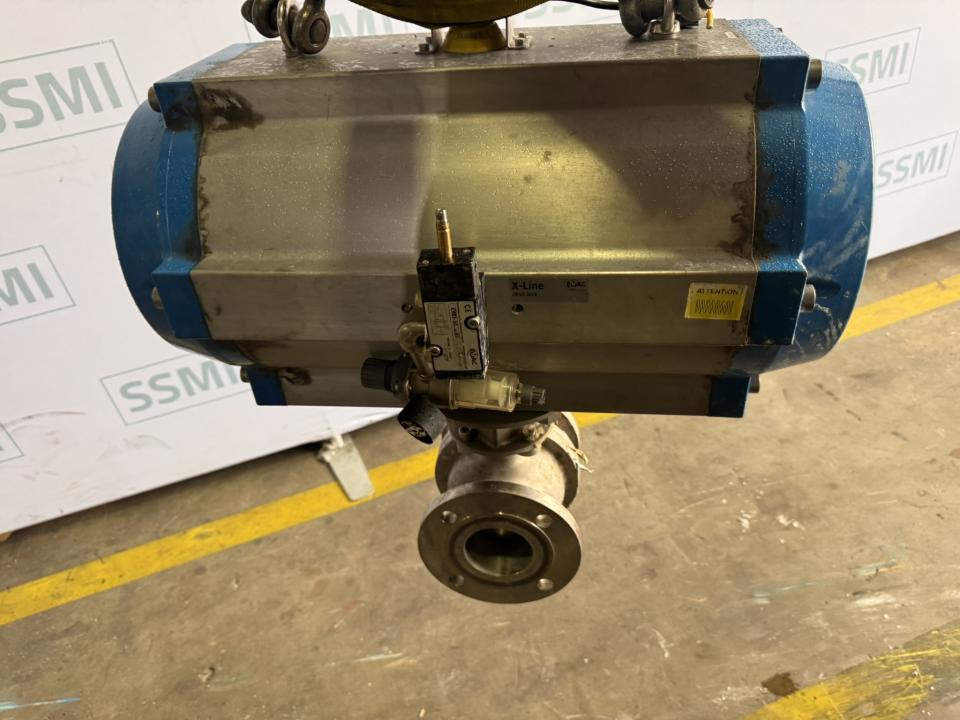

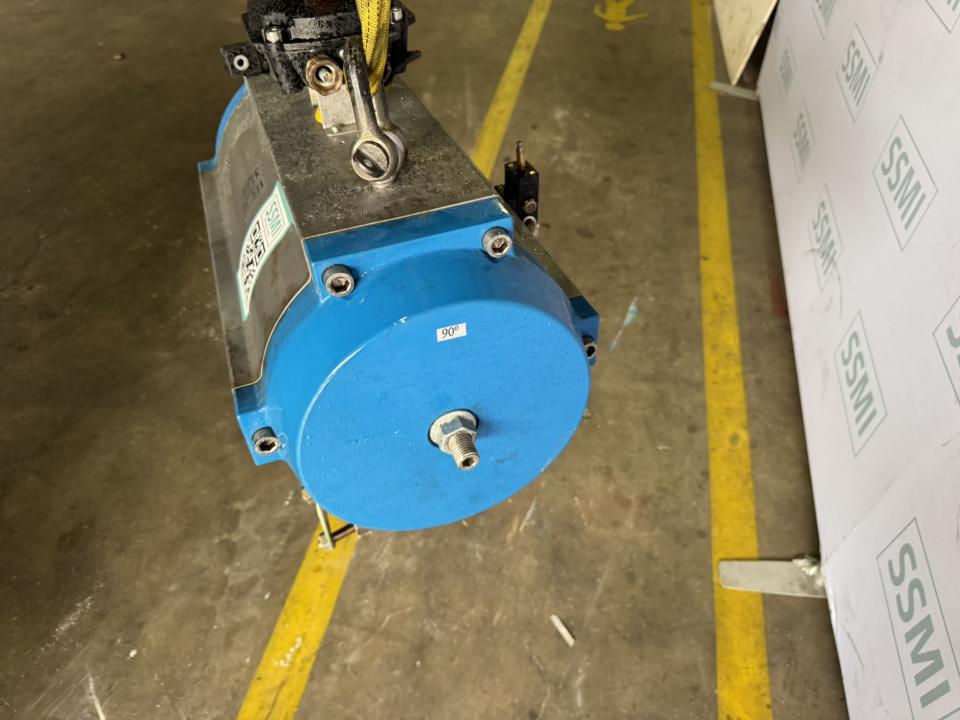

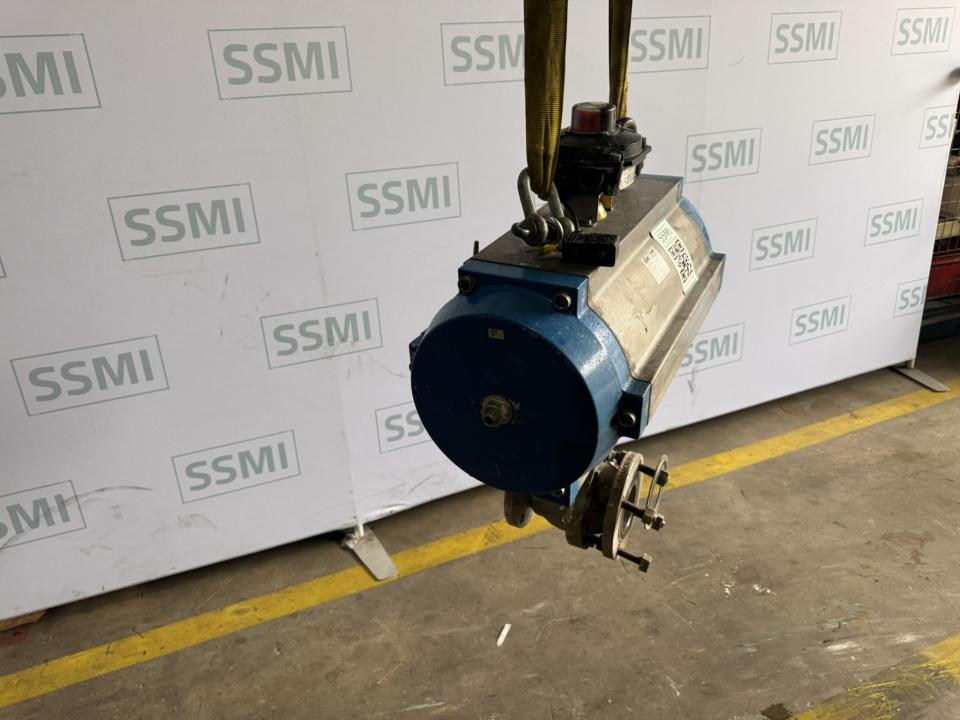

The valve is operated by a large pneumatic quarter-turn actuator with an aluminium body and blue end caps. The manufacturer plate specifies 5 safety springs, indicating a spring-assisted actuator arrangement. The maximum stated pneumatic pressure for the unit is 8 bar.

Pneumatic control is provided by an EVAC SOL-EV81 solenoid valve. The nameplate specifies a 3/2 + 5/2 configuration, a G1/4" pneumatic connection and a 24 VDC electrical supply.

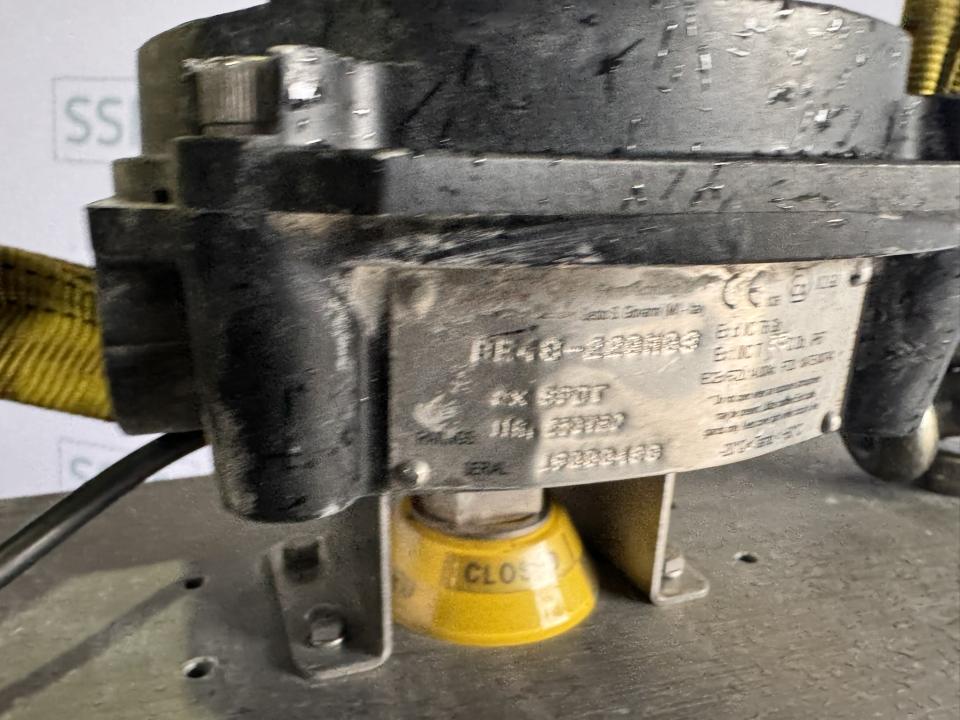

The assembly is also fitted with an EVAC SWB-BE48 switch box for valve-position feedback. The switch box is specified with 2 x SPDT switching contacts, 2 x M20 cable entries and an aluminium body. The nameplate also carries the marking EExd-IIC.

The complete assembly is CE marked and carries EVAC reference number 014580 and order number 190035. The date shown on the nameplate is 12-03-2019.

• EVAC 3-inch butterfly valve
• Pneumatic quarter-turn actuator
• Spring mechanism with 5 safety springs as stated on the nameplate
• EVAC SOL-EV81 24 VDC solenoid valve
• EVAC SWB-BE48 position / limit switch box

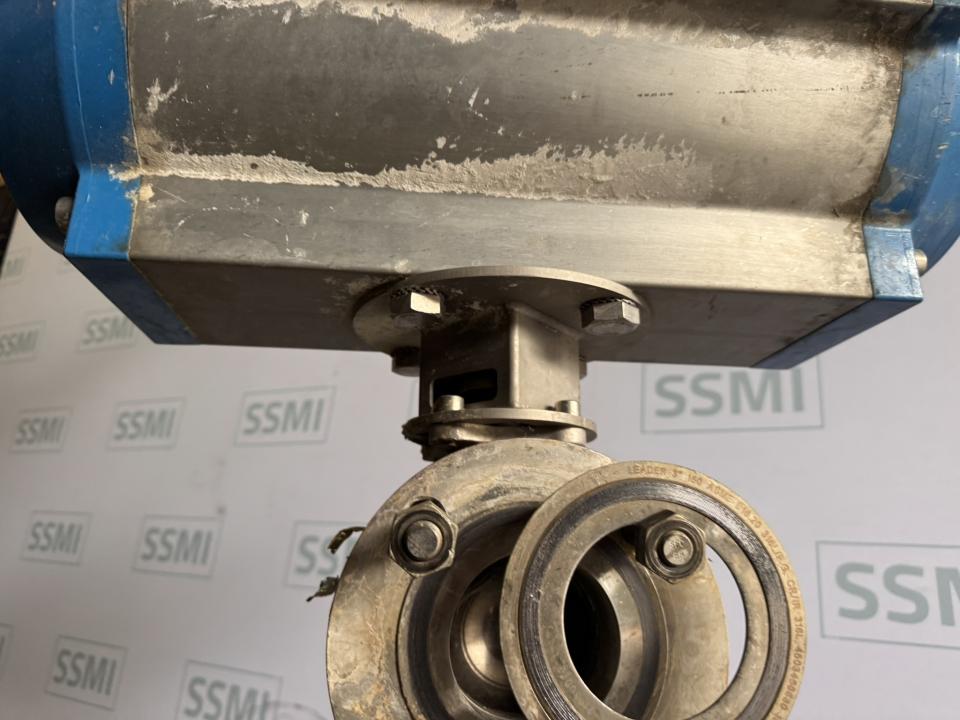

• Valve-to-actuator mounting hardware visible in the photographs
