Grundfos Pump
Storage and Handling - Pumps (Food industry)
SKU: SSMIBRI1-00004509

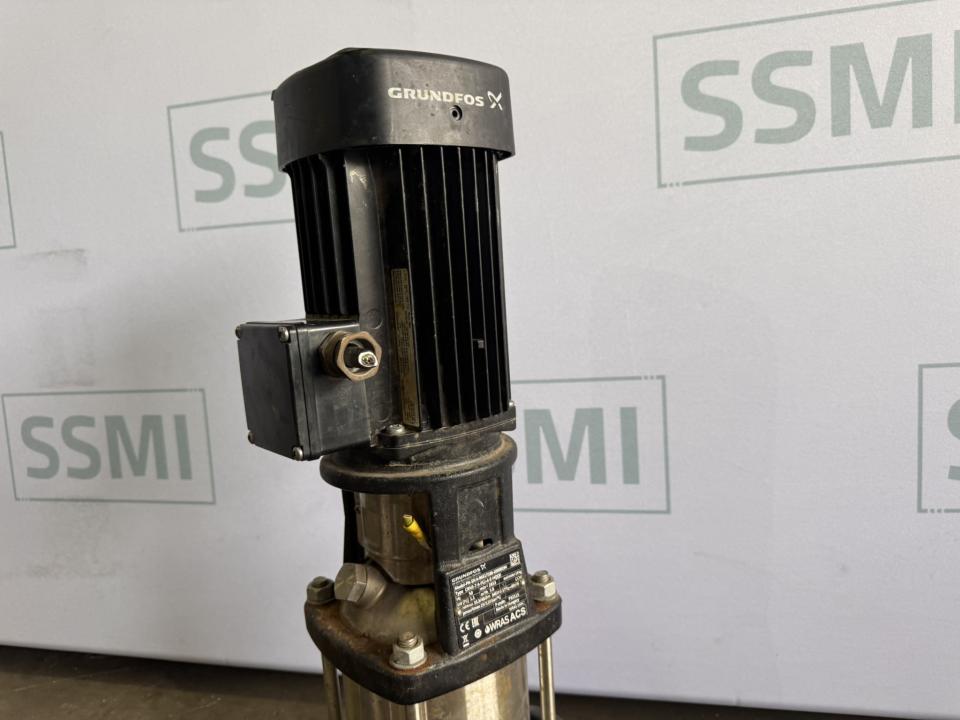

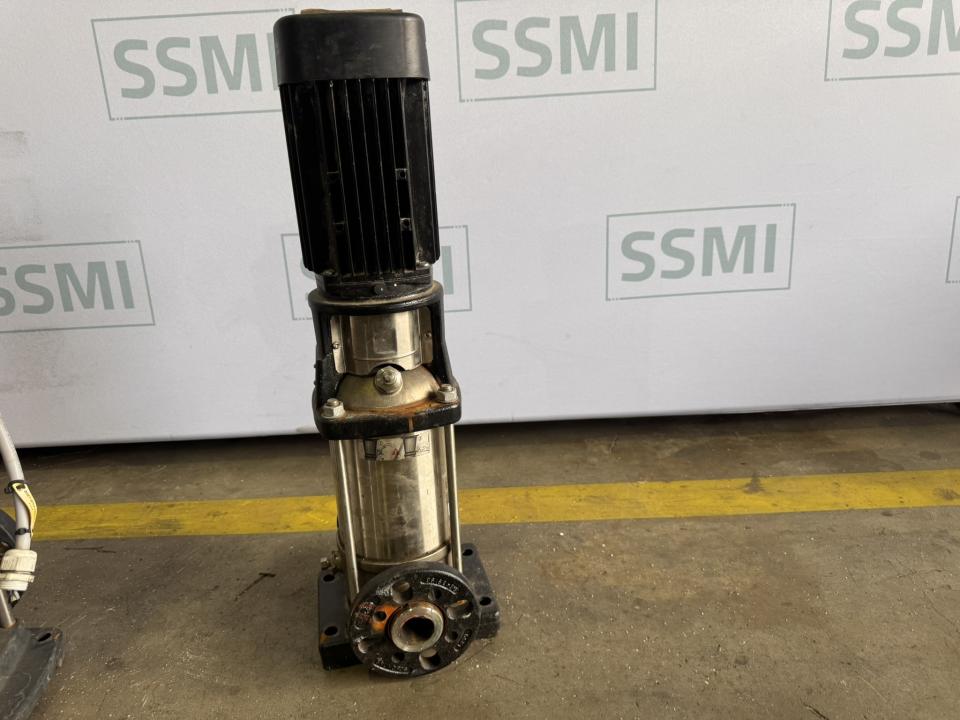

Grundfos CRN5-7 A-FGJ-A-E-HQQE vertical multistage centrifugal pump designed for industrial pressure boosting, circulation and liquid-transfer applications. The pump has a rated flow of 5.8 m³/h, rated head of 35.3 metres and a maximum head of 49.0 metres. It is rated for operating pressures up to 25 bar and liquid temperatures up to 120°C and is driven by a 1.1 kW motor at approximately 2855 rpm.
Product Details- Manufacturer: Grundfos
- Product type: Vertical multistage centrifugal pump
- Series: CRN5
- Type: CRN5-7 A-FGJ-A-E-HQQE
- Model / PN / SN: A / 96517186 / 10000194
- Product number: 96517186
- Serial number: 10000194
- Number of stages: 7
- Frequency: 50 Hz
- Motor power P2: 1.1 kW
- Pump speed: 2855 rpm
- Rated flow: 5.8 m³/h
- Rated head: 35.3 m
- Maximum head: 49.0 m
- Maximum operating pressure: 25 bar
- Maximum liquid temperature: 120°C
- Minimum Efficiency Index: MEI ≥ 0.57
- Pump efficiency: ηp = 60.6%
- Rotation direction: CCW / counter-clockwise
- Shaft seal code: HQQE
- Pump weight: 19 kg excluding motor
- P code: P32115
- Country of manufacture: Hungary
- Certification / approvals: CE, EAC, WRAS and ACS
- WRAS marking: WRAS 100°C
This Grundfos CRN5-7 is a vertical multistage centrifugal pump intended for applications where a relatively high discharge pressure is required from a compact pump arrangement. Pumps of this configuration are commonly used for industrial process water, pressure boosting, circulation, washing systems, water treatment and similar liquid-transfer duties.
The pump is a 7-stage unit and has a rated flow capacity of 5.8 m³/h. At its rated operating point, the nameplate specifies a head of 35.3 metres, while the maximum stated head is 49.0 metres.
The pump operates at 50 Hz with a stated rotational speed of 2855 rpm. Required motor output is 1.1 kW P2. The direction of rotation is specified as CCW, counter-clockwise.
The pump is rated for a maximum operating pressure of 25 bar and a maximum liquid temperature of 120°C. These ratings make the unit suitable for relatively high-pressure and elevated-temperature process applications, provided the pumped liquid and installation are compatible with the pump materials and seal arrangement.
The shaft seal configuration is identified by Grundfos code HQQE. This seal code is part of the complete pump designation CRN5-7 A-FGJ-A-E-HQQE and should be quoted when sourcing replacement seals, service parts or technical documentation.
Efficiency information on the identification plate includes a Minimum Efficiency Index of MEI ≥ 0.57 and a stated pump efficiency of 60.6%. The pump section itself weighs approximately 19 kg excluding the motor.

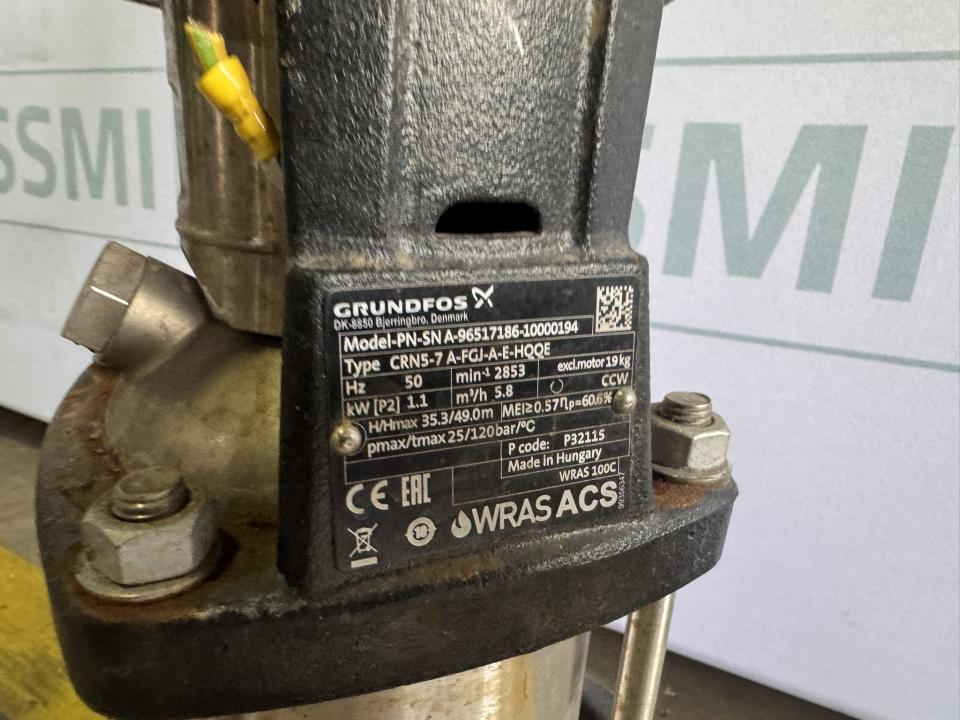

The identification plate shows product number 96517186, serial number 10000194 and P code P32115. The unit is marked Made in Hungary.
The pump carries CE and EAC markings together with WRAS and ACS approvals. The nameplate additionally shows a WRAS 100°C marking.
Included- Grundfos CRN5-7 vertical multistage centrifugal pump
- 1.1 kW electric drive motor
- 7-stage pump assembly
- Integrated shaft and seal assembly
- Pump base and connection housing
- Manufacturer identification plate
- Attached components and fittings visible in the photograph
