Grundfos Pump
Storage and Handling - Pumps (Food industry)
SKU: SSMIBRI1-00004510

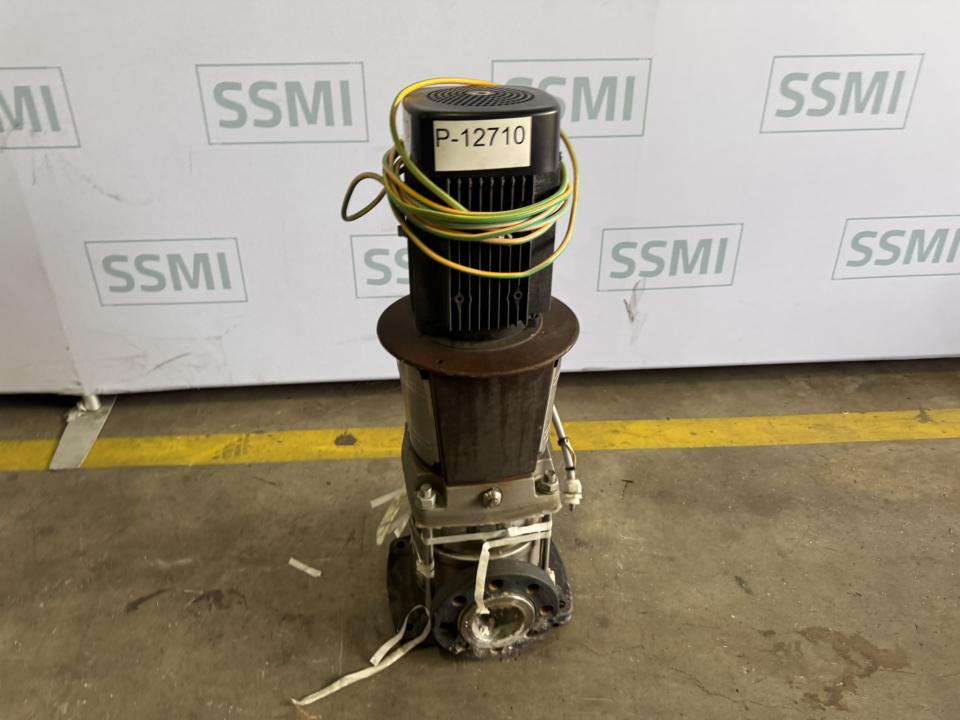

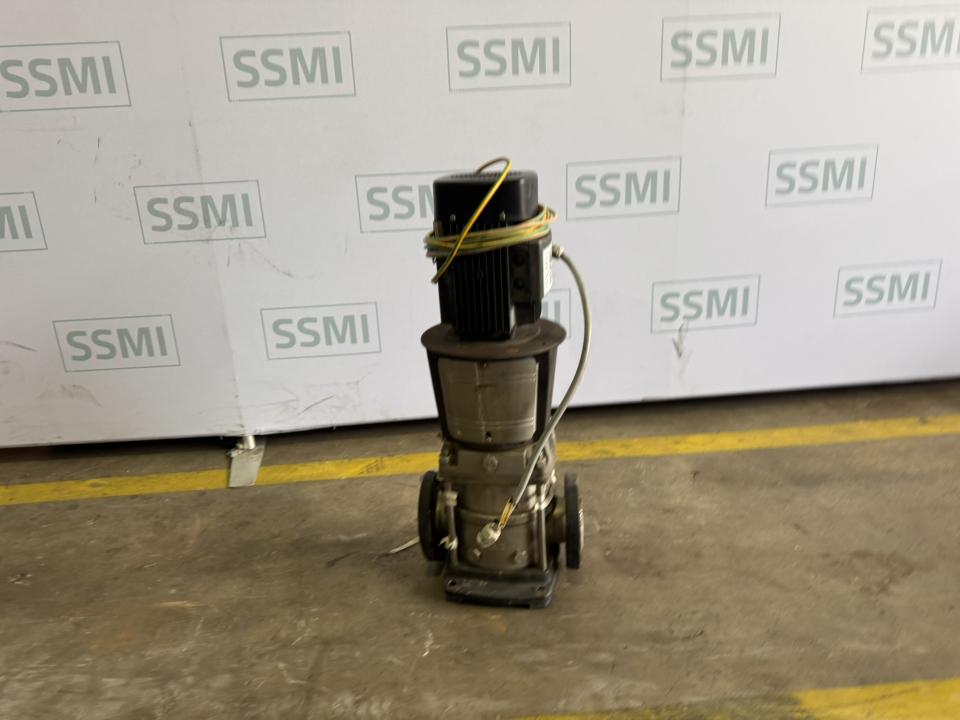

Grundfos CRN-series vertical multistage centrifugal pump equipped with a 1.50 kW, 2-pole electric motor. The pump is designed for industrial liquid transfer, pressure boosting and circulation applications and carries WRAS and ACS approval markings. The pump nameplate indicates a maximum pressure / temperature rating of 25 bar / 120°C, while the motor is suitable for both 50 Hz and 60 Hz electrical supplies.
Product Details- Manufacturer: Grundfos
- Product type: Vertical multistage centrifugal pump
- Pump series: CRN
- Pump type: CRN15-1 A-FGJ-A-E-HQQE (partially legible on nameplate)
- Pump construction: Vertical multistage design
- Maximum pressure / temperature marking: 25 bar / 120°C
- Motor type: MG90SB2-24FT115-H3
- Motor number: 85U05906
- Motor power: 1.50 kW
- Motor poles: 2-pole
- Duty rating: S1 continuous duty
- 50 Hz voltage: 220–240 V Δ / 380–415 V Y
- 50 Hz current: 5.45 A Δ / 3.15 A Y
- 50 Hz maximum current: 6.00 A Δ / 3.45 A Y
- 50 Hz speed: 2890–2910 rpm
- 50 Hz power factor: cos φ 0.87–0.82
- 50 Hz efficiency: IE3 84.1%
- 60 Hz voltage: 220–277 V Δ / 380–480 V Y
- 60 Hz current: 5.35–4.70 A Δ / 3.10–2.70 A Y
- 60 Hz maximum current: 5.90–5.15 A Δ / 3.40–2.95 A Y
- 60 Hz speed: 3470–3530 rpm
- 60 Hz power factor: cos φ 0.90–0.81
- 60 Hz efficiency: IE2 84.0% / IE3 85.5%
- Electrical connection: Delta / Star (Δ/Y)
- Approvals / markings: CE, EAC, WRAS and ACS
This Grundfos CRN-series pump is a vertical multistage centrifugal pump intended for industrial applications requiring reliable liquid transfer and pressure generation. Pumps of this design are commonly used for pressure boosting, process water, water treatment, washing systems, circulation duties and other industrial installations.
The pump identification plate appears to identify the unit as a CRN15-1 A-FGJ-A-E-HQQE. The CRN series uses a vertical multistage construction and is designed for applications where a compact pump with relatively high operating pressure is required.
The pump nameplate shows a maximum pressure / temperature marking of approximately 25 bar / 120°C. This makes the unit suitable for demanding industrial installations, provided the pumped medium and operating conditions are compatible with the pump materials, seals and system design.

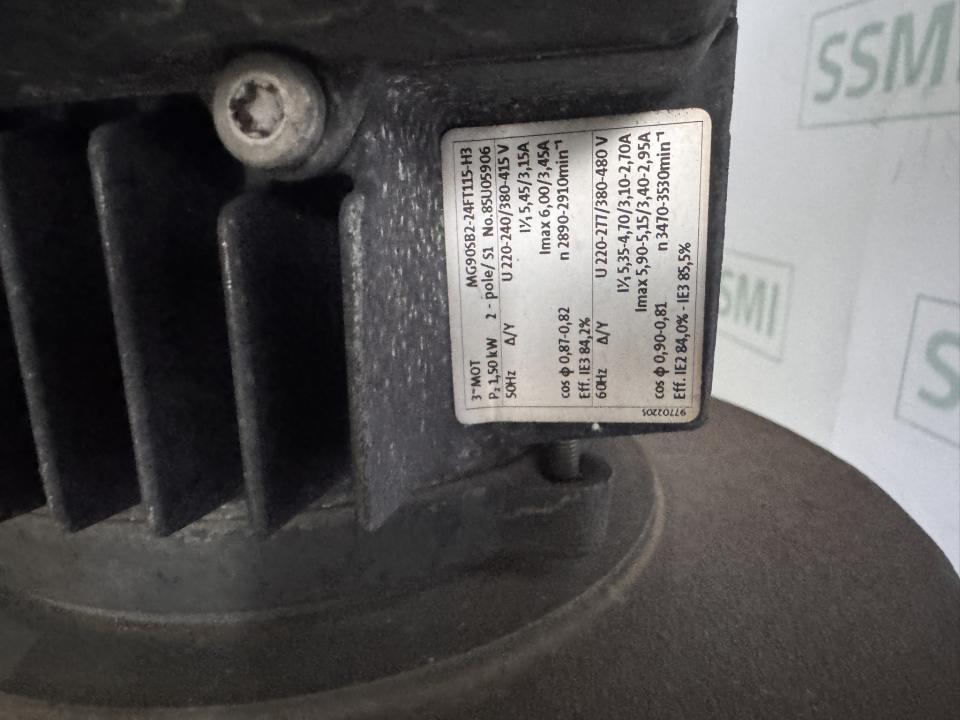

The pump is equipped with a 1.50 kW, 2-pole electric motor, identified as type MG90SB2-24FT115-H3. The motor is rated for continuous S1 duty and can be operated on both 50 Hz and 60 Hz supplies with the appropriate electrical connection.
At 50 Hz, the motor is rated for 220–240 V delta or 380–415 V star operation. The rated current is 5.45 / 3.15 A and the rotational speed is approximately 2890–2910 rpm. The motor carries an IE3 efficiency rating of 84.1%.
At 60 Hz, the motor can operate at 220–277 V delta or 380–480 V star. The rotational speed increases to approximately 3470–3530 rpm. The motor plate also provides IE2 and IE3 efficiency information for 60 Hz operation.
The pump carries WRAS and ACS approval markings in addition to CE and EAC markings. These markings are particularly relevant for installations where approved materials and equipment are required for water-related applications.
Several additional hydraulic performance values are present on the Grundfos pump nameplate, but the photograph is not sufficiently sharp to reproduce these values reliably. They have therefore been omitted rather than estimated.
Included- Grundfos CRN-series vertical multistage centrifugal pump
- Grundfos 1.50 kW electric motor
- Motor type MG90SB2-24FT115-H3
- Pump and motor coupling assembly

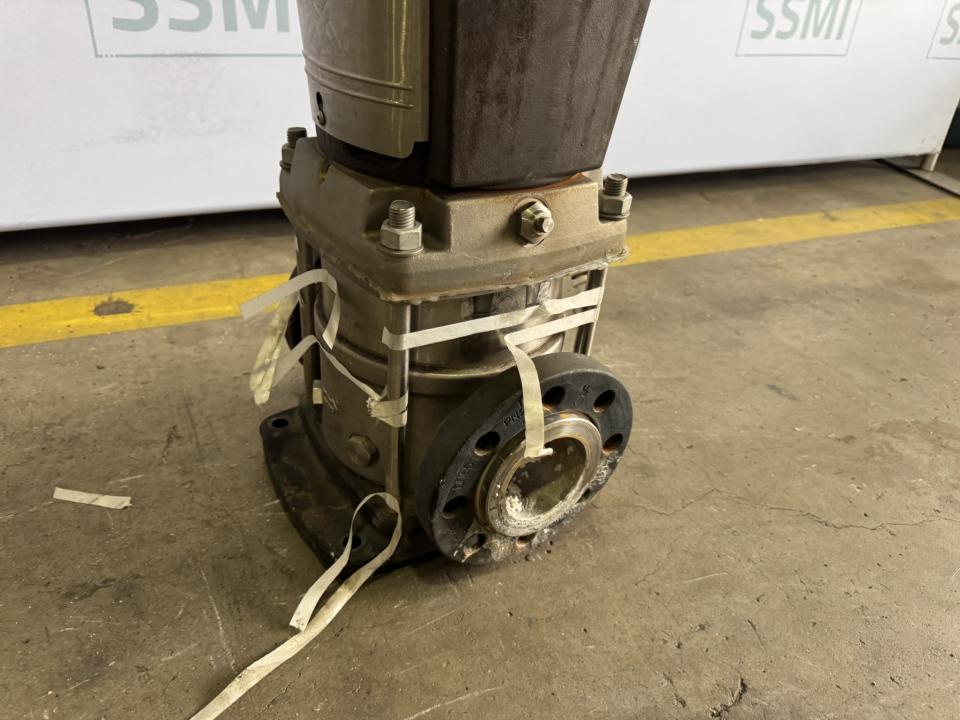

- Pump housing and multistage section
- Manufacturer pump identification plate
- Motor identification plate
- Attached components visible in the photographs
