Marelli Ventilazione Blower
Air Cooling and Treatment Equipment - Ventilators
SKU: SSMIBRI1-00004513

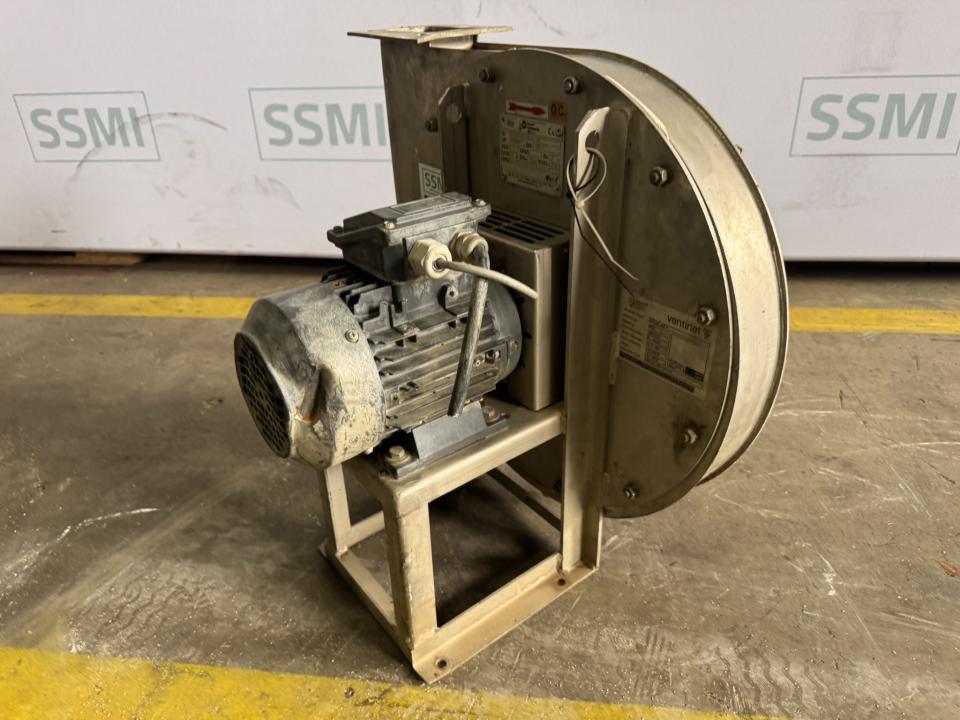

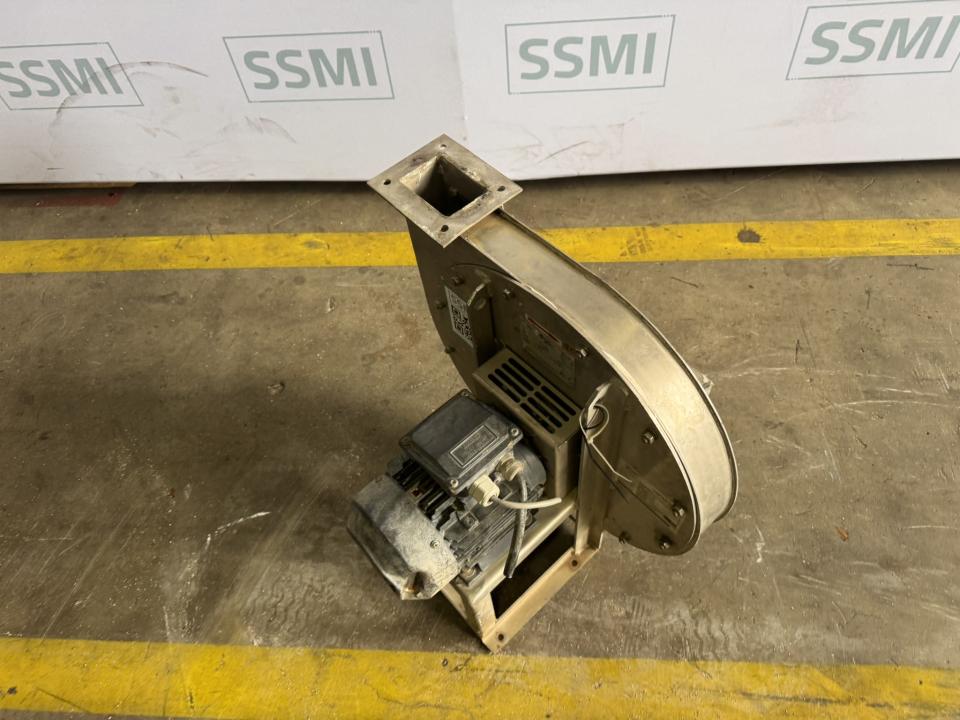

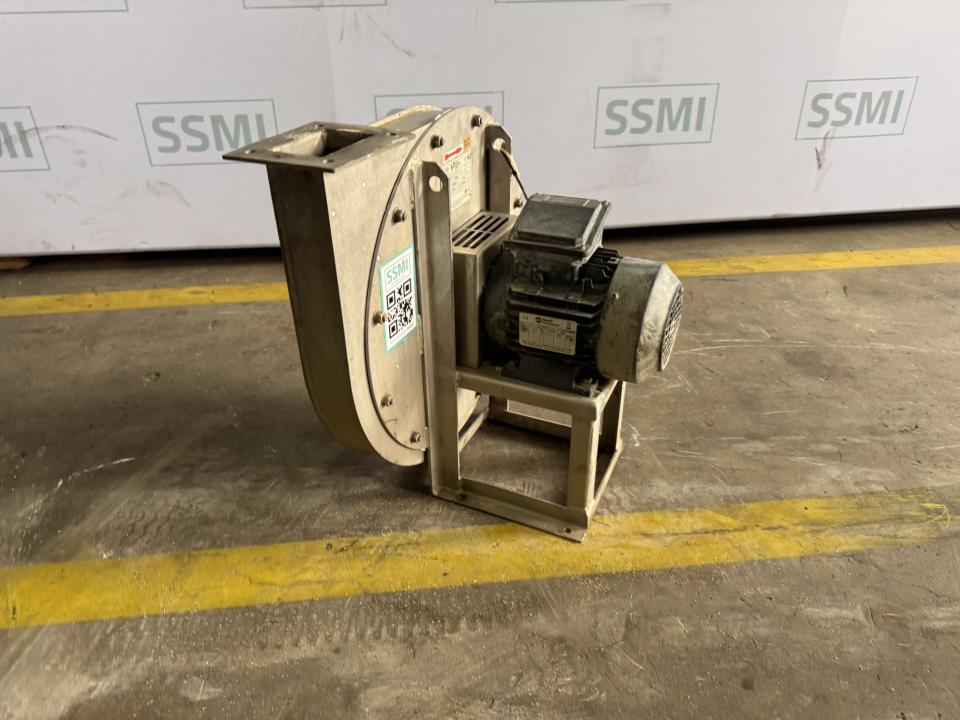

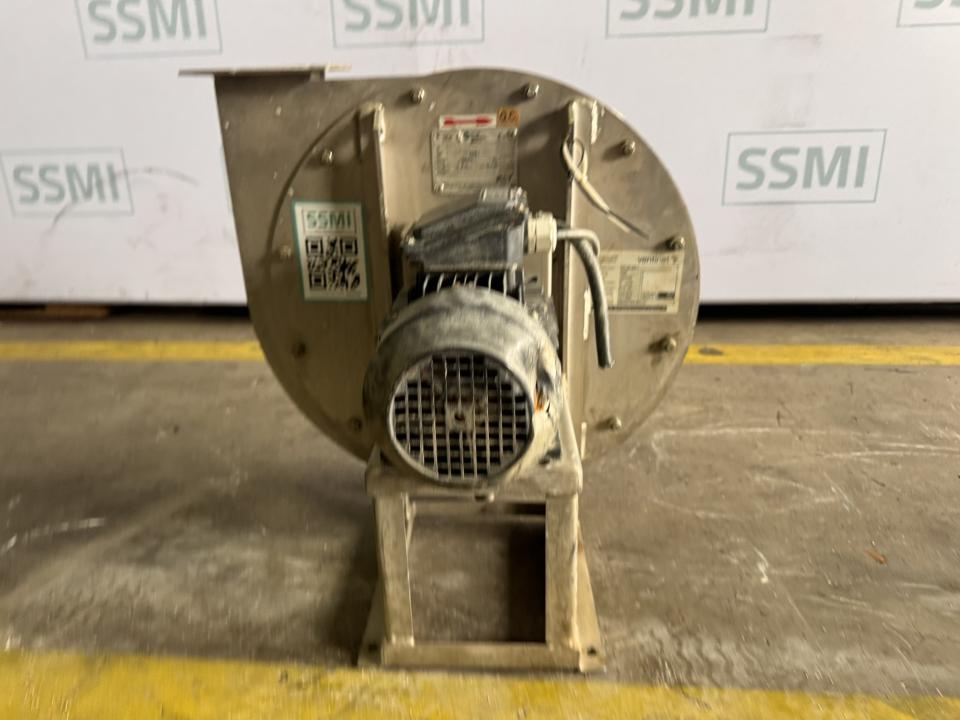

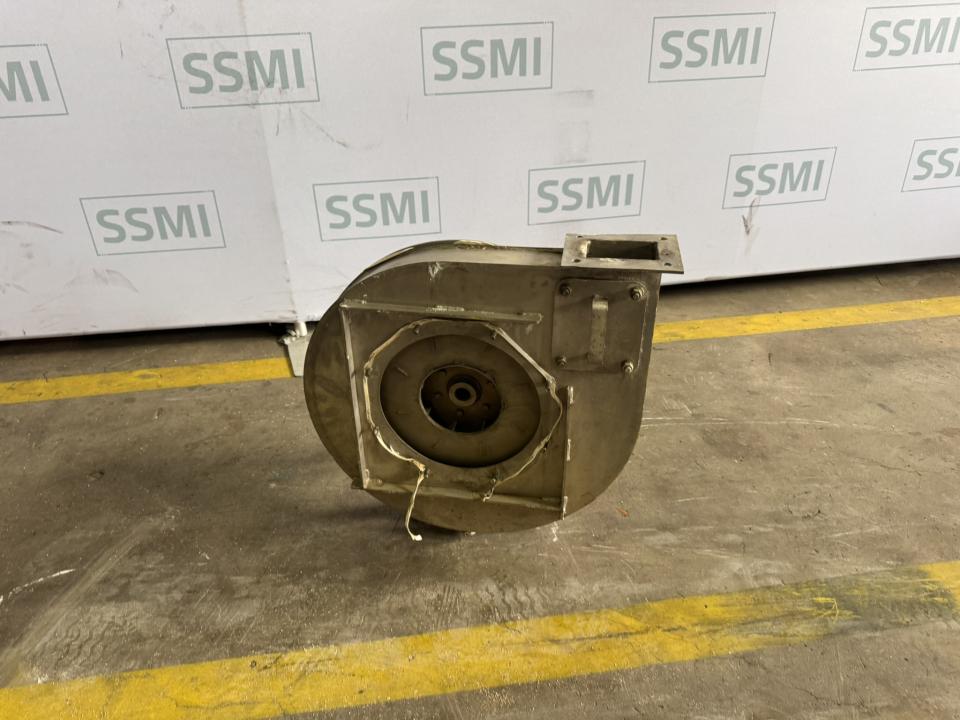

Marelli Ventilazione industrial fan / blower assembly with direct-mounted electric motor and metal fan housing. The unit was manufactured in 2022 and has a stated maximum operating temperature of 80°C, maximum speed of approximately 500 rpm and a total stated weight of 35 kg. The assembly is intended for industrial air movement, extraction and ventilation applications.
Product Details- Manufacturer: Marelli Ventilazione
- Product type: Industrial ventilation fan / blower
- Configuration: Fan assembly with direct-mounted electric motor
- Serial number: 2585.1
- Maximum temperature: 80°C
- Maximum speed: 500 rpm (as stated on the nameplate)
- Weight: 35 kg
- Year of construction: 06/2022
- Drive: Electric motor
- Housing: Metal industrial fan housing
- Airflow direction: Direction indicated by arrow on the housing
- Certification marking: CE
- Country of manufacture: Italy
- Manufacturer location: San Martino Buon Albergo (VR), Italy
This Marelli Ventilazione unit is an industrial fan / blower assembly designed for the movement, circulation or extraction of air in industrial ventilation and process applications. The fan is supplied as an assembled unit with its electric drive motor mounted directly to the fan housing.

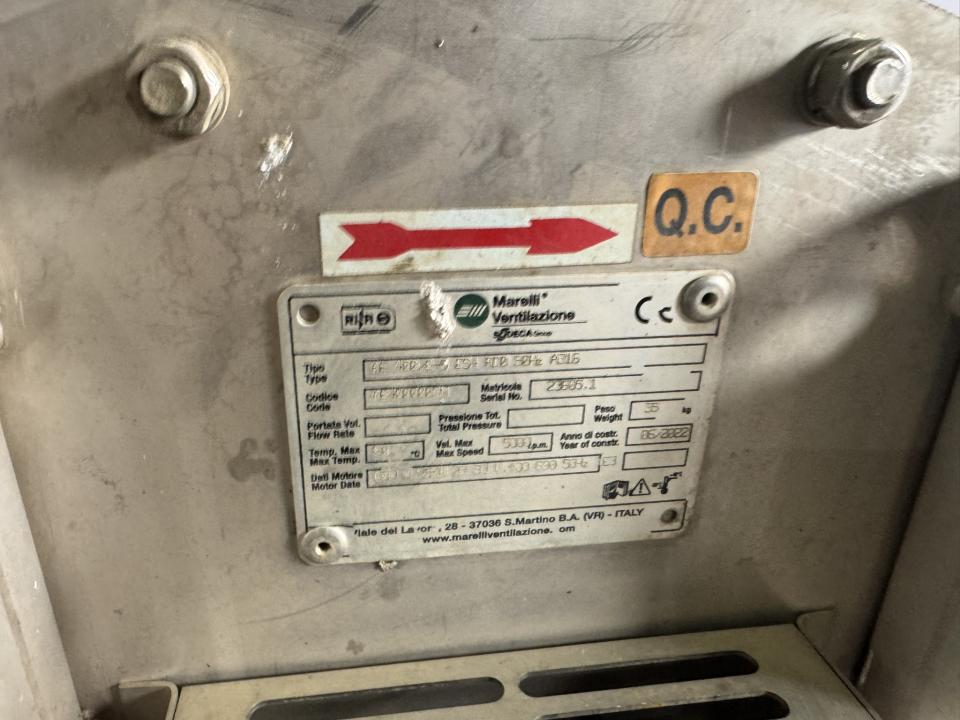

The manufacturer identification plate gives serial number 2585.1 and a construction date of 06/2022. The complete assembly has a stated weight of 35 kg.
The nameplate specifies a maximum operating temperature of 80°C. This makes the fan suitable for applications involving elevated-temperature air within the manufacturer's stated limits. The maximum rotational speed shown on the plate is approximately 500 rpm.
A directional arrow is fitted to the housing to indicate the intended airflow direction. This is useful when installing the fan into existing ductwork, ventilation systems or process equipment.

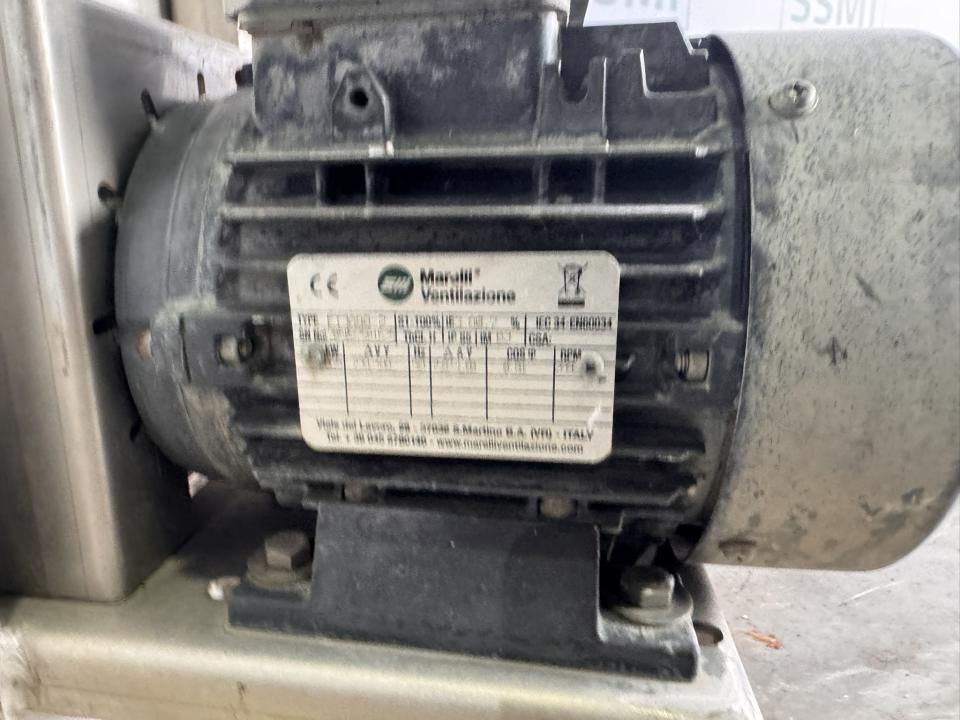

The electric motor is mounted directly to the fan assembly, resulting in a compact drive arrangement without a separate external belt-drive system. The motor has its own Marelli Ventilazione identification plate and carries CE marking.
The main fan nameplate also contains fields for airflow, total pressure, fan type/code and motor data. Several of these values are either not filled in or are not sufficiently legible in the supplied photographs, so they have not been estimated or reproduced.
The assembly is suitable for industrial ventilation, air extraction, process-air circulation, machinery ventilation and other air-handling applications where the operating requirements correspond with the fan's specifications.
Included- Marelli Ventilazione industrial fan / blower
- Direct-mounted electric motor
- Metal fan housing
- Motor mounting assembly
- Airflow-direction marking
- Manufacturer identification plate
- Motor identification plate
- Mounting frame and attached hardware visible in the photographs
