EKA TO FLUID EM 200 industrial mixer / agitator assembly equipped with a Siemens geared electric motor. The unit is designed for controlled mixing and agitation of industrial liquids and process media. The FLUID nameplate specifies an operating pressure of 0.8–1.5 bar absolute, a maximum process temperature of 100°C and an output speed range of 33–163 rpm. The Siemens drive uses a 1.1 kW IE3 three-phase motor together with an i = 8.81 reduction gearbox.

• Manufacturer: FLUID Misch- und Dispergiertechnik GmbH
• Brand / marking: EKA TO FLUID
• Product type: Industrial mixer / agitator assembly
• Type: EM 200
• Order number: 30041187
• Serial number: 5013750
• Item: V-1180-A
• Operating pressure: 0.8–1.5 bar absolute
• Maximum temperature: 100°C
• Output speed range: 33–163 rpm
• Drive manufacturer: Siemens
• Siemens drive designation: FDU2012/254S030 001
• Siemens order / type code: 2KJ3504-1EK23-5FE1-Z
• Gearmotor designation: KF39-LE90SM4PW
• Motor type: Three-phase AC electric motor
• Motor power: 1.1 kW
• Frequency: 50 Hz
• Voltage: 400 V
• Current: 2.4 A
• Motor speed: 1440 rpm
• Gearbox output speed: 163 rpm
• Output torque: 64.3 Nm
• Gear ratio: i = 8.81
• Power factor: cos φ 0.78
• Duty: S1 continuous duty
• Efficiency class: IE3
• Motor efficiency: 84.1%
• Insulation / thermal class: Class F / 155
• Thermal protection: TP-PTC
• Protection rating: IP55
• Gearbox oil: CLP VG220
• Gearbox oil quantity: 0.95 L
• Drive weight: 29 kg
• Ambient temperature: -15°C to +40°C
• Motor standard: IEC 60034
• Certification marking: CE
• Drive country of manufacture: Germany

This EKA TO FLUID EM 200 is an industrial mixing / agitation unit manufactured by FLUID Misch- und Dispergiertechnik GmbH. It is intended for controlled mechanical agitation of liquids and process media in industrial vessels and process systems.

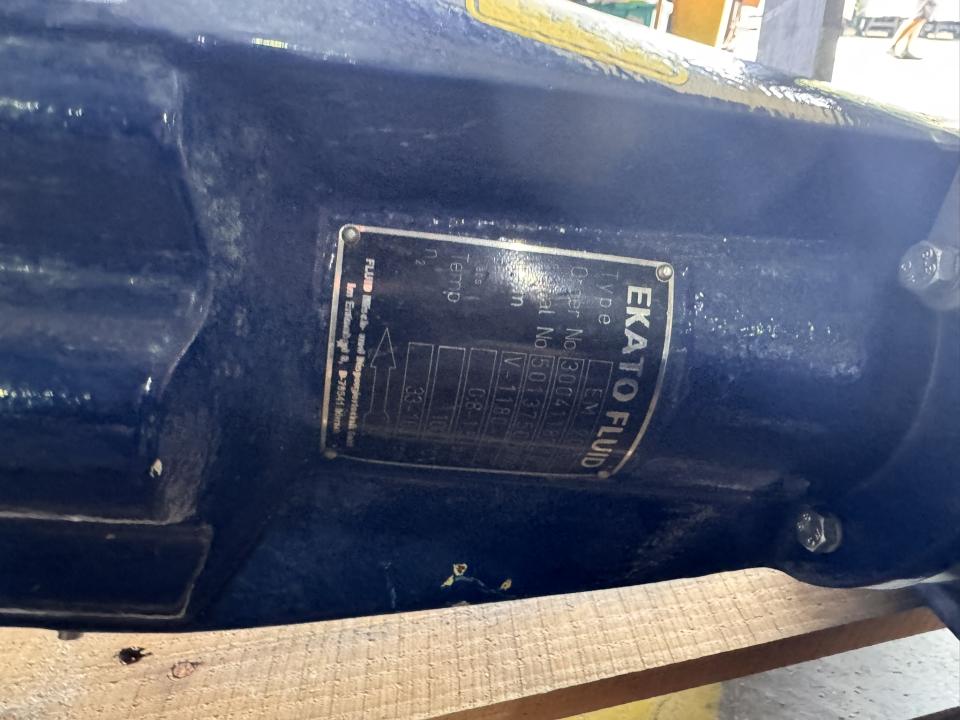

The FLUID identification plate gives order number 30041187, serial number 5013750 and item designation V-1180-A. The unit is rated for an absolute operating pressure range of 0.8–1.5 bar and a maximum stated process temperature of 100°C.

The mixer has a stated output speed range of 33–163 rpm. A directional arrow on the equipment nameplate indicates the specified direction of rotation / flow for installation and operation.

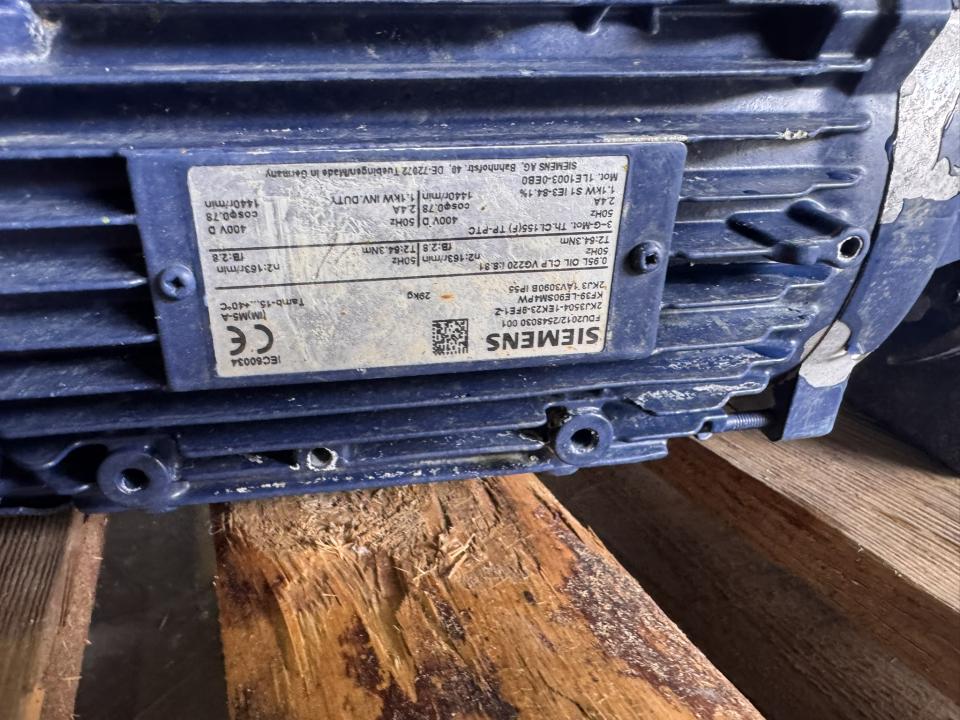

Drive power is supplied by a Siemens geared motor. The drive carries Siemens designation FDU2012/254S030 001 and order / type code 2KJ3504-1EK23-5FE1-Z. The gearmotor designation visible on the plate is KF39-LE90SM4PW.

The electric motor is a three-phase unit rated at 1.1 kW for 50 Hz operation. The plate shows a 400 V supply, rated current of 2.4 A, power factor cos φ 0.78 and a motor speed of approximately 1440 rpm.

The reduction gearbox has a ratio of i = 8.81, reducing the motor speed to approximately 163 rpm at the gearbox output. The stated output torque is 64.3 Nm. This reduced-speed, higher-torque arrangement is well suited to industrial mixing and agitation duties.

The Siemens motor is rated for S1 continuous duty and carries an IE3 efficiency rating of 84.1%. The winding / thermal class is marked 155 (F) and the motor is equipped with PTC thermal protection.

The drive enclosure is rated IP55. The gearbox uses CLP VG220 lubricating oil with a stated fill quantity of 0.95 litres. The complete Siemens drive is marked with a weight of approximately 29 kg and an allowable ambient temperature range of -15°C to +40°C.

The combination of a FLUID process mixer and Siemens geared drive provides a low-speed, high-torque mixing solution suitable for industrial tanks, vessels and processing equipment where controlled agitation is required.

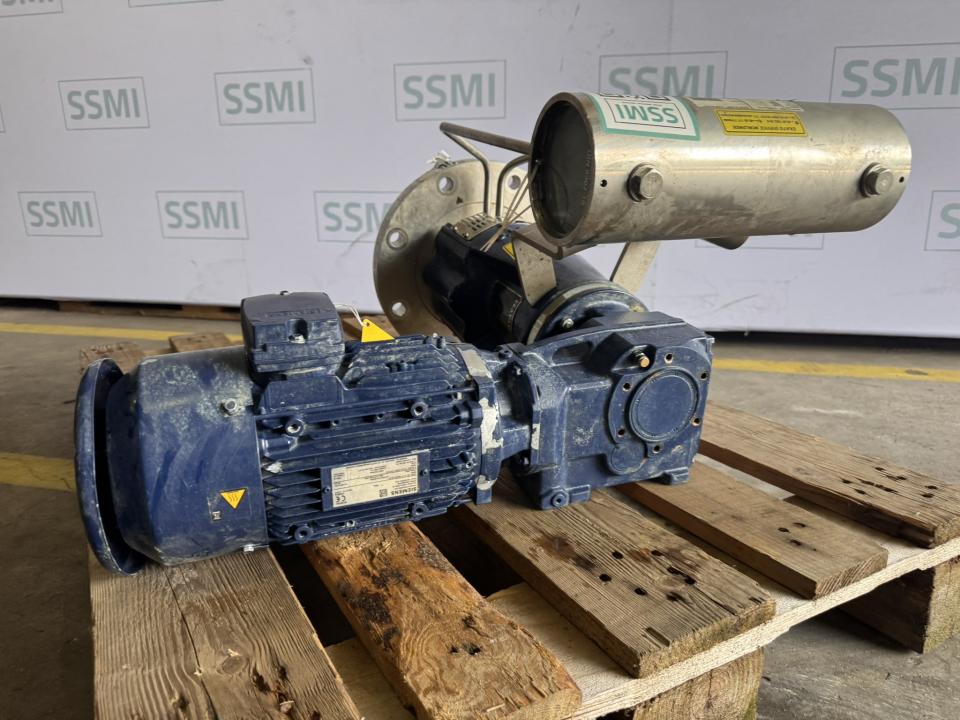

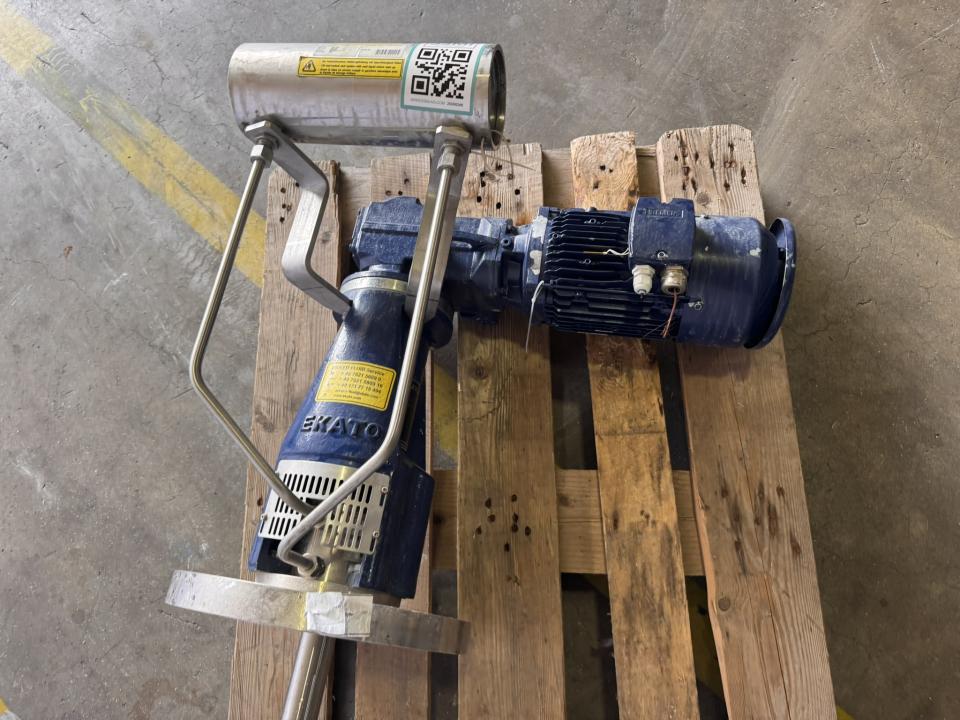

• EKA TO FLUID EM 200 industrial mixer / agitator

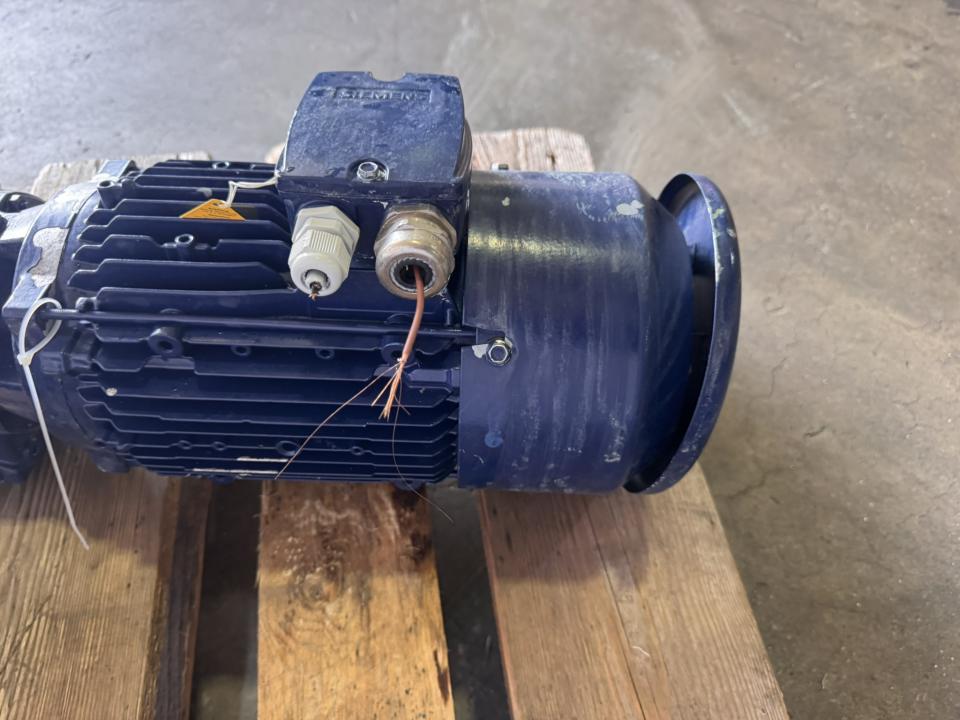

• Siemens 1.1 kW electric motor

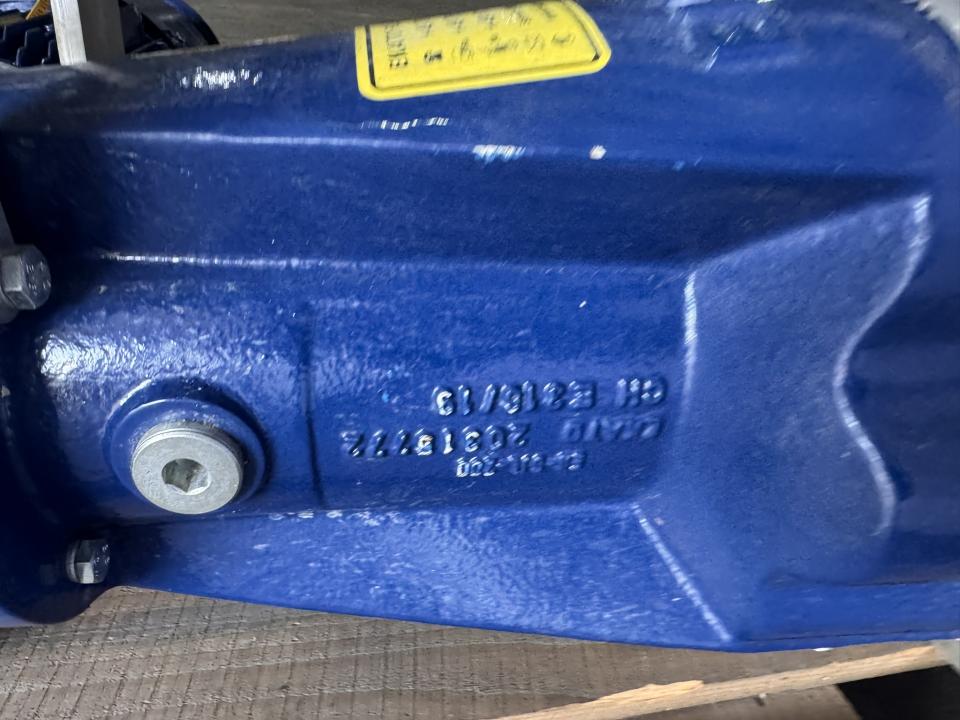

• Siemens reduction gearbox
• Gearmotor type KF39-LE90SM4PW

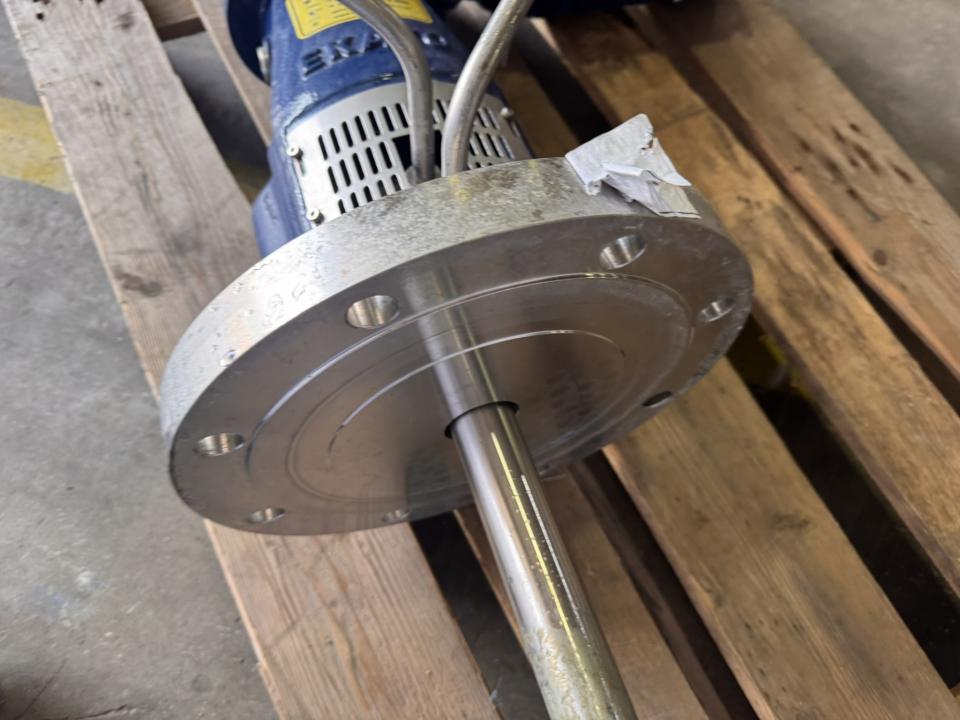

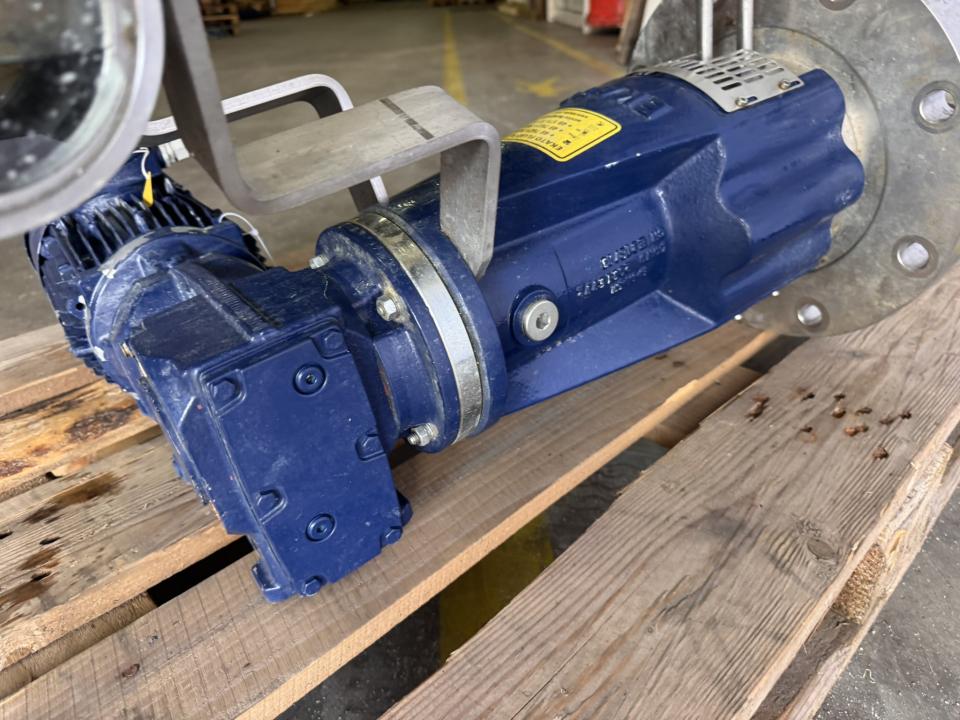

• Mixer drive and coupling assembly

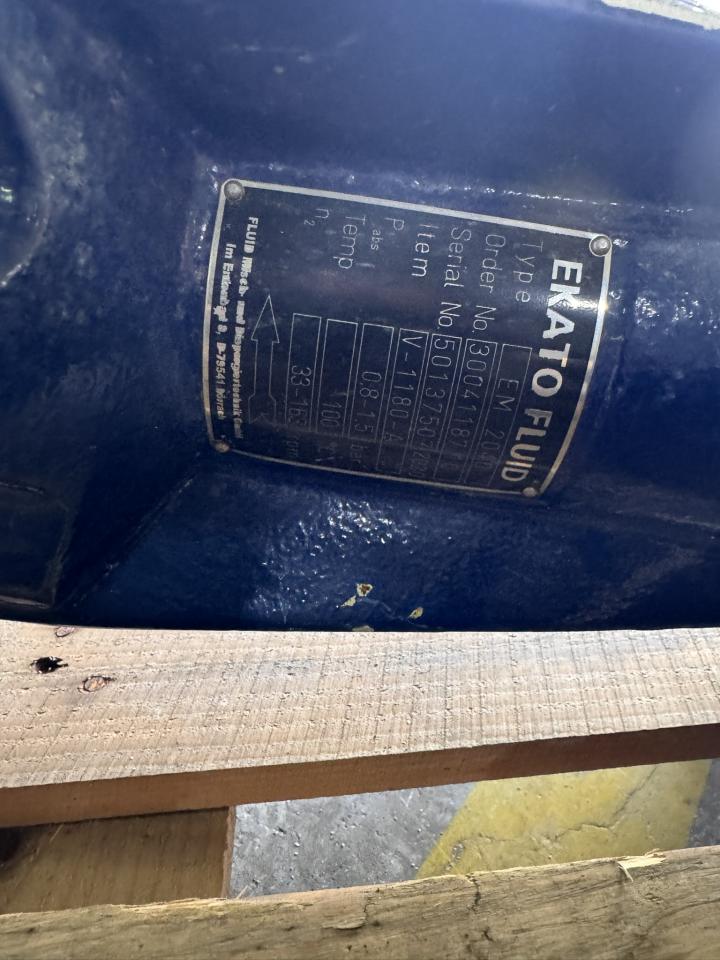

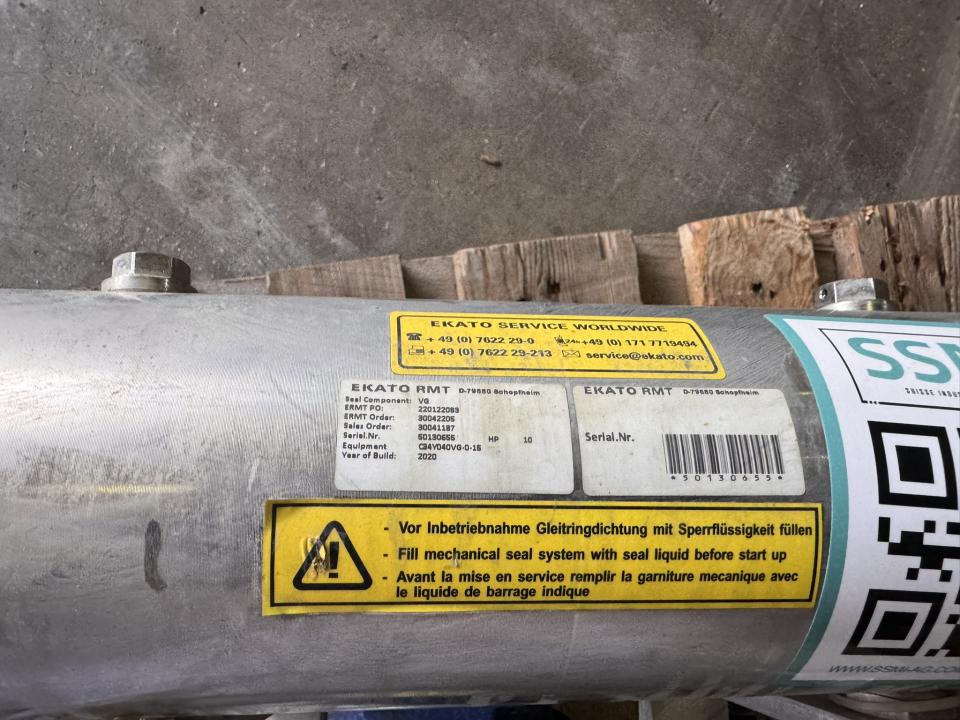

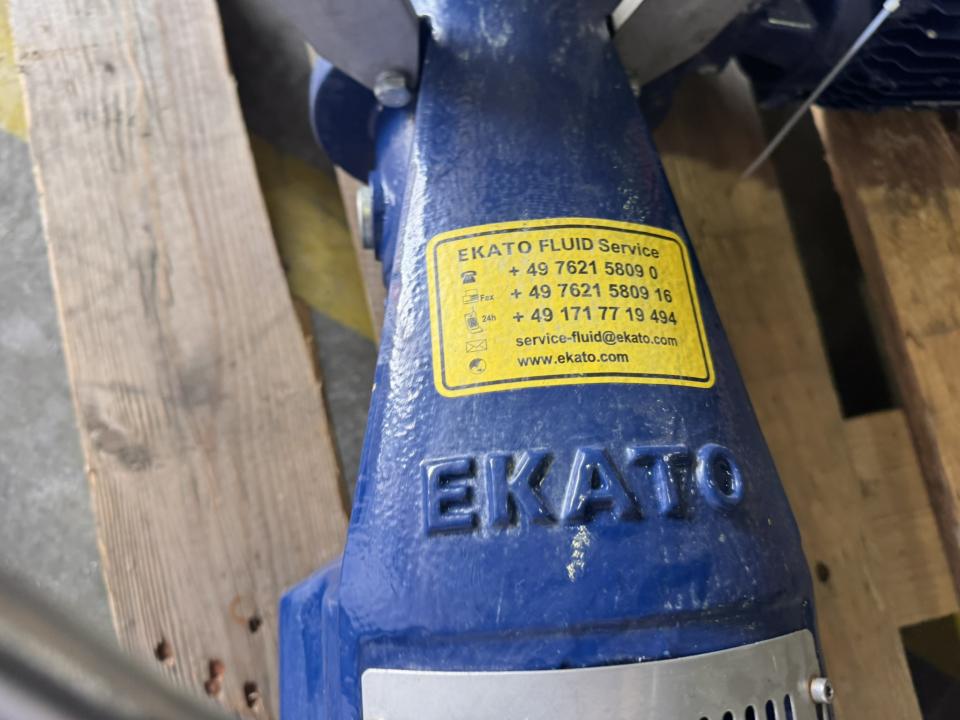

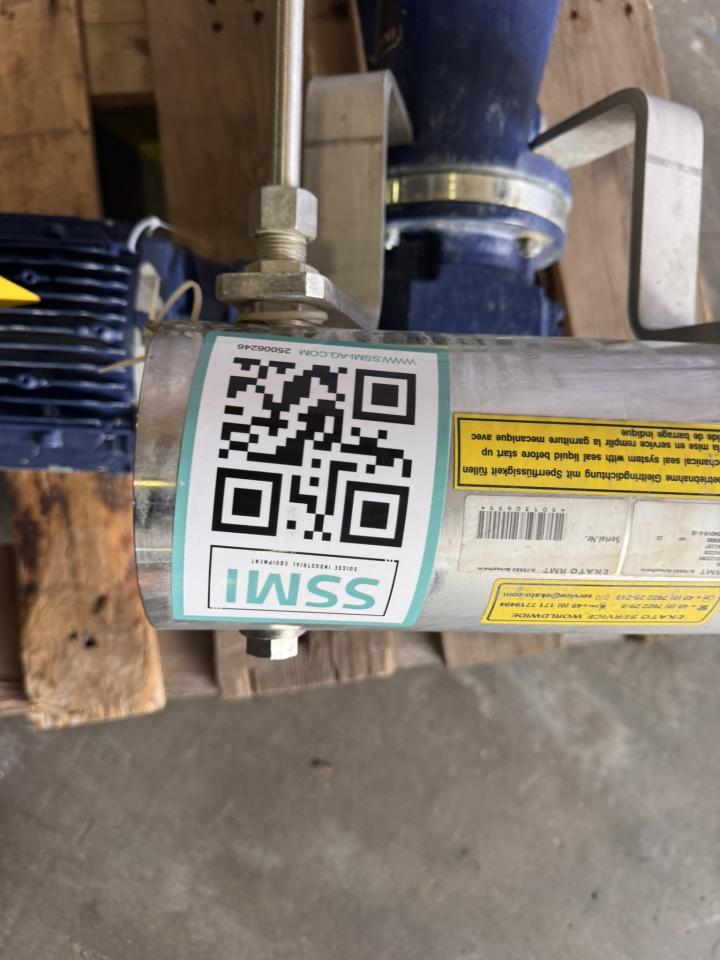

• FLUID manufacturer identification plate
• Siemens motor / gearbox identification plate

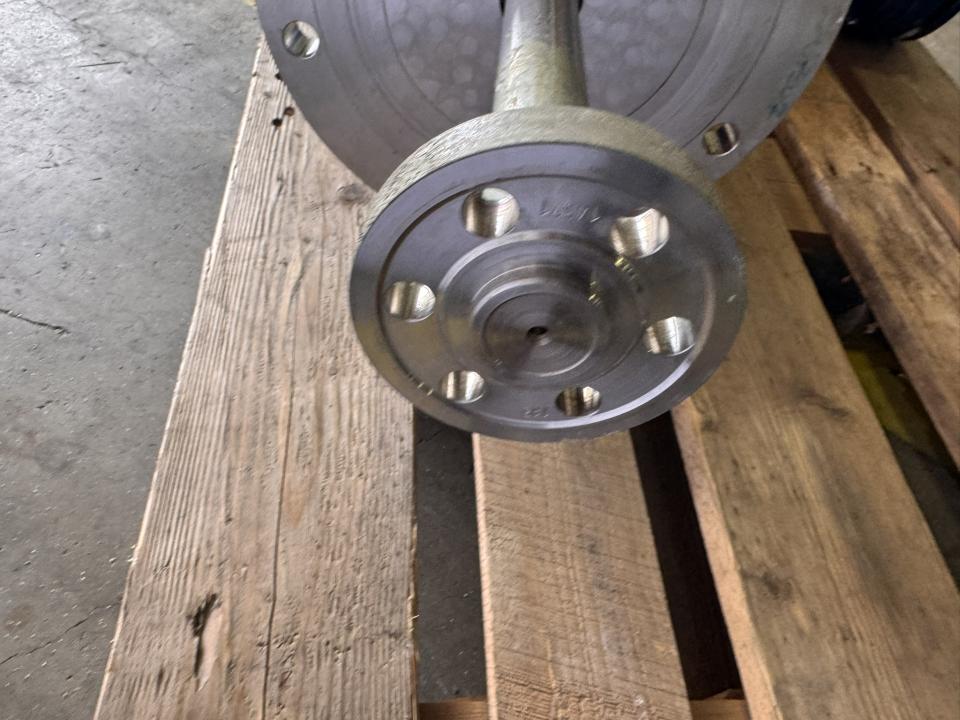

• Attached mounting components visible in the photographs
