2022 Robex Heat Technology Top condenser
Air Cooling and Treatment Equipment - Condensers
SKU: SSMIBRI1-00004515
Robex Heat Technology BEU 324/1300 industrial top condenser / shell-and-tube heat exchanger manufactured in 2022. The unit is designed according to EN 13445 and API 660 and is identified as plant tag E-10340. The shell side is designed for full vacuum up to 8.0 barg and temperatures up to 250°C, while the cooling-water tube side is designed for full vacuum up to 10.0 barg and temperatures up to 80°C.
Product Details- Manufacturer: Robex Heat Technology
- Product type: Industrial shell-and-tube condenser / heat exchanger
- Service: Top condenser
- Tag number: E-10340
- Type: BEU 324/1300
- Serial number: 225774-S01A
- Year built: 2022
- Design code: EN 13445
- Standard: API 660
- Heat exchanger configuration: BEU shell-and-tube design
- Shell-side medium: 28 wt% H₂O / 71 wt% EG / 1 wt% N₂
- Tube-side medium: Cooling water
- Shell-side allowable pressure: Full vacuum to 8.0 barg
- Tube-side allowable pressure: Full vacuum to 10.0 barg
- Shell-side allowable temperature: 0 to 250°C
- Tube-side allowable temperature: 0 to 80°C
- Shell-side hydrotest pressure: 12.9 barg
- Tube-side hydrotest pressure: 15.7 barg
- Shell-side corrosion allowance: 0 mm
- Tube-side corrosion allowance: 0 mm
- Joint efficiency: 0.85
- Radiographic examination: 10% circumferential / butt welds
- Shell-side volume: 102 dm³
- Tube-side volume: 82 dm³
- Shell-side fluid group: 1
- Tube-side fluid group: 2
- PED category / module: III / A1
- Empty weight: 408 kg
- Test weight: 599 kg
- Certification: CE 0036
- Manufacturer location: Mill, Netherlands
This Robex Heat Technology BEU 324/1300 is an industrial shell-and-tube heat exchanger configured for service as a top condenser. It was manufactured in 2022 and carries plant identification tag E-10340 and serial number 225774-S01A.
The heat exchanger is designed in accordance with EN 13445 and API 660. The BEU designation identifies the exchanger configuration used by the manufacturer and is particularly suited to industrial process duties involving separate shell-side and tube-side media.
On the shell side, the nameplate specifies a process medium consisting of 28 wt% H₂O, 71 wt% EG and 1 wt% N₂. The allowable pressure range is from full vacuum to 8.0 barg, with an allowable temperature range from 0°C to 250°C.
The shell side was hydrostatically tested at 12.9 barg. It has a stated internal volume of 102 dm³, fluid group 1, zero corrosion allowance and a joint efficiency of 0.85.
The tube side is designed for cooling water. Its allowable operating pressure range is from full vacuum to 10.0 barg, while the allowable temperature range is 0°C to 80°C.
The tube side was hydrostatically tested at 15.7 barg. The stated internal volume is 82 dm³, with fluid group 2, zero corrosion allowance and a joint efficiency of 0.85.
The nameplate specifies 10% radiographic examination of circumferential / butt welds for both the shell and tube sides. The pressure equipment classification is marked PED Category III / Module A1.
The complete exchanger has an empty weight of approximately 408 kg and a stated test weight of approximately 599 kg. The equipment carries CE 0036 conformity marking.
This type of condenser is suitable for industrial process cooling and condensation duties where a process medium on the shell side must exchange heat with cooling water on the tube side. Typical installations can include chemical, pharmaceutical and other process-industry systems where controlled heat removal or vapour condensation is required.

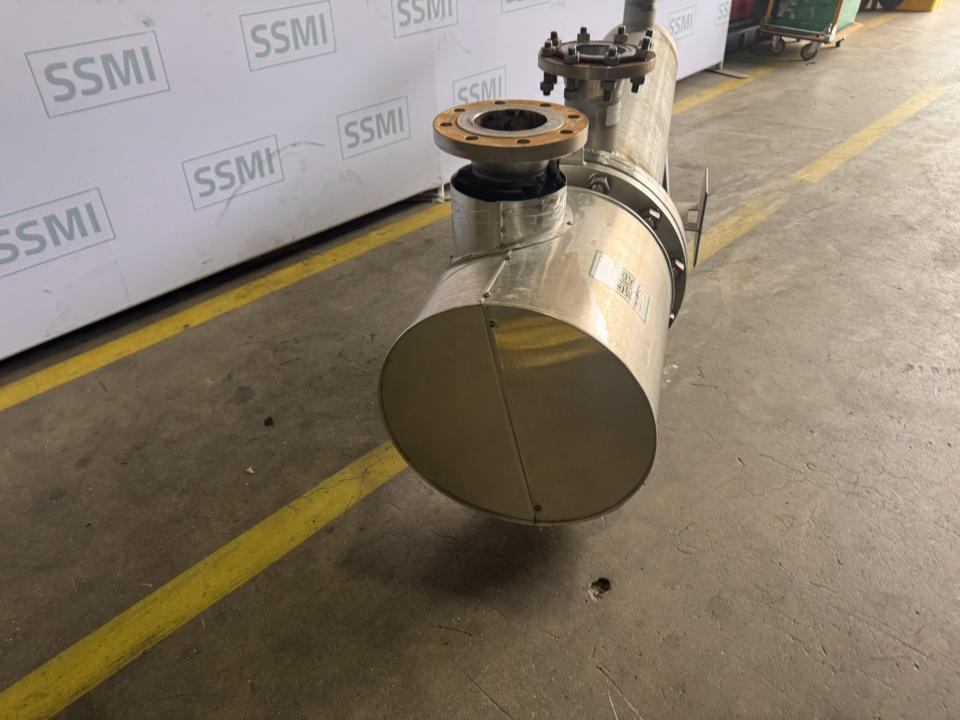

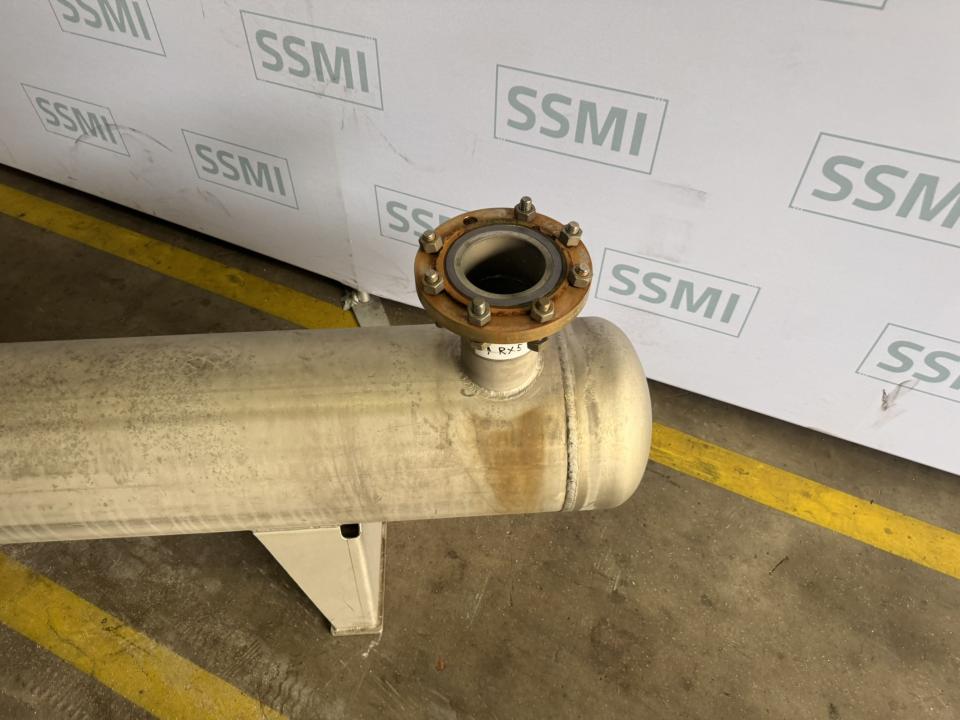

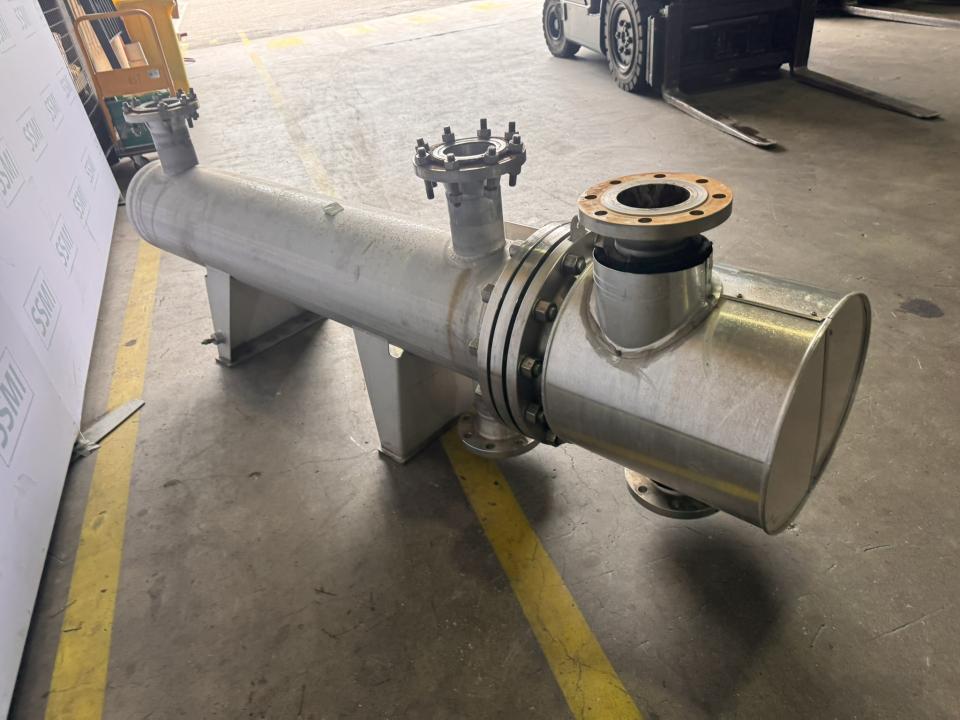

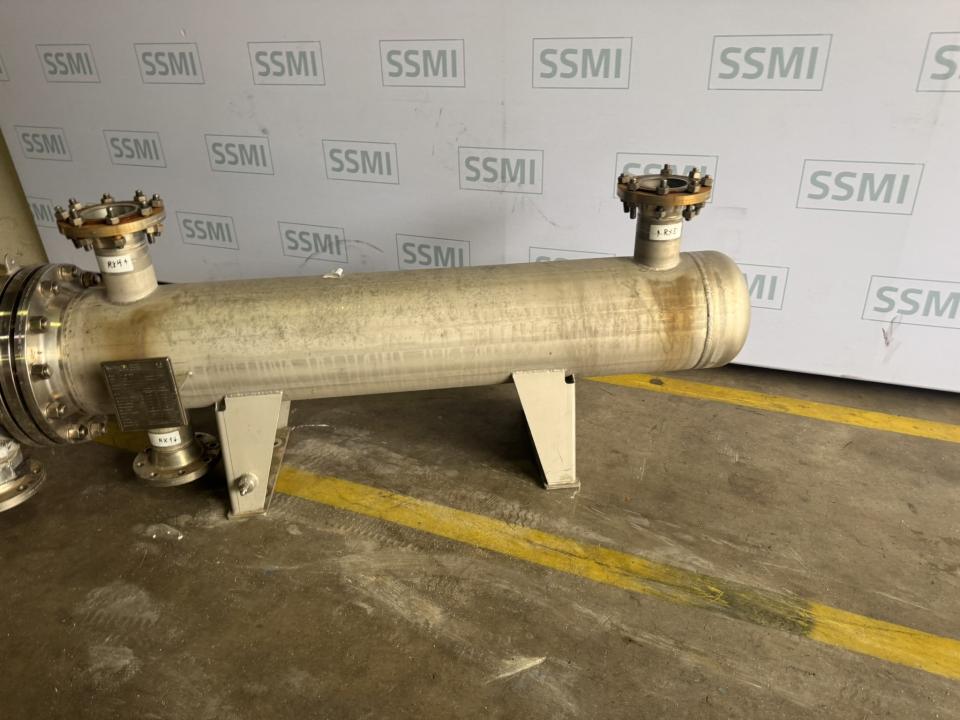

Included- Robex Heat Technology BEU 324/1300 top condenser
- Shell-and-tube heat exchanger assembly
- Shell-side process chamber
- Cooling-water tube-side circuit
- Process and cooling-water connections fitted to the exchanger

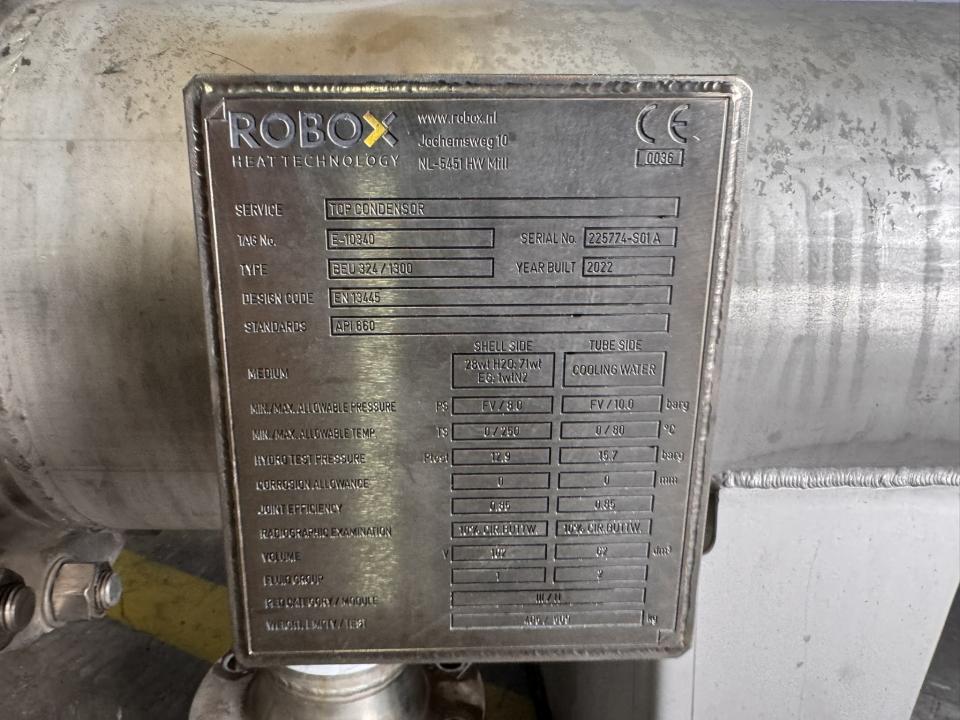

- Manufacturer identification / pressure-equipment nameplate

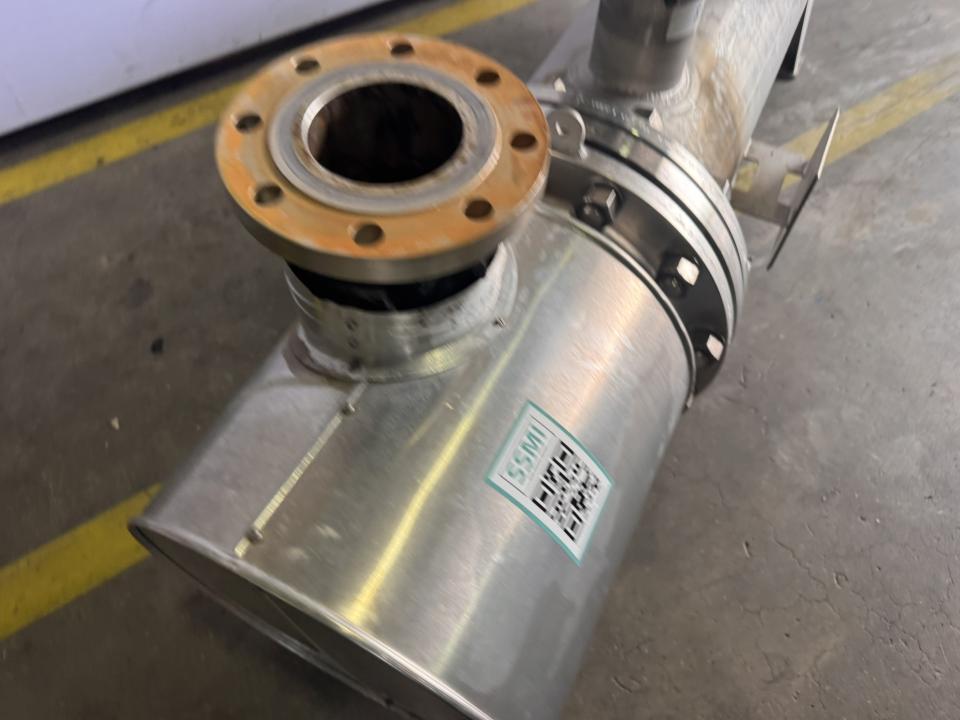

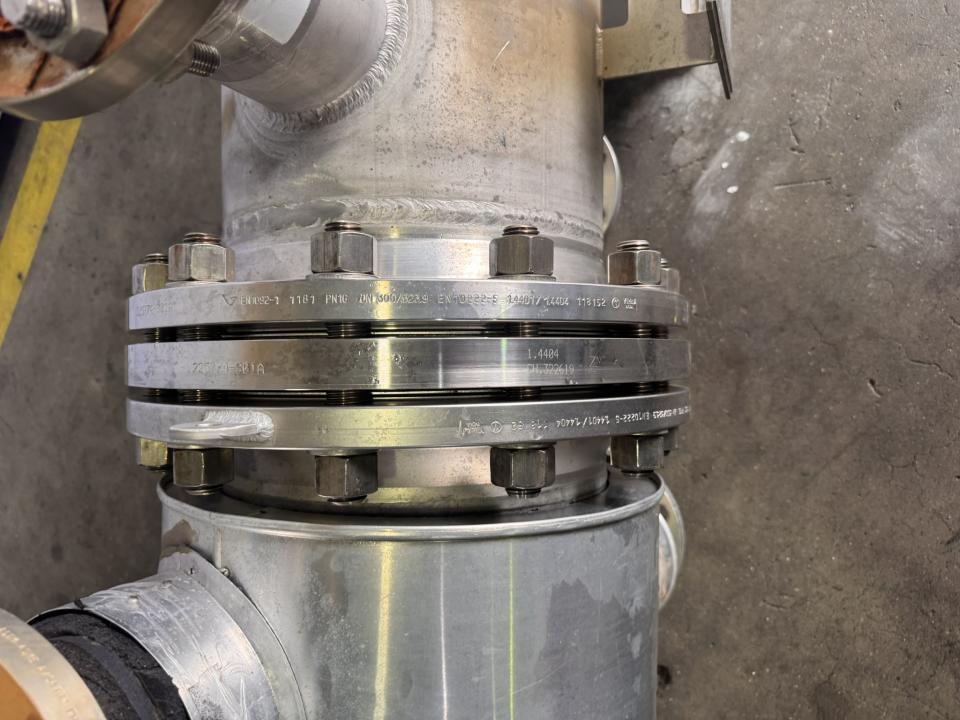

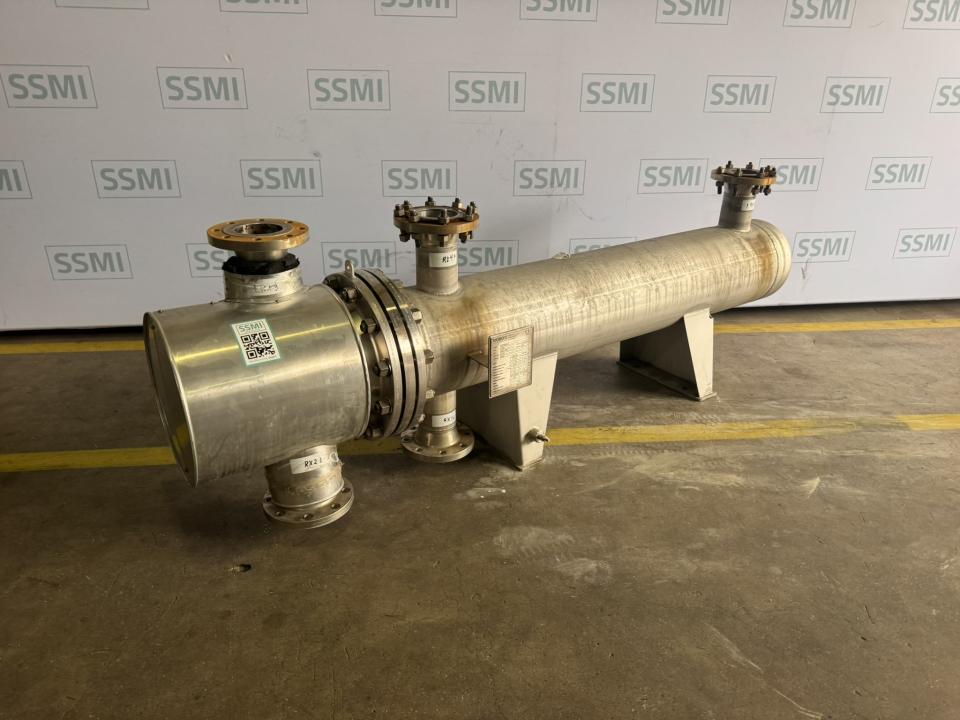

- Attached mounting and connection components visible in the photograph
