2018 Tool-Temp AG Industrial temperature control unit
Pharmaceutical, Cosmetic and Chemistry Equipment - Various pharmaceutical, cosmetic and chemical
SKU: SSMIBRI1-00004516
Tool-Temp TT-188 C industrial temperature control unit manufactured in Switzerland in 2018. The unit is designed for controlled heating and cooling of external machinery, moulds, tooling and industrial processes using a circulating heat-transfer medium. This particular unit is rated for 3 x 380–415 V, 50 Hz operation with a total connected load of 8.85 kW and has a stated weight of 55 kg.
Product Details- Manufacturer: Tool-Temp AG
- Product type: Industrial temperature control unit / process thermostat
- Type: TT-188 C
- Serial number: 310-5384-8
- Nominal voltage: 3 x 380–415 V
- Frequency: 50 Hz
- Connected load: 8.85 kW
- Weight: 55 kg
- Year of manufacture: 2018
- Country of manufacture: Switzerland
- Temperature-control principle: Circulating heat-transfer medium

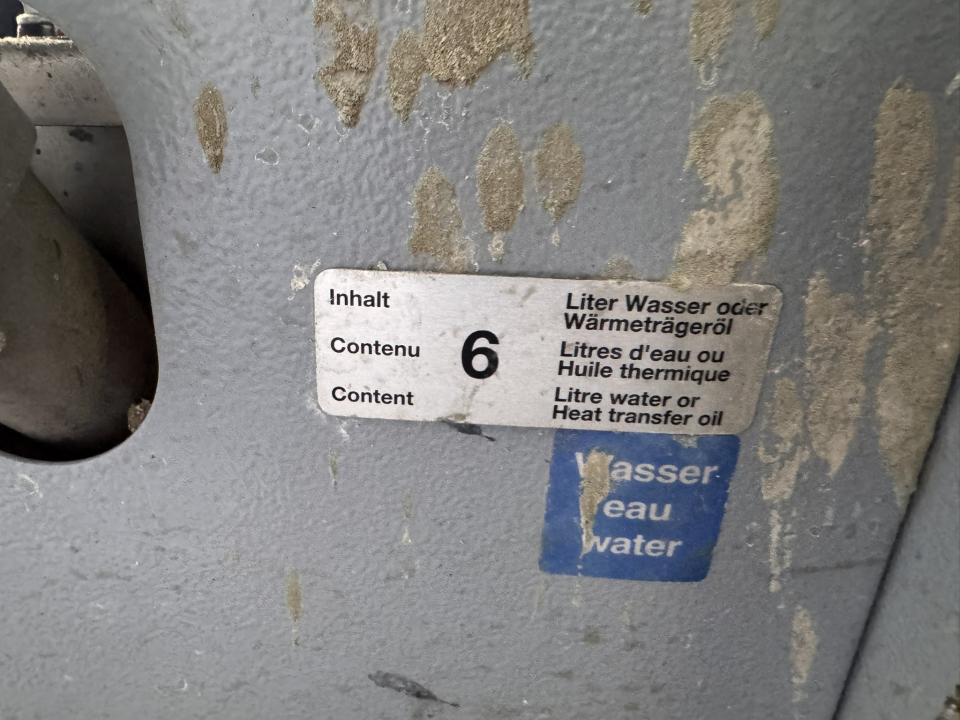

- Suitable media: Water or thermal oil depending on operating temperature and configuration
- TT-188 series temperature range with water: Up to 90°C
- TT-188 series temperature range with oil: Up to 150°C
- Heating: Electrically heated temperature-control circuit
- Cooling: Integrated cooling circuit
- Circulation: Integrated pump
- Pump operation: Pressure and vacuum modes
- Control panel: Front-mounted Tool-Temp electronic controller
- Monitoring: Temperature, flow and operating-status monitoring
- Main isolator: Front-mounted rotary main switch
- Installation: Mobile floor-standing cabinet
- Certification marking: CE
This Tool-Temp TT-188 C is an industrial temperature-control unit designed to circulate a controlled heating or cooling medium through external equipment. Typical applications include temperature regulation of injection moulds, dies, process vessels, machinery, rollers and other industrial equipment requiring a stable operating temperature.
The identification plate specifies a three-phase electrical supply of 3 x 380–415 V at 50 Hz. The total connected load is stated as 8.85 kW. The unit has a stated weight of 55 kg and was manufactured in Switzerland in 2018.
The TT-188 platform is designed as a universal water / oil temperature-control system. According to Tool-Temp technical data for the TT-188 series, the unit can be used with water at temperatures up to approximately 90°C and with thermal oil at temperatures up to approximately 150°C, subject to the correct setup and heat-transfer medium.

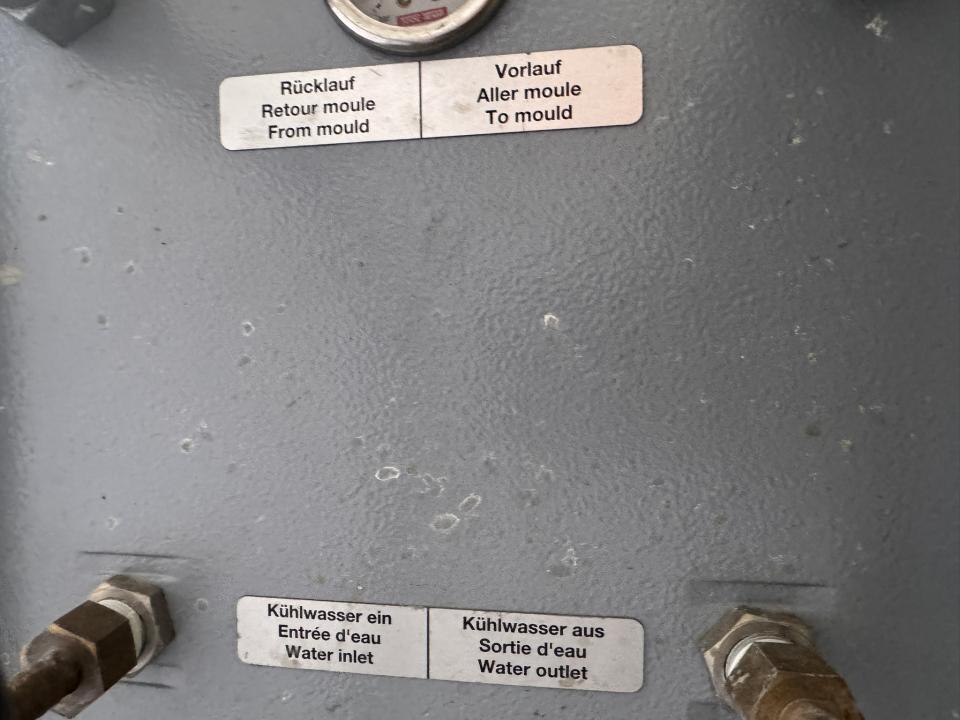

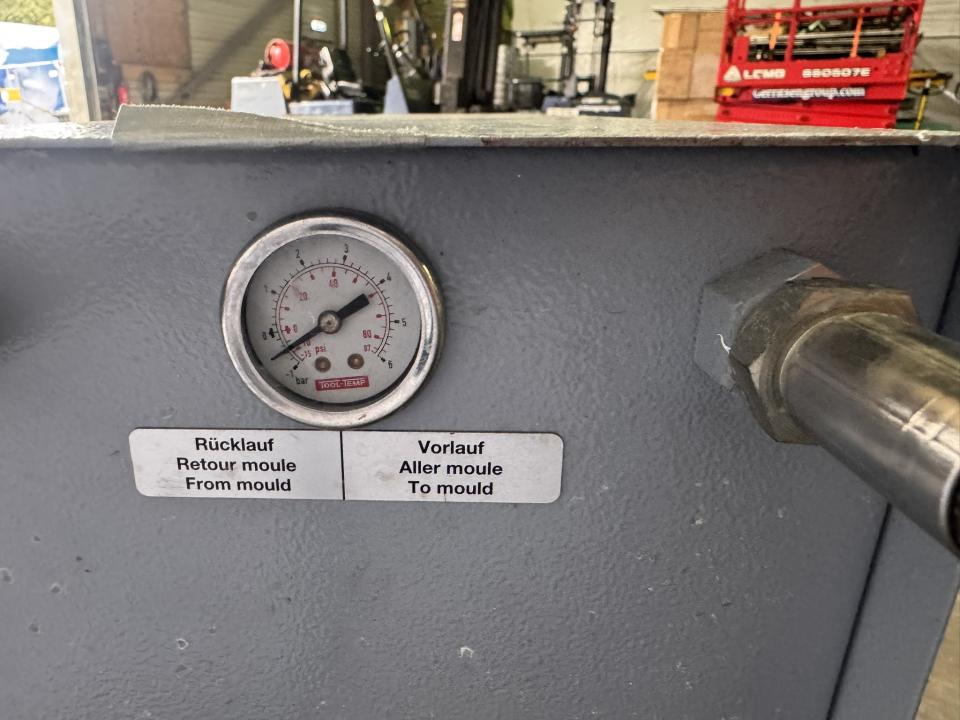

The unit combines an electric heating system with an integrated cooling circuit and circulation pump. Heat-transfer fluid is circulated continuously between the Tool-Temp unit and the connected machine or process, allowing the controller to add or remove heat as required to maintain the selected temperature.
The front control panel incorporates the Tool-Temp electronic temperature controller together with operating switches and status indicators. Separate controls for vacuum and pressure operation are visible on the panel, allowing the circulation system to be operated according to the requirements of the connected process.
The TT-188 series incorporates electronic monitoring of operating conditions, including temperature and flow. This enables the unit to maintain a stable process temperature while providing indication or alarm functions when operating parameters fall outside the required range.

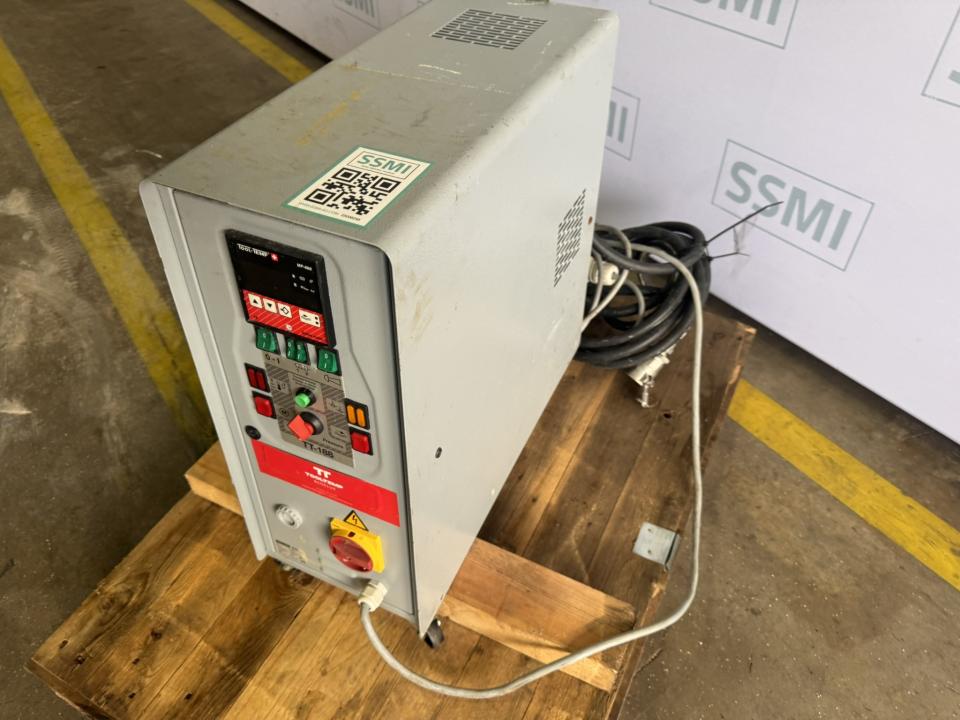

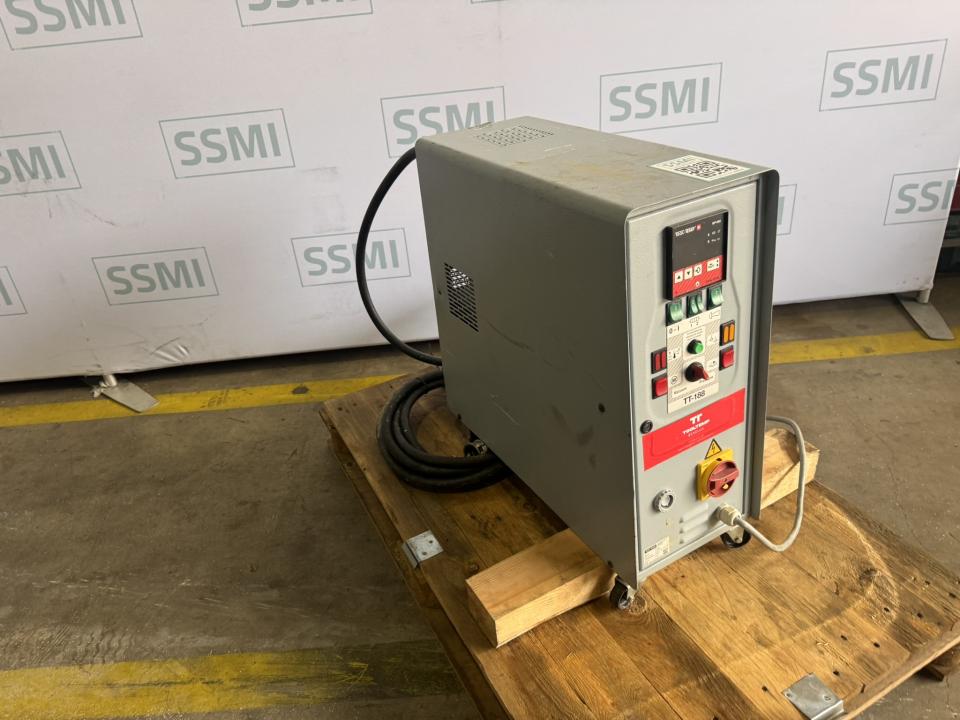

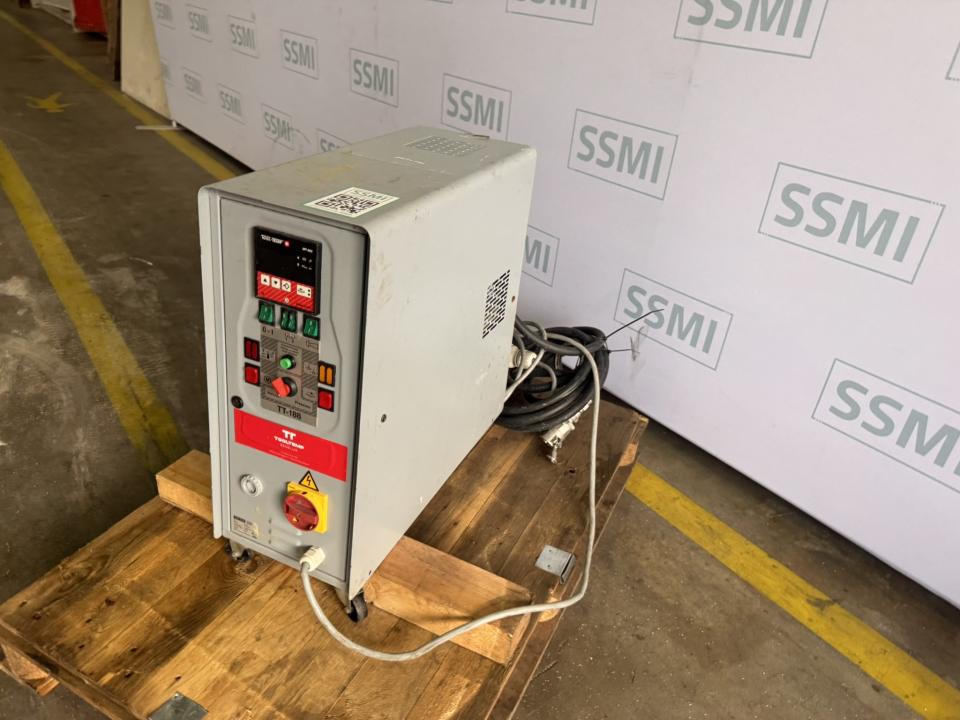

A large rotary main isolator switch is fitted to the front of the cabinet for local electrical isolation. The unit is housed in a robust industrial metal enclosure with ventilation openings and is mounted on small wheels / castors for movement around a production area.
This type of temperature-control unit is commonly used with plastics-processing equipment, moulding machinery, process vessels, industrial tooling and other manufacturing equipment where accurate and repeatable heating and cooling of the connected process is required.
Included- Tool-Temp TT-188 C temperature control unit
- Integrated electric heating system
- Integrated circulation pump
- Integrated cooling system
- Tool-Temp electronic control panel
- Pressure / vacuum operating controls
- Front-mounted main isolator switch
- Industrial metal cabinet
- Castors / wheels fitted to the cabinet
- Power and connection cables visible in the photographs
