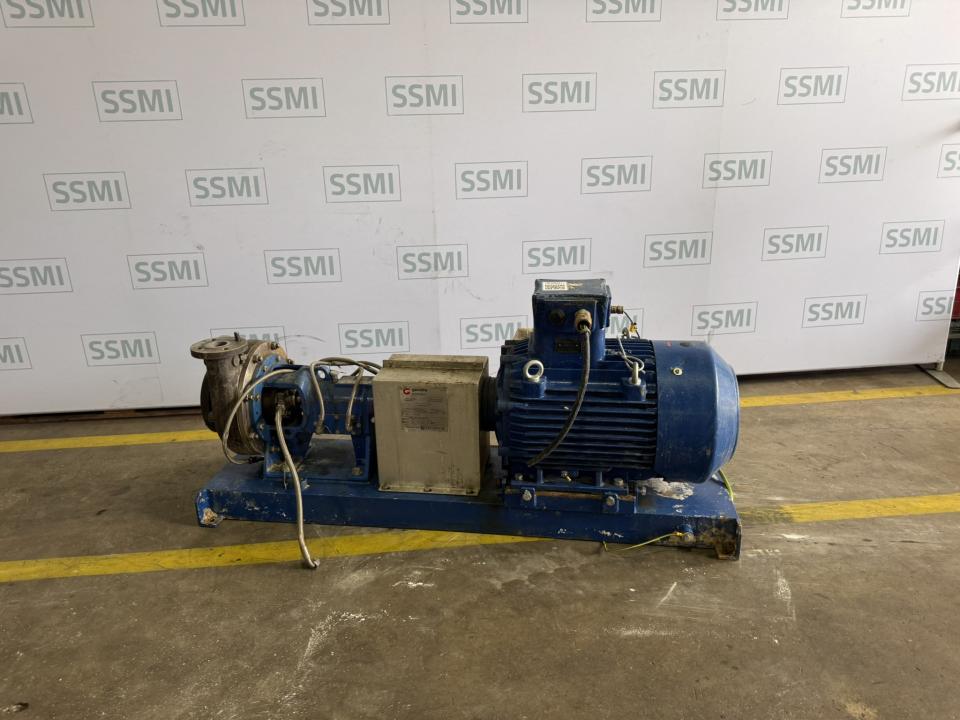

Geveke Pompen Industrial pump package

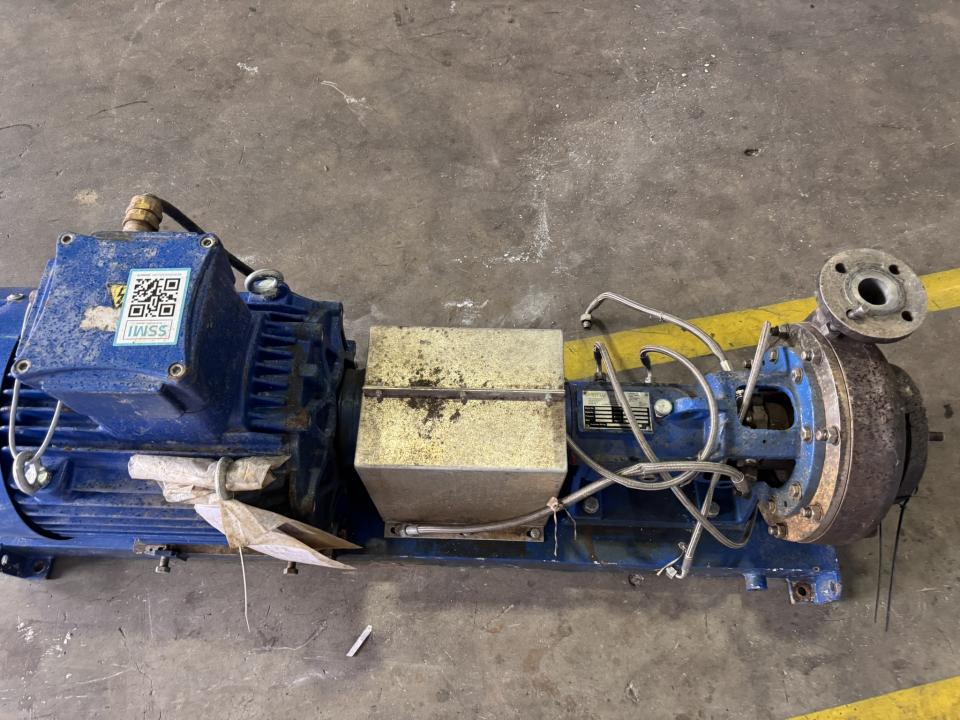

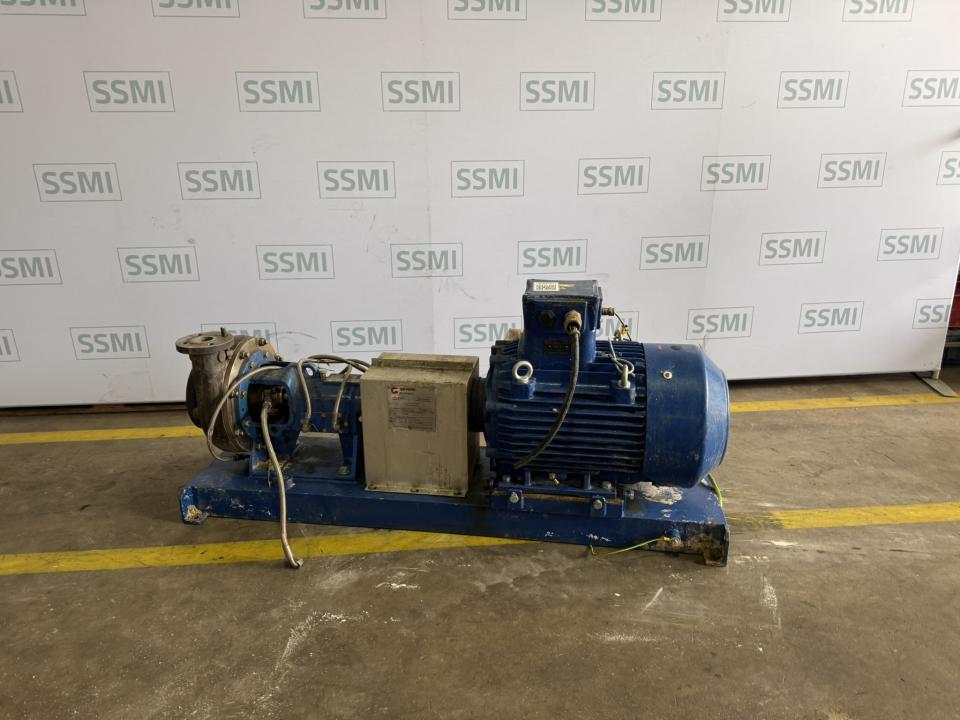

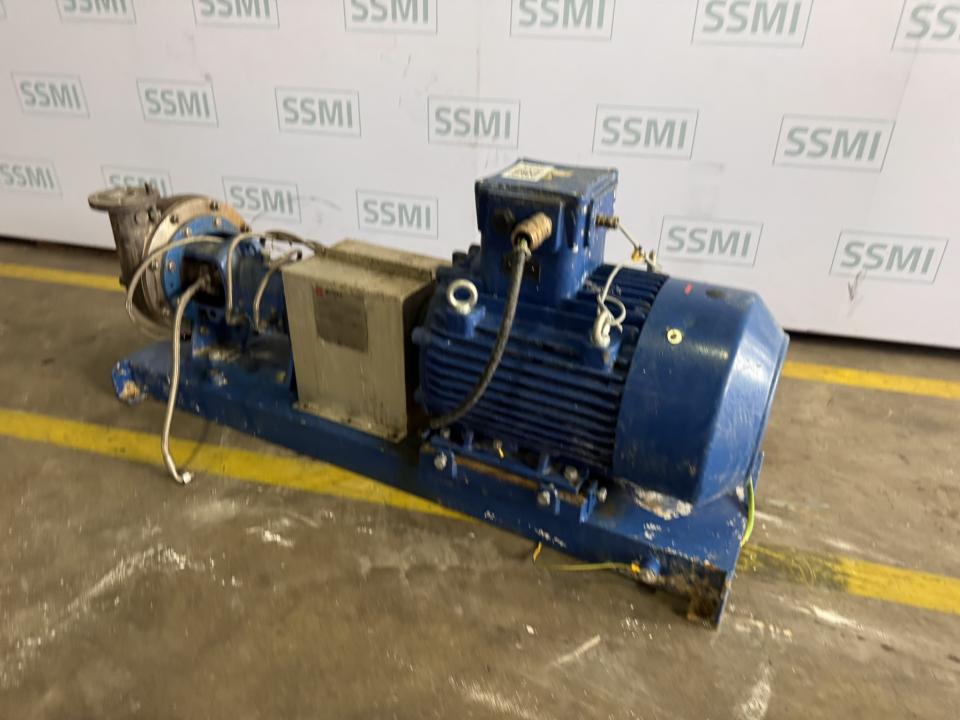

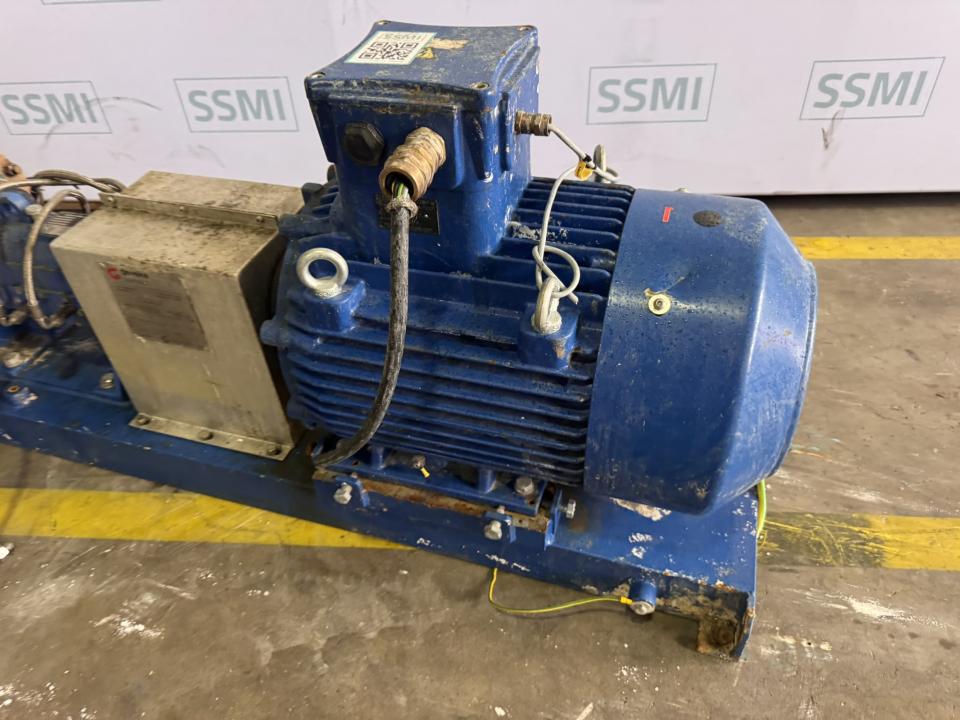

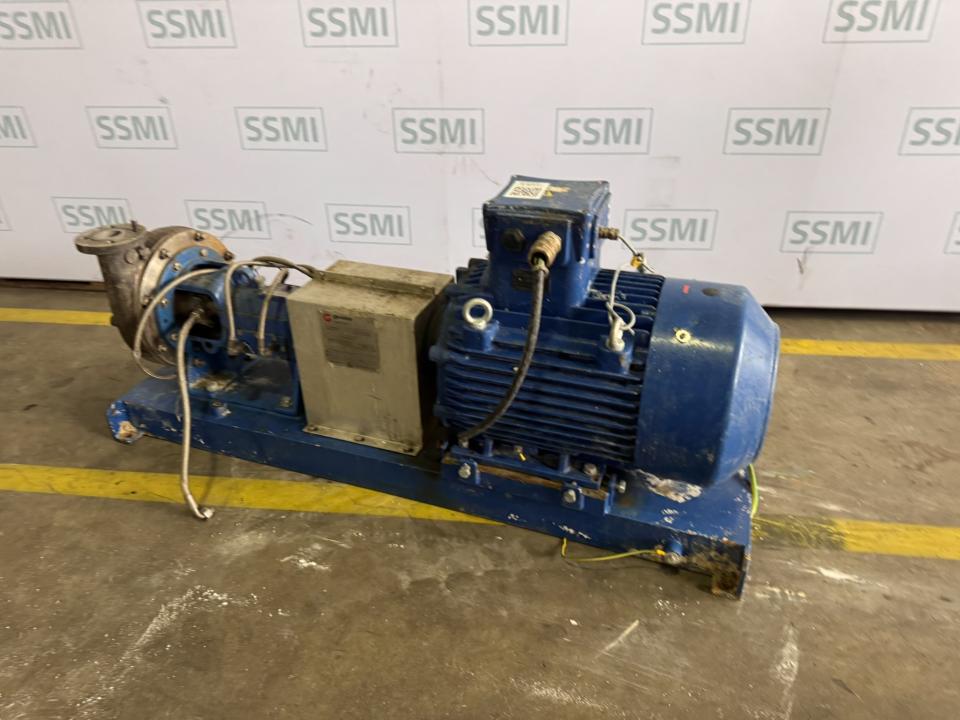

Geveke Pompen industrial pump package built around a Discflo 2H10X50 process pump. The package was manufactured in 2022 and is identified as Geveke No. 40000324-2 and plant item P-10151. The Discflo pump has a stated capacity of 10–50 m³/h and a pressure / head rating of 65 metres. The complete package is designed for suction and discharge pressures up to 10 barg and process temperatures up to 250°C and carries CE and Ex / ATEX markings.

• Package assembler: Geveke Pompen
• Product type: Industrial process pump package
• Geveke number: 40000324-2
• P.O. number: 231221-GEV-INVE
• Item / plant tag: P-10151
• Year: 2022
• Dry weight: 750 kg
• Suction-side design pressure: 0–10 barg
• Discharge-side design pressure: 0–10 barg
• Suction-side design temperature: Up to 250°C
• Discharge-side design temperature: Up to 250°C
• Pump manufacturer: Discflo Corporation
• Pump brand: Discflo Pumps
• Pump type: Industrial disc pump
• Pump model: 2H10X50
• Pump serial number: 9571
• Rated capacity: 10–50 m³/h
• Pressure / head: 65 metres
• Discpac: X305-2HHH (partially legible on nameplate)
• Pump date: 03-2022
• ATEX marking on pump: II 2 G D c
• ATEX file reference: Q3XT256
• Package Ex protection: Ex / ATEX protection marking present
• Package protection marking: Appears to read II 3G Ex db de h IIB T2 Gc
• Certification: CE marked
• Pump quality-system marking: ISO 9001:2015
• Package supplier location: Amsterdam, The Netherlands
• Pump manufacturer location: Santee, California, USA

This industrial pumping unit was assembled by Geveke Pompen and incorporates a Discflo 2H10X50 process pump. The complete package is identified by Geveke number 40000324-2, purchase-order reference 231221-GEV-INVE and item number P-10151.

The Discflo pump nameplate specifies a capacity range of 10–50 m³/h and a pressure / head value of 65 metres. The pump serial number is 9571 and the manufacturing date is shown as 03-2022.

The pump incorporates Discflo's disc-based pumping arrangement, identified on the nameplate by a Discpac reference that appears to read X305-2HHH. This type of industrial process pump is intended for controlled transfer of process liquids in installations where a robust dedicated pump package is required.

The Geveke package nameplate specifies a design-pressure range of 0 to 10 barg on both the suction and discharge sides. The stated design temperature is 250°C for both sides of the installation, providing a package specification suitable for demanding process conditions when operated within the manufacturer's requirements.

The complete package has a stated dry weight of 750 kg. The substantial package construction is intended for permanent integration into an industrial process installation.

Both the Geveke package and Discflo pump carry explosion-protection markings. The Discflo pump plate is marked II 2 G D c with file reference Q3XT256. The Geveke package also carries an Ex protection marking which appears to read II 3G Ex db de h IIB T2 Gc. Exact hazardous-area suitability should be checked against the complete equipment documentation before installation.

The Discflo identification plate also carries CE marking and references an ISO 9001:2015 quality-management system. The complete package was manufactured / assembled in 2022.

This pump package is suitable for industrial process-liquid transfer duties where controlled flow, substantial pressure capability and an engineered pump-and-drive package are required. Final suitability depends on the pumped medium, viscosity, temperature, required flow, system pressure and hazardous-area classification of the intended installation.

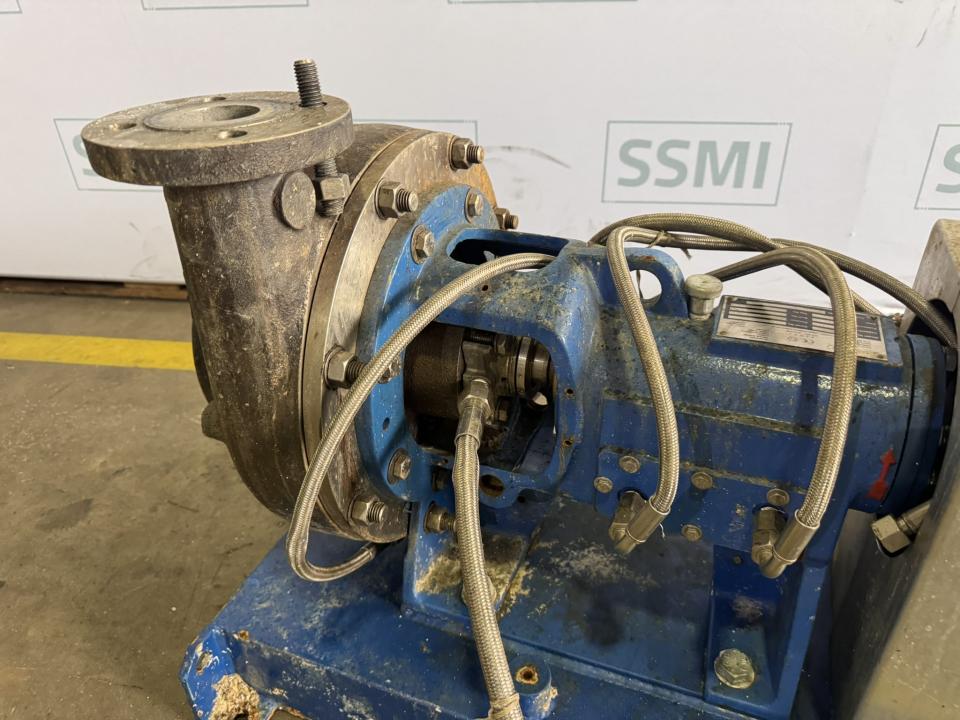

• Discflo 2H10X50 industrial disc pump
• Discpac pump assembly
• Geveke engineered pump package
• Package base / support structure
• Pump connection and associated package components
• Protective equipment / guards fitted to the package
• Geveke package identification plate

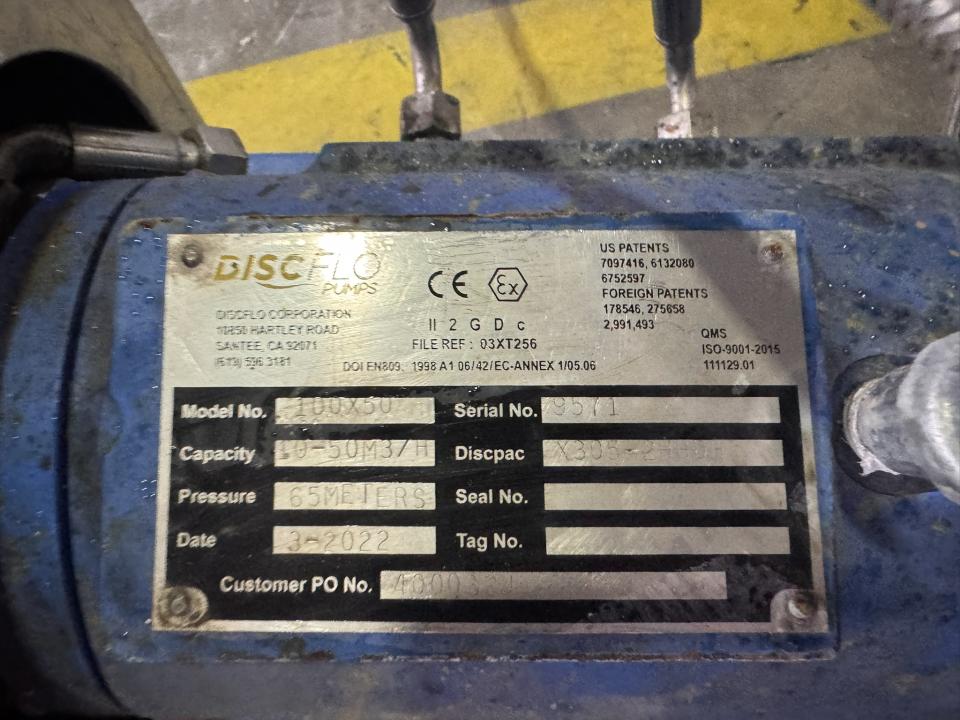

• Discflo pump identification plate
• Attached piping, fittings and components present on the complete package
