Geveke Pompen Industrial pump

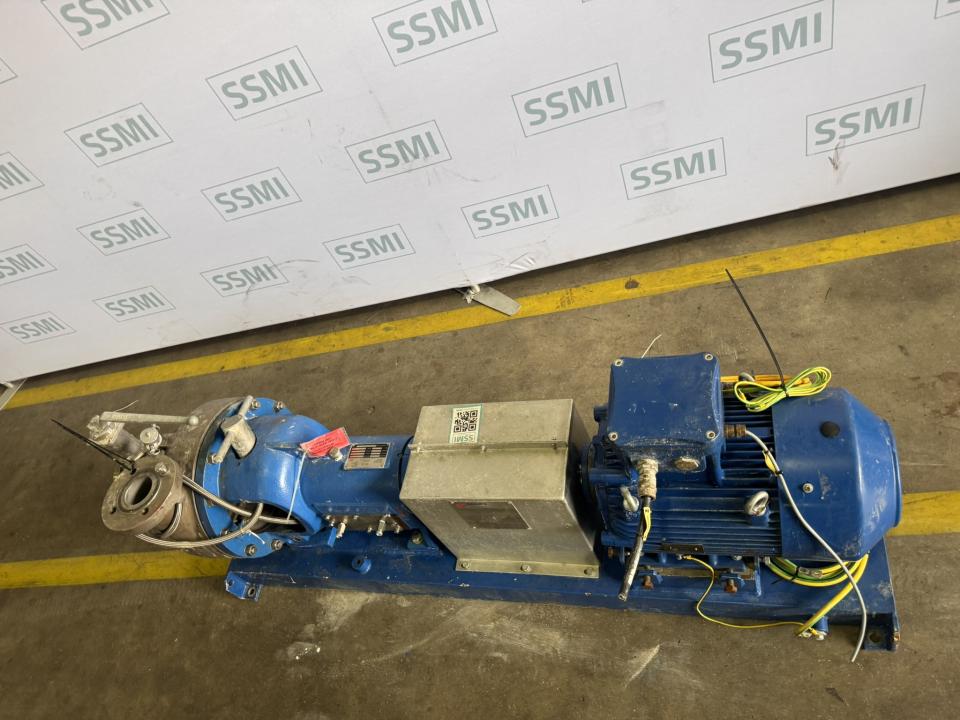

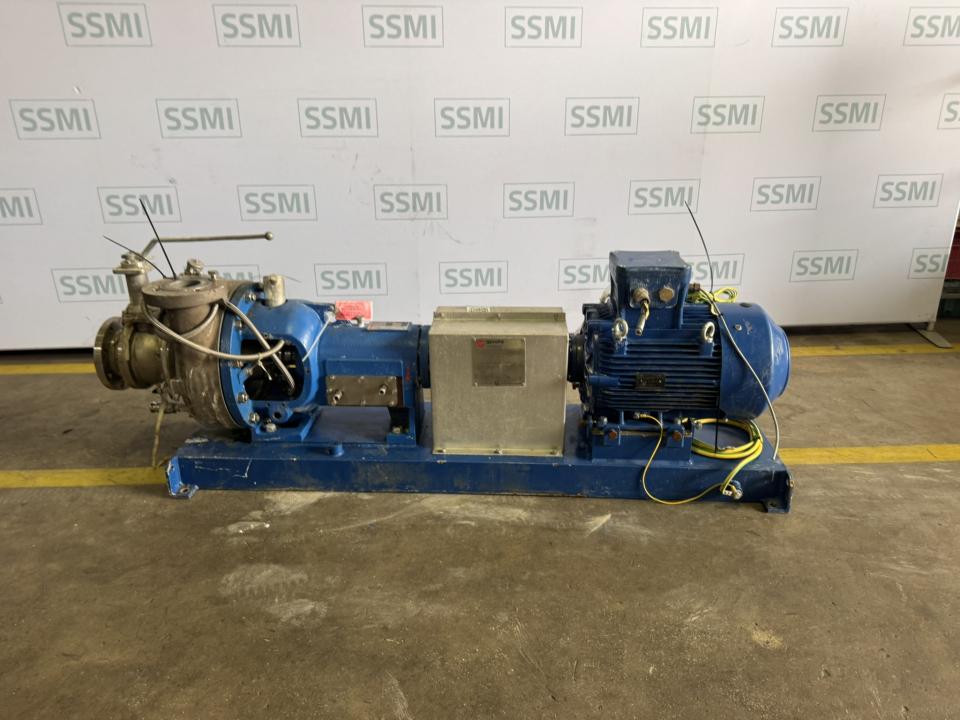

Geveke Pompen industrial process pump package fitted with a Discflo disc pump, manufactured in 2022. The package is identified as Geveke No. 40000324-1 and plant item P-10150. The Discflo pump has a stated capacity of 10–50 m³/h and a pressure / head value of 22.5 metres. The complete package is designed for pressures up to 10 barg on both the suction and discharge sides and for process temperatures up to 250°C. The unit carries CE and hazardous-area / Ex markings.

• Package assembler: Geveke Pompen
• Product type: Industrial process pump package
• Geveke number: 40000324-1
• P.O. number: 231221-GEV-INVE
• Item / plant tag: P-10150
• Year: 2022
• Dry weight: 660 kg
• Suction-side design pressure: 0–10 barg
• Discharge-side design pressure: 0–10 barg
• Suction-side design temperature: Up to 250°C
• Discharge-side design temperature: Up to 250°C
• Package protection type: II 3G Ex db de h IIB T2 Gc
• Package certification: CE marked
• Pump manufacturer: Discflo Corporation
• Pump type: Industrial disc pump
• Pump model: Appears to read 1H10X80
• Pump serial number: 9570
• Rated capacity: 10–50 m³/h
• Pressure / head: 22.5 metres
• Discpac: X356-2HHHD
• Pump date: 03-2022
• Customer P.O. number: 40000324
• Pump Ex marking: II 2 G D c
• Ex file reference: Q3XT256
• Pump certification: CE marked
• Quality management marking: ISO 9001:2015
• Package supplier location: Amsterdam, The Netherlands
• Pump manufacturer location: Santee, California, USA

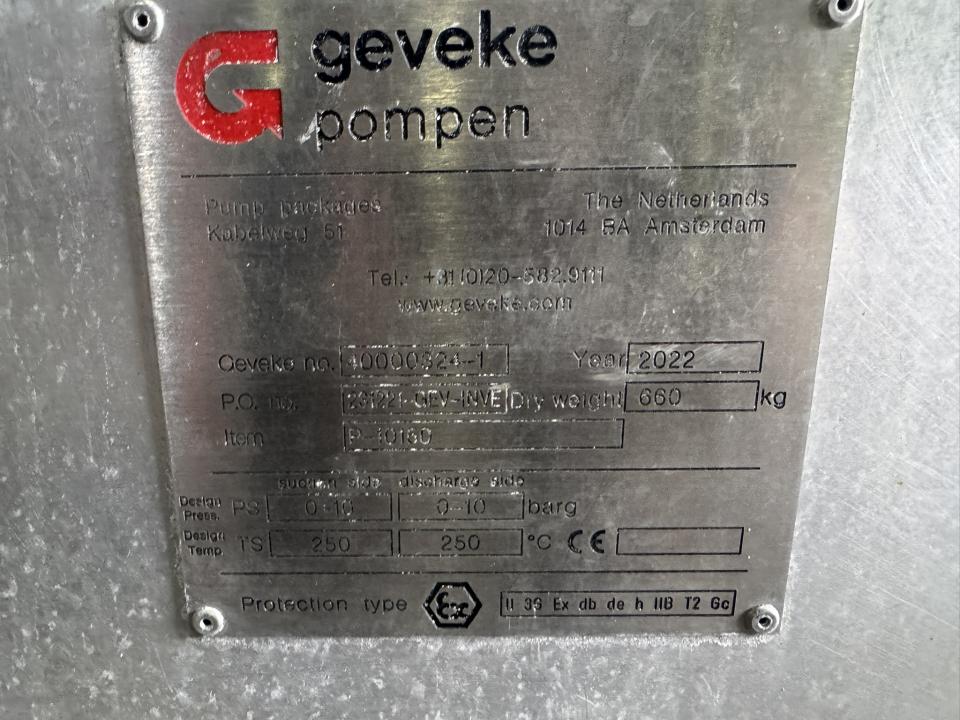

This industrial pump package was assembled by Geveke Pompen and incorporates a Discflo industrial disc pump. The complete package is identified by Geveke number 40000324-1, purchase-order reference 231221-GEV-INVE and plant item P-10150.

The Discflo pump identification plate gives serial number 9570 and a manufacturing date of 03-2022. The model number appears to read 1H10X80. Because the engraved model characters are relatively faint, buyers requiring exact model confirmation should refer to the supplied nameplate photograph.

The pump has a stated flow capacity of 10–50 m³/h. The pressure field on the manufacturer plate is marked 22.5 metres, representing the stated pressure / head specification for this pump configuration.

The internal Discflo pumping assembly is identified by Discpac code X356-2HHHD. The Discpac is the pump's internal disc-based pumping element and is an important reference when identifying the exact internal configuration, replacement components or service requirements.

The complete Geveke pump package is designed for a pressure range of 0 to 10 barg on both the suction and discharge sides. The stated design temperature is 250°C on both sides, indicating that the engineered package was specified for demanding industrial process conditions.

The package has a stated dry weight of 660 kg. This substantial weight reflects the heavy-duty industrial construction of the complete engineered pump package and should be taken into account for transport, lifting and installation.

The Geveke package carries the hazardous-area protection marking II 3G Ex db de h IIB T2 Gc. The Discflo pump itself is additionally marked II 2 G D c with file reference Q3XT256. These markings identify equipment intended for specified potentially explosive atmospheres. Final suitability for a particular hazardous area should always be checked against the complete installation requirements and original certification.

The Discflo manufacturer plate carries a CE marking and references an ISO 9001:2015 quality management system. The pump was manufactured by Discflo Corporation in Santee, California, USA, while the complete pump package was supplied by Geveke Pompen in Amsterdam, The Netherlands.

This type of engineered pump package is intended for industrial process-liquid transfer where controlled flow, elevated process temperature capability and hazardous-area compatibility may be required. Suitability for the final application depends on the liquid properties, viscosity, temperature, required flow, pressure and installation classification.

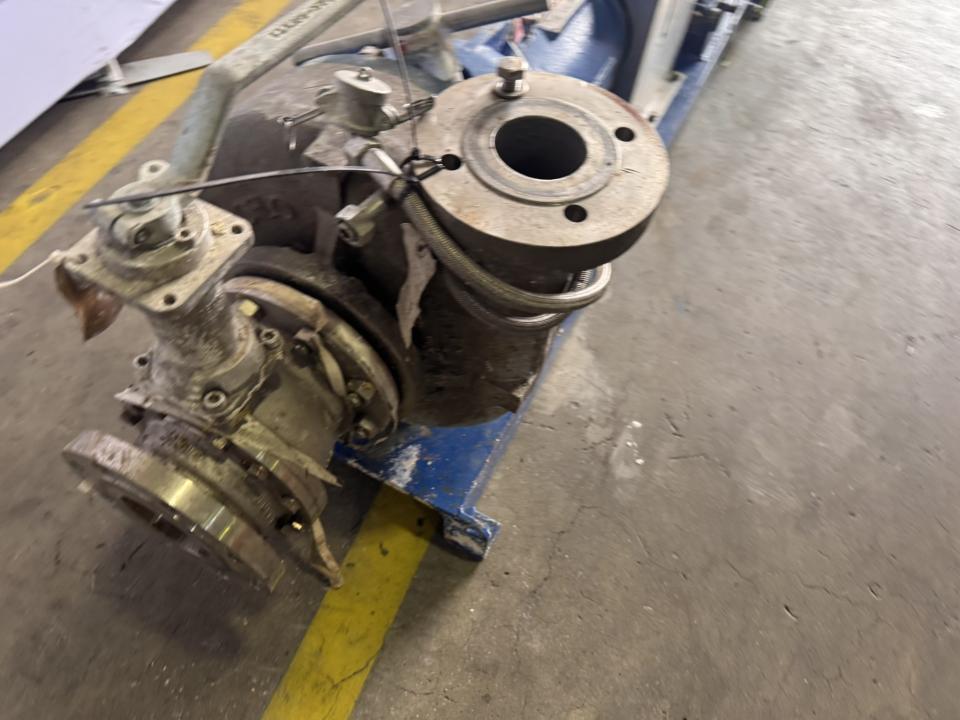

• Discflo industrial disc pump
• Discpac X356-2HHHD pumping assembly
• Geveke engineered pump package
• Package identification plate
• Discflo manufacturer identification plate
• Associated pump-package components supplied with the unit as pictured
