Endress+Hauser flow meter

Endress+Hauser Promass F 300 industrial Coriolis mass flowmeter with integrated Promass 300 transmitter. The unit is designed for accurate measurement of liquid and gas process media and provides direct mass-flow measurement together with additional process variables such as density, temperature and calculated volume flow. This configuration is equipped with a 4–20 mA HART output, two additional configurable I/O channels and an industrial hazardous-area rated transmitter housing.

• Manufacturer: Endress+Hauser
• Product family: Promass F 300
• Transmitter: Promass 300
• Product type: Coriolis mass flowmeter
• Measuring principle: Coriolis
• Order code: 8F3B80-18M91/0
• Serial number: HC0C5A02000
• Extended order code: 8F3B80-BS1EADDGAA5AA1SAA2+
• Measured variables: Mass flow, density, temperature and calculated volume flow
• Primary output: 4–20 mA HART
• Additional outputs / I/O: 2 x configurable I/O
• AC power supply: 85–264 V AC, 50/60 Hz
• DC power supply: 19.2–28.8 V DC
• Power consumption: 10 W
• Cable entries: M20 x 1.5
• Ambient temperature: -40°C to +60°C
• Enclosure protection: IP66/67 / Type 4X marking visible
• Communication: HART
• Hazardous-area version: Ex-certified configuration
• Explosion protection marking: Ex ec IIC T5...T1 Gc
• IECEx certificate: IECEx CSA 16.0034X
• I/O terminal voltage limit: Ui = 30 V DC / Um = 250 V AC
• Manufacturer location: Reinach, Switzerland
• Country of manufacture: Switzerland
• Certification markings: CE, FCC and additional international approvals

This Endress+Hauser Promass F 300 is an industrial Coriolis mass flowmeter fitted with the compact Promass 300 transmitter. The complete instrument combines the process flow sensor and electronic transmitter into one integrated measuring system for accurate monitoring of liquids and gases in industrial pipelines.

Unlike flowmeters that calculate flow from pressure or velocity, the Coriolis measuring principle provides a direct measurement of mass flow. The instrument can also provide additional process information including fluid density, process temperature and calculated volumetric flow, allowing several important process variables to be obtained from a single measuring point.

The transmitter is identified by order code 8F3B80-18M91/0 and serial number HC0C5A02000. The extended configuration code shown on the identification plate is 8F3B80-BS1EADDGAA5AA1SAA2+, which can be used when requesting original configuration information, documentation or replacement components from Endress+Hauser.

The Promass 300 transmitter provides a standard 4–20 mA HART process output together with two additional configurable I/O channels. This allows the flowmeter to be integrated into industrial PLC, DCS and process-control systems for measurement, monitoring and diagnostics.

The electronic transmitter can be powered from either 85–264 V AC at 50/60 Hz or 19.2–28.8 V DC, depending on the installation. The nameplate specifies a power consumption of 10 W.

Electrical connections are made through M20 x 1.5 cable entries. The transmitter nameplate also identifies the terminal circuits for the configurable I/O channels and specifies a maximum interface voltage of Ui = 30 V DC and Um = 250 V AC.

The transmitter is designed for demanding industrial installations and carries an ambient-temperature marking of -40°C to +60°C. The enclosure is marked for high ingress protection and Type 4X use, providing protection for the internal electronics in industrial environments.

The instrument is supplied in an Ex-certified hazardous-area configuration. The identification plate carries explosion-protection information including Ex ec IIC T5...T1 Gc and IECEx certificate IECEx CSA 16.0034X. Final suitability for a specific hazardous-area zone and temperature class should be checked against the original Endress+Hauser certification for this exact order code.

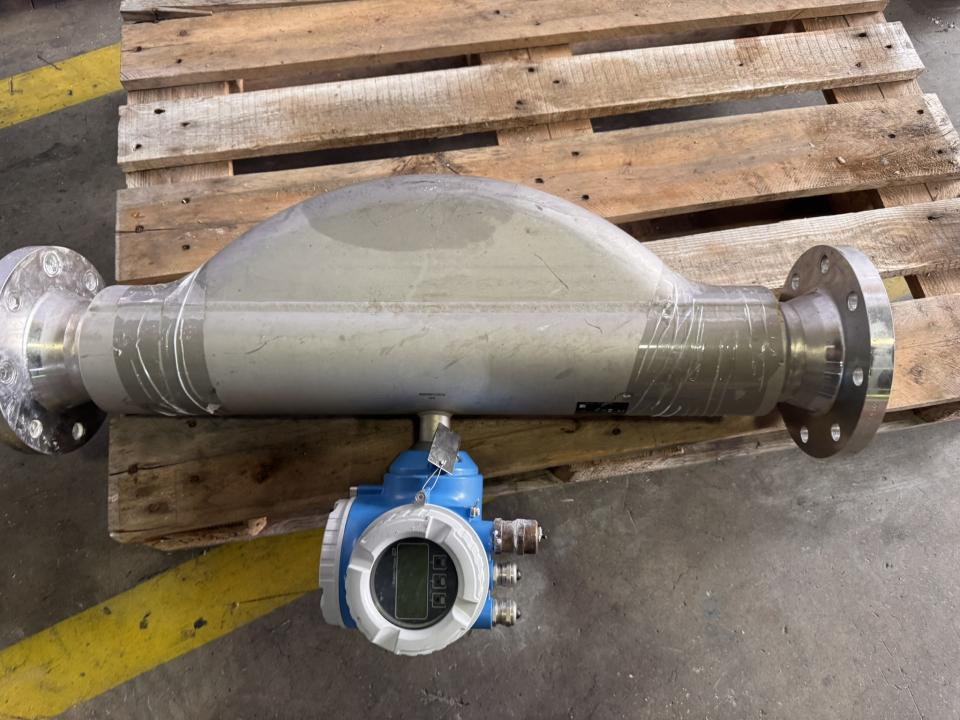

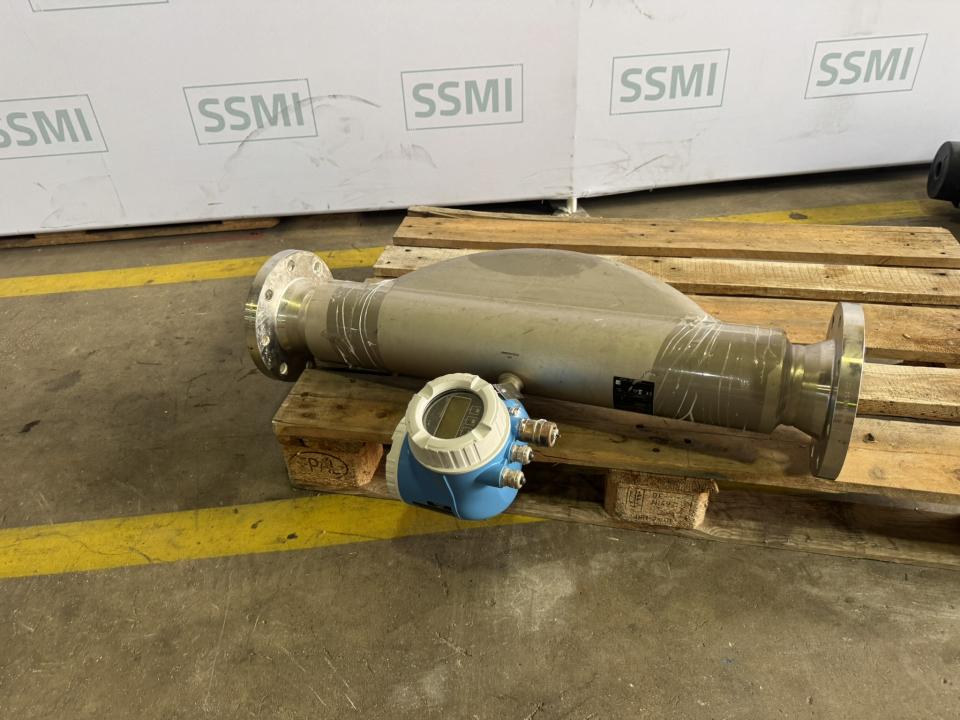

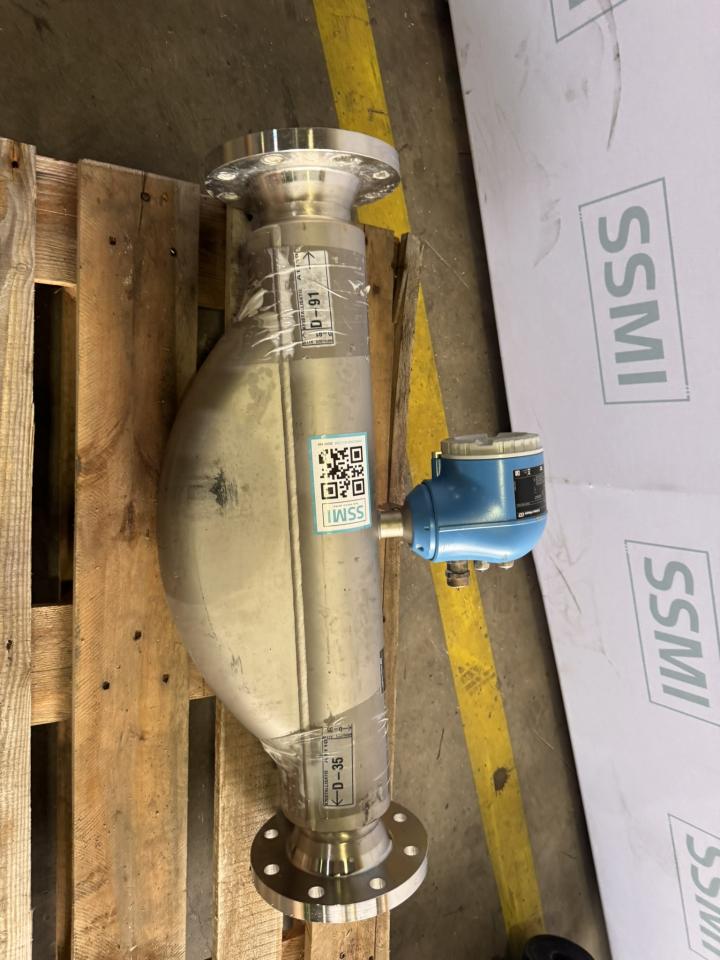

The complete measuring assembly includes the metallic inline Coriolis sensor body together with the blue Endress+Hauser Promass 300 electronic transmitter. This type of instrumentation is commonly used in chemical processing, pharmaceutical production, food and beverage processing, utilities and other process industries where accurate mass-flow measurement and process monitoring are required.

• Endress+Hauser Promass F Coriolis flow sensor
• Endress+Hauser Promass 300 transmitter
• Integrated transmitter housing

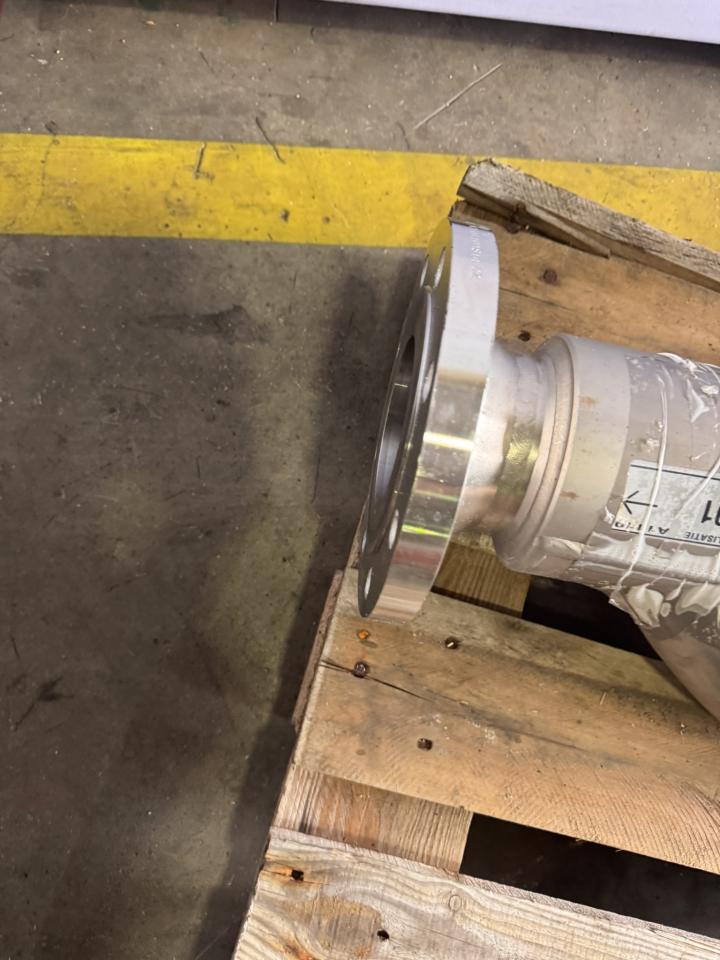

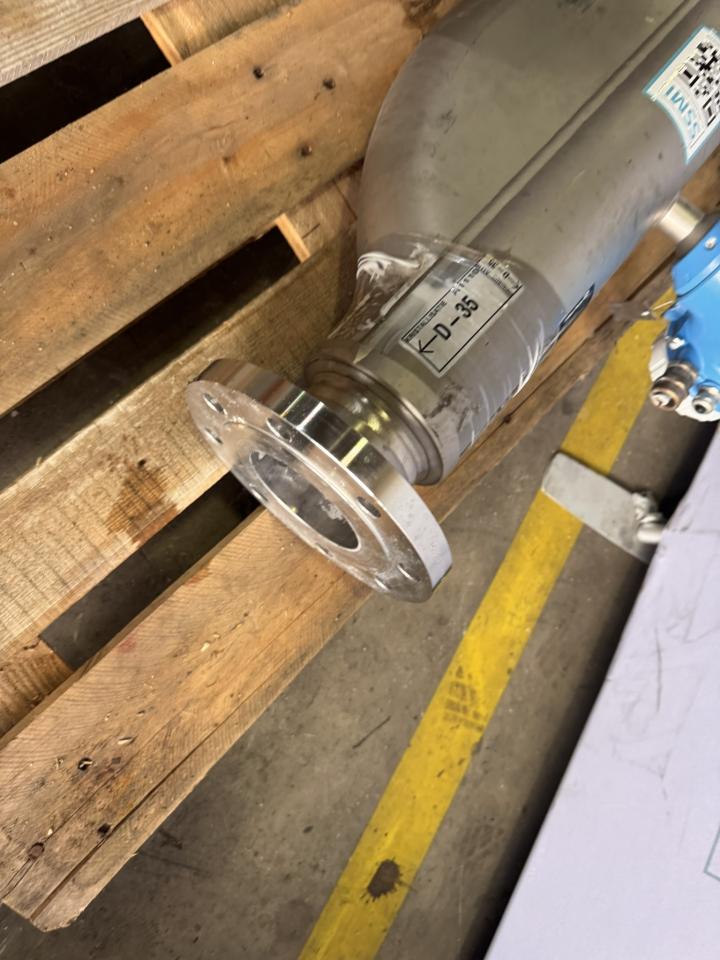

• Process flowmeter body
• Electrical cable entries / glands visible in the photographs

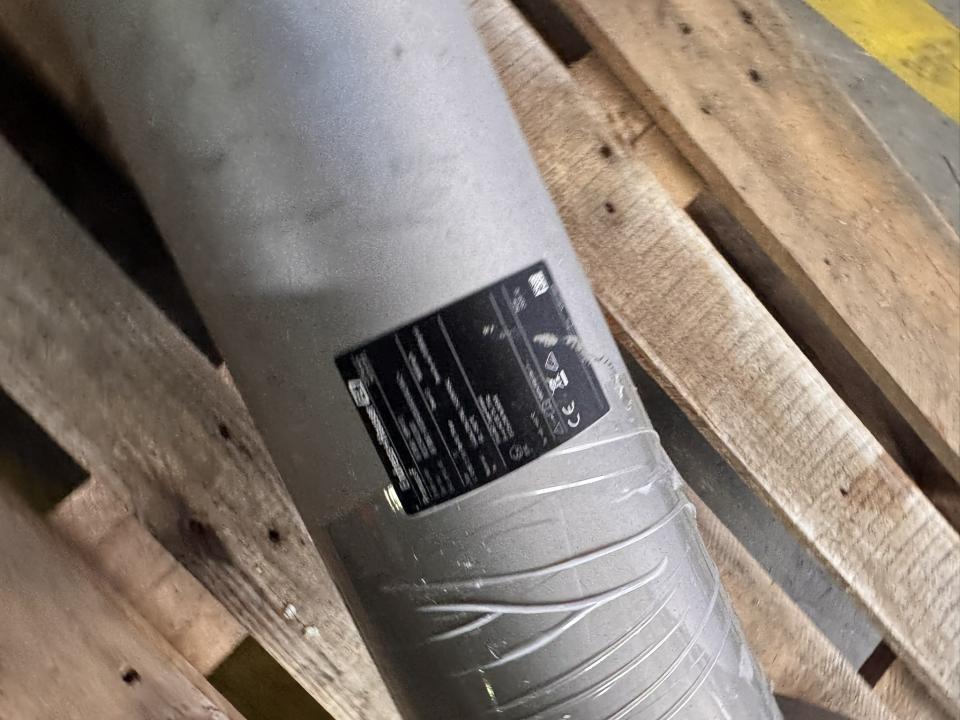

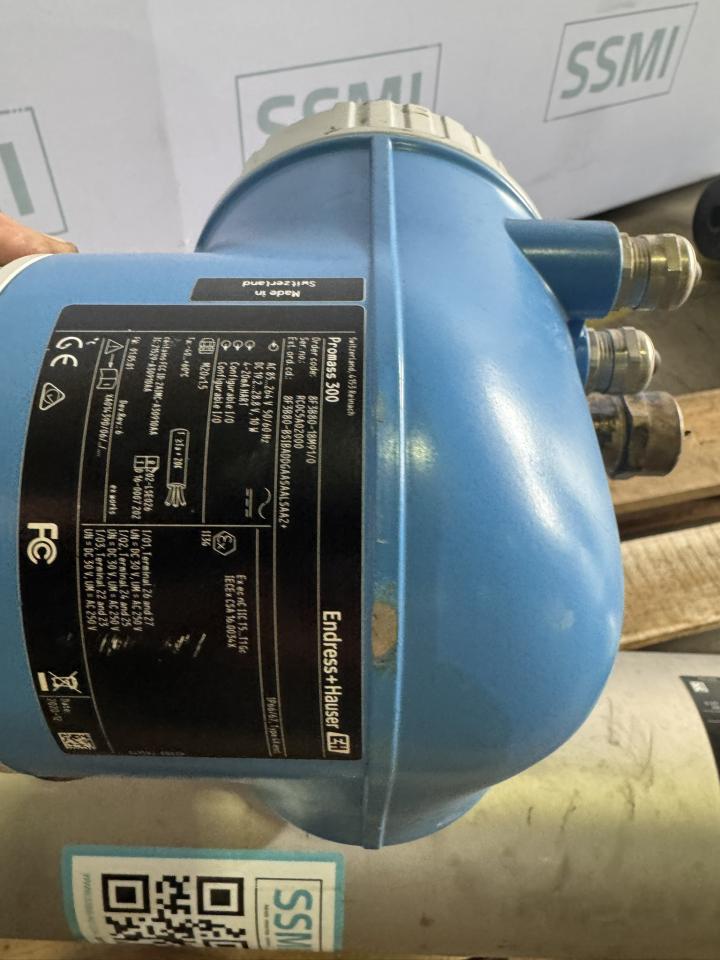

• Manufacturer identification plates
• Attached process and mounting components visible in the photographs
