2004 GEA Separator Centrifuge
Dairy Industry - Dairy separators
SKU: SSMIGEL1-00004118
Product information
Brand: GEA
Type: OSD 30-03-007
Year of build: 2004
Material: Stainless steel
Documentation: Yes
Condition: Used
Additional information
Product status:
Available
Bowl speed 8,200 RPM ;
Product density 1.0 kg/dm³ ;
Solids density 1.4 kg/dm³ ;Electric Motor: Manufacturer Rotor NL ; Motor type 3-phase electric motor ; Motor model 6RN160M02 ; Standard IEC/EN 60034 ; Insulation class F ; Protection rating IP55 ; Mounting arrangement IM3041 ; Cooling method IC411 ; Specification 50 Hz/60 Hz ; Rated power 15 kW/17.3 kW ; Voltage 400/690 V (Δ/Y)/460 V (Δ) ; Current 26.9/15.6 A/26.3 A ; Motor speed 2,930 RPM/3,530 RPM ; Power factor 0.91/0.91 ;

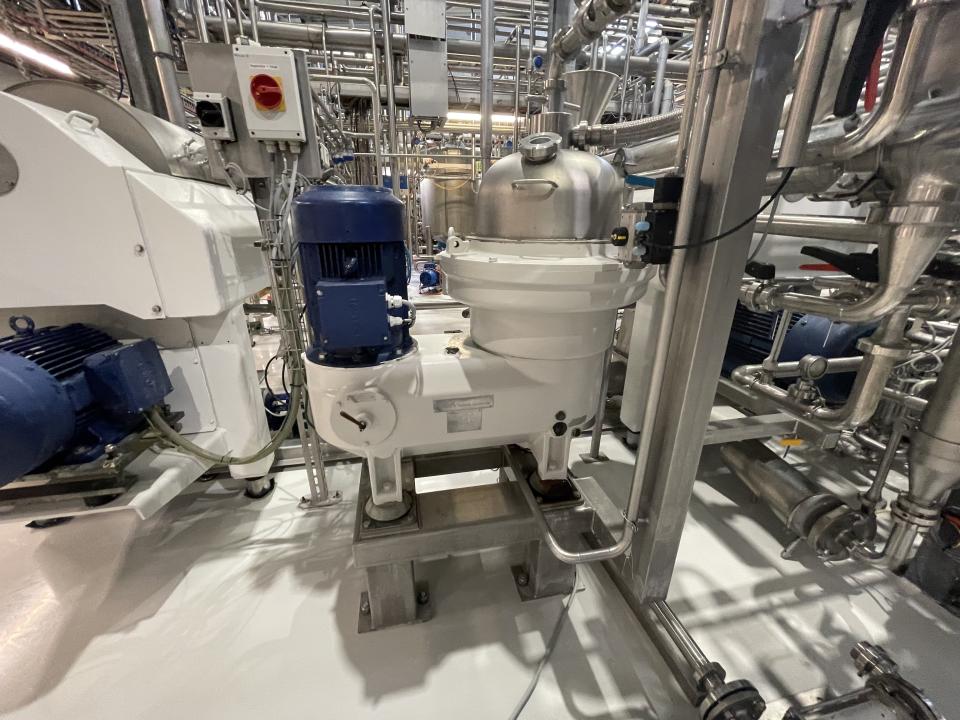

The GEA Westfalia OSD 30-03-007 is a high-performance self-cleaning disc stack centrifuge designed for continuous liquid-liquid-solid separation in demanding industrial applications. The separator is equipped with an automatic desludging bowl, enabling uninterrupted production with efficient removal of accumulated solids during operation.
Manufactured to GEA's renowned hygienic standards, the OSD 30 series offers outstanding separation efficiency, low product losses and reliable continuous operation. This machine originates from a modern food/pharmaceutical production facility and remains professionally installed, allowing inspection in its original production environment.
The self-cleaning bowl design significantly reduces downtime and maintenance requirements while maximizing production capacity and product quality.
Transport information
Location: Not provided
Size (l*w*h mm):
Not provided
Weight (kg): Not provided
