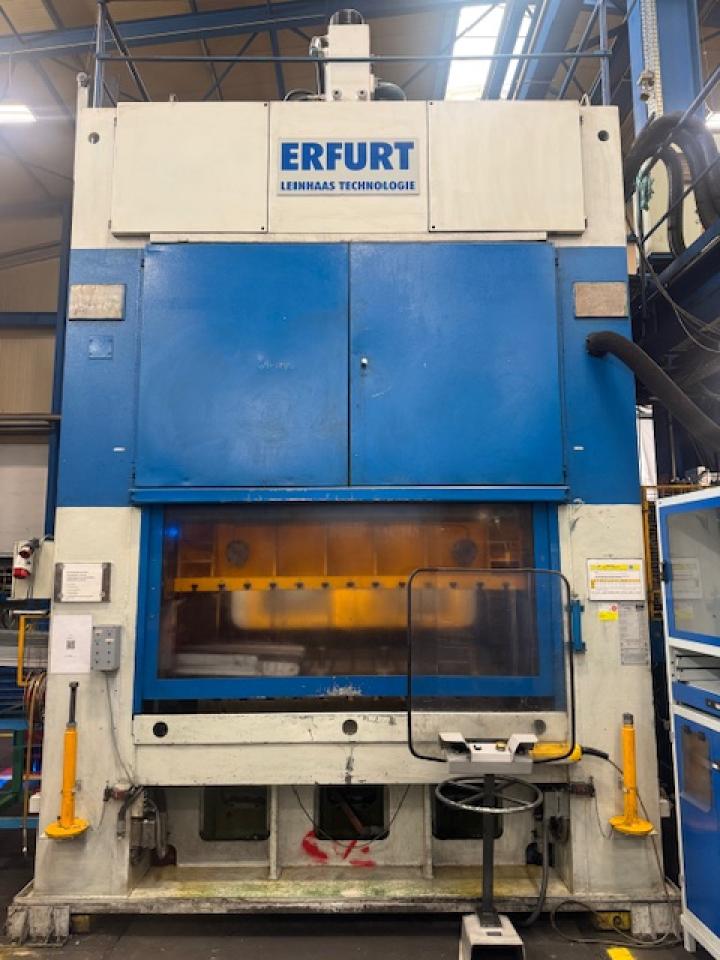

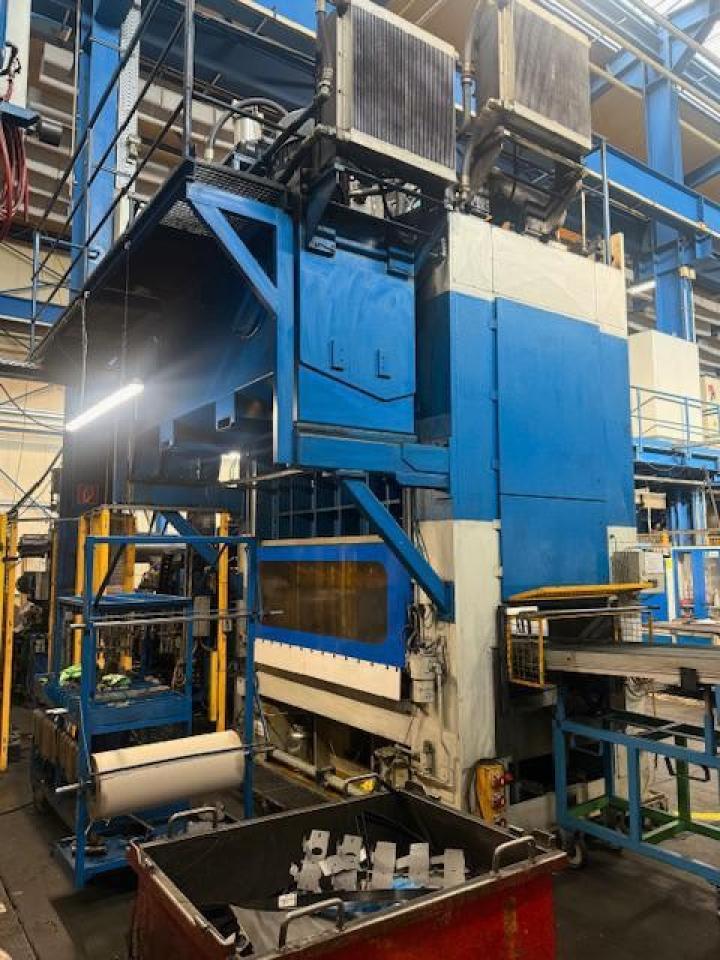

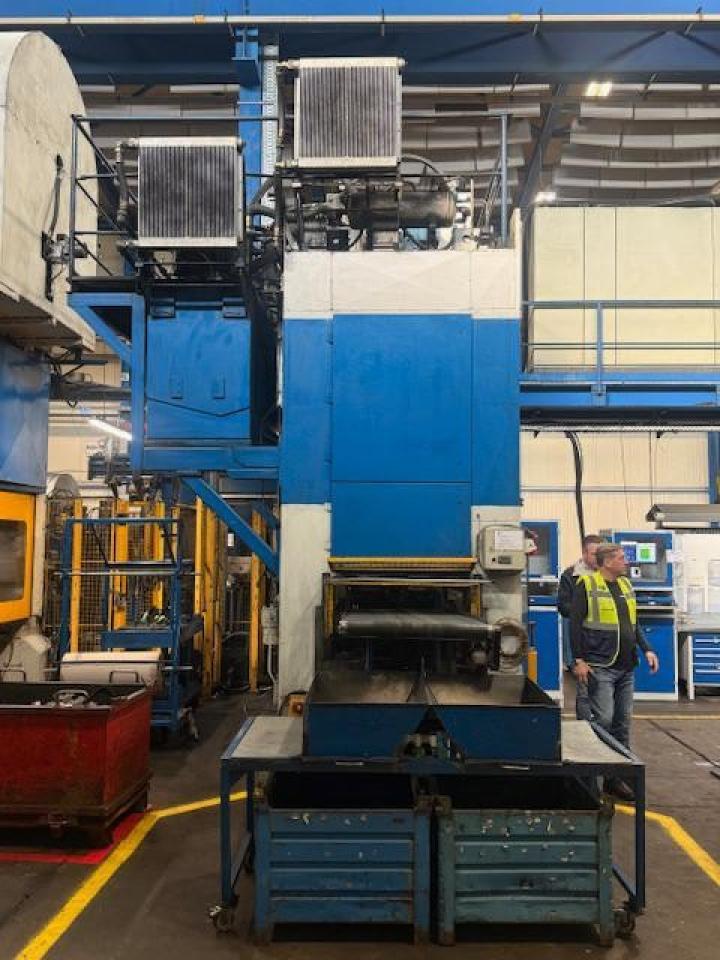

2014 Erfurt Mechanical Press

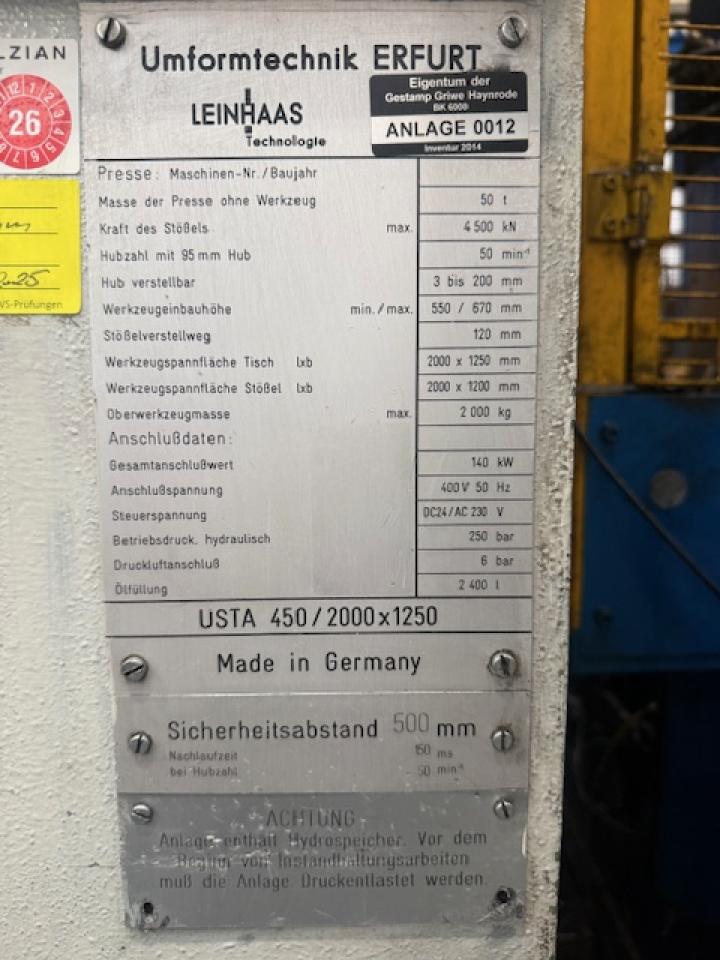

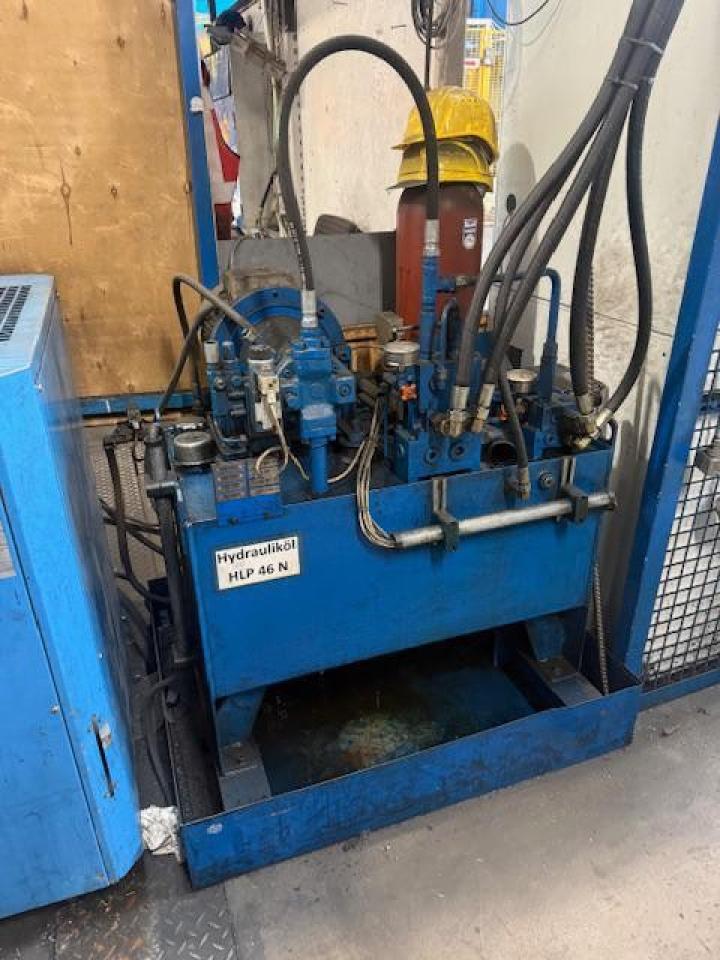

Manufacturer: Umformtechnik ERFURT (Germany) Type / Model: USTA 450 / 2000 x 1250 Technology: LEINHAAS Year of Manufacture: 2014 Country of Origin: Germany General Description High-performance mechanical press designed for heavy-duty forming applications such as stamping, blanking, and deep drawing. Built by Umformtechnik ERFURT, a well-known German manufacturer of robust and precise forming equipment, this press is suitable for automotive, metalworking, and industrial production environments requiring high reliability and accuracy. Technical Specifications Press Force (Capacity): 4,500 kN (450 tons) Stroke Rate: up to 50 strokes/min Stroke (fixed): 95 mm Adjustable Stroke Range: 3 – 200 mm Ram Adjustment (Stroke Adjustment): 120 mm Tooling & Table Dimensions Table Size (L x W): 2000 x 1250 mm Ram Plate Size (L x W): 2000 x 1200 mm Tool Installation Height: 550 – 770 mm Weights Machine Weight (without tooling): approx. 50 tons Max. Upper Tool Weight: 2,000 kg Electrical & Power Installed Power: 140 kW Supply Voltage: 400 V / 50 Hz Control Voltage: 24 V DC / 230 V Hydraulics & Pneumatics Hydraulic Operating Pressure: 250 bar Compressed Air Requirement: 6 bar Oil Capacity: approx. 2,400 liters Safety & Compliance Safety Distance: 500 mm Safety Reaction Time: 50 ms Equipped with standard industrial safety systems suitable for integration into automated production lines. Key Features Heavy-duty 450-ton pressing force for demanding forming operations Large working area (2000 x 1250 mm) suitable for large components Adjustable stroke flexibility for different tooling requirements Robust German engineering ensuring durability and precision Suitable for automated lines or standalone operation Typical Applications Automotive body parts production Sheet metal forming and stamping Progressive die operations Structural component manufacturing Condition & Availability Well-suited for reuse in industrial production environments or integration into automated press lines. Ideal for end users seeking a reliable, high-capacity press from a reputable European OEM.
