2002 Fischer Mobile template tank
Pharmaceutical, Cosmetic and Chemistry Equipment - Various pharmaceutical, cosmetic and chemical
SKU: SSMIKDP2-00002860
Product information
Brand: Fischer
Type: Unknown
Year of build: 2002
Material: Hastelloy
Documentation: No
Condition: Used
Additional information
Product status:
Available

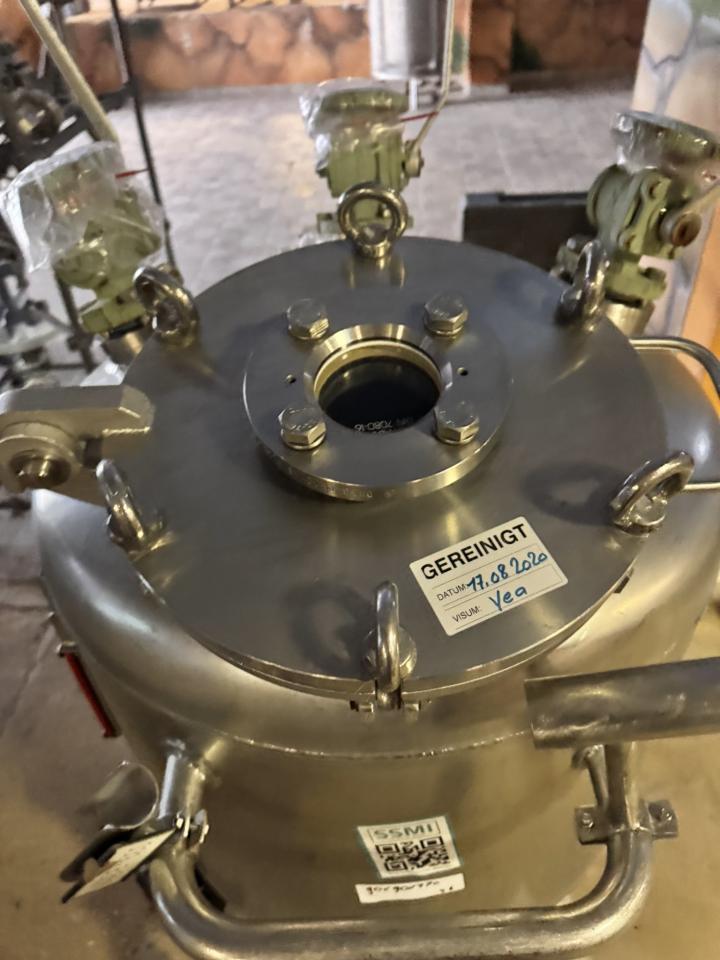

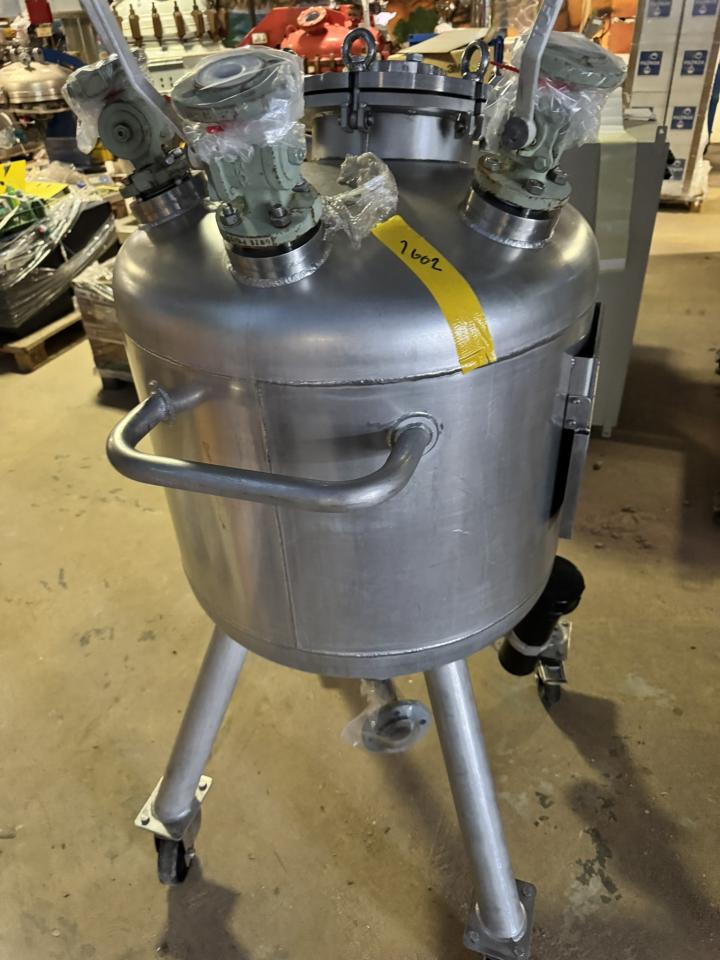

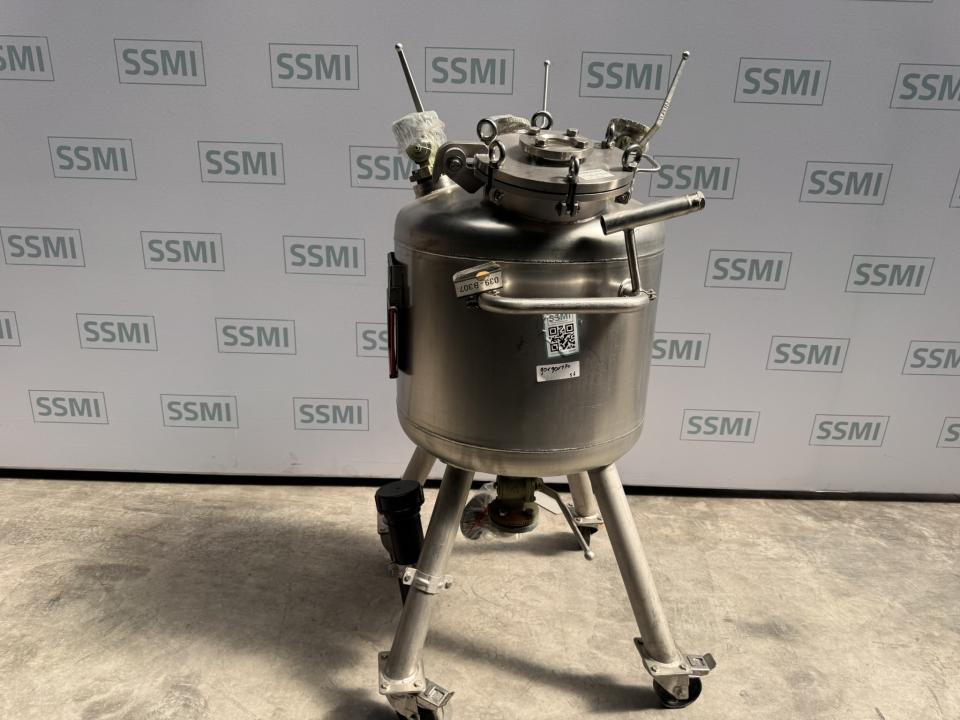

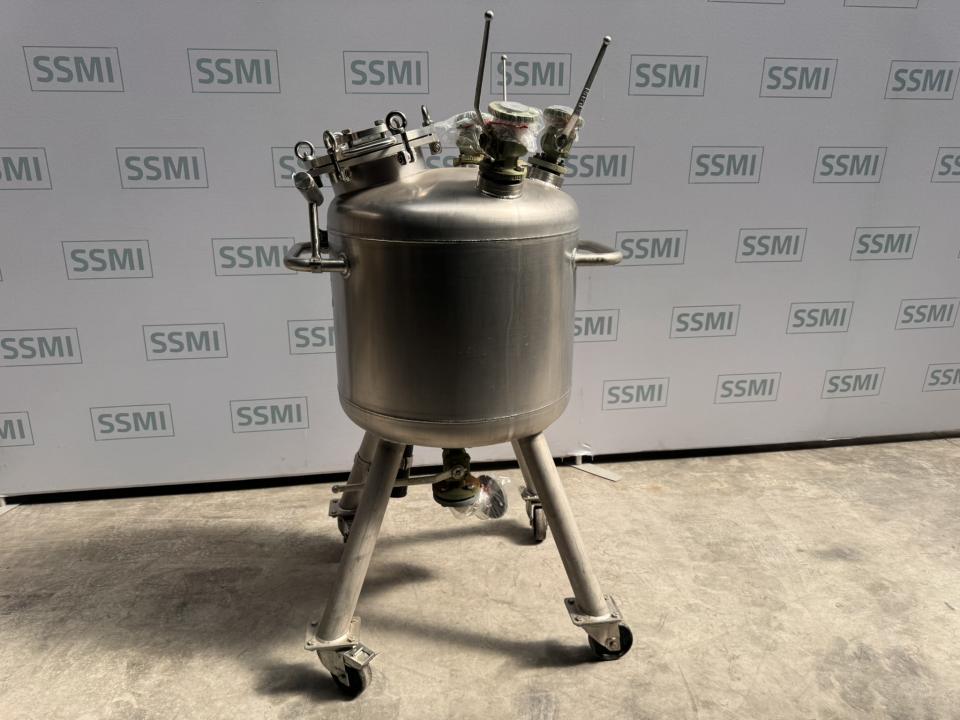

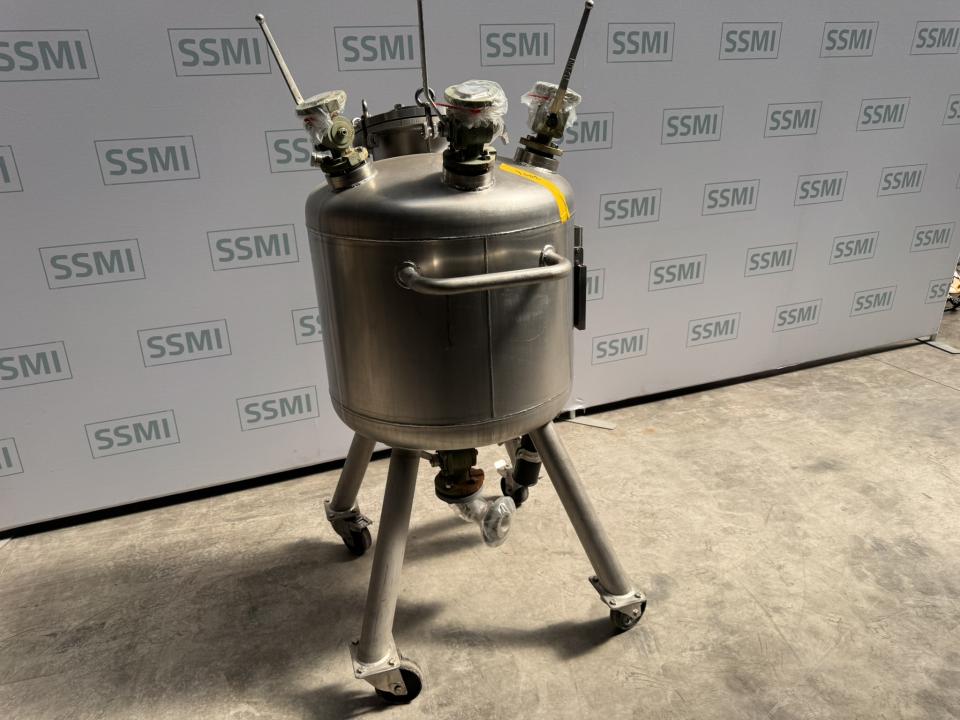

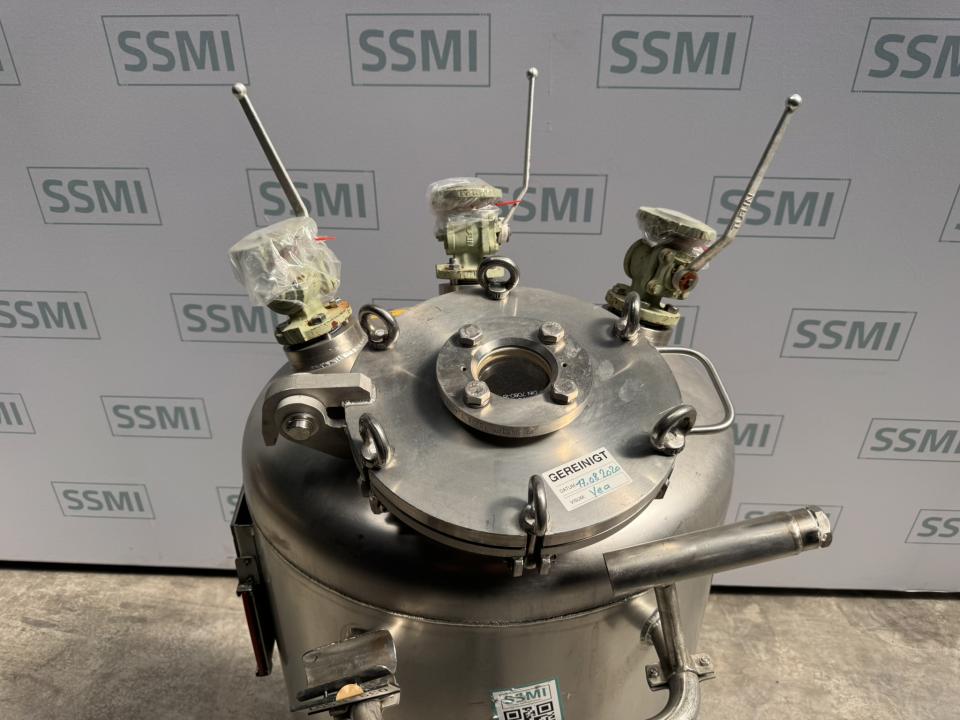

A 2002 Fischer Rohrleitungsbau AG 200-litre process vessel, manufactured in Rothrist, Switzerland. The vessel appears to be constructed from 2.4602 / Alloy 22 (Hastelloy C-22) and is designed for vacuum operation from approximately -1 to 0 bar, with a maximum allowable operating temperature of 120 °C.
Its corrosion-resistant construction makes it particularly suitable for pharmaceutical, fine-chemical, and chemical processing, including handling aggressive or corrosive products under vacuum.

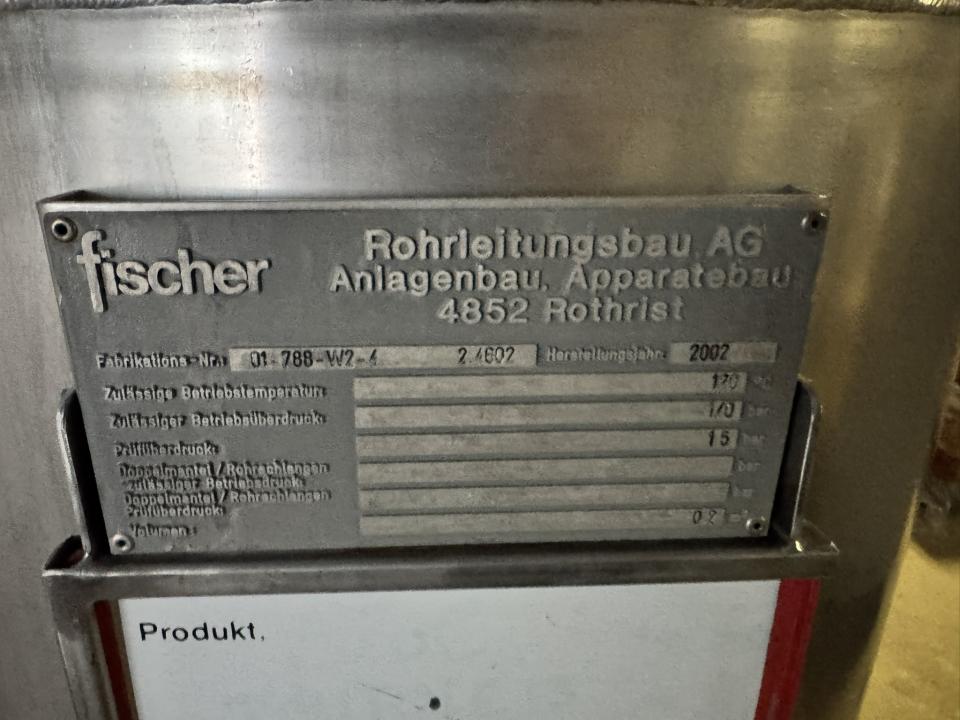

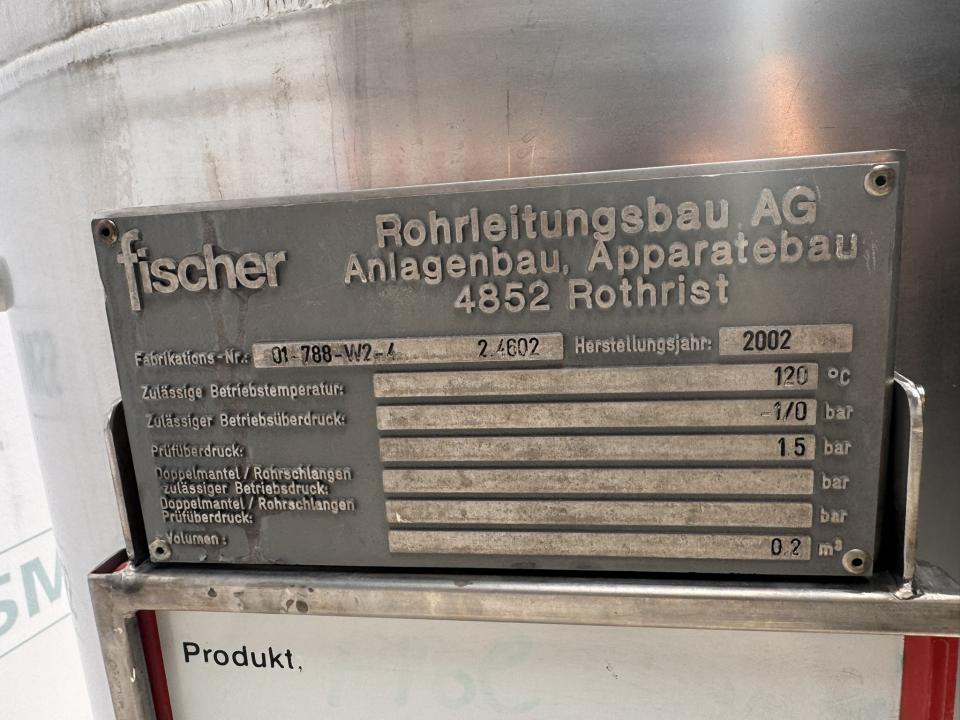

Item Information visible on plate
Manufacturer Fischer Rohrleitungsbau AG
Fabrication No. 01-788-W2-4 Additional identification 2.4602
Max. allowable operating temperature 120 °C
Allowable operating pressure -1 / 0 bar
Test pressure (Prüfüberdruck) 1.5 bar
Volume 0.2 m³ = 200 litres
Double jacket / coil operating pressure Not specified
Double jacket / coil test pressure Not specified
Element % ±2σ
V 0.193 0.092
Cr 18.53 0.28
Fe 3.87 0.15
Co 0.961 0.109
Ni 60.16 0.35
Mo 13.00 0.17
W 3.01 0.19
Transport information
Location: Not provided
Size (l*w*h mm):
900 × 900 × 1700 mm
Weight (kg): Not provided
