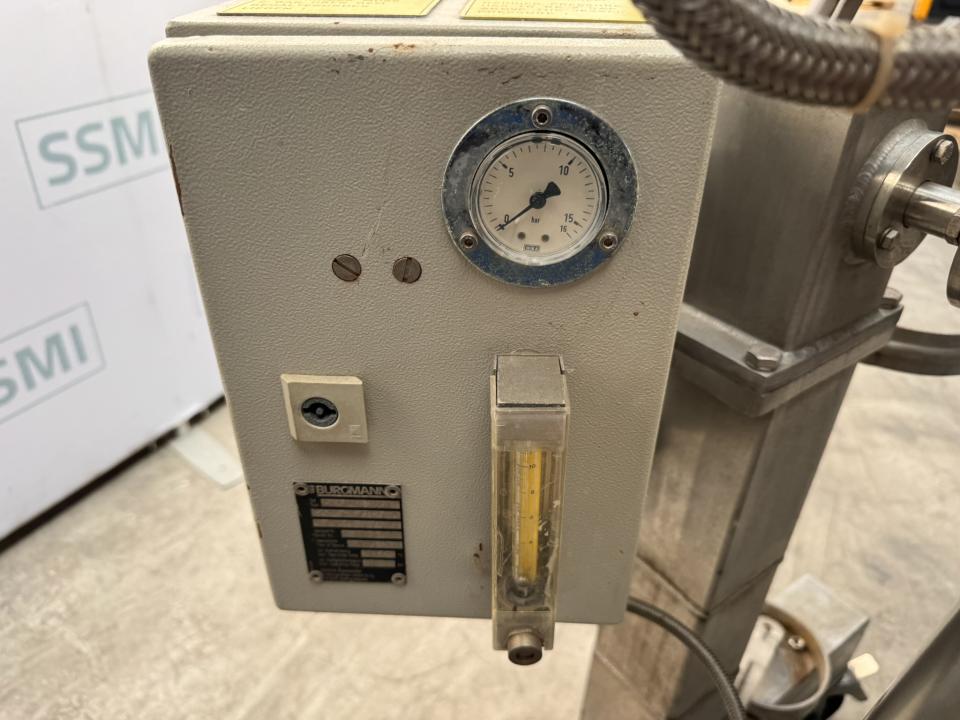

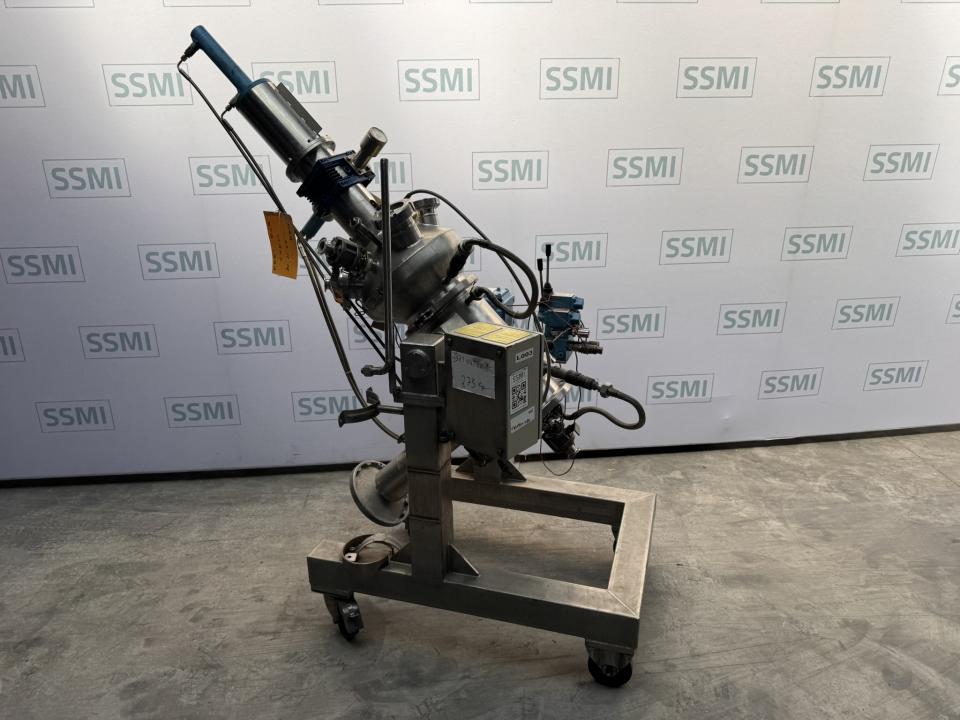

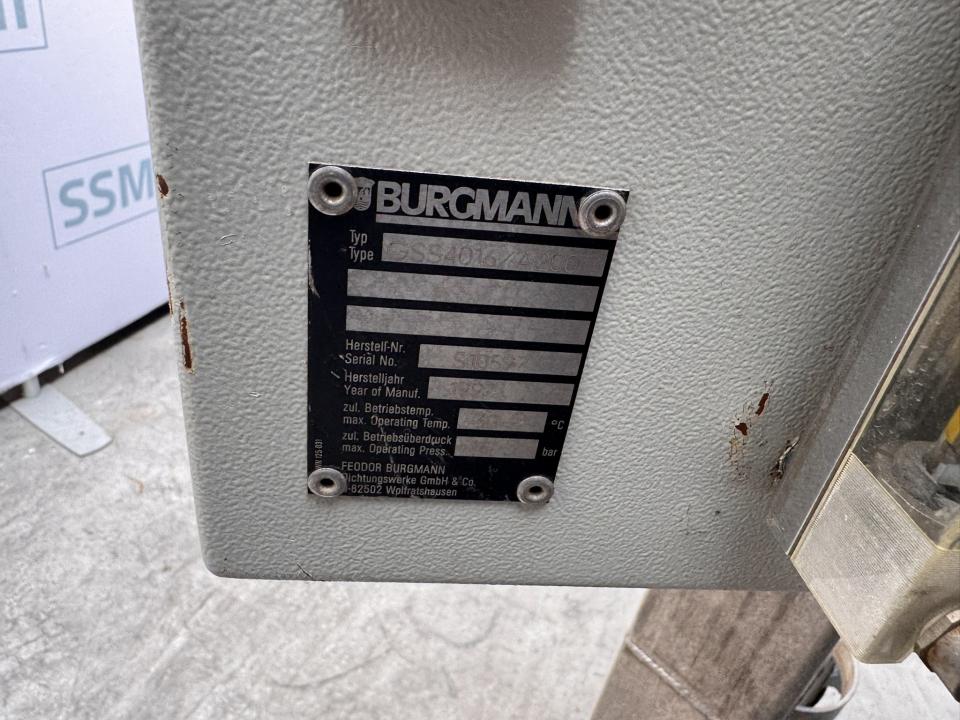

Burgmann ROSENMUND Nutsche

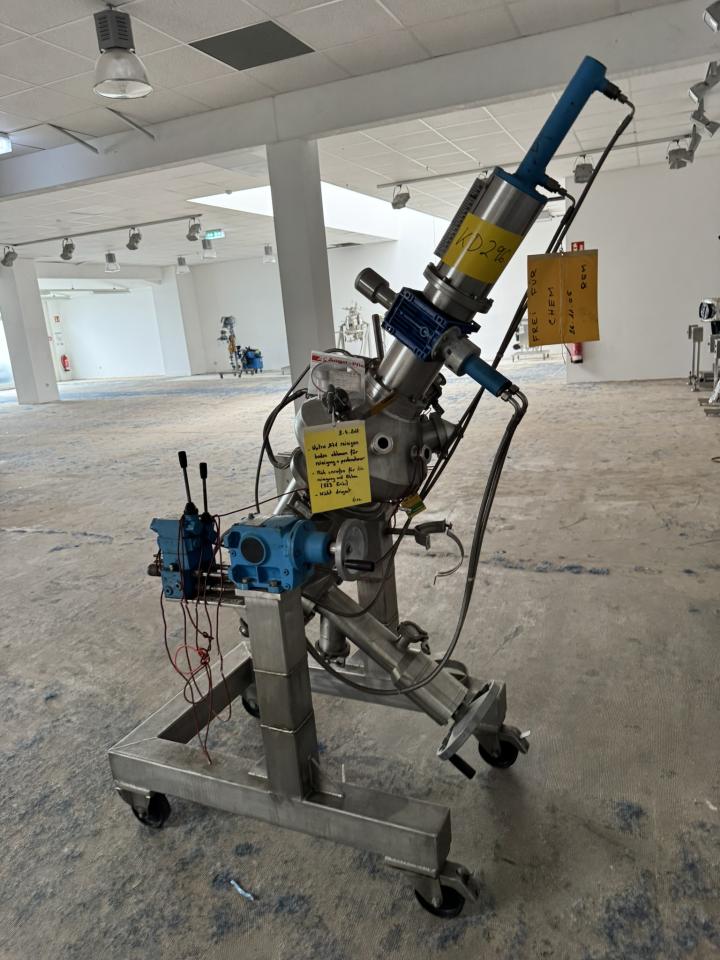

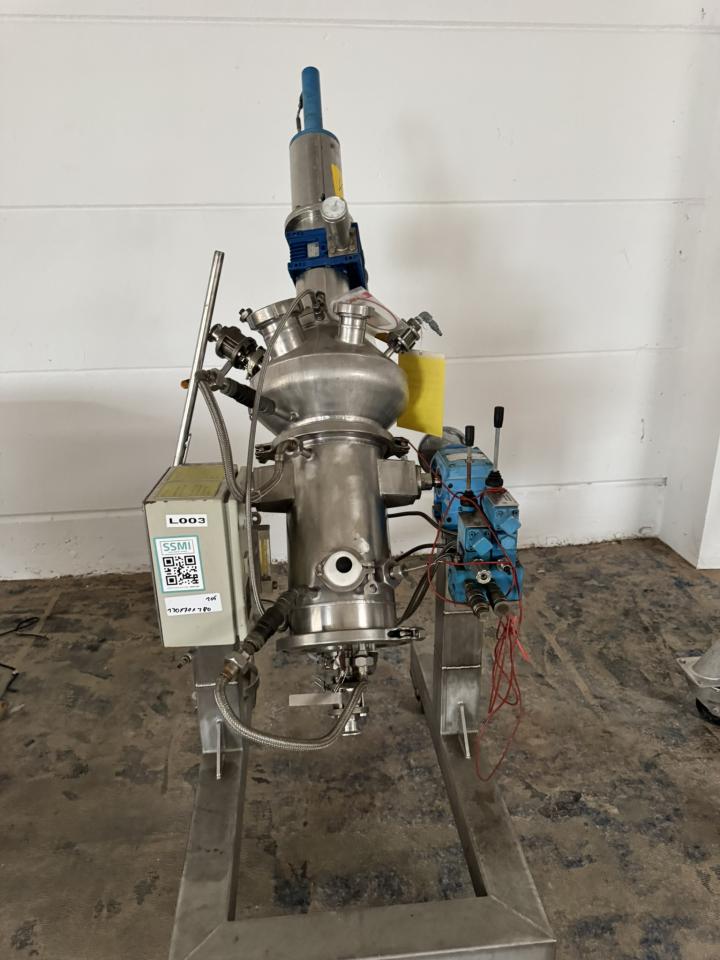

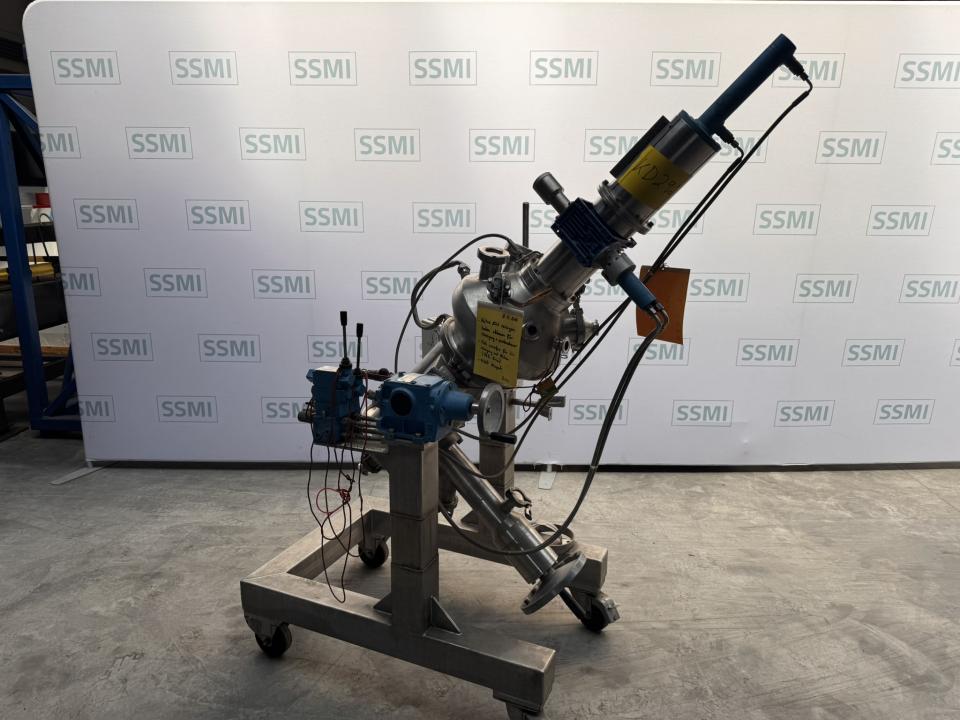

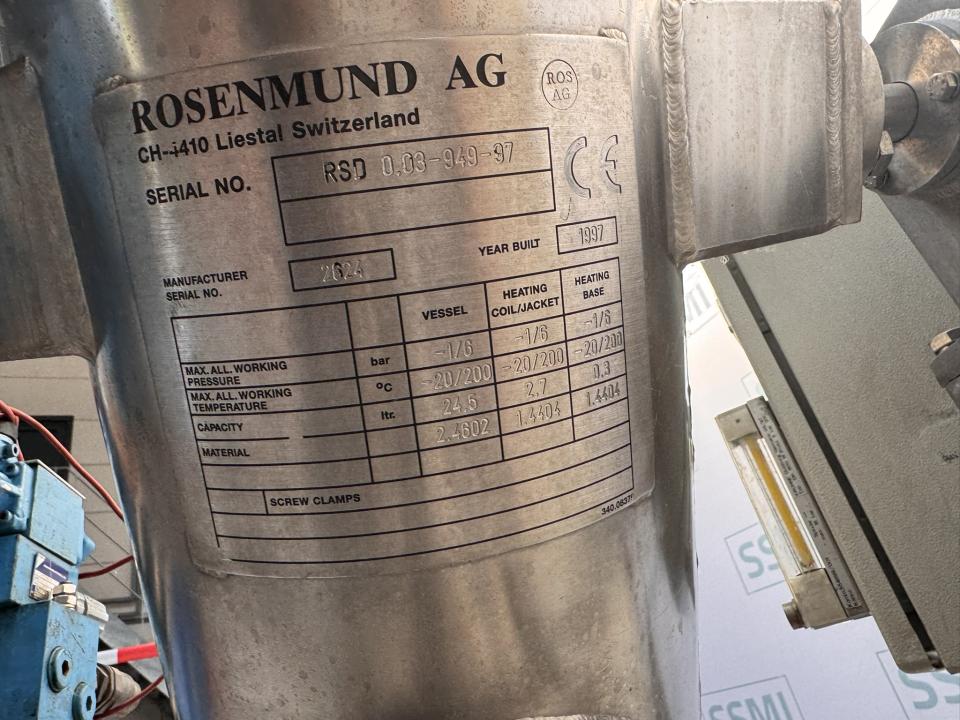

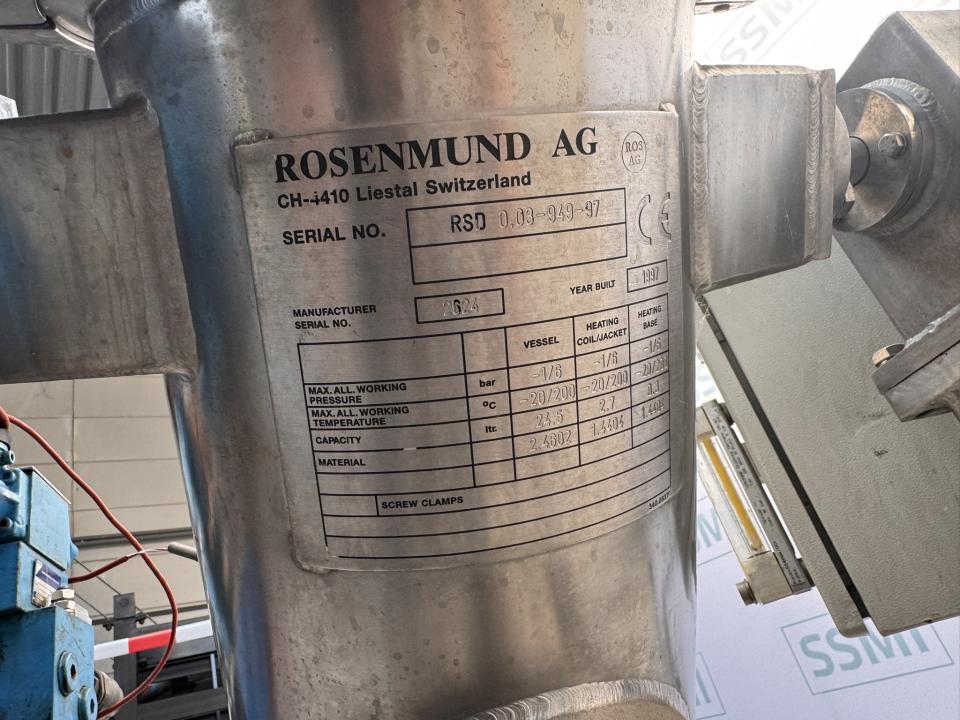

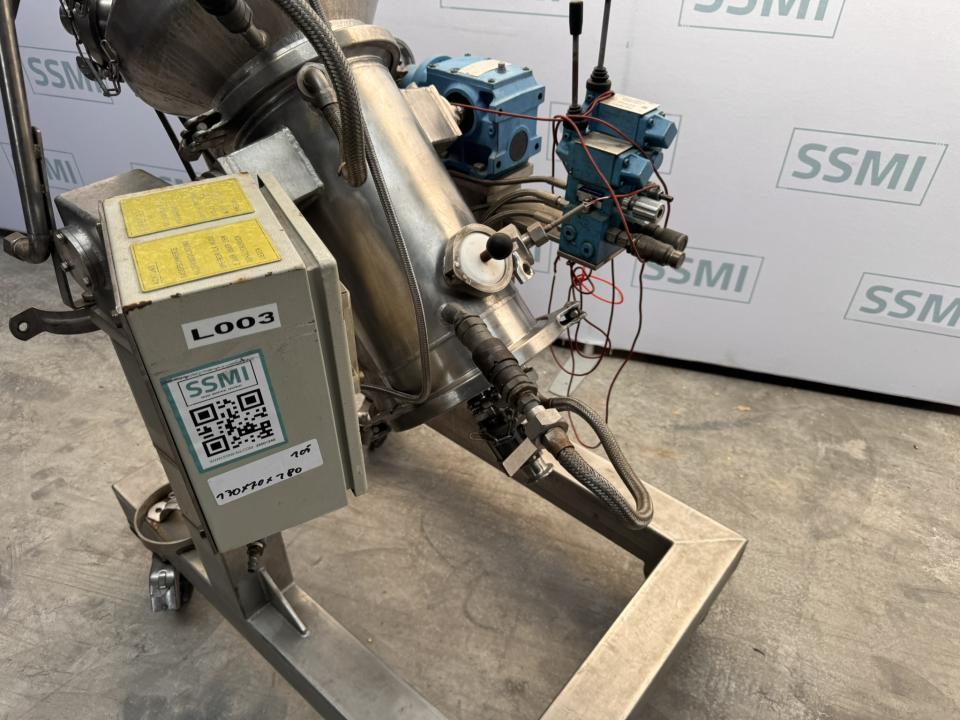

Item Information visible on plate Manufacturer ROSENMUND AG Location CH-4410 Liestal, Switzerland Equipment / Serial No. RSD 0,03-949-97 Manufacturer Serial No. 2824 Year Built 1997 Certification marking CE Sections Vessel / Heating Coil-Jacket / Heating Base Max. allowable working pressure – Vessel -1 / 6 bar Max. allowable working pressure – Heating Coil/Jacket -1 / 6 bar Max. allowable working pressure – Heating Base -1 / 6 bar Max. allowable working temperature – Vessel -20 / 200 °C Max. allowable working temperature – Heating Coil/Jacket -20 / 200 °C Max. allowable working temperature – Heating Base -20 / 200 °C Vessel capacity 24.5 L Heating coil/jacket capacity 2.7 L Heating base capacity 1.3 L Vessel material 2.4602 Heating coil/jacket material 1.4404 Heating base material 1.4404 Other marking Screw Clamps Material interpretation: 2.4602 is commonly known as Hastelloy C-22 / Alloy 22, a highly corrosion-resistant nickel alloy. 1.4404 is 316L stainless steel. Short description: A 1997 Rosenmund AG RSD process vessel, approximately 24.5 litres, designed for vacuum/pressurized operation up to approximately 6 bar and temperatures from -20 °C to 200 °C. The product-contact vessel is constructed from corrosion-resistant 2.4602 (Alloy C-22), while the heating jacket/base are 1.4404 (316L stainless steel). It is equipped with a heating jacket/base for temperature-controlled processing and is suitable for demanding chemical/pharmaceutical process applications. Note: I’ve transcribed the plate directly from the photograph; a few stamped characters are relatively faint, so the original nameplate/manual should be used for safety-critical pressure or temperature verification.
