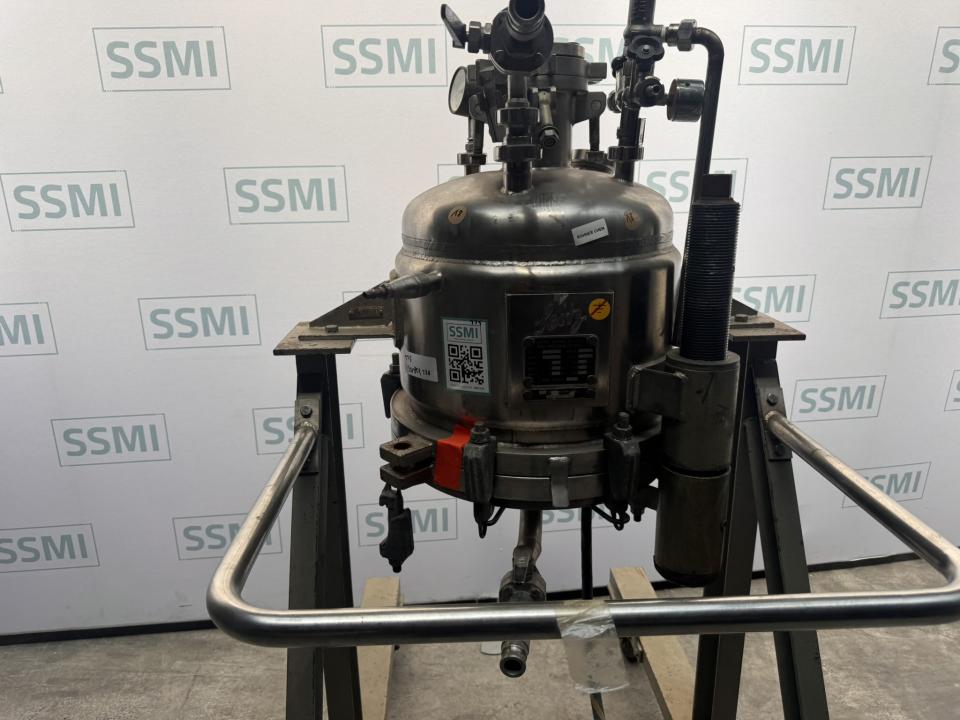

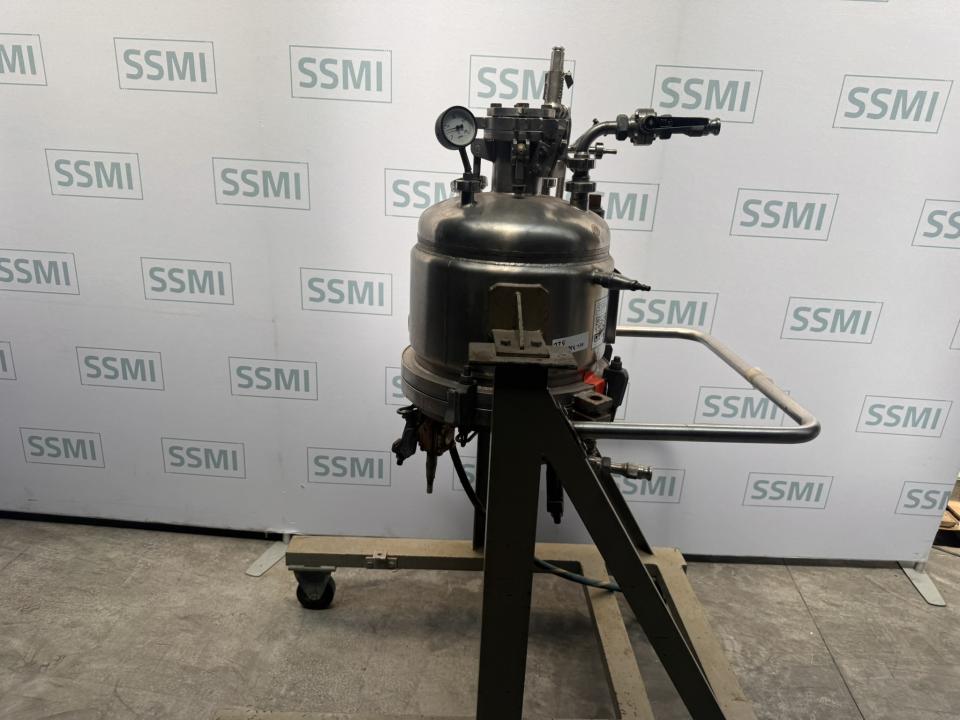

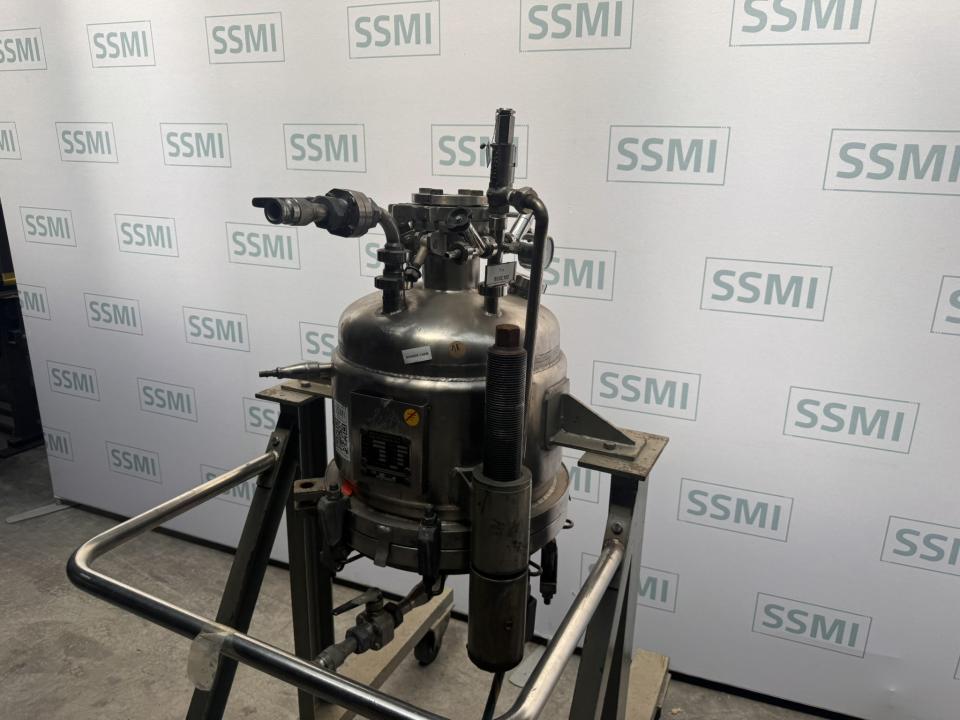

1978 Seitz werke Nutsche for Lab or Pilot Plant

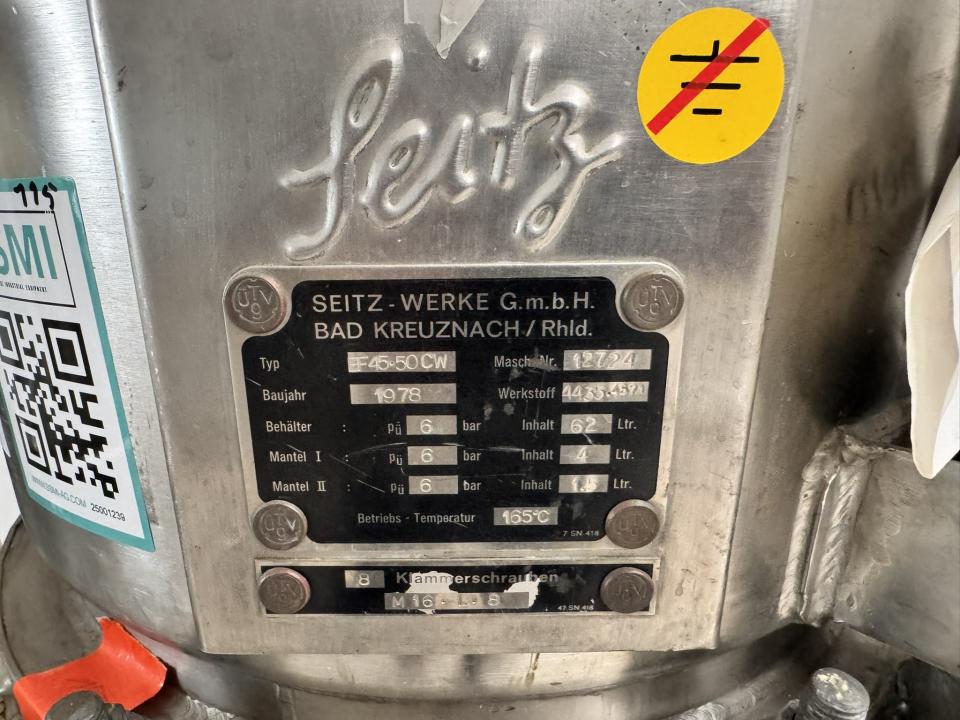

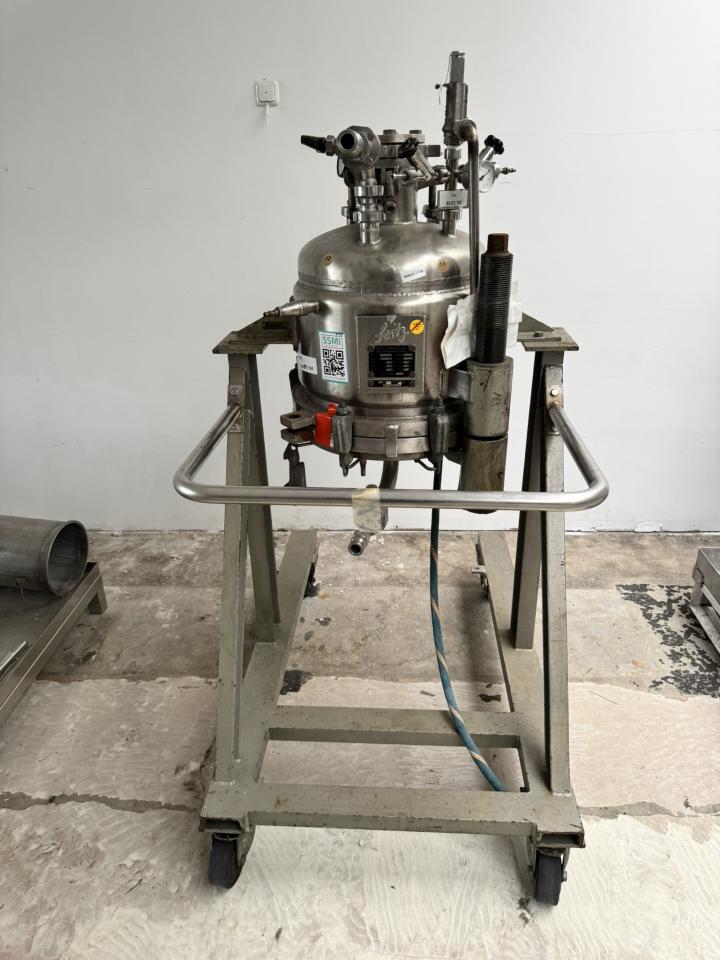

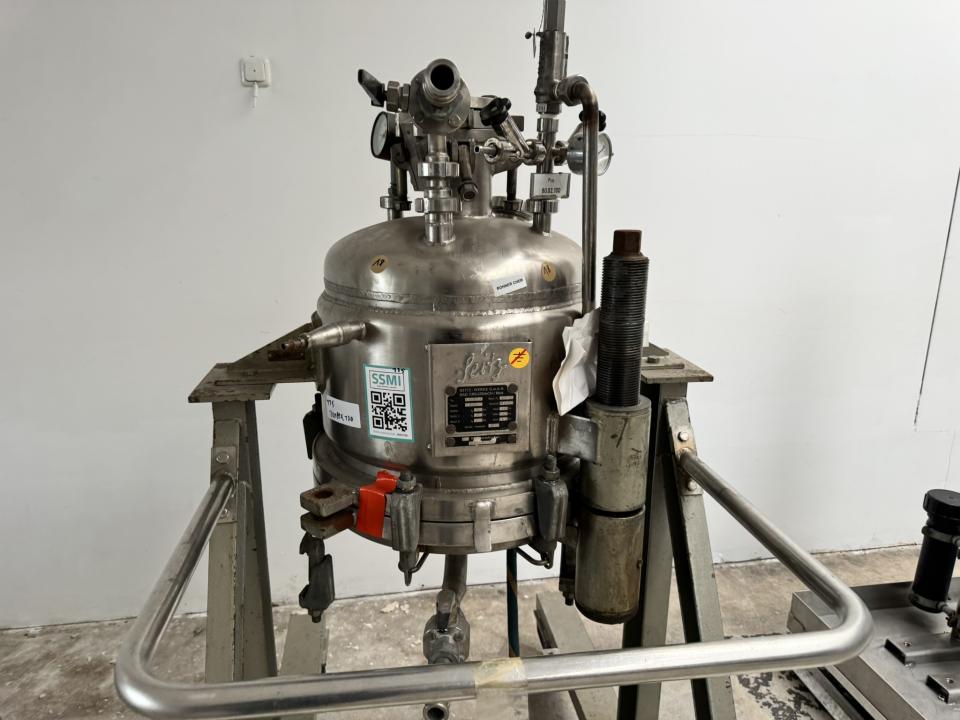

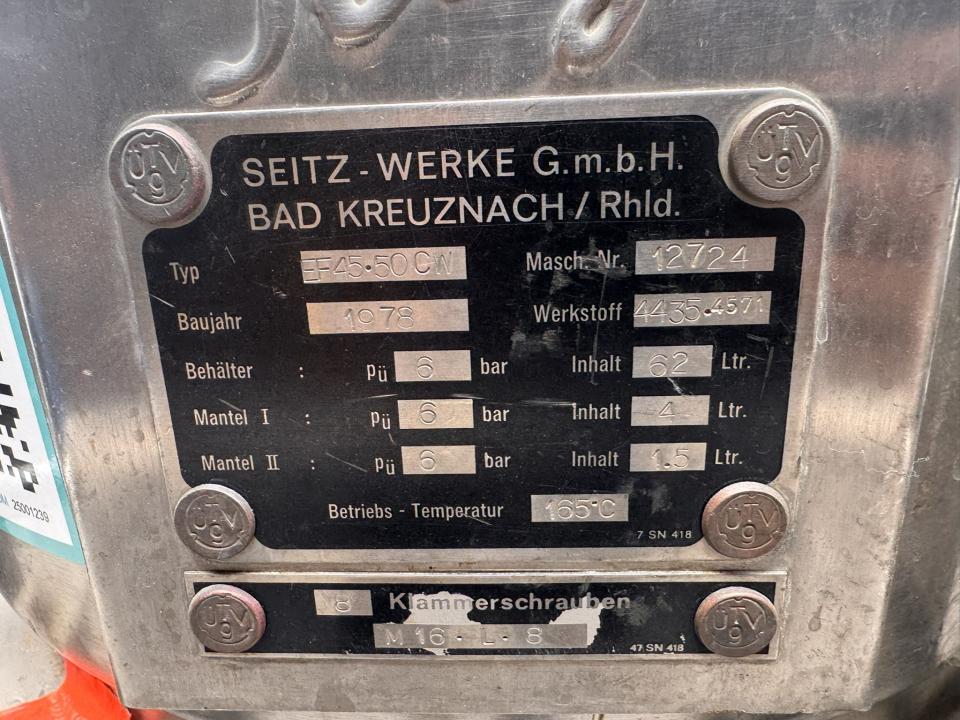

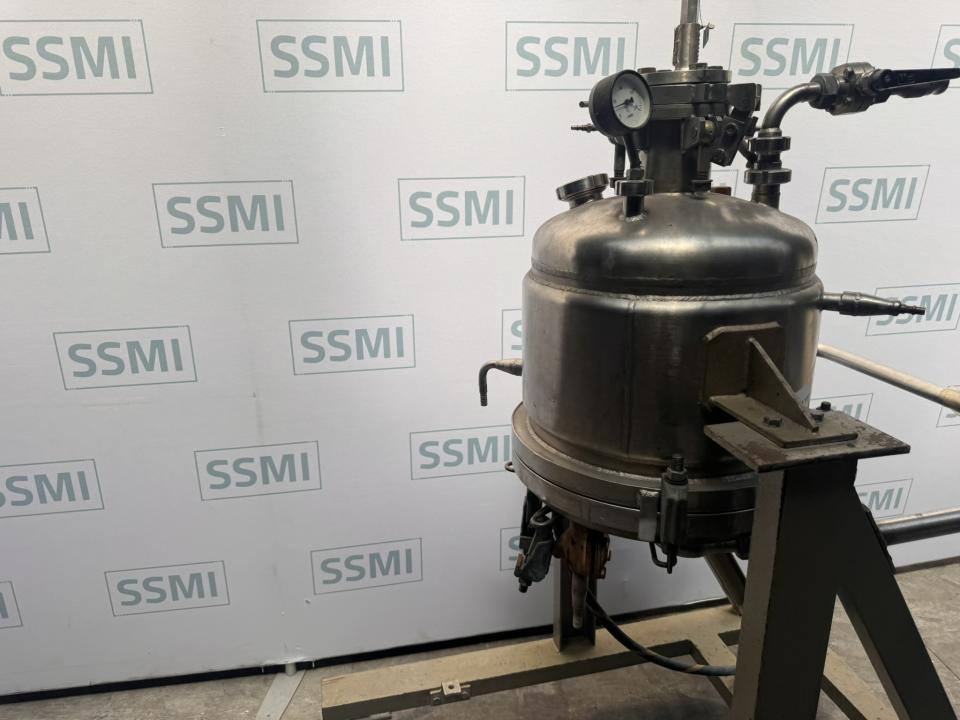

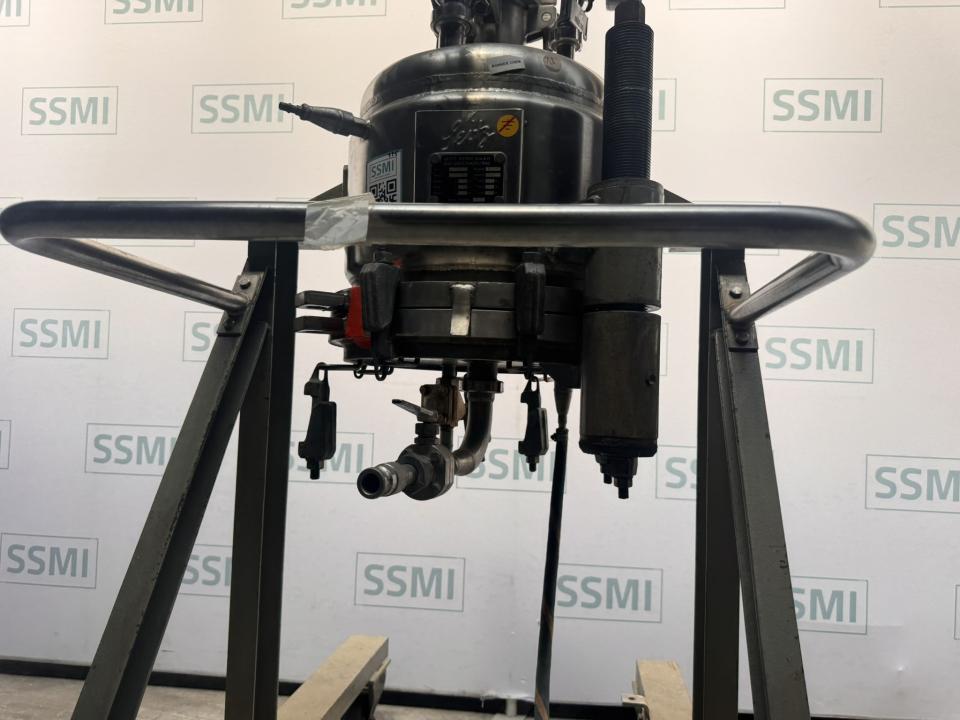

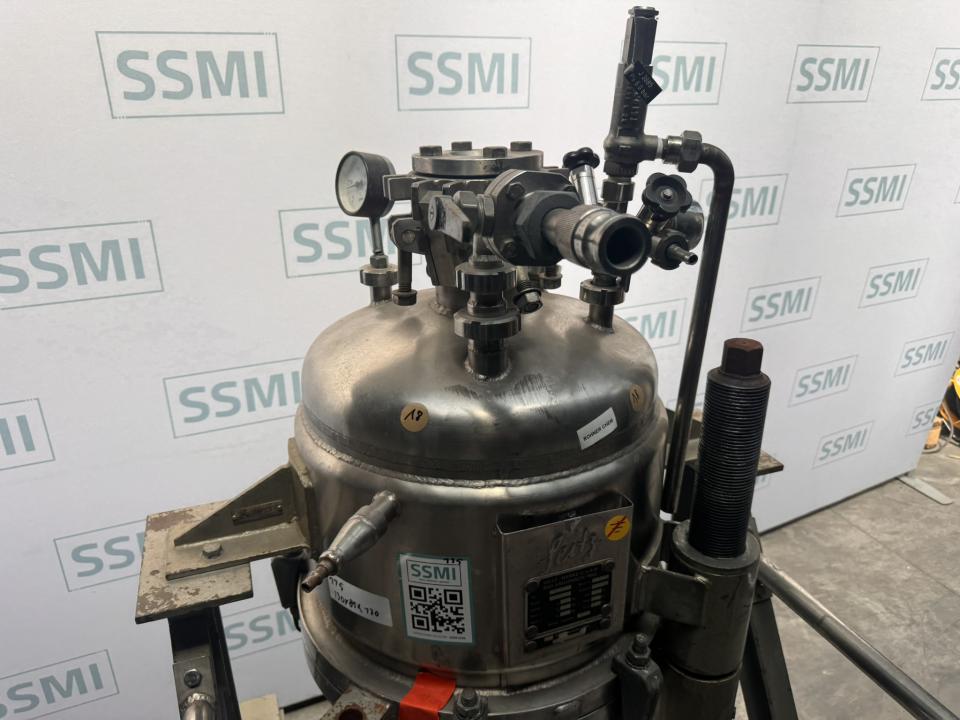

SEITZ Nutsche for Lab or Pilot Plant, 6bar, 62 liters, max. 165 ^C A 1978 Seitz-Werke F 45-50 CM stainless-steel jacketed process/filtration vessel, with a 62-litre main chamber and two separate jacket sections of 4 L and 1.5 L. The plate indicates 6 bar for the vessel and both jackets, with an operating temperature of 165 °C. Constructed from 1.4435 / 1.4571 stainless steel, this type of equipment is suitable for pharmaceutical, chemical, food, or other sanitary process applications, particularly where filtration and controlled heating/cooling are required. Item Information visible on plate Manufacturer Seitz-Werke GmbH Location Bad Kreuznach / Rheinland, Germany Type / Model F 45-50 CM Machine No. (Masch. Nr.) 12724 Year built (Baujahr) 1978 Material (Werkstoff) 4435-4571, apparently referring to 1.4435 / 1.4571 stainless steels Main vessel capacity 62 L Jacket I capacity 4 L Jacket II capacity 1.5 L Main vessel pressure (Pü) 6 bar Jacket I pressure (Pü) 6 bar Jacket II pressure (Pü) 6 bar Operating temperature 165 °C Clamp screws 8 Clamp screw marking Appears to be M16 – L – 8
