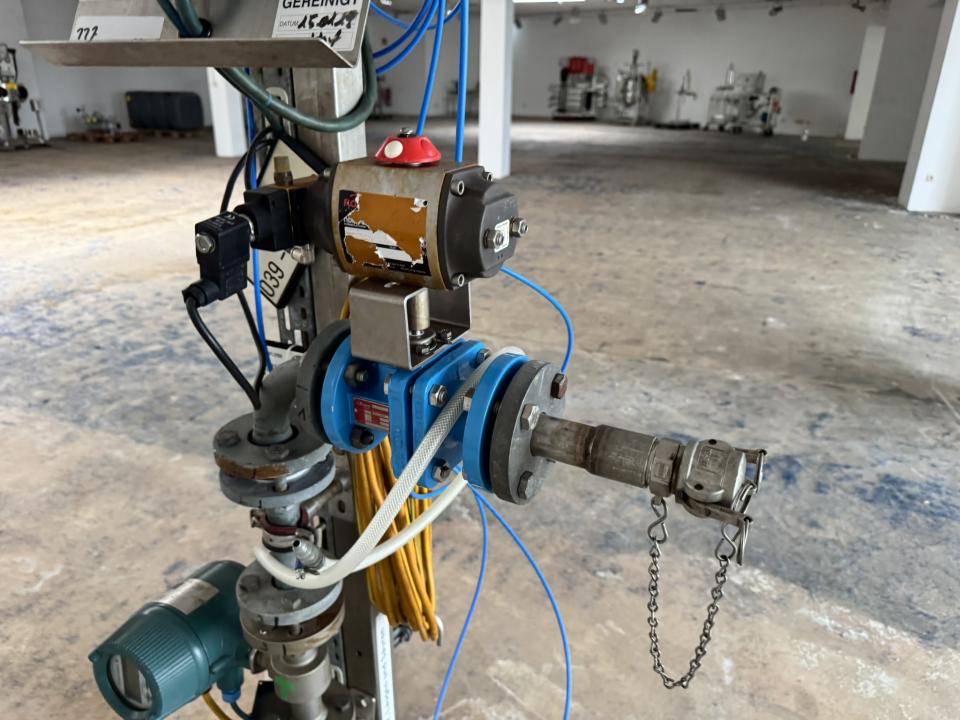

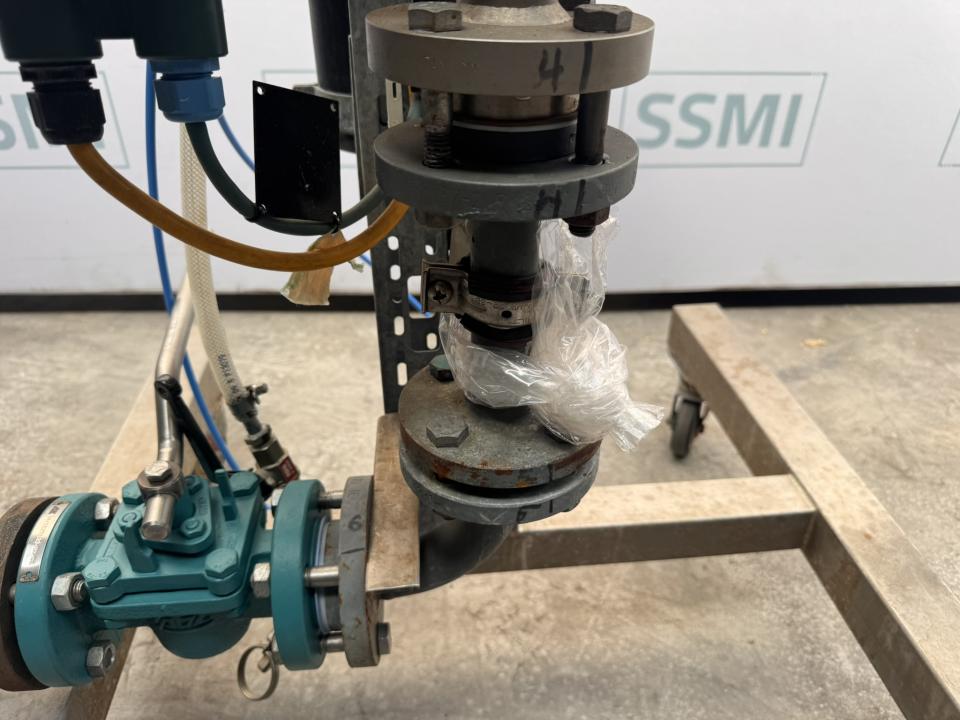

Gönnheimer Mobile flow-controlled dosing unit

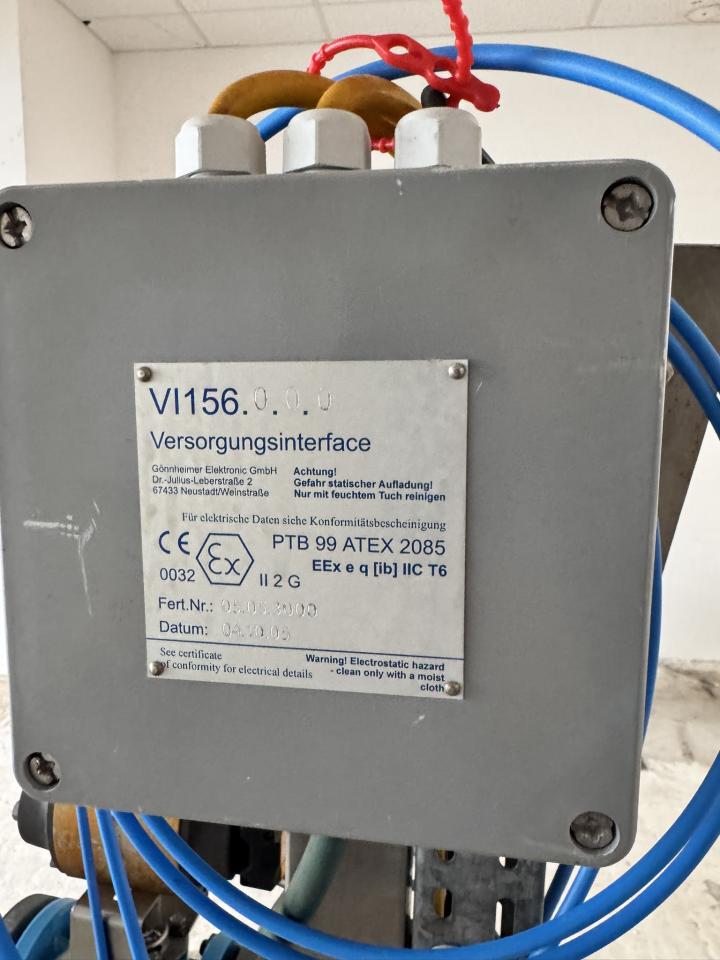

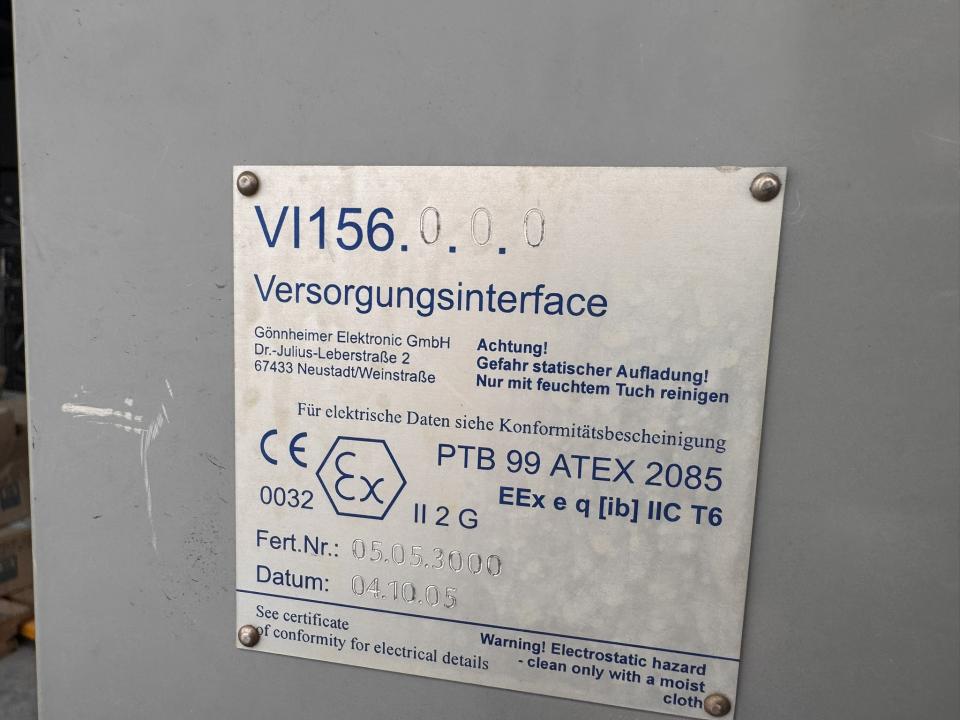

An ATEX-certified electrical supply/interface unit (Versorgungsinterface) manufactured by Gönnheimer Elektronic GmbH, Germany. It is designed for use in potentially explosive gas atmospheres and incorporates explosion-protection and intrinsically safe circuitry. Typeplate information Value Manufacturer Gönnheimer Elektronic GmbH Address Dr.-Julius-Leberstraße 2, 67433 Neustadt/Weinstraße, Germany Equipment Versorgungsinterface (Supply Interface) Type / model VI156.0.0.0 Manufacturing No. (Fert.Nr.) 05.05.3000 Date 04.10.05 (4 Oct 2005) ATEX certificate PTB 99 ATEX 2085 ATEX category II 2 G Ex marking EEx e q [ib] IIC T6 CE marking CE 0032 Electrical ratings Refer to certificate of conformity ATEX interpretation: II 2 G indicates equipment for non-mining industrial applications with a high level of protection for explosive gas atmospheres (Category 2). IIC is the most demanding gas subgroup, while T6 is the temperature class, corresponding to a maximum permitted equipment surface temperature of 85 °C under the certification conditions. The protection marking EEx e q [ib] indicates a combination of explosion-protection concepts, including increased safety (e), powder filling (q) and associated intrinsically safe [ib] circuitry. Safety warning on plate: There is an electrostatic-charge hazard. The enclosure should be cleaned only with a moist/damp cloth.
